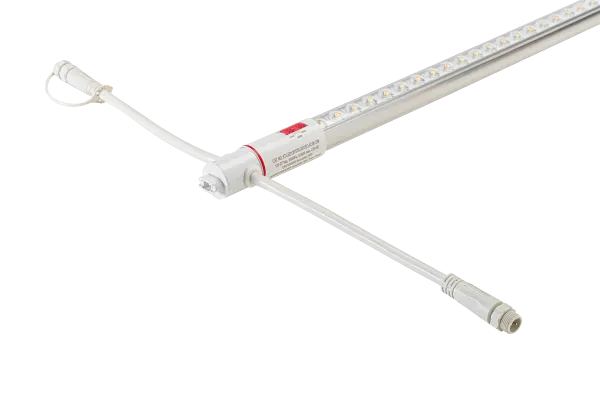

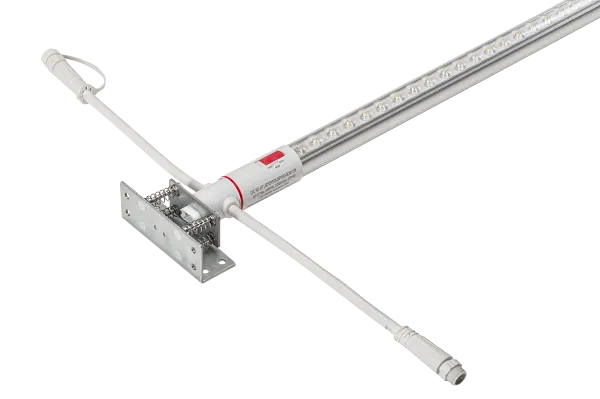

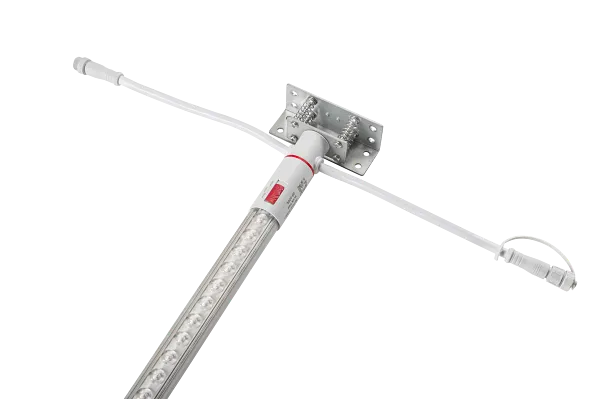

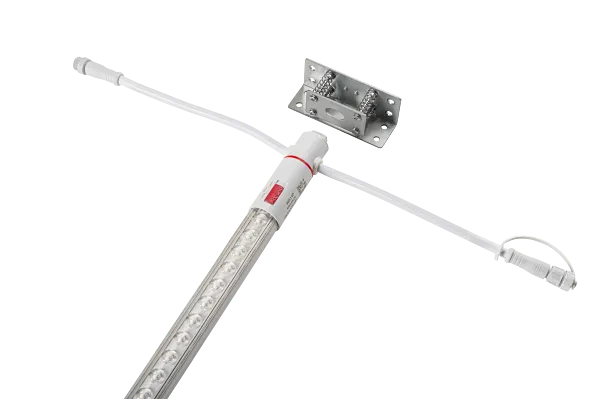

Introducing Keystone's 360° Direct Wire LED Sign Tubes. The Sign Hero Direct Wire series from Keystone is the perfect replacement for conventional T12HO and T8HO fluorescent lamps in double-sided sign applications, or as a direct-wire solution for new sign builds using mounting bracket accessories-eliminating the need for socket-powered wiring.

Featuring Keystone Power Select Technology provides 100%, 75% or 50% output for cabinet depth flexibility and Keystone Color Select Technology allowing you to switch between 4000K cool white, 5000K daylight and 6500K Daylight right on the tube. With built-in flexible waterproof connectors so no socket wiring is required and direct-wire installation with quick-connect design for simplified wiring. Integrated optical lensing ensures even light spread across the face with effective 360° beam distribution and rotatable end caps for precise light direction.

This item is Keystone's 120 Inch Direct Wire LED sign tube. These color selectable and wattage selectable sign tubes deliver between 4090-7360 lumens and runs on universal voltage of 120-277V. This product has a CRI of 80 and an operating temperature of -30°C/22°F to 55°C/131°F. This Patented LED tube measures 120" long by 1.1" in diameter and is evaluated to UL 48 / UL 879A Standards and listed in the UL SAM Manual.

Keystone Direct Wire Sign Tubes Specification Sheet

Keystone Direct Wire Sign Tubes Installation Instructions
