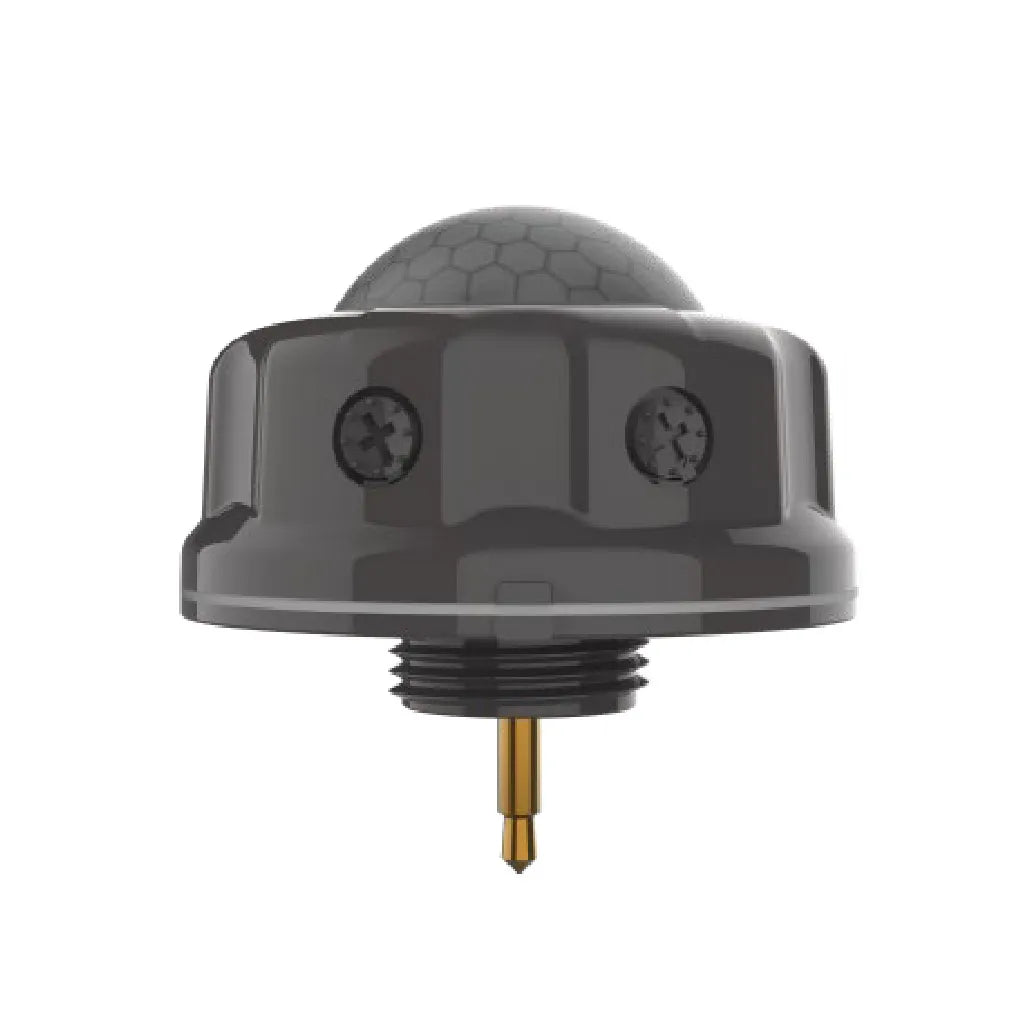

The Halco Haisen PIR Sensor is a versatile, standalone control solution designed for Hoverbay and Essential Round LED high bays. Rated for indoor and outdoor wet locations, it features a durable black housing with a 3.5mm audio pin for quick and simple installation. With built-in daylight harvesting and 0–10V dimming capabilities, this sensor helps maximize energy savings while maintaining optimal light levels for enhanced visibility and efficiency.

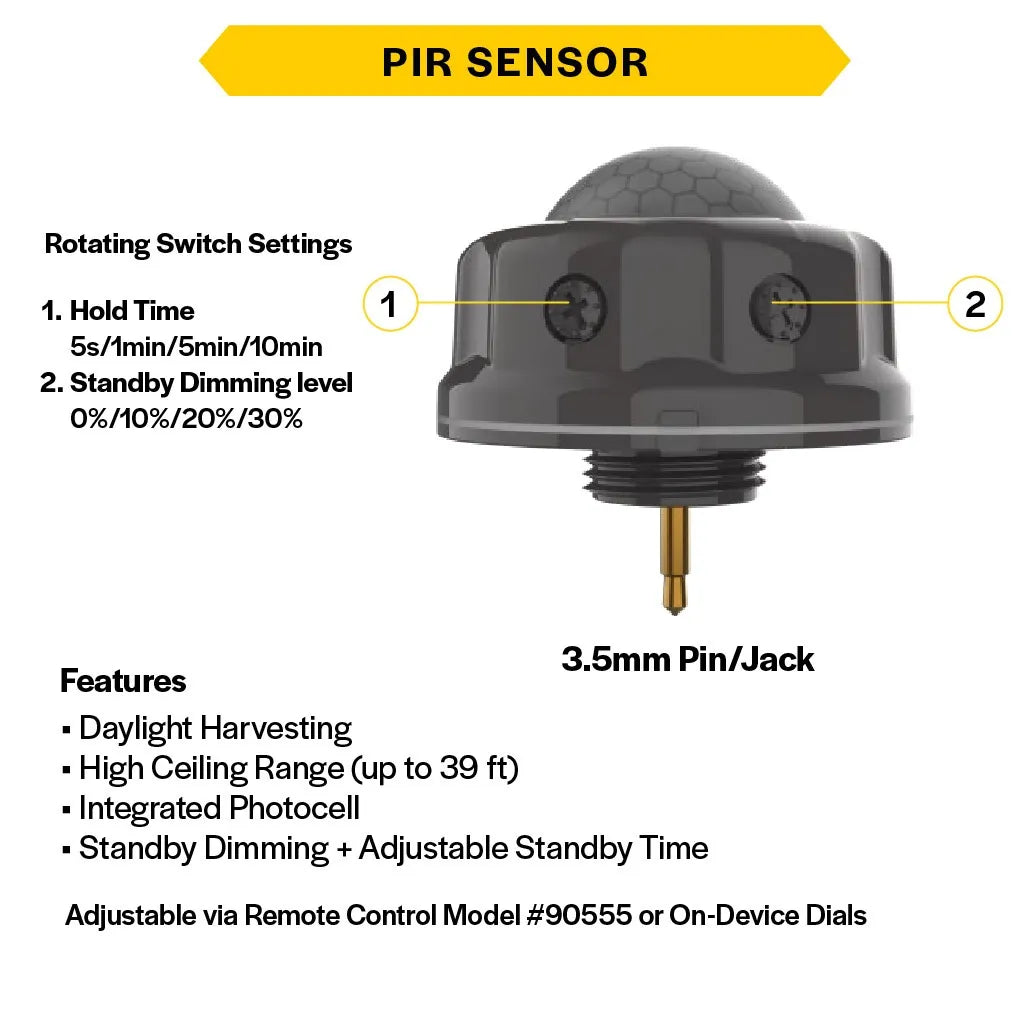

Installation and setup are simple with the convenient on-device quick dial settings, while the optional Remote 90555 (sold separately) allows full programming of all features and functions for customized performance. Designed for flexibility and control, the Halco Haisen PIR Sensor delivers reliable motion detection and advanced lighting management in one compact solution.
| Manufacturer | Halco Lighting Technologies | |
| MPN | HSN-SEN-PIR-DAY-010-3.5-BK | |
| SKU | 37314 | |
| UPC | 807154373147 | |
| Finish Color | Black | |
| Applications | Daylight Harvesting, Photocell | |
| Installation | 3.5MM Audio Pin | |
| Input Voltage | 12-24VDC | |
| Installation Height | up to 39 Feet | |
| Detection Distance | up to 9 Feet | |
| Detection Angle | Fresnel Lens ≤120° | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) | |
| Environment | Wet Location Rated | |
| Certifications | UL Listed, FCC, RoHS, IP65 | |
| Warranty | 5 Year | |
