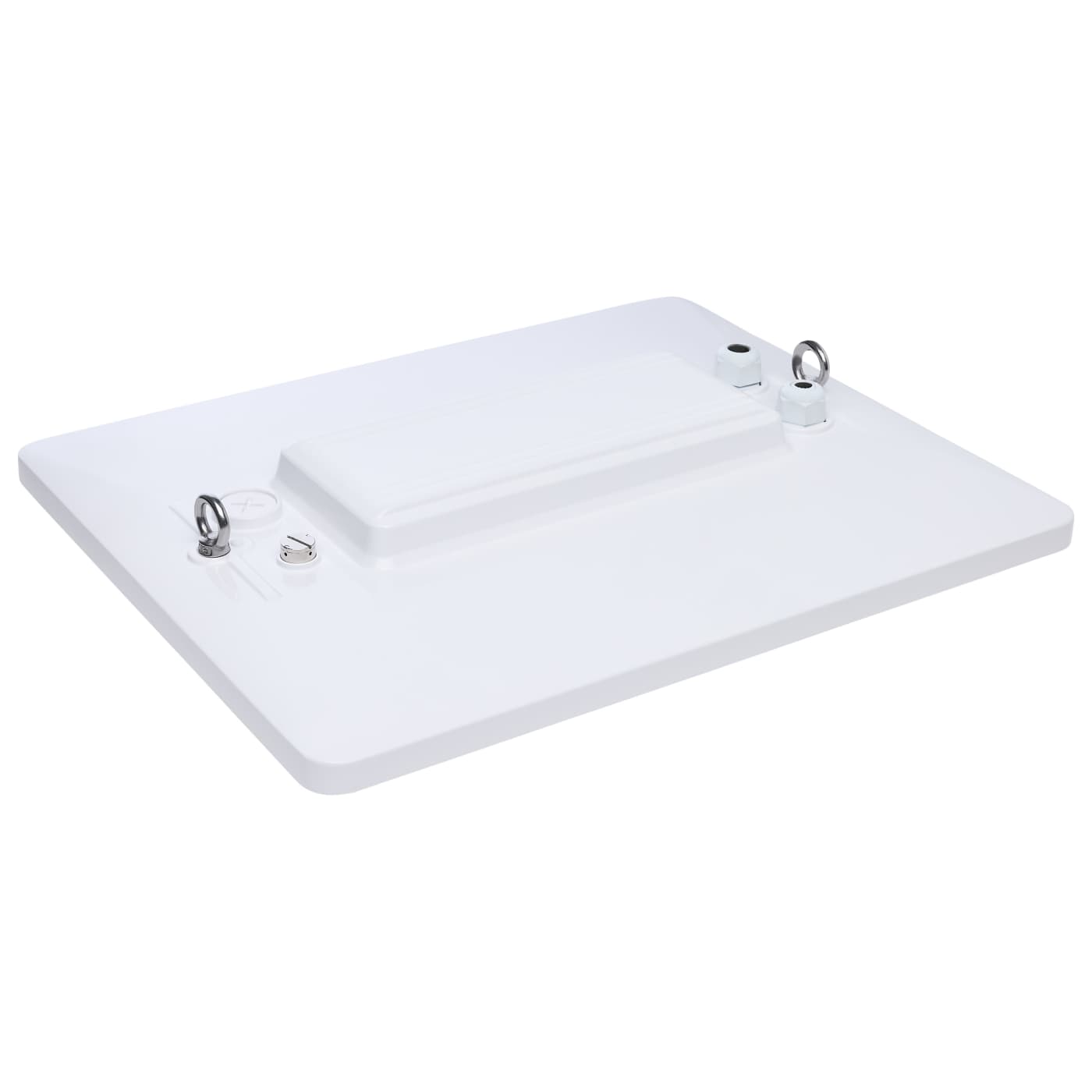

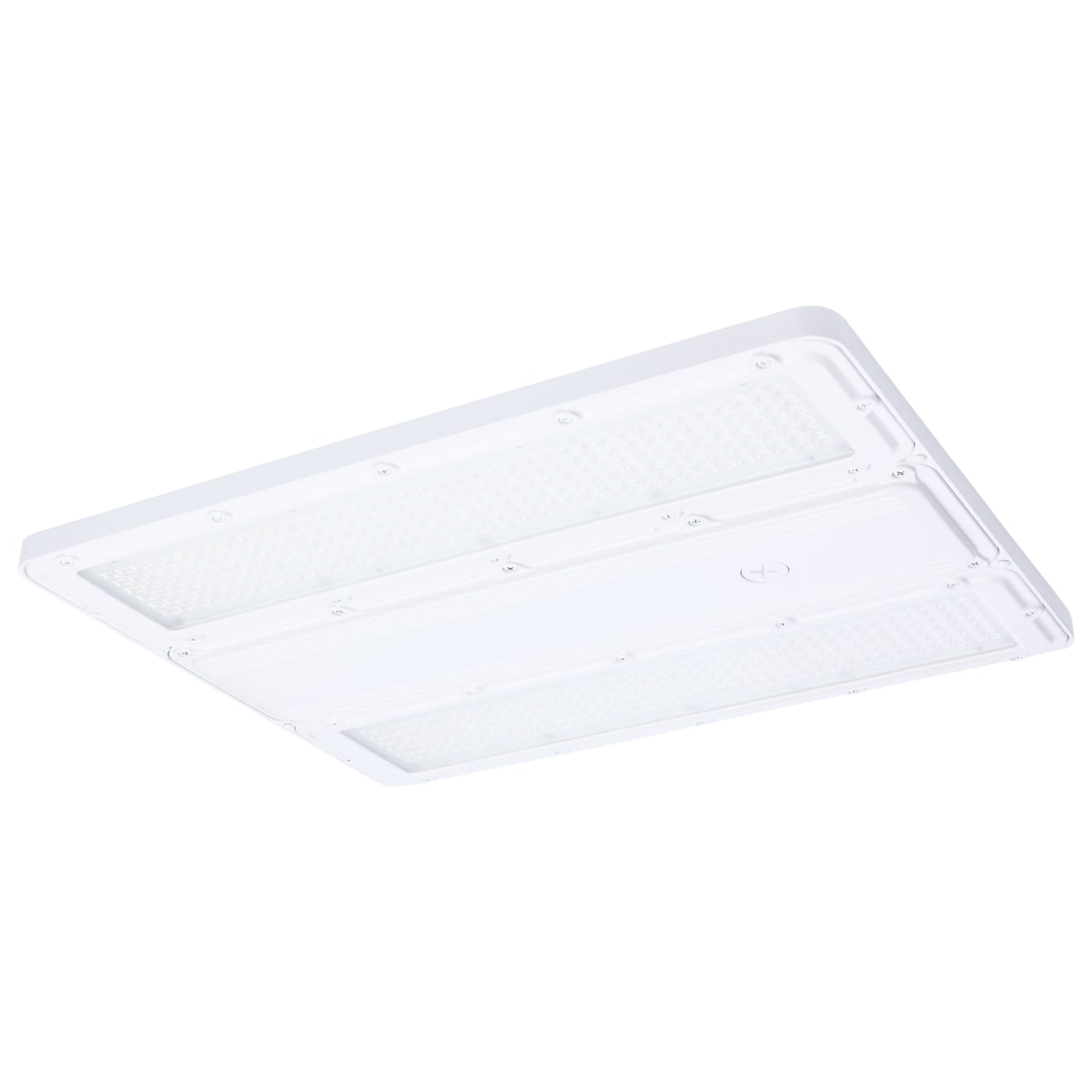

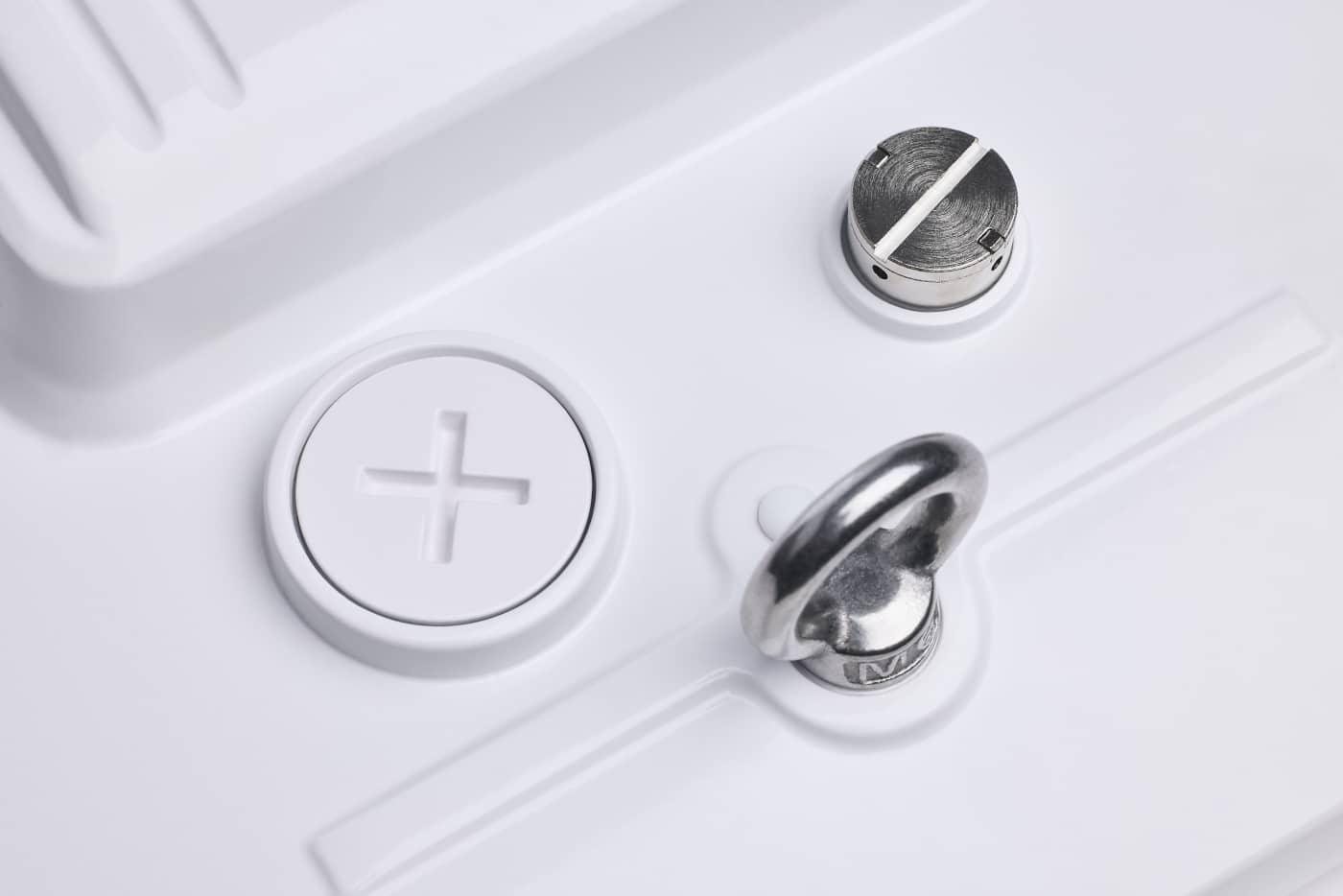

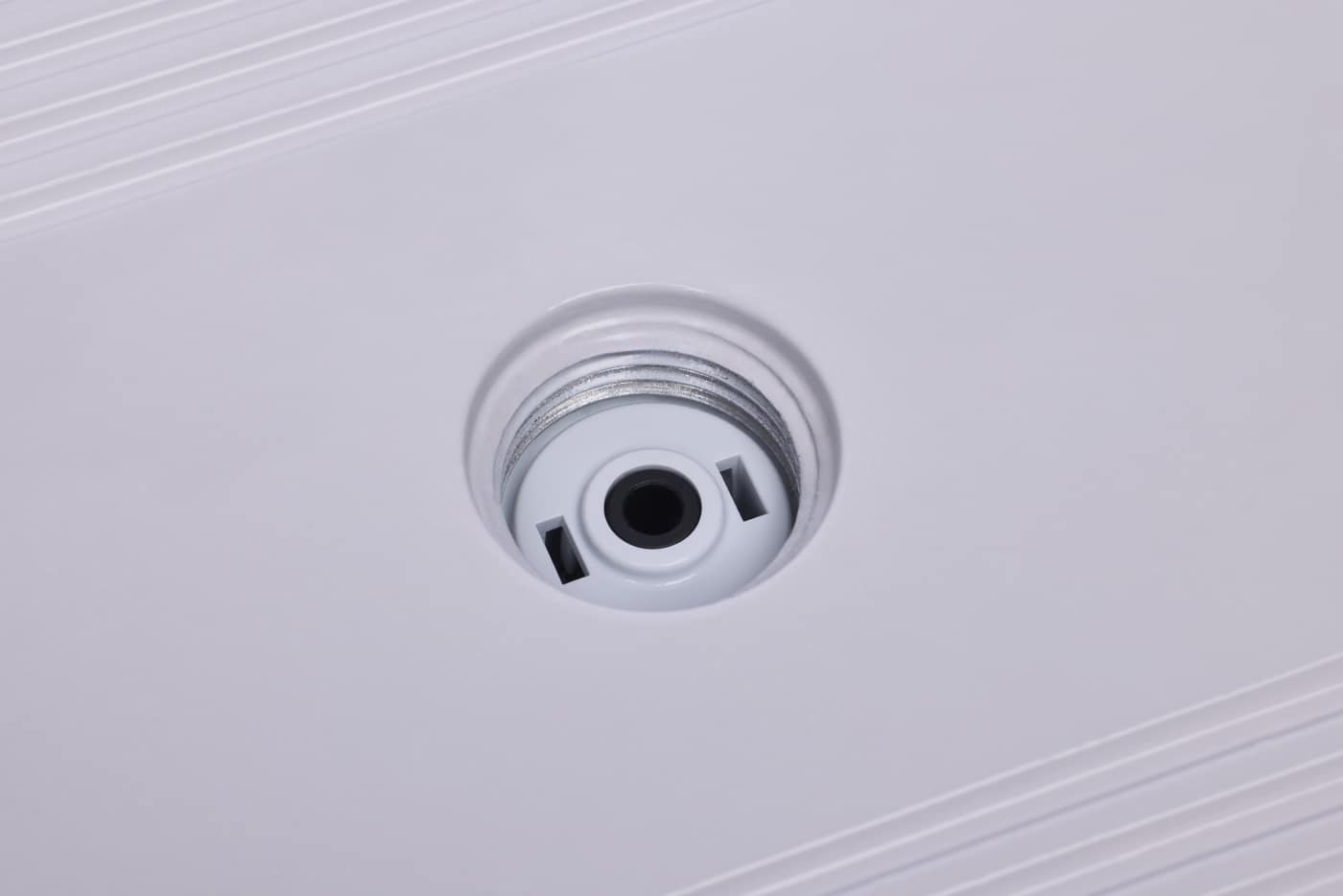

The SATCO|NUVO Linear IP69K High Bays are engineered for demanding environments requiring high-performance illumination and washdown durability. Available in four wattage-selectable packages across two housing sizes, these fixtures also feature CCT Selectability (3000K/4000K/5000K) to provide flexibility at installation. Operating on 120-347 volts, each unit is designed for reliability in harsh conditions with an IP69K rating, IK10 impact resistant polycarbonate lens, 6kV surge protection, and an operating temperature range of -40°C to 55°C. Ideal for thermal washdown applications including food processing and agricultural facilities, these NSF rated high bays are sensor ready with an integrated 3.5mm auxiliary port and include suspension chains and hooks for installation. Optional accessories such as stainless-steel protective cages, yoke mounts, and an emergency battery backup module expand versatility, while DLC Premium 6.0 qualification supports energy efficiency rebate opportunities.

The SATCO|NUVO 65-1171 LED Washdown Linear High Bay consumes selectable 120/135/160 watts of 120–347-volt energy. These high bays are 0-10V dimmable and will produce between 19,900-26,000 Lumens of light output.  These DLC Premium Listed fixtures are IP69K Wet Location and NSF rated and carry a 5-Year Warranty.

Satco LED Washdown Linear High Bay Specification Sheet

Satco LED Washdown Linear High Bay Installation Instructions

Satco LED Washdown Linear High Bay DLC Product Listing
