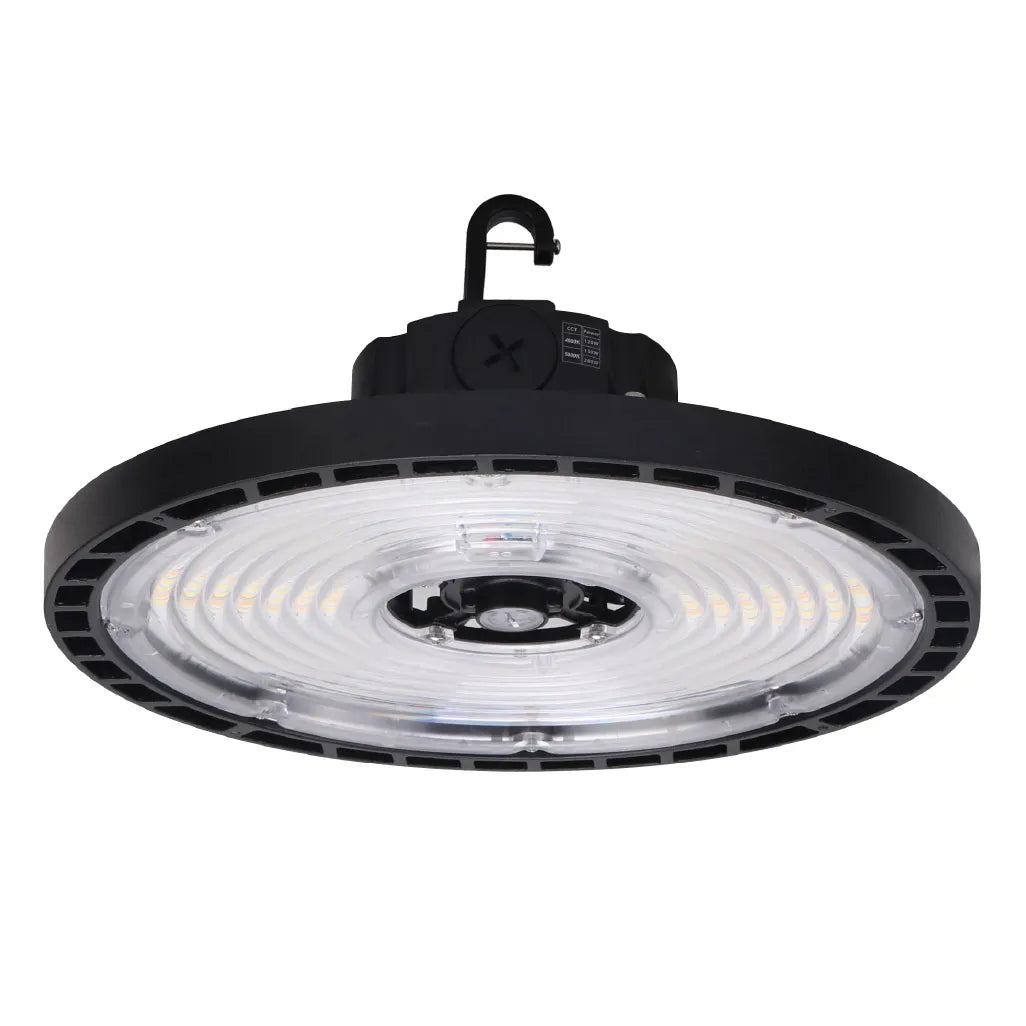

The Halco NextGen LED Essential Round High Bay delivers an ideal combination of performance, efficiency, and value for warehouses, gymnasiums, big box retail, showrooms, and other commercial or industrial applications. Featuring selectable wattages of 120W, 150W, or 200W and field-selectable 4000K or 5000K color temperatures, this versatile fixture adapts easily to a variety of project requirements while operating on 120-277V with smooth 0-10V dimming capability. Designed for high lumen efficacy and long-term reliability, it offers a 100,000-hour rated life backed by a 5-year warranty.

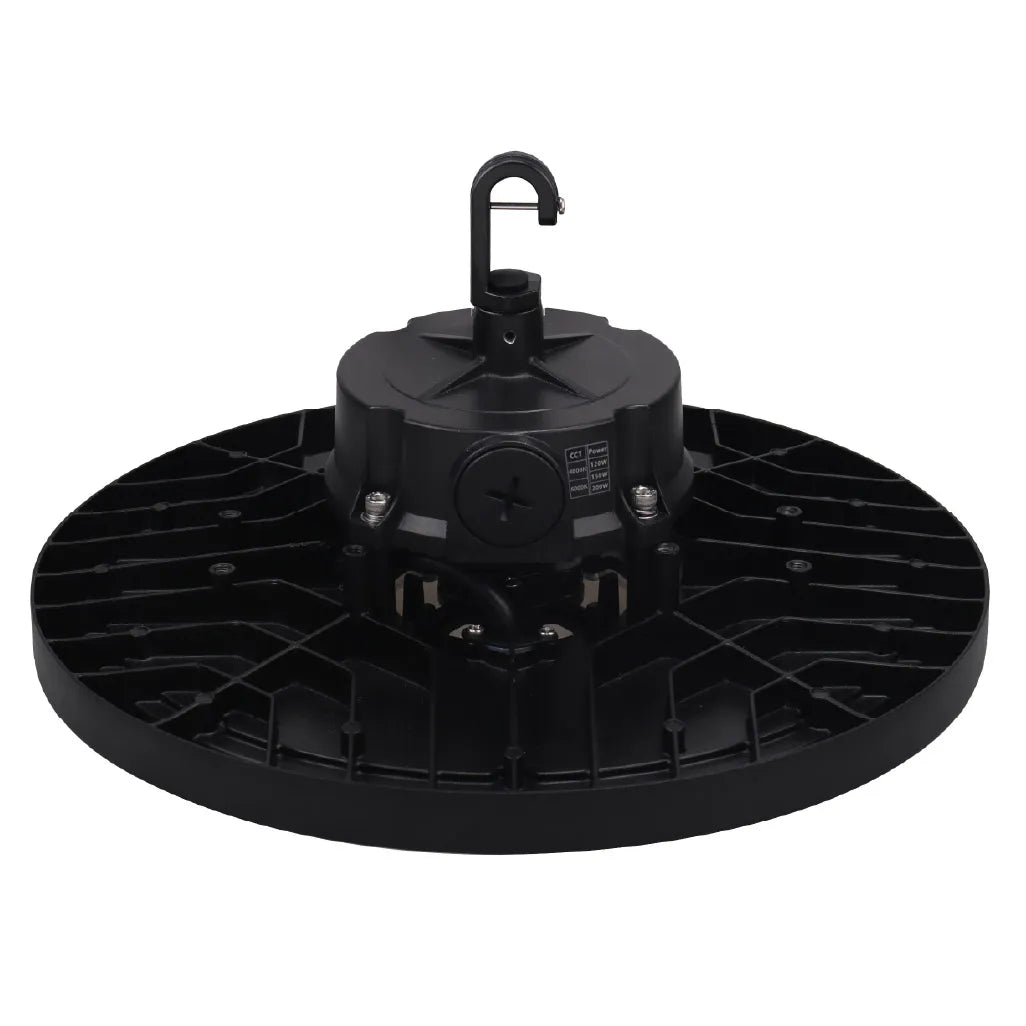

Constructed with a rugged die-cast aluminum housing finished in a durable black powder coat and paired with a tough polycarbonate lens, the fixture is built to withstand demanding environments with an IP65 wet location rating. Installation is quick and flexible with the included 1/2" steel hook and 6-foot cord, while a built-in 3.5mm receptacle supports optional motion sensors for enhanced energy savings and lighting control. Optional surface-mount U-bracket and pendant adapter accessories provide additional mounting versatility for a wide range of installation needs.
| Manufacturer | Halco Lighting Technologies |
| MPN | ERHB-3-LS-CS-U |
| SKU | 37312 |
| UPC | 807154373123 |
| DLC Product ID | S-JXYTTH |
| Lighting Technology | LED |
| Wattage | 120/150/200 Watts |
| Voltage | 120-277V |
| Color Temperature (Kelvin) | 4000K/5000K |
| Lumens | 19,600/23,100/29,500 Lumens |
| Efficiency (Lumens Per Watt) | 147-158 lm/W |
| Dimmable | Yes, 0-10V Dimming |
| Beam Angle | 90 Degree |
| Rated Life | 100,000 Hours |
| CRI (Color Rendering Index) | >80 CRI |
| Power Factor | >0.9 |
| Finish Color | Black |
| Finish | Powder Coated |
| Housing | Die-Cast Aluminum |
| Lens | Polycarbonate Lens |
| Metal Halide Equivalent | 400W MH |
| Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
| Dimensions | 11.81" Diameter x 6.81" H |
| Certifications | UL, cUL, DLC Premium, IP 65, RoHS, FCC |
| Environment | Wet Location Rated |
| Warranty | 5 Year Limited |
