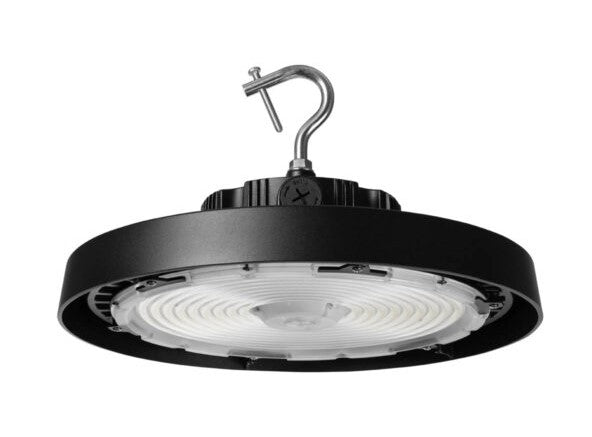

Replace up to 6 standard fixtures with just 1! This Fully Selectable LED Round High Bay features both selectable lumens and color temperature, which reduces stocking complexity and provides additional flexibility for contractors. This easy-to-install fixture is the perfect 1-to-1 solution when replacing existing HID lighting. The heavy duty, die-cast aluminum housing provides a sturdy and durable structure and aids in heat dissipation, extending both LED and driver life.
This versatile LED round high bay, part number ORRHS18-30LXX, is available in selectable wattages of 120, 160, or 200 watts, making it an ideal replacement for 175, 250, or 400 watt metal halide fixtures. It delivers a high-quality 80 CRI output with a selectable color temperature of 4000K or 5000K, giving you the flexibility to dial in the right light for your space. The fixture operates on a wide voltage range of 120–277V and supports 0–10V dimming for precise light level control.

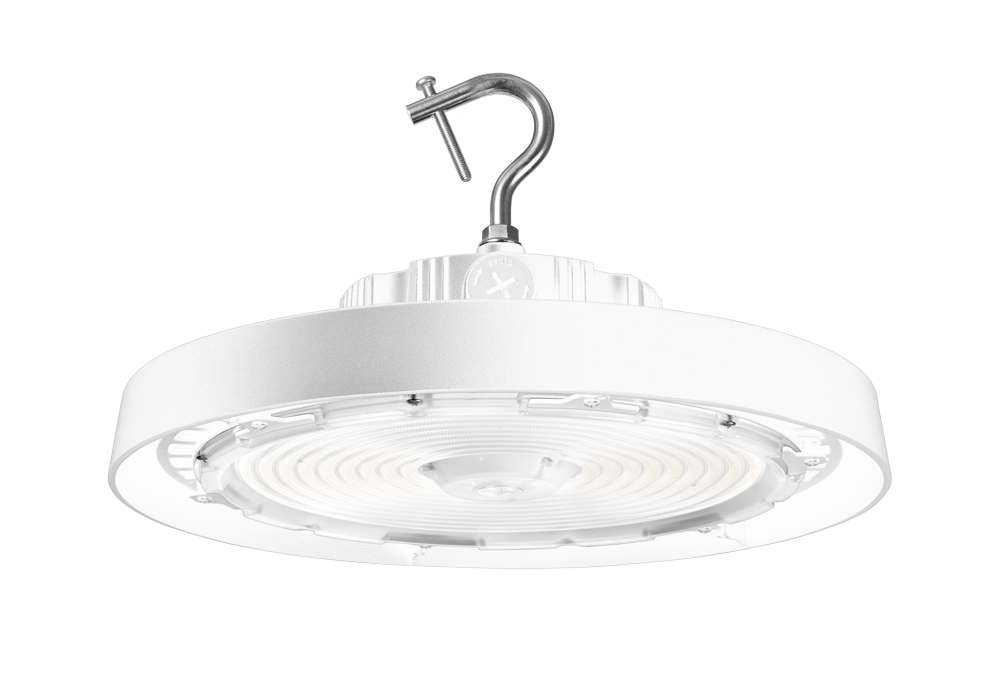

Designed for straightforward installation, the high bay features a J-hook mounting system and is center motion mount capable, accommodating a variety of ceiling configurations. A 6-foot power cord is included. The durable UV-stabilized powder-coated exterior resists corrosion and stands up to demanding environments, while the polycarbonate lens provides reliable protection. Available in both Black and White finishes to suit your facility's aesthetic.
Built for longevity, the long-life LEDs are rated for 50,000 hours of operation while maintaining at least 70% of initial lumen output (L70). The fixture carries an IP65 rating for dust and moisture resistance and is DLC Premium Listed, qualifying it for utility rebate programs. Backed by a 5-year warranty for added peace of mind.
| Manufacturer | Atlas Lighting | |
| Finish Color | Black | White |
| Color Temperature (Kelvin) | 4000K Cool White | 5000K Daylight |
| MPN | ORRHS18-30L | ORRHS18-30LWT |
| SKU | ORRHS18-30L | ORRHS18-30LWT |
| Lumens | 19,382/25,458/30,544 | 19,109/24,420/30,000 |
| Efficiency (Lumens Per Watt) | 168/162/157 LPW | 161/153/150 LPW |
| DLC Product ID | S-1D6CFB | |
| Lighting Technology | LED | |
| Wattage | 120/160/200 Watt | |
| Voltage | 120-277V | |
| Dimmable | 0-10V Only | |
| Rated Life | 50,000 Hours | |
| CRI (Color Rendering Index) | 80 CRI | |
| Construction | Die Cast Aluminum | |
| Lens | Polycarbonate | |
| Metal Halide Equivalent | 175/250/400 Watt | |
| Operating Temperature | -20°C to 50°C | |
| Dimensions | 7.8" H x 13.4" W | |
| Environment | Wet Location Rated | |
| Certifications | DLC Premium Listed, IP65 | |
| Warranty | 5 Years | |
| Wattage | 120 Watts | |
| Color Temperature (Kelvin) | 4000K Cool White | 5000K Daylight |
| Lumens | 19,382 Lumens | 19,109 Lumens |
| Efficacy (lm/W) | 168 LPW | 161 LPW |
| Wattage | 160 Watts | |
| Color Temperature (Kelvin) | 4000K Cool White | 5000K Daylight |
| Lumens | 25,458 Lumens | 24,420 Lumens |
| Efficacy (lm/W) | 162 LPW | 153 LPW |
| Wattage | 200 Watts | |
| Color Temperature (Kelvin) | 4000K Cool White | 5000K Daylight |
| Lumens | 30,544 Lumens | 30,000 Lumens |
| Efficacy (lm/W) | 157 LPW | 150 LPW |
