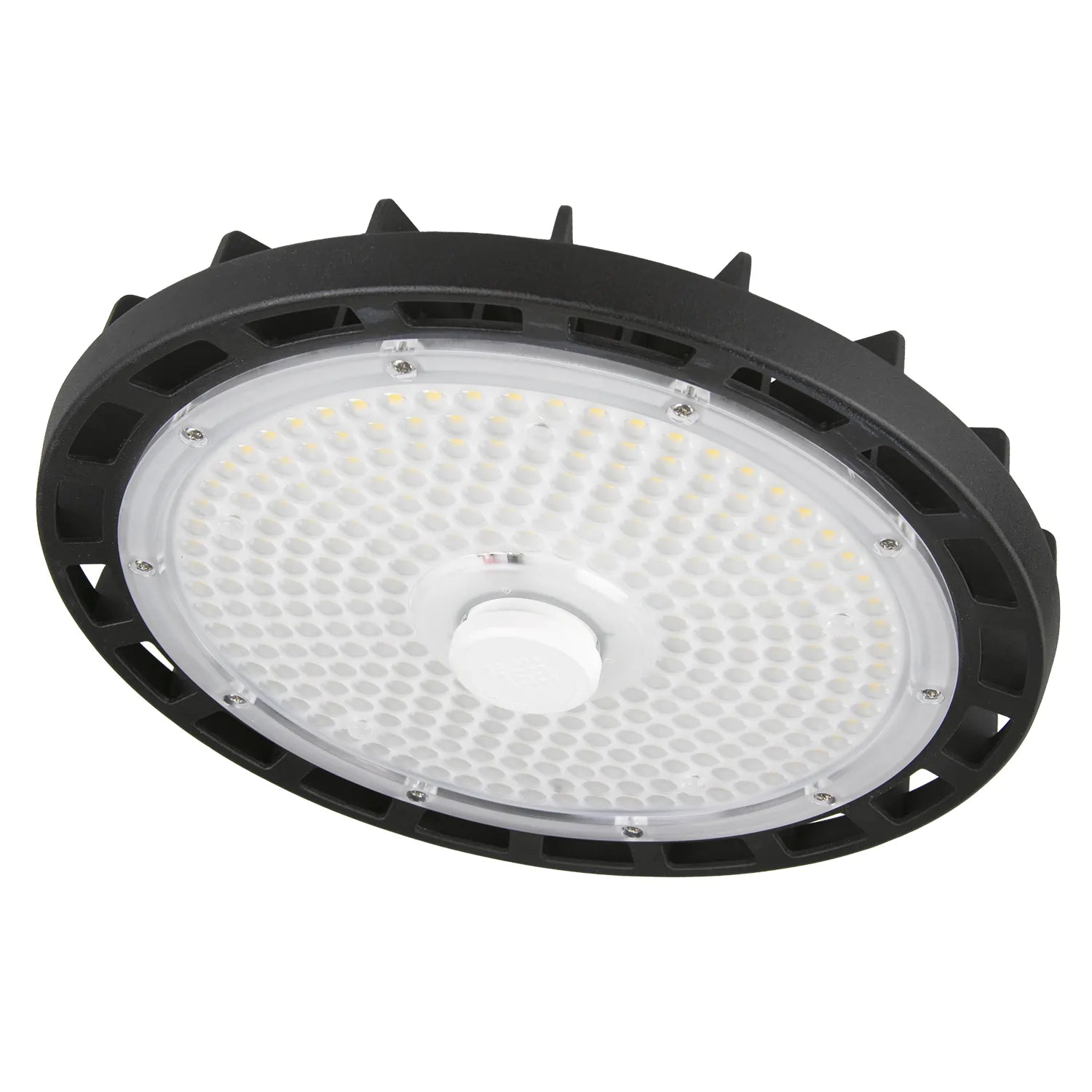

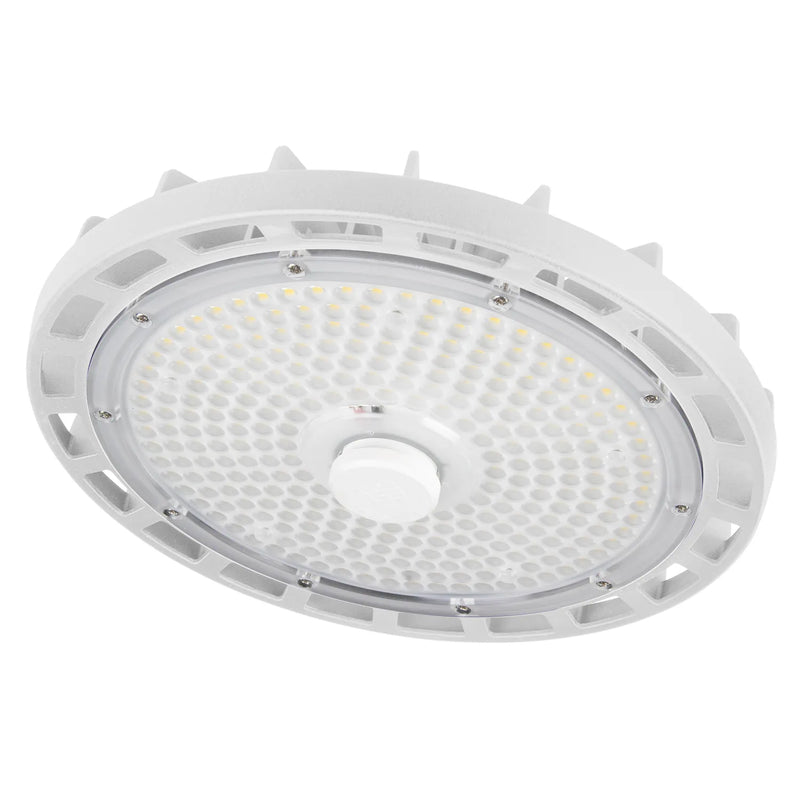

The ESL Lighting ESL-ERHB-135W-150-(XX)-90D is a 135 watt round high bay light fixture that is part of the economy series. Providing 22,080 lumens and consuming 120-277 volts of energy, this 1-10V dimmable high bay is available in black or white finish and features a power factor of 90%. It emits a 5000K Daylight color temperature and is wet location rated, DLC listed, and includes a 5 year warranty.
| Manufacturer | ESL Lighting | |
| Finish | Black | White |
| MPN | ESL-ERHB-135W-150-BK-90D | ESL-ERHB-135W-150-WH-90D |
| SKU | ESL-ERHB-135W-150-BK-90D | ESL-ERHB-135W-150-WH-90D |
| UPC | 00196065684832 | 00196065684856 |
| Lighting Technology | LED | |
| Wattage | 135 Watts | |
| Voltage | 120-277 Volts | |
| Color Temperature (Kelvin) | 5000K Daylight | |
| Lumens | 22,080 Lumens | |
| Efficiency (Lumens Per Watt) | 162 lm/w | |
| Dimmable | Yes, 1-10V | |
| Beam Angle | 90 Degrees | |
| Rated Life | 160,000 Hours | |
| CRI (Color Rendering Index) | 82 | |
| Power Factor | >0.9 | |
| THD (Total Harmonic Distortion) | <15% | |
| HID Equivalent | 250W Metal Halide | |
| Operating Temperature | -40°F to 122°F | |
| Dimensions | 10.85" Diameter x 3.95" Height | |
| Certifications | DLC Premium Listed, IP65 | |
| DLC Product ID | S-7CADOS | |
| Environment | Wet Location | |
| Warranty | 5 Year Limited | |
