Name: 150/200/240 Watt Sensor Ready 120-277V IP65 UFO High Bay Light Fixture 3000K/4000K/5000K
Brand: Westgate
SKU: UHXF-150-240W-MCTP-SR
Price: 290.62 USD
Availability: InStock

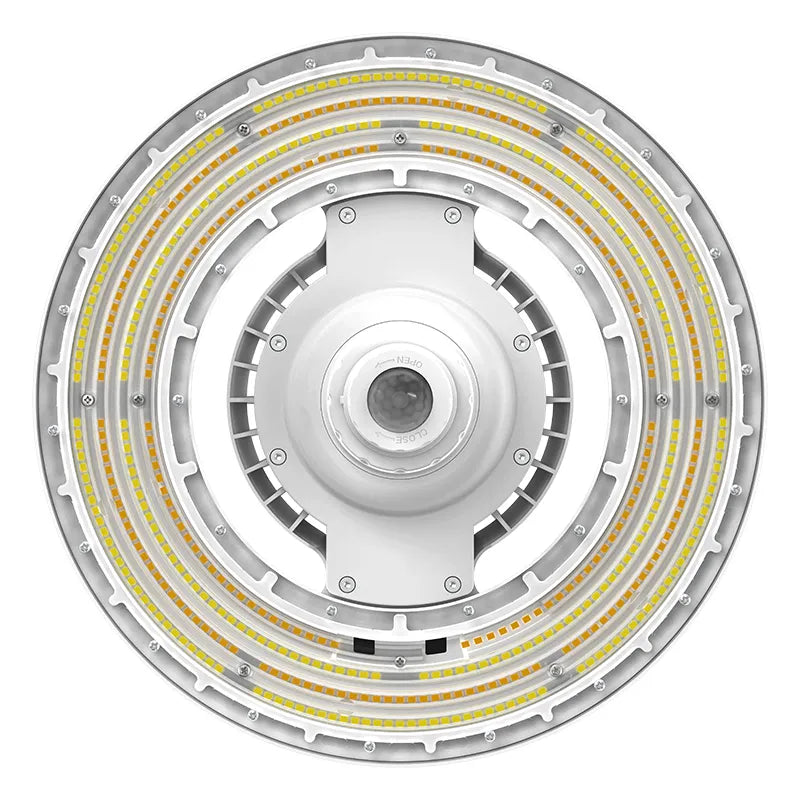

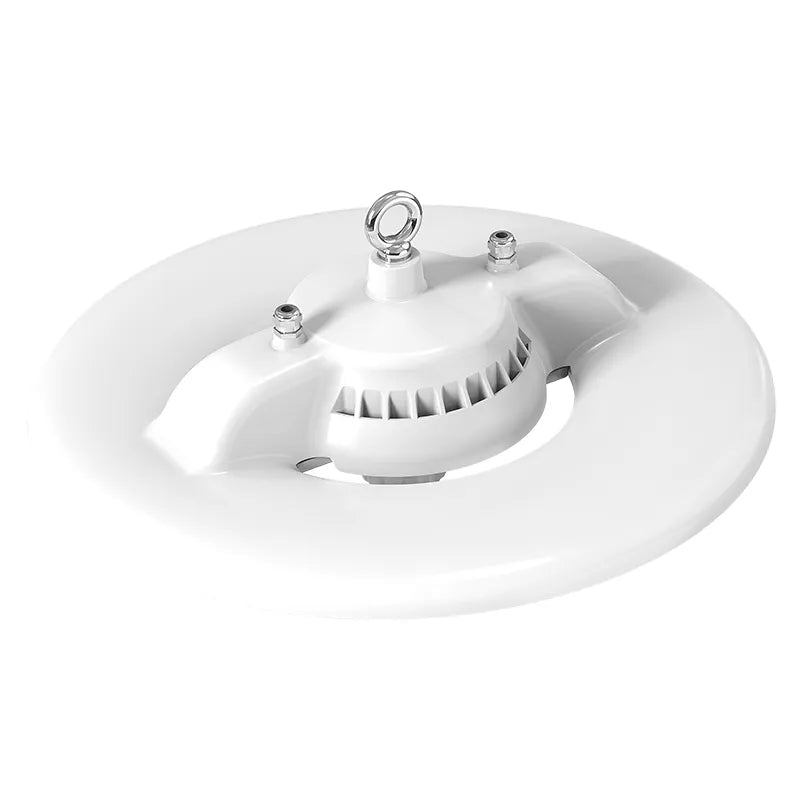

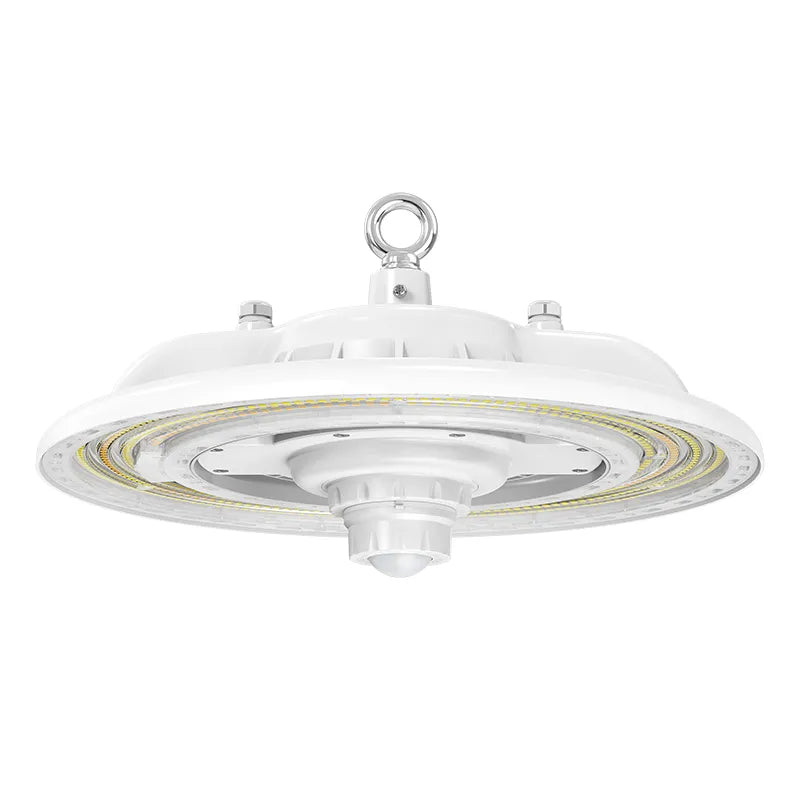

Westgate 150/200/240 Watt Sensor Ready 120-277V IP65 UFO High Bay Light Fixture 3000K/4000K/5000K Selectable

Westgate 150/200/240 Watt Sensor Ready 120-277V IP65 UFO High Bay Light Fixture 3000K/4000K/5000K

IP65, NSF Listed

Price

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":47068207841524,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"UHXF-150-240W-MCTP-SR","requires_shipping":true,"taxable":true,"featured_image":{"id":49105471570164,"product_id":9173091713268,"position":1,"created_at":"2025-10-22T14:29:54-04:00","updated_at":"2025-10-22T14:29:55-04:00","alt":"Westgate 150\/200\/240 Watt Sensor Ready 120-277V IP65 UFO High Bay Light Fixture 3000K\/4000K\/5000K Selectable","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateUHXF_150W-withsensormain.webp?v=1761157795","variant_ids":[47068207841524]},"available":true,"name":"150\/200\/240 Watt Sensor Ready 120-277V IP65 UFO High Bay Light Fixture 3000K\/4000K\/5000K - Selectable","public_title":"Selectable","options":["Selectable"],"price":29062,"weight":4990,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378319249","featured_media":{"alt":"Westgate 150\/200\/240 Watt Sensor Ready 120-277V IP65 UFO High Bay Light Fixture 3000K\/4000K\/5000K Selectable","id":40321297547508,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateUHXF_150W-withsensormain.webp?v=1761157795"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

The Westgate Sensor Ready UFO High Bay Light is a versatile, high-performance fixture designed for tough environments like restaurants, food processing areas, gyms, workshops, garages, and cold storage. Built to handle humidity, dust, and moisture, it's also ideal for agricultural and commercial settings. With NSF/ANSI 2:2015 (Splash Zone) certification, it's approved for use in areas exposed to food splashes or spillage, making it a reliable choice for demanding applications that require NSF-certified or premium-grade lighting.

This fixture offers selectable wattages (150W/200W/240W) and color temperatures (3000K/4000K/5000K), delivering 21,750 to 34,800 lumens at an efficient 145 lm/W. It includes a twist-lock Zhaga socket for sensor integration, supports 0-10V dimming, and operates on 120-277V. Rated for wet locations with a 50,000-hour lifespan and backed by a 5-year warranty, it's a smart, durable lighting solution built to last.

Specifications

Manufacturer	Westgate
MPN	UHXF-150-240W-MCTP-SR
SKU	UHXF-150-240W-MCTP-SR
UPC	840378319249
Lighting Technology	LED
Wattage	150/200/240 Watts
Voltage	120-277VAC
Frequency	50/60Hz
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	21,750/29,000/34,800 Lumens
Efficiency (Lumens Per Watt)	145 lm/W
Dimmable	Yes, 0-10V Dimming
Beam Angle	90°
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80+
Power Factor	>0.9
Finish	White
Construction	Aluminum
Lens	Polycarbonate
Operating Temperature	-40°F to 122°F
Dimensions	7.56" H x 16.57" Diameter
Certifications	NSF, cETLus, IP65
Environment	Wet Location
BUG Rating	B4-U3-G1
Warranty	5 Year Warranty

Documents

Westgate Sensor Ready UFO High Bay Light Fixture Specification Sheet

Westgate Sensor Ready UFO High Bay Light Fixture Installation Instructions

Request A Quote

Green Electrical Supply is here to help you maximize your green^® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
