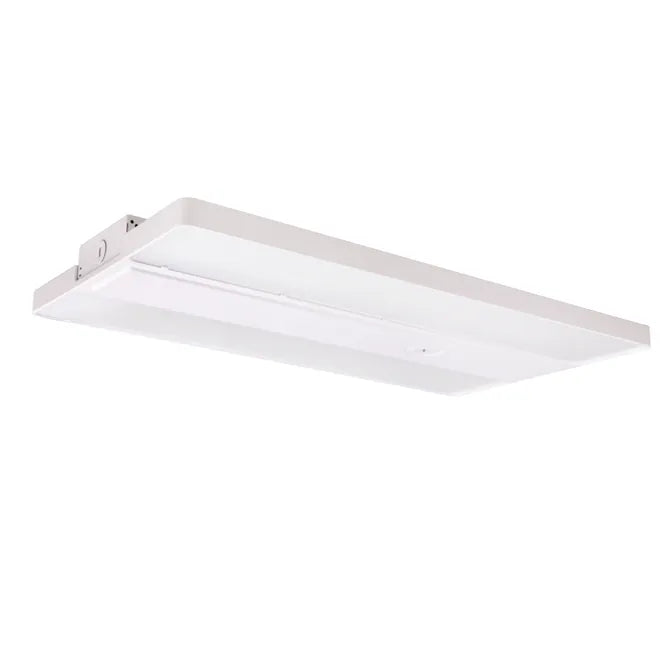

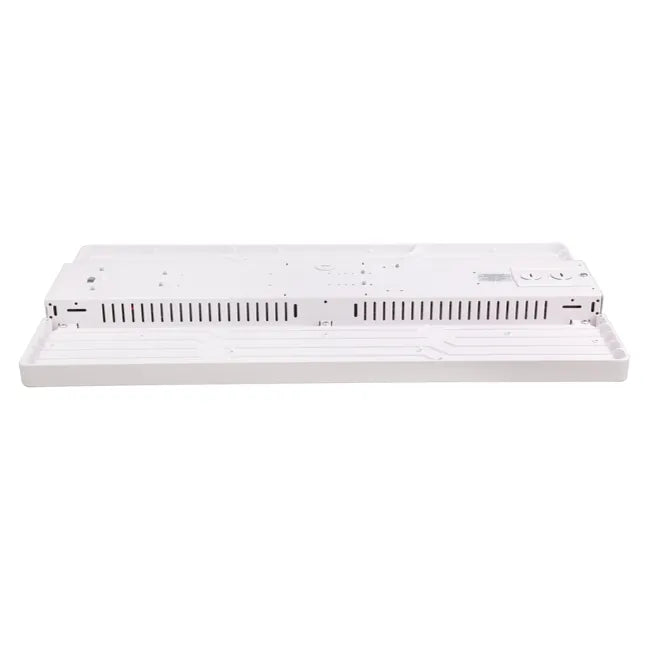

Halco's Compact Linear High Bay (CLHB) is designed to meet the needs of the budget-conscious contractor. CLHB boasts robust performance in a smaller footprint to save space and cut down installation time. Designed with a durable die-cast aluminum housing and matte acrylic lens to eliminate glare, the CLHB is a reliable solution for light-duty industrial applications like warehouses, without sacrificing quality needed in retail stores, gymnasiums, and other large indoor spaces.
This compact linear LED high bay offers powerful and efficient lighting with selectable wattages (180W/200W/220W) and lumen outputs (24,540-31,023 lm), delivering up to 143 lm/W. With color temperature selectable options of 4000K cool white and 5000K daylight, it supports 120-277V input and includes 0-10V dimming capabilities for flexible light control. DLC Premium certified and rated for damp locations, it’s backed by a 5-year warranty for lasting performance.
| Manufacturer | Halco Lighting Technologies |
| MPN | CLHB-3-WS-CS-U |
| SKU | 36102 |
| UPC | 807154361021 |
| Lighting Technology | LED |
| Voltage | 120/277VAC |
| Dimmable | Yes, 0-10V |
| Rated Life | 50,000 Hours |
| CRI (Color Rendering Index) | 80+ CRI |
| Power Factor | >0.9 |
| Lens | Acrylic |
| Housing | Die-cast Aluminum with Powder Coated Finish |
| Mounting | Suspended Chain Mount |
| Operating Temperature | -40°C to 50°C |
| Dimensions | 1-7/8" H x 23-1/32" L x 12-19/32" W |
| Certifications | DLC Premium Listed, cULus, RoHS Compliant, FCC |
| DLC Product ID | S-8JF4Q5 |
| Environment | Damp Location |
| Warranty | 5 Year Limited |
| Wattage | 180 Watts | |
| Color Temperature | 4000K Cool White | 5000K Daylight |
| Lumens | 25740 Lumens | 26100 Lumens |
| Efficiency (Lumens Per Watt) | 143 lm/W | 145 lm/W |
| Wattage | 200 Watts | |
| Color Temperature | 4000K Cool White | 5000K Daylight |
| Lumens | 28200 Lumens | 28800 Lumens |
| Efficiency (Lumens Per Watt) | 141 lm/W | 144 lm/W |
| Wattage | 220 Watts | |
| Color Temperature | 4000K Cool White | 5000K Daylight |
| Lumens | 30800 Lumens | 30580 Lumens |
| Efficiency (Lumens Per Watt) | 140 lm/W | 139 lm/W |
