The Litetronics LED High Bay Pro XL is an affordable, direct replacement for HID fixtures that delivers an immediate reduction in energy costs while improving the consistency and quality of light within a space. This lightweight and compact luminaire can be mounted directly to existing HID configurations, acting as a one-for-one replacement. Its 10’ power cord provides plenty of length for wiring and the whole installation can be completed in a matter of minutes.

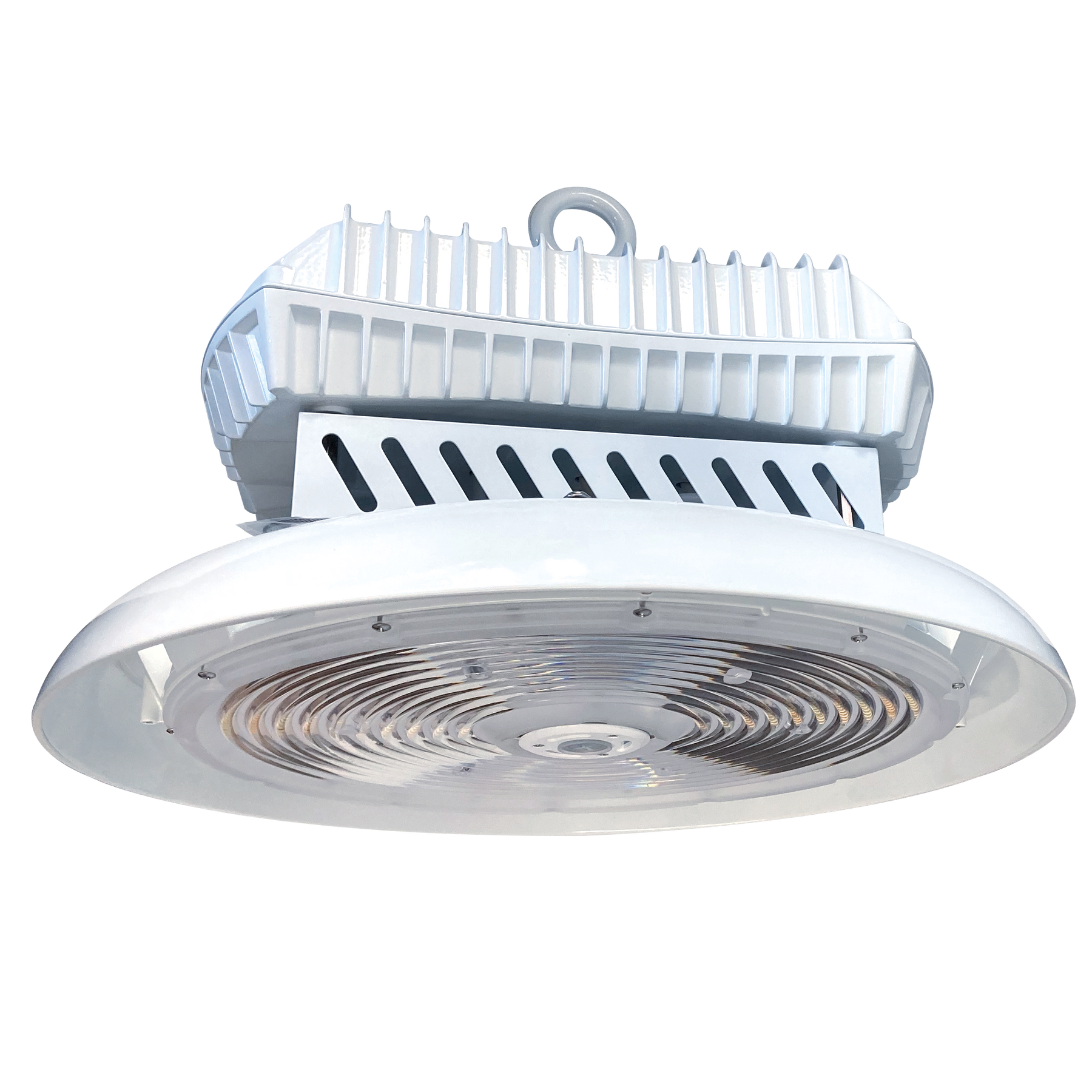

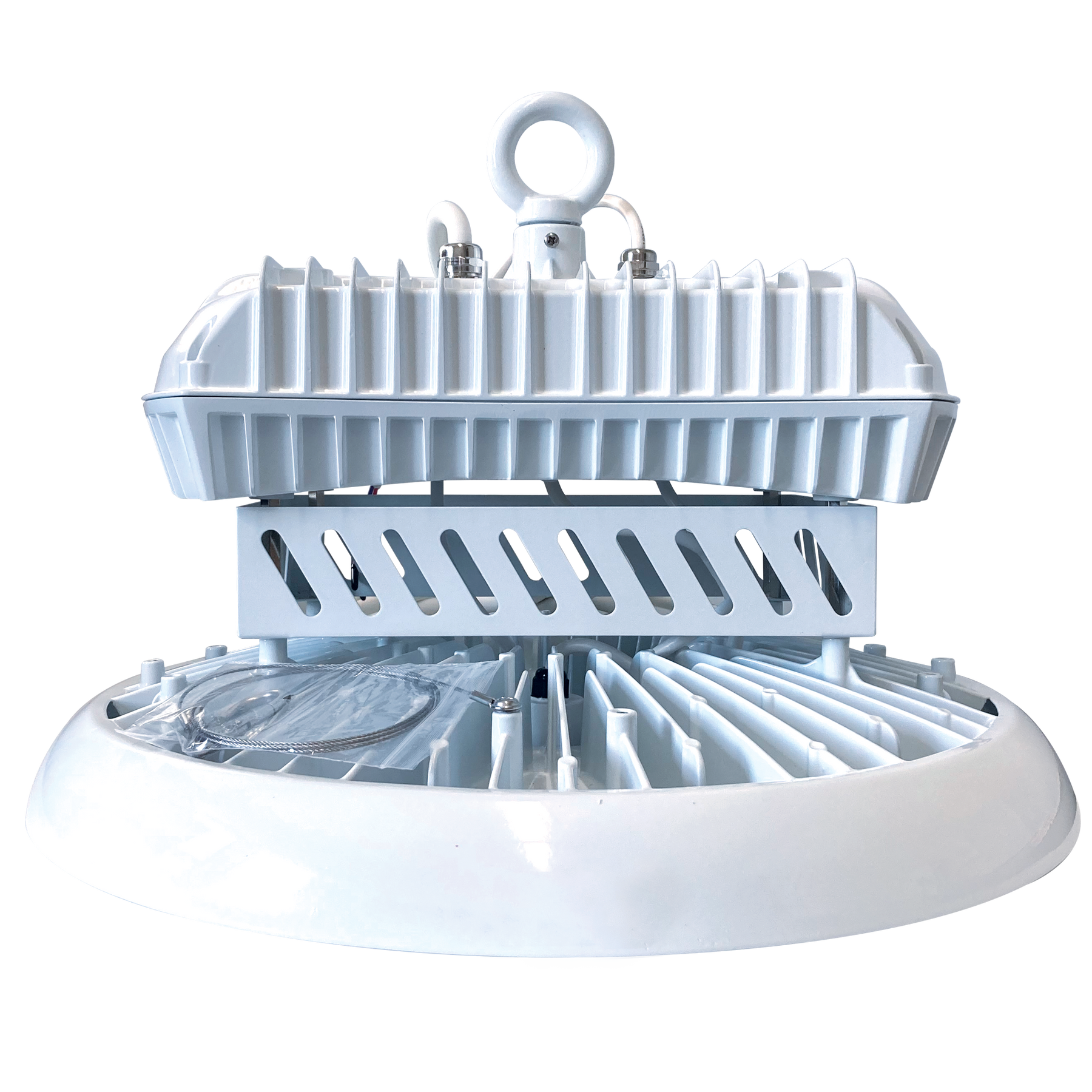

The LiteTronics HBX500 versatile, high performance high bay fixture features selectable wattages of 300W, 400W, or 500W and selectable CCTs of 3500K, 4000K, or 5000K, while designed to operate across a wide 120-480V input range. Delivering up to 155 lumens per watt, its 90° beam angle and circular light distribution provide uniform illumination throughout large spaces, enhancing visual clarity while reducing shadows and safety risks. The HBX500 is DLC Premium listed, wet location rated, 100,000 hour rated, and backed by a 10 year warranty, making it a reliable and energy-efficient solution for demanding commercial and industrial applications.
| Manufacturer | LiteTronics |
| MPN | HBX500 |
| SKU | HBX500 |
| UPC | 706762815301 |
| DLC Product ID | S-K5WNRM |
| Lighting Technology | LED |
| Wattage | 300/400/500 Watts |
| Voltage | 120-480 Volt |
| Frequency | 50/60Hz |
| Color Temperature (Kelvin) | 3500K/4000K/5000K |
| Lumens | 46,500/62,000/77,500 Lumens |
| Efficiency (Lumens Per Watt) | 155 lm/W |
| Dimmable | Yes, 0-10V Dimming |
| Beam Angle | 90 Degrees |
| Rated Life | 100,000 Hours |
| CRI (Color Rendering Index) | >80 CRI |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Surge Protection Rating | 6kV |
| Finish Color | White |
| Finish | Powder Coat |
| Housing | Aluminum Alloy |
| Lens | Polycarbonate clear lens |
| Mounting | Hook with 10 Foot power cord |
| Operating Temperature | -40°F to 131°F (-40°C to 55°C) |
| Dimensions | 17.7" Diameter, 12.2" H |
| Environment | Wet Location |
| Certifications | ETLUS, FCC, RoHS, DLC Premium, IP65 |
| Warranty | 10 Years |
