Name: 50/80/100 Watt 480V Sensor Ready LED Linear High Bay
Brand: Westgate
SKU: LLHB4-100W-MP-40K-D-SR-480V
Price: 284.46 USD
Availability: InStock

Westgate 80/110/150 Watt 480V Sensor Ready LED Linear High Bay 3500K/4000K/5000K Selectable White

Westgate 50/80/100 Watt 480V Sensor Ready LED Linear High Bay

Price

Color Temp

4000K Cool White

5000K Daylight

Finish Color

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":47600808657140,"title":"4000K Cool White \/ White","option1":"4000K Cool White","option2":"White","option3":null,"sku":"LLHB4-100W-MP-40K-D-SR-480V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"50\/80\/100 Watt 480V Sensor Ready LED Linear High Bay - 4000K Cool White \/ White","public_title":"4000K Cool White \/ White","options":["4000K Cool White","White"],"price":28446,"weight":4309,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378318914","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47600808689908,"title":"5000K Daylight \/ White","option1":"5000K Daylight","option2":"White","option3":null,"sku":"LLHB4-100W-MP-50K-D-SR-480V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"50\/80\/100 Watt 480V Sensor Ready LED Linear High Bay - 5000K Daylight \/ White","public_title":"5000K Daylight \/ White","options":["5000K Daylight","White"],"price":28446,"weight":4309,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378318938","requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

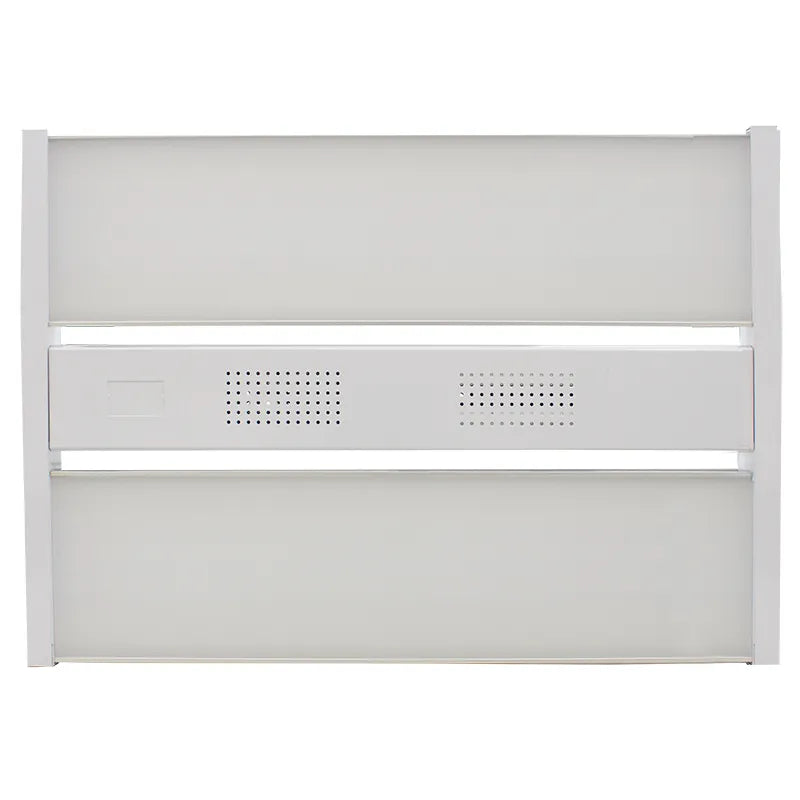

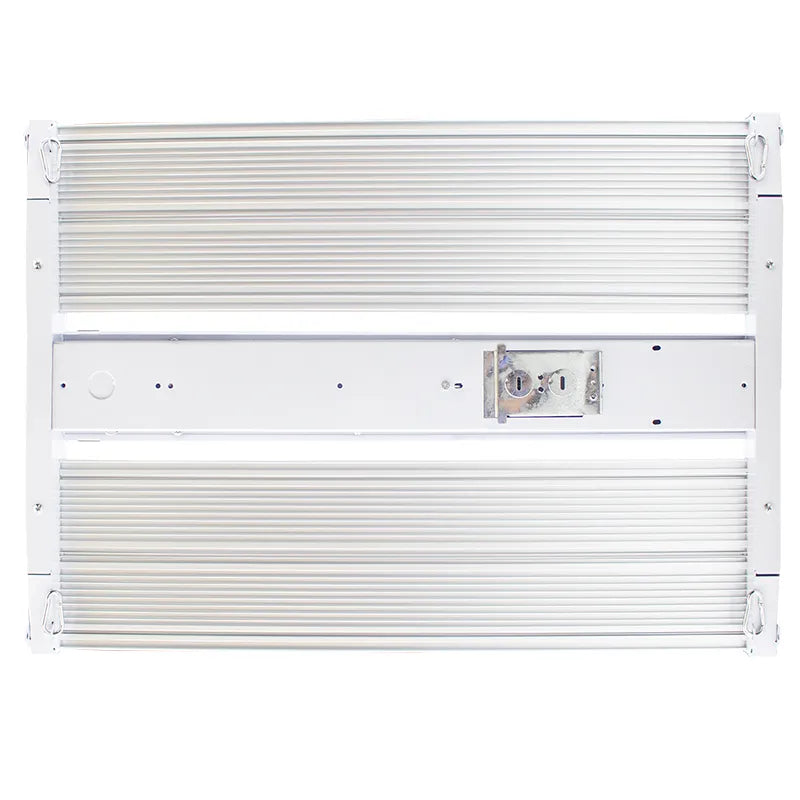

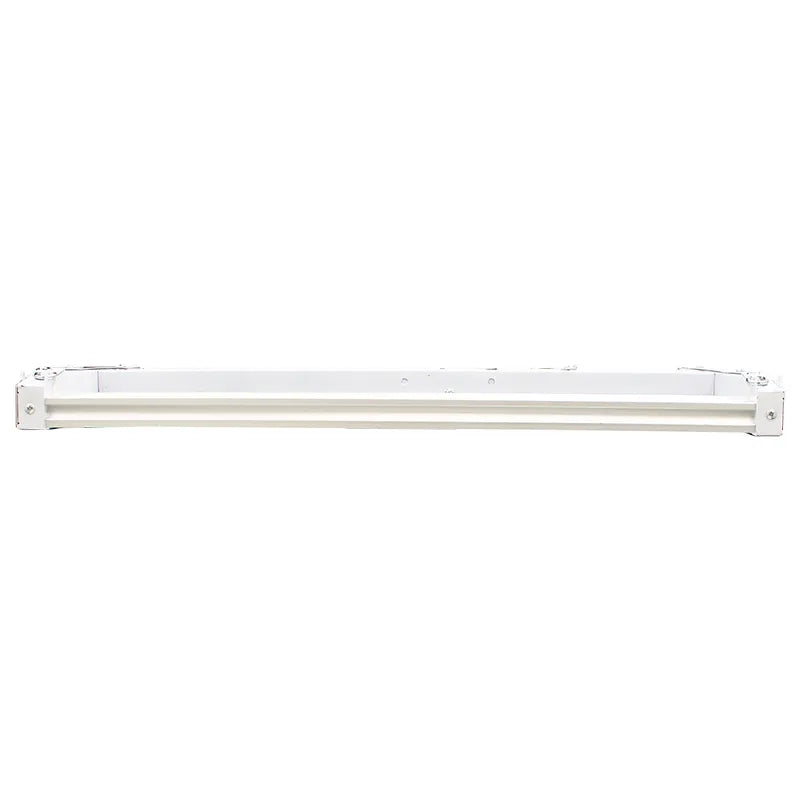

The Westgate Sensor Ready Power Adjustable LED Liner High Bay is the ideal replacement for conventional lighting systems such as HID and fluorescent. Designed for 10ft to 40ft ceiling applications such as warehouses, industrial facilities, gymnasiums, and big-box retail, it features a low-profile in a durable steel housing with a sleek white finish. The polycarbonate lens provides wide, uniform light distribution and superior glare control.

The LLHB4-100W-MP-xxK-D-SR-480V model offers selectable wattages of 50/80/100W with corresponding lumen outputs of 6,000/9,600/12,000 lumens, delivering up to 120 lm/W. It operates on high 480V and is available in 4000K or 5000K CCT. With standard 0-10V dimming, and sensor-ready capability (sensor sold separately), this LED high bay is a versatile and reliable solution including a 50,000-hour rated life, and backed by 5-year limited warranty.

Specifications

Manufacturer	Westgate
Color Temperature (Kelvin)	4000K Cool White	5000K Daylight
MPN	LLHB4-100W-MP-40K-D-SR-480V	LLHB4-100W-MP-50K-D-SR-480V
SKU	LLHB4-100W-MP-40K-D-SR-480V	LLHB4-100W-MP-50K-D-SR-480V
UPC	840378318914	840378318938
Lighting Technology	LED
Wattage	50/80/100 Watts
Voltage	480 Volt
Frequency	50/60Hz
Lumens	6000/9600/12000 Lumens
Efficiency (Lumens Per Watt)	120 lm/W
Dimmable	Yes, 0-10V Dimming
Beam Angle	Wide
Rated Life	50,000 Hours
CRI (Color Rendering Index)	>80 CRI
Power Factor	>0.95
Finish Color	White
Housing	Steel Housing
Lens	Polycarbonate Lens
Operating Temperature	-4°F to 131°C
Dimensions	24-1/4" L x 13-3/4" W x 2" H
Certifications	UL Listed
Environment	Damp Location
Warranty	5 Year

Documents

Westgate Sensor Ready Power Adjustable LED Linear High Bay Specification Sheet

Westgate Sensor Ready Power Adjustable LED Linear High Bay Installation Instructions
