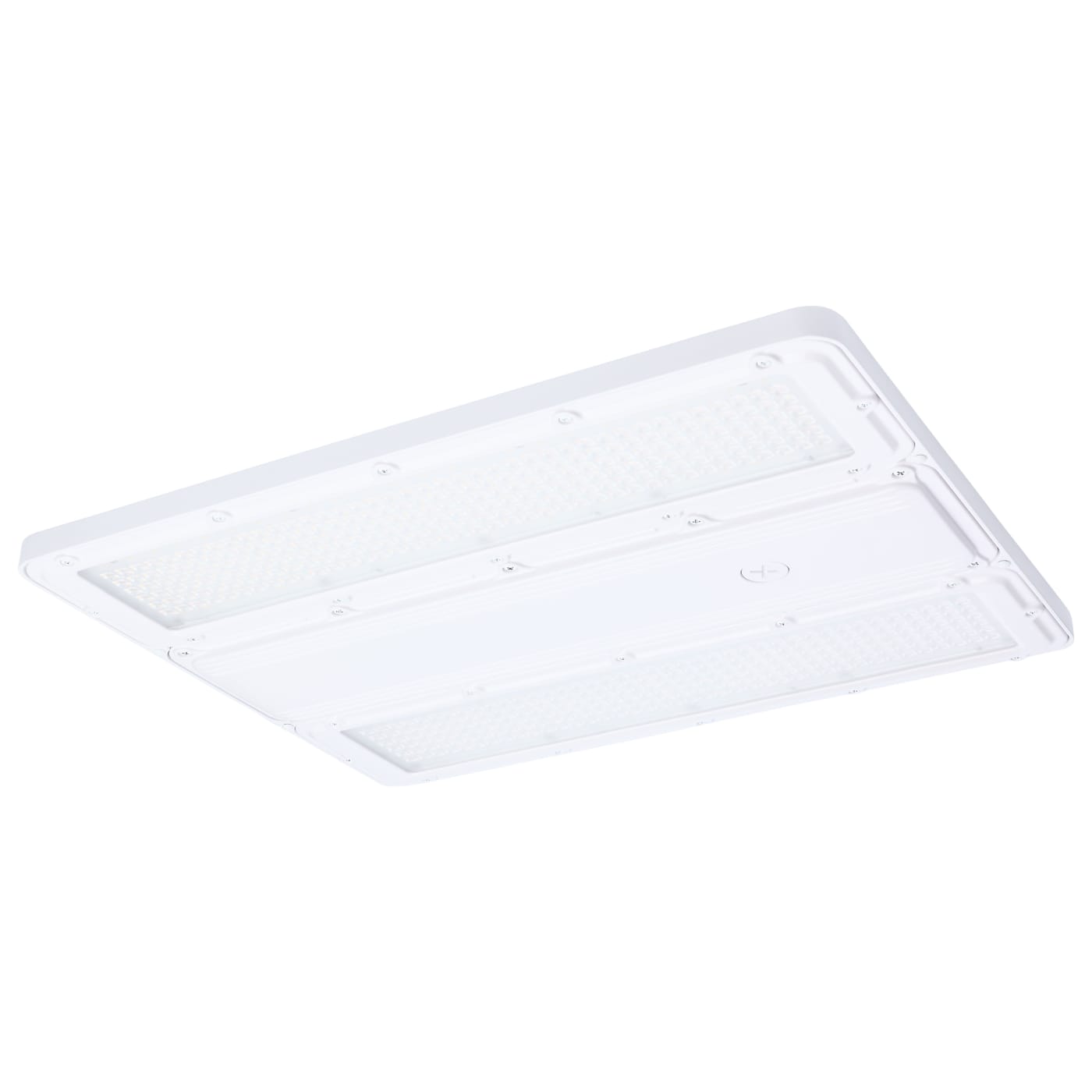

70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K

Satco SKU: 65-1170
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K
Satco 70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K

70/90/105 Watt 120-347V LED Washdown Linear High Bay 3000K/4000K/5000K

Satco SKU: 65-1170
  • DLC Premium Listed, IP65K, NSF Listed, Wet Location Rated
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

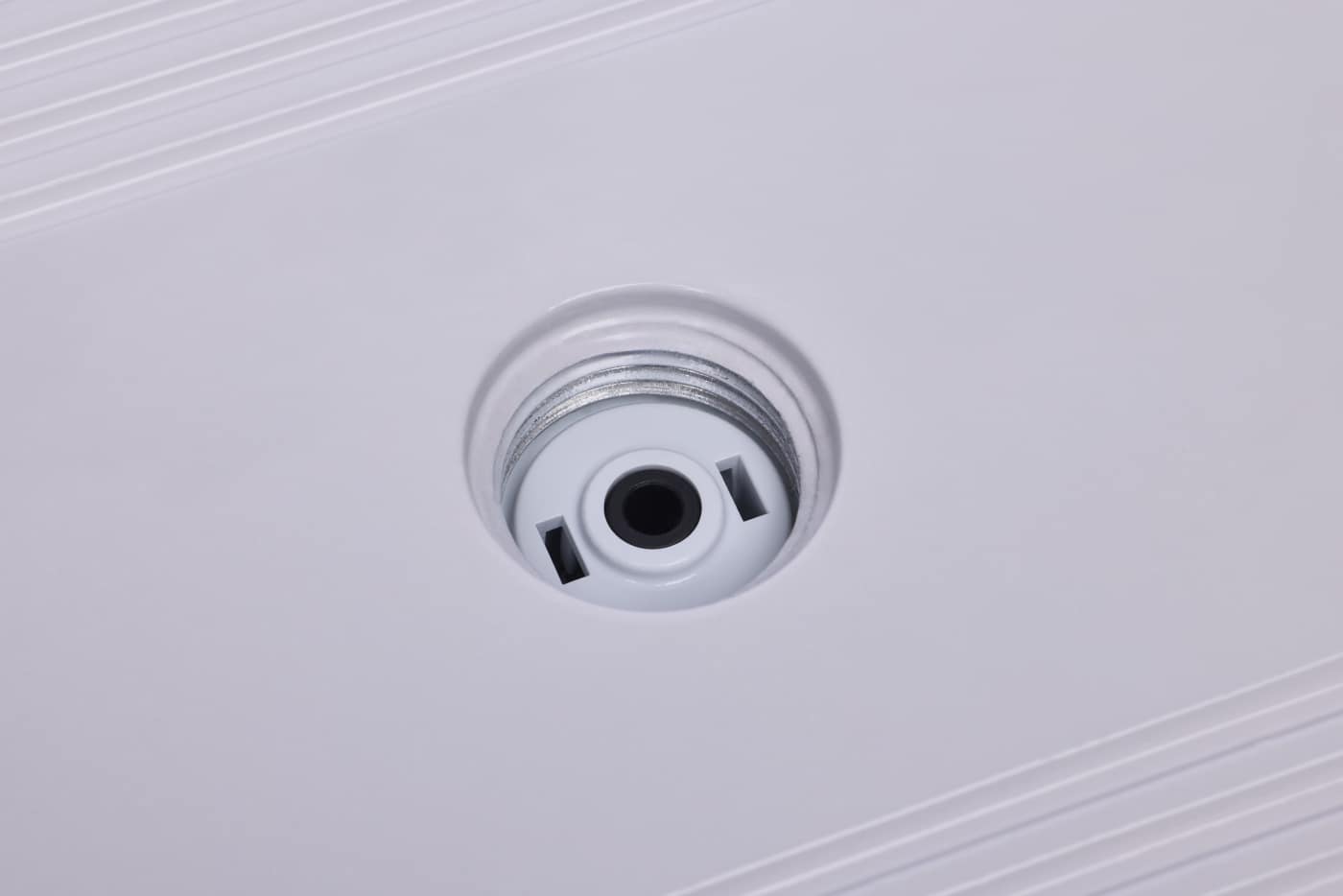

The SATCO|NUVO Linear IP69K High Bays are engineered for demanding environments requiring high-performance illumination and washdown durability. Available in four wattage-selectable packages across two housing sizes, these fixtures also feature CCT Selectability (3000K/4000K/5000K) to provide flexibility at installation. Operating on 120-347 volts, each unit is designed for reliability in harsh conditions with an IP69K rating, IK10 impact resistant polycarbonate lens, 6kV surge protection, and an operating temperature range of -40°C to 55°C. Ideal for thermal washdown applications including food processing and agricultural facilities, these NSF rated high bays are sensor ready with an integrated 3.5mm auxiliary port and include suspension chains and hooks for installation. Optional accessories such as stainless-steel protective cages, yoke mounts, and an emergency battery backup module expand versatility, while DLC Premium 6.0 qualification supports energy efficiency rebate opportunities.

The SATCO|NUVO 65-1170 LED Washdown Linear High Bay consumes selectable 70/90/105 watts of 120-347 volt energy. These high bays are 0-10V dimmable and will produce between 11,200-15,900 Lumens of light output.  These DLC Premium Listed fixtures are IP69K Wet Location and NSF rated and carry a 5-Year Warranty.

Specifications
Manufacturer Satco
MPN 65-1170
SKU 65-1170
UPC 045923413254
DLC Product ID S-5KLYJB
Lighting Technology LED
Wattage 70/90/105 Watts
Voltage 120-347V
Color Temperature (Kelvin) 3000K/4000K/5000K
Lumens 11,200-15,900 Lumens
Efficiency (Lumens Per Watt) Up To 160 LPW
Beam Angle 90 Degrees
Dimmable Yes, 0-10V
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Finish White
Housing Die-Cast Aluminum
Lens Polycarbonate
Mounting 41 Inch Suspension Kit (Included)
Bug Rating B4-U2-G2
Operating Temperature -40°F to 131°F (-40°C to 55°C)
Dimensions 16.77" L x 13.78" W x 2.44" H
Certifications DLC Premium, NSF, UL Certified, RoHS
Environment IP69K Wet Location Rated
Warranty 5-Year Warranty
Documents

Satco LED Washdown Linear High Bay Specification Sheet

Satco LED Washdown Linear High Bay Installation Instructions

Satco LED Washdown Linear High Bay DLC Product Listing
