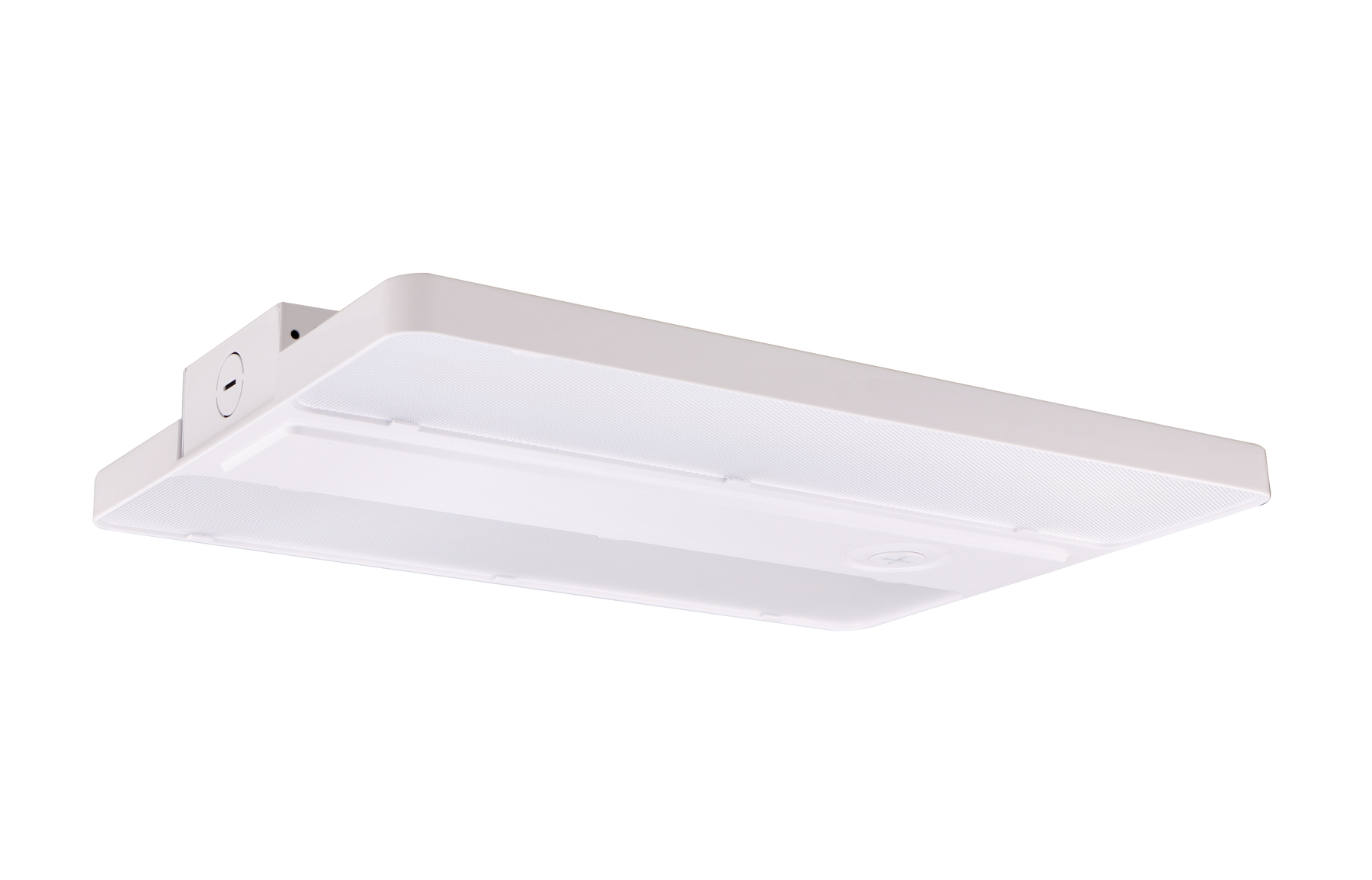

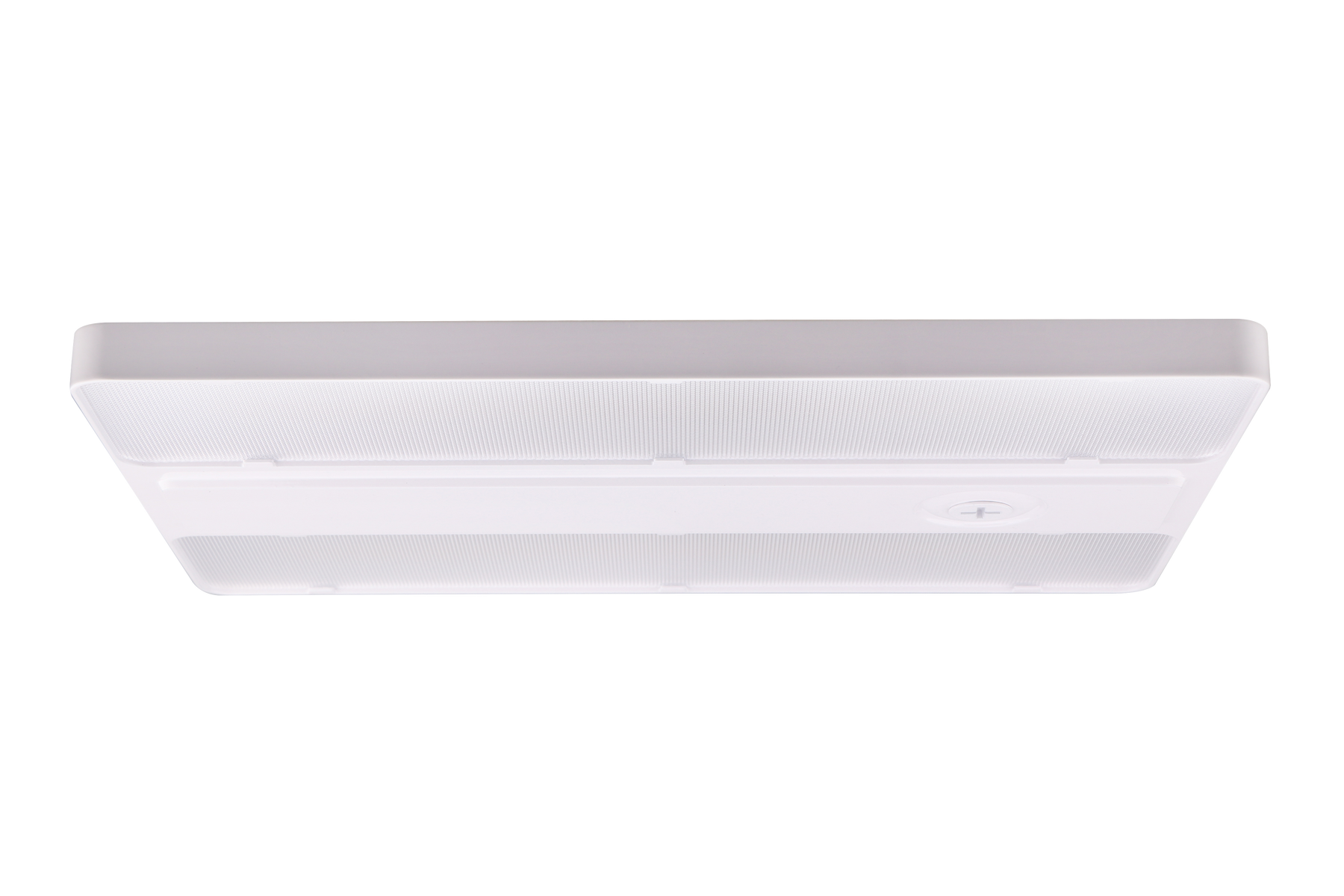

The EiKO LED Compact Linear High Bay offers powerful, energy efficient illumination in a super compact 14" x 11" design. Available with selectable wattages of 90, 110, 130, or 150 watts via PowerSet technology, it delivers 12,600 to 21,000 lumens with efficacy up to 140 lm/W. Fixed CCT options of 4000K or 5000K and 90° wide beam distribution provide bright, consistent light, while the white powder coated diecast aluminum housing ensures durability. DLC Premium listed and rated for an estimated L70 of 100,000 hours, this fixture is built for long-lasting performance in demanding commercial and industrial environments.
Designed for easy, one-person installation, the lightweight fixture includes a V-hook and aircraft cable for suspension mounting and helps reduce packaging waste. Controls ready with a screw-in receptacle, it supports standalone or networked lighting controls and operates on 120-277V, making this compact high bay a versatile and reliable solution for warehouses, manufacturing spaces, and other high-ceiling applications.
| Manufacturer | EiKO | |
| Color Temperature (Kelvin) | 4000K Cool White | 5000K Daylight |
| MPN | LHC1-PS150-40-U | LHC1-PS150-50-U |
| SKU | 13141 | 13142 |
| UPC | 031293131416 | 031293131423 |
| DLC Product ID | S-X0G6Y4 | S-LGRMFE |
| Lighting Technology | LED | |
| Wattage | 90/110/130/150 Watts | |
| Voltage | 120-277 Volt | |
| Lumens | 12,600/15,400/18,200/21,000 Lumens | |
| Efficiency (Lumens Per Watt) | 140 lm/W | |
| Dimmable | Yes, 0-10V Dimming | |
| Beam Angle | 90 Degrees | |
| Rated Life | 100,000 Hours | |
| CRI (Color Rendering Index) | 80 CRI | |
| Power Factor | >0.9 | |
| THD (Total Harmonic Distortion) | <20% | |
| Surge Protection Rating | 6kV | |
| Finish Color | White | |
| Housing | Diecast Aluminum | |
| Lens | Polycarbonate | |
| Fluorescent Equivalent | 6 lamp 4ft 32W T8, 4 lamp 4ft 54W T | |
| HID Equivalent | 400W HID | |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) | |
| Dimensions | 14-3/16" L x 11.0" W x 1-7/8" H | |
| Certifications | UL, FCC, RoHS, IP20, DLC Premium | |
| Environment | Damp Location | |
| Warranty | 5 Year | |
EiKO 90/110/130/150 Watt LED Compact Linear Hight Bay Specification Sheet
EiKO 90/110/130/150 Watt LED Compact Linear Hight Bay Installation Instructions
EiKO 90/110/130/150 Watt LED Compact Linear Hight Bay DLC Product Listing - 4000K
EiKO 90/110/130/150 Watt LED Compact Linear Hight Bay DLC Product Listing - 5000K
