Name: 90/110/130 Watt 120-277V Compact Linear LED High Bay 4000K/5000K
Brand: Halco Lighting Technologies
SKU: 36100
Price: 104.62 USD
Availability: InStock

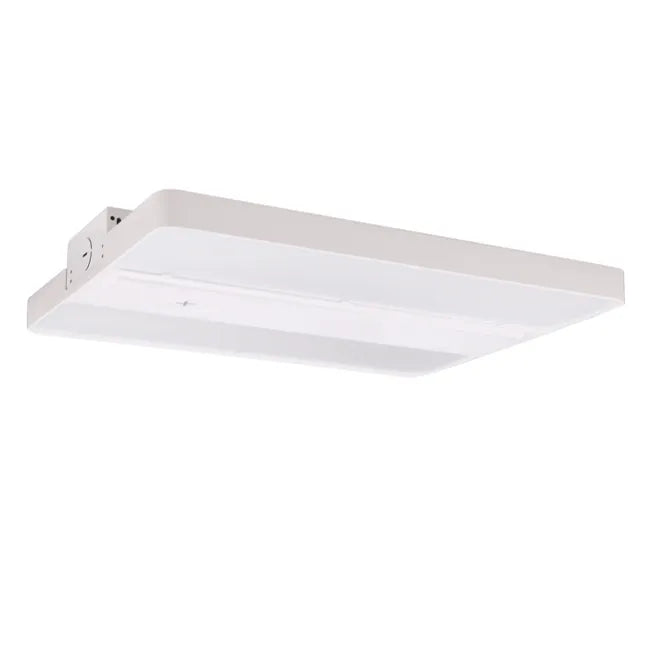

Halco Lighting Technologies 90/110/130 Watt 120-277V Compact Linear LED High Bay 4000K/5000K Selectable White

Halco Lighting Technologies 90/110/130 Watt 120-277V Compact Linear LED High Bay 4000K/5000K

DLC Premium Listed

Price

Color Temp

Selectable

Finish Color

White

Quantity

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":46764269142260,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"36100","requires_shipping":true,"taxable":true,"featured_image":{"id":48367614066932,"product_id":9107786334452,"position":1,"created_at":"2025-08-13T10:44:12-04:00","updated_at":"2025-08-13T10:44:14-04:00","alt":"Halco Lighting Technologies 90\/110\/130 Watt 120-277V Compact Linear LED High Bay 4000K\/5000K Selectable White","width":657,"height":648,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/halco-chlb-1-echlb-image-4.webp?v=1755096254","variant_ids":[46764269142260]},"available":true,"name":"90\/110\/130 Watt 120-277V Compact Linear LED High Bay 4000K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":10462,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"807154361007","featured_media":{"alt":"Halco Lighting Technologies 90\/110\/130 Watt 120-277V Compact Linear LED High Bay 4000K\/5000K Selectable White","id":39662473281780,"position":1,"preview_image":{"aspect_ratio":1.014,"height":648,"width":657,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/halco-chlb-1-echlb-image-4.webp?v=1755096254"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":46764269142260,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"36100","requires_shipping":true,"taxable":true,"featured_image":{"id":48367614066932,"product_id":9107786334452,"position":1,"created_at":"2025-08-13T10:44:12-04:00","updated_at":"2025-08-13T10:44:14-04:00","alt":"Halco Lighting Technologies 90\/110\/130 Watt 120-277V Compact Linear LED High Bay 4000K\/5000K Selectable White","width":657,"height":648,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/halco-chlb-1-echlb-image-4.webp?v=1755096254","variant_ids":[46764269142260]},"available":true,"name":"90\/110\/130 Watt 120-277V Compact Linear LED High Bay 4000K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":10462,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"807154361007","featured_media":{"alt":"Halco Lighting Technologies 90\/110\/130 Watt 120-277V Compact Linear LED High Bay 4000K\/5000K Selectable White","id":39662473281780,"position":1,"preview_image":{"aspect_ratio":1.014,"height":648,"width":657,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/halco-chlb-1-echlb-image-4.webp?v=1755096254"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Details
Specifications
Documents
Video
Request A Quote

Details

Halco's Compact Linear High Bay (CLHB) is designed to meet the needs of the budget-conscious contractor. CLHB boasts robust performance in a smaller footprint to save space and cut down installation time. Designed with a durable die-cast aluminum housing and matte acrylic lens to eliminate glare, the CLHB is a reliable solution for light-duty industrial applications like warehouses, without sacrificing quality needed in retail stores, gymnasiums, and other large indoor spaces.

This compact linear LED high bay offers powerful and efficient lighting with selectable wattages (90W/110W/130W) and lumen outputs (12,010-17,588 lm), delivering up to 137 lm/W. With color temperature selectable options of 4000K cool white and 5000K daylight, it supports 120-277V input and includes 0-10V dimming capabilities for flexible light control. DLC Premium certified and rated for damp locations, it’s backed by a 5-year warranty for lasting performance.

Specifications

Manufacturer	Halco Lighting Technologies
MPN	CLHB-1-WS-CS-U
SKU	36100
UPC	807154361007
Lighting Technology	LED
Voltage	120/277VAC
Dimmable	Yes, 0-10V
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80+ CRI
Power Factor	>0.9
Lens	Acrylic
Housing	Die-cast Aluminum with Powder Coated Finish
Mounting	Suspended Chain Mount
Operating Temperature	-40°C to 50°C
Dimensions	1-7/8" H x 14-3/16" L x 11-1/32" W
Certifications	DLC Premium Listed, cULus, RoHS Compliant, FCC
DLC Product ID	S-PK96QJ
Environment	Damp Location
Warranty	5 Year Limited

Wattage	90 Watts
Color Temperature	4000K Cool White	5000K Daylight
Lumens	9590 Lumens	9870 Lumens
Efficiency (Lumens Per Watt)	137 lm/W	141 lm/W

Wattage	110 Watts
Color Temperature	4000K Cool White	5000K Daylight
Lumens	12240 Lumens	12600 Lumens
Efficiency (Lumens Per Watt)	136 lm/W	140 lm/W

Wattage	130 Watts
Color Temperature	4000K Cool White	5000K Daylight
Lumens	17420 Lumens	18330 Lumens
Efficiency (Lumens Per Watt)	134 lm/W	141 lm/W

Documents

Halco Watt Selectable Compact Linear LED High Bay Specification Sheet

Halco Watt Selectable Compact Linear LED High Bay Installation Instructions

Halco Watt Selectable Compact Linear LED Hight Bay DLC Product Listing

Video

Request A Quote

Green Electrical Supply is here to help you maximize your green^® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
