290 Watt LED Large Optic Swap 120-277V Area Light

Keystone Technologies SKU: KT-ALED290-L2-OSA-NM-840-VDIM
Keystone Technologies 290 Watt LED Large Optic Swap 120-277V Area Light 4000K Cool White Optic Swap
Keystone Technologies 290 Watt LED Large Optic Swap 120-277V Area Light

290 Watt LED Large Optic Swap 120-277V Area Light

Keystone Technologies SKU: KT-ALED290-L2-OSA-NM-840-VDIM
  • Wet Location Rated, IP65
Regular price $354.78
/
Color Temp
Light Distribution
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

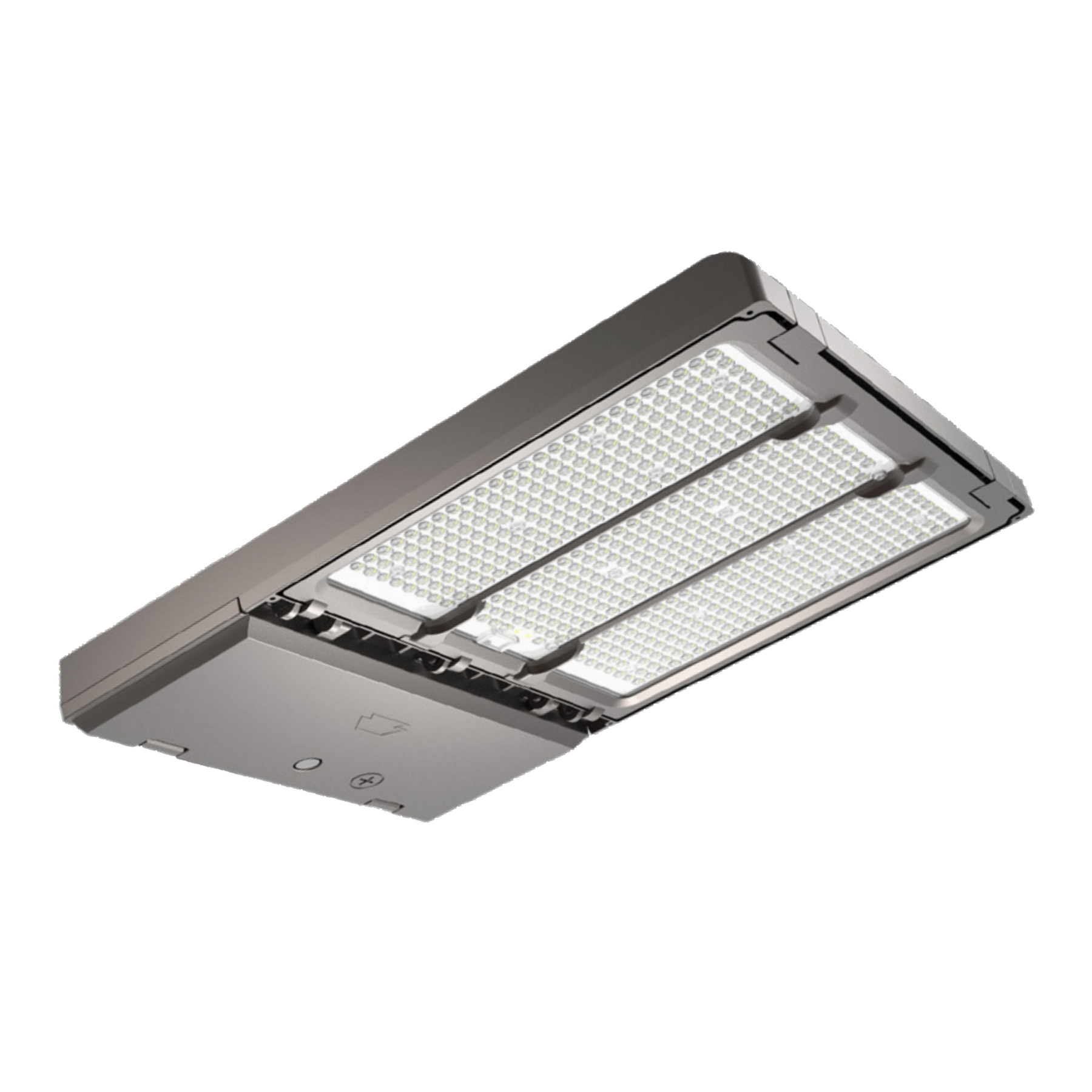

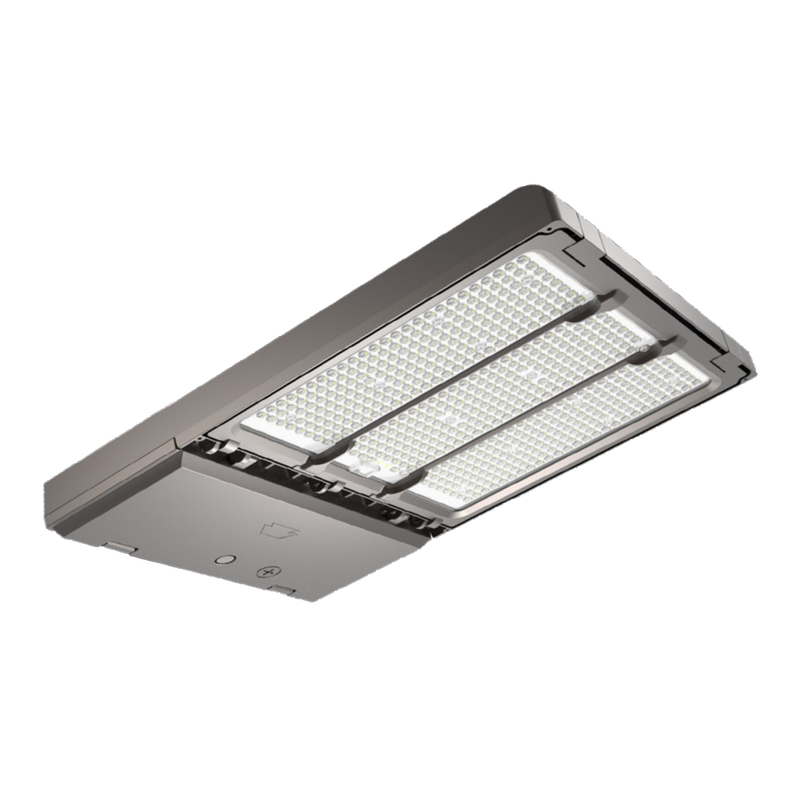

Keystone's XFit Area Lights are an innovative LED lighting solution, designed to provide superior illumination in a modern and low-profile design. With their energy-saving technology, these lights offer a cost-effective and eco-friendly lighting solution, making them an excellent choice for those seeking to reduce their energy consumption. OpticSwap is a Keystone innovation that makes switching optics tool-free: undo two clasps, change out the optic lens, and relatch the clasps.

Available in Large, Medium, and Small housings, Keystone's XFit Area Lights come with a variety of mounting, optic, and sensor options, making them highly customizable to meet the specific needs of your outdoor space. To further increase energy savings and controllability, these LED Area Lights are powered by Keystone's 0-10V dimming drivers and come with an integrated twist-lock receptacle for dusk-to-dawn photocells. For added convenience, contractor-friendly motion sensors can be easily field-installed with no wiring required.

If you're in need of versatile 120-277V area light, the 290 Watt option is an excellent choice. Available with a preinstalled Type III light distribution, with a Type V lens included to change optics. This area light comes in either 4000K cool white or 5000K daylight, and 32,420 lumens, these lights provide a high level of brightness and clarity, ensuring superior coverage in any outdoor space.

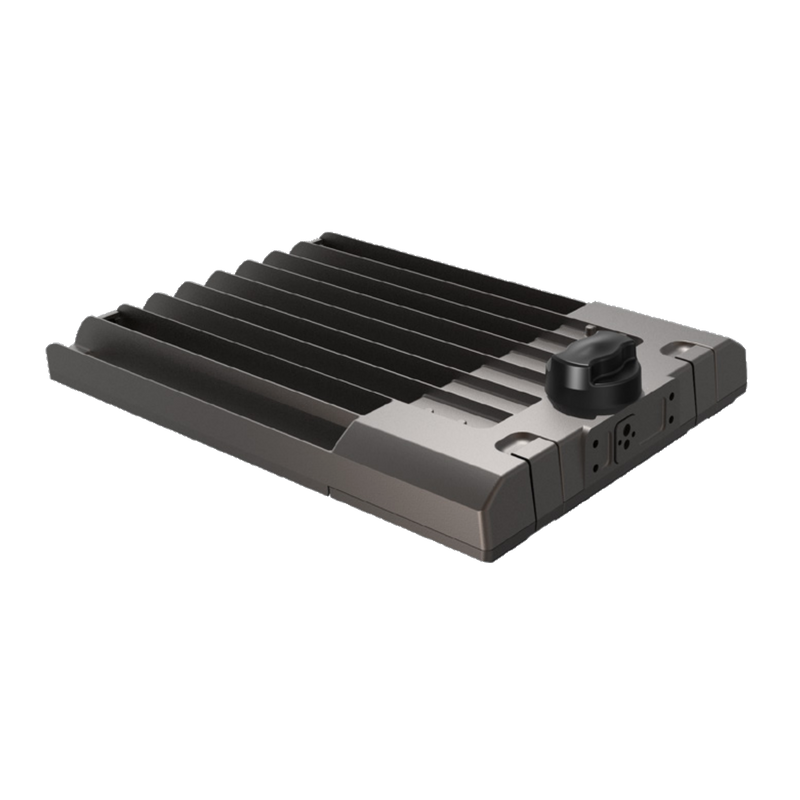

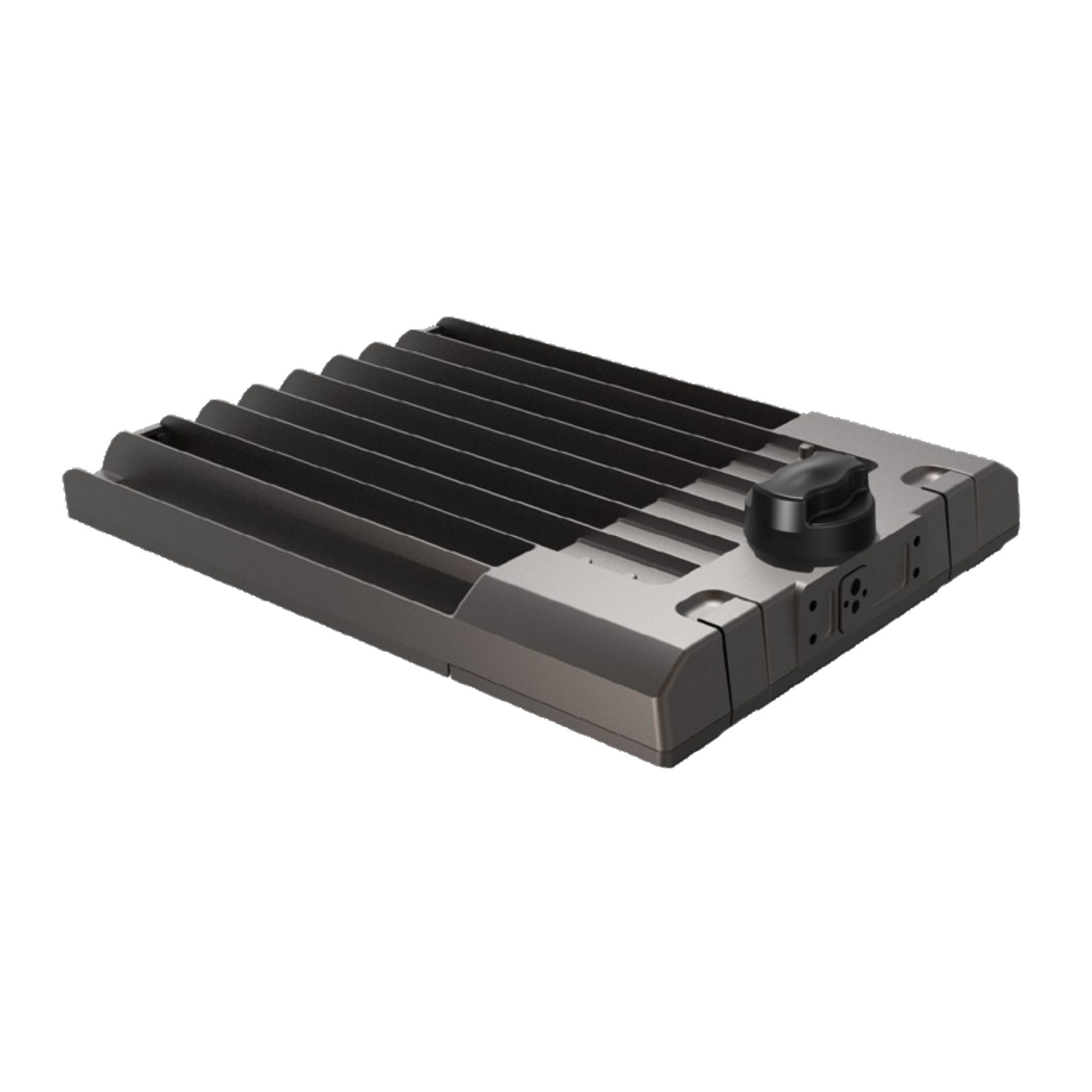

The die-cast aluminum housing of the XFit Area Lights comes with ample heat sinking, providing enhanced thermal performance, and ensuring maximum durability and longevity. This area light fixture is dimmable, allowing for even greater energy savings and customization, and is rated for an impressive 50,000 hours of use. Kitted Area Light options are also available, simplifying fixture selection and allowing for easy stocking.

Applications:

  • Parking Lots
  • Auto Dealerships
  • Pathways
  • Roadways
  • Recreational Venues
Manufacturer Keystone Technologies
Color Temperature (Kelvin) 4000K Cool White 5000K Daylight
MPN KT-ALED290-L2-OSA-NM-840-VDIM KT-ALED290-L2-OSA-NM-850-VDIM
SKU KT-ALED290-L2-OSA-NM-840-VDIM KT-ALED290-L2-OSA-NM-850-VDIM
UPC 843654153049 843654153056
Lighting Technology LED
Wattage 290 Watts
Voltage 120-277V
Lumens 42,420 Lumens
Efficiency (Lumens Per Watt) 146 LPW
Dimmable 0-10V Dimming
Rated Life 100,000 Hours (L70)
CRI (Color Rendering Index) 80 CRI
Power Factor >0.95
THD (Total Harmonic Distortion) <20%
Light Distribution Type III Installed, Type V Included
Finish Color Bronze
Housing Die-Cast Aluminum
Metal Halide Equivalent 1,000 Watts
Operating Temperature −40°C to 50°C
Dimensions 5.63" H × 15.95" W × 26.18" L
Certifications RoHS Compliant, FCC Compliant
Environment Wet Location
Warranty 5 Year Standard
