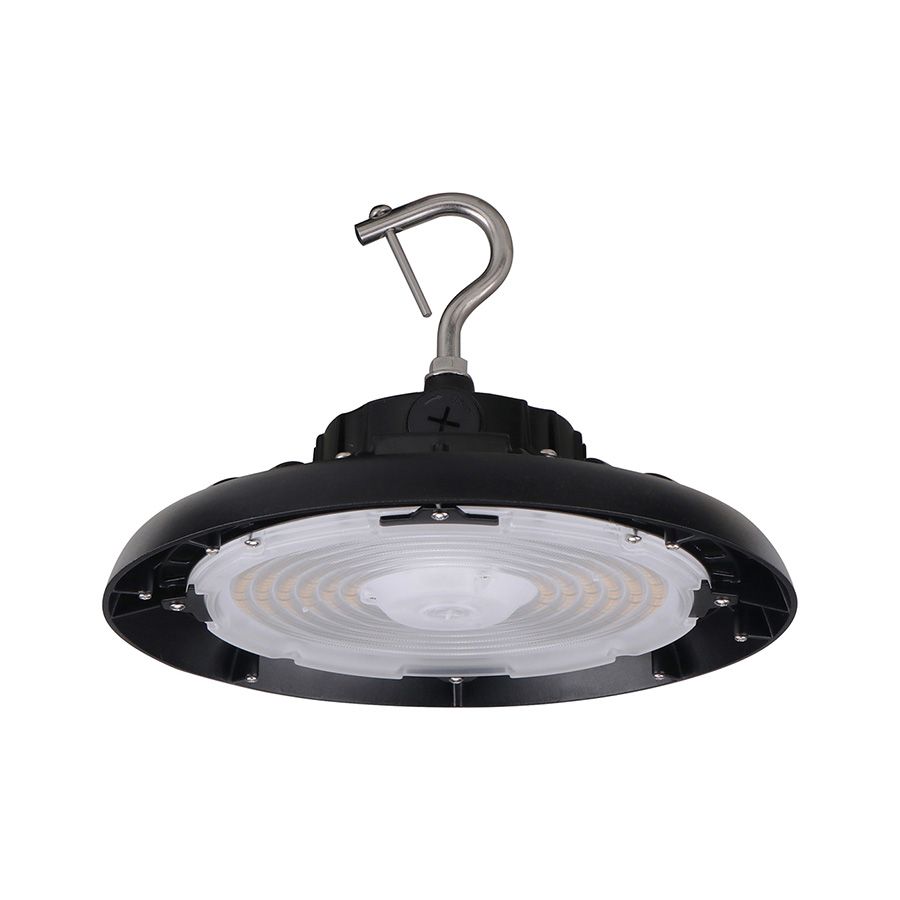

The Day-Brite CFI HCY sealed round LED high bay is an ideal choice where functional high bay lighting is needed with an aesthetic appeal. The round form factor lends itself to retail and institutional applications. The HCY0823L8CST-UN3-DIM is available in a corrosion resistant black or white finish on a die cast frame and driver containment housing with a clear polycarbonate lens to protect the LEDs. A heavy duty hook is provided for connection to a customer-supplied suspension. Featuring 6kV surge protection, 120V-347V range voltage and NEMA 4X (IP65) wet location rating, these NSF (National Sanitation Foundation) certified high bays are resilient in various commercial environments.
The HCY0823L8CST-UN3-DIM is a 50/90/150 watt selectable LED round high bay that produces between 8,000-23,000 lumens, for an impressive 150 lm/W. This LED high bay allows for complete lighting control with its' 0-10V dimming and selectable CCT options in 3500K, 4000K, and 5000K color temperatures. This DLC Premium listed Round LED High Bay is rated for 50,000 hours and is backed by a 5 year limited warranty.
| Manufacturer | Day-Brite CFI | |
| Finish Color | Black | White |
| MPN | HCY0823L8CST-UN3-DIM-BK | HCY0823L8CST-UN3-DIM-WH |
| SKU | HCY0823L8CST-UN3-DIM-BK | HCY0823L8CST-UN3-DIM-WH |
| UPC | 911401809987 | 911401820487 |
| DLC Product ID | S-N2X40V | |
| Lighting Technology | LED | |
| Wattage | 50/90/150 Watts | |
| Voltage | 120-347 Volt | |
| Color Temperature (Kelvin) | 3500K/4000K/5000K | |
| Lumens | 8000/14000/23000 Lumens | |
| Efficiency (Lumens Per Watt) | 150 lm/W | |
| Dimmable | Yes, 0-10V Dimming | |
| Rated Life | >50,000 Hours | |
| CRI (Color Rendering Index) | >80 CRI | |
| Power Factor | >0.9 | |
| Housing | Die cast metal | |
| Lens | Clear Polycarbonate Lens | |
| Mounting | Suspended | |
| Operating Temperature | -22 °F to 122 °F (-30°C to 50°C) | |
| Dimensions | 11" Diameter x 7-1/8" H | |
| Environment | Wet Location | |
| Certifications | cULus, DLC Premium, NSF, NEMA 4X, IP65, IK08, RoHS | |
| Warranty | 5 Years | |
