The LED plug in family offers a full line of products to meet the needs of any application. Halco's plug in line offers color selectable, hybrid, high lumen output (vertical or horizontal), and omni-directional options that are available in a variety of color temperatures and lumen output ranges. These efficient, versatile, and long lasting LED plug in lamps are the perfect replacement option for fluorescent double or triple biax products that are still heavily used through the market.

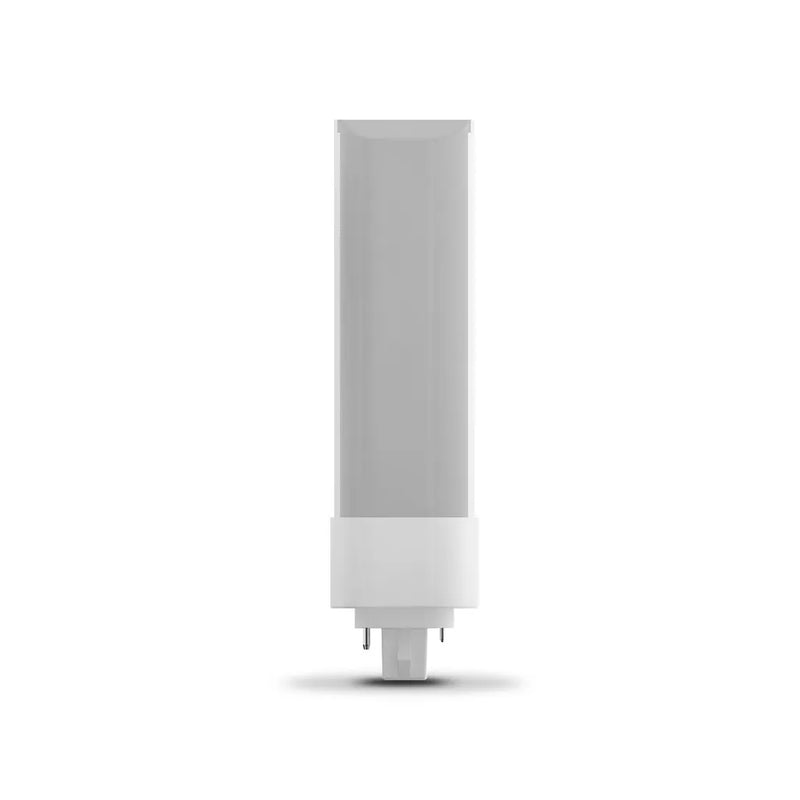

Halco's PLT16H-8xx-BYP-2P-LED, a 15.5 watt direct plug in led PL lamp, produces 1800 lumens of 3500K, 4000K, or 5000K light- that's 116 lumens per watt. Operating in a horizontal position, with a base that can be rotated 150 or 270 degrees for the proper positioning in the luminaire, this lamp has a 110 degree beam angle. Working on universal 120-277 volt line, this ballast bypass Type B PL lamp with a G24d 2-pin base, requires simple rewiring to maximize efficiency. These LED retrofit bulbs are rated for 50,000 hours, approved for use in open and damp locations and come with a 5 year warranty.
| Manufacturer | Halco Lighting Technologies | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| MPN | PLT16H-835-BYP-2P-LED | PLT16H-840-BYP-2P-LED | PLT16H-850-BYP-2P-LED |
| SKU | 82156 | 82157 | 82158 |
| UPC | 807154821563 | 807154821570 | 807154821587 |
| Lighting Technology | LED | ||
| Wattage | 15.5 Watts | ||
| Voltage | 120-277 V | ||
| Lumens | 1800 Lumens | ||
| Efficiency (Lumens Per Watt) | 116 lm/W | ||
| Ballast Operation | Type B Ballast Bypass | ||
| Bulb Shape | PL | ||
| Base | G24D 2-pin | ||
| Burn Position | Horizontal, 150º and 270º Rotate-able Housing | ||
| Beam Angle | 110 Degrees | ||
| Rated Life | 50,000 Hours | ||
| CRI (Color Rendering Index) | 82 CRI | ||
| Power Factor | 0.9 | ||
| Housing | Polycarbonate and Aluminum | ||
| Lens | Frosted | ||
| Operating Temperature | -20º C to 45º C | ||
| Dimensions | 1.1" Diameter x 6.7" MOL | ||
| Certifications | UL Listed, RoHS, FCC | ||
| Environment | Open Rated, Damp Location | ||
| Warranty | 5 Years | ||
