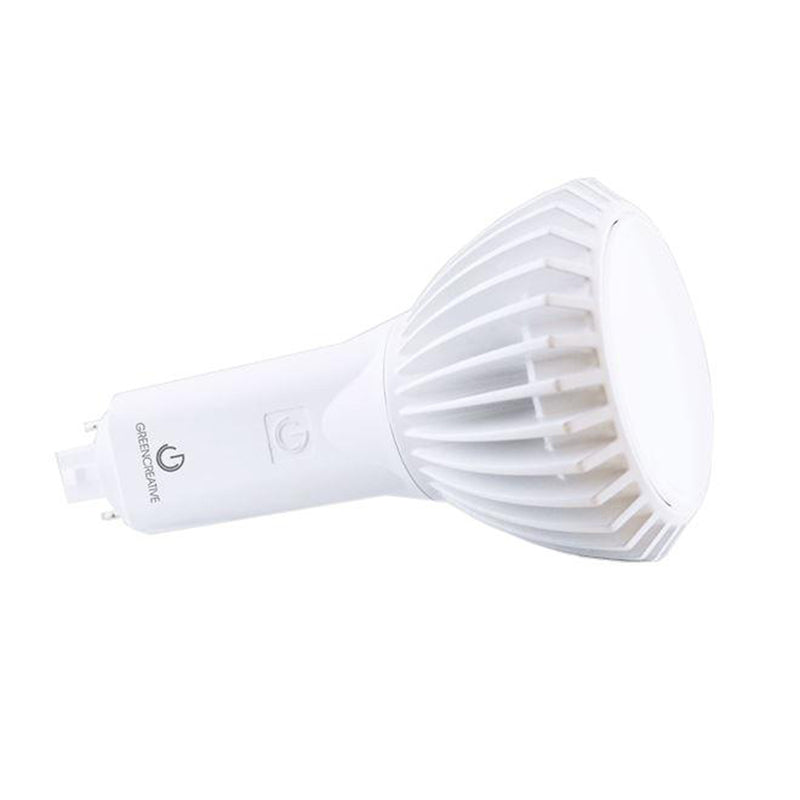

17 Watt 4 Pin G24q GX24q Vertical LED 120-277V PL Lamp Direct Replacement

Green Creative SKU: 98248
Green Creative 17 Watt 4 Pin G24q GX24q Vertical LED 120-277V PL Lamp Direct Replacement 3000K Warm White

17 Watt 4 Pin G24q GX24q Vertical LED 120-277V PL Lamp Direct Replacement

Green Creative SKU: 98248
  • DLC Listed
Regular price $26.58
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

This PL EDGE SERIES lamp has been designed and engineered for demanding commercial applications. This is a plug & play lamp, meaning this light is compatible with most 42W, 32W, and 26W electronic ballasts (Direct installation). Simply install it in your existing fixture and turn ON the savings (up to 60% energy savings). These PL LED Titanium Lamps are designed for vertical applications.

Here is the Green Creative, 120° beam angle, 4 pin mount retrofit LED. It is a direct replacement for 42w 4-pin G24q and GX24q fluorescent PL single twin tube lights. Part number 17PLV/8(XX)/DIR consumes just 17 watts of 120 to 277 volt 60 Hz energy. These LED tubes are UL Listed and are a dimmable LED light bulb via 0-10V circuits, will produce 1,900-2,000 lumens of light output, has a Color Rendering Index (CRI) of 82 and a rated life of up to 50,000 hours . Give them a try - You will be very pleasantly surprised.

The physical dimensions of the LED retrofit are 6.44 inches MOL by 3.5 inches wide. Each 17PLV/8(XX)/DIR LED fluorescent retrofit bulb operates directly off of your existing electronic ballast.

Manufacturer Green Creative
Color Temperature (Kelvin) 2700K Warm White 3500K Bright White 4000K Cool White
MPN 17PLV/830/DIR 17PLV/835/DIR 17PLV/840/DIR
SKU 98248 98249 98250
UPC 045079982482 045079982499 045079982505
Lumens 1900 Lumens 1950 Lumens 2000 Lumens
Efficiency (Lumens Per Watt) 112 lm/w 115 lm/w 118 lm/w
Lighting Technology LED
Wattage 17 Watt
Voltage 120 - 277V
Bulb Shape PL
Base 4-Pin G24q & GX24q
Burn Position Vertical
Dimmable Yes, 0-10V Dimming
Beam Angle 120 Degree
Ballast Operation Type A Ballast Compatible
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82
Fluorescent Equivalent 42 Watt
Operating Temperature -4° F to 95° F
Dimensions 3.5" Diameter x 6.44" MOL
Certifications cULus, FCC, DLC
Environment Damp Location
Warranty 5 Year Warranty
