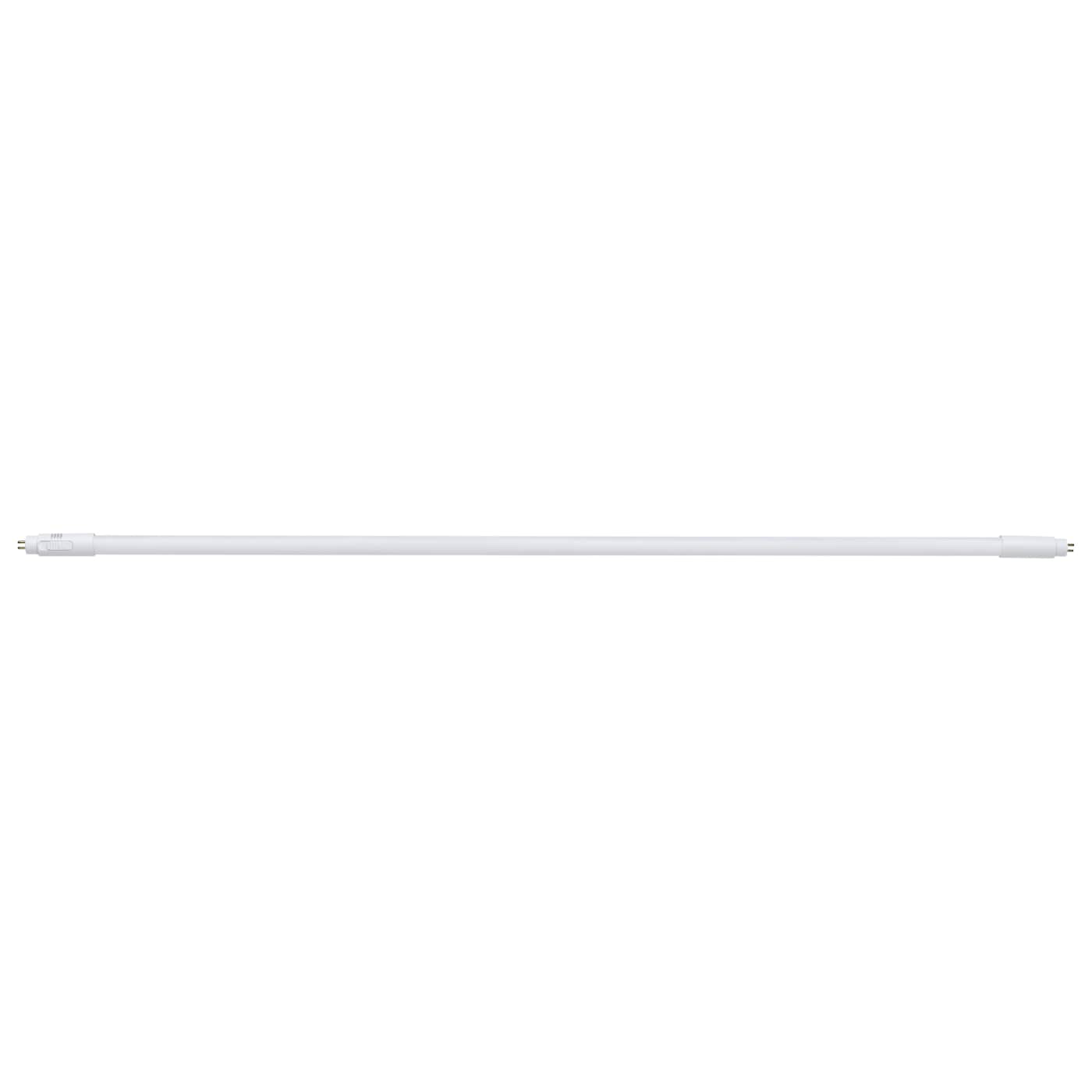

Name: 21 Inch 10 Watt 1400 Lumen Type A Ballast Compatible LED T5 G5 Mini Bi-Pin 3500K/4000K/5000K/6500K
Brand: Satco
SKU: S16514
Price: 12.95 USD
Availability: InStock

21 Inch 10 Watt 1400 Lumen Type A Ballast Compatible LED T5 G5 Mini Bi-Pin 3500K/4000K/5000K/6500K

Damp Location Rated

Price

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

Details
Specifications
Documents
Request A Quote

Details

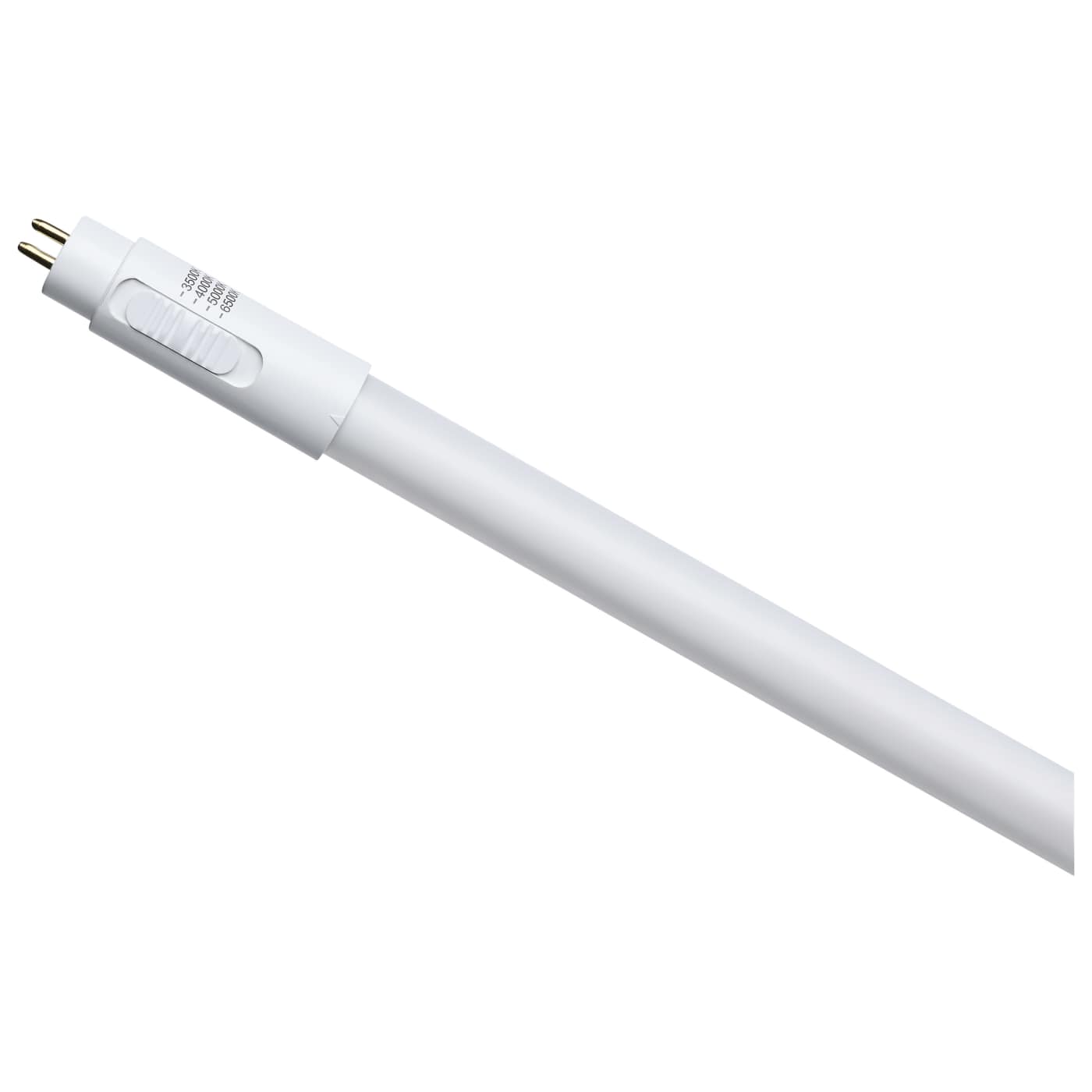

Upgrade your linear lighting with adaptable LED T5 lamps engineered for convenience, durability, and flexibility. Designed for easy retrofit applications, these ballast-compatible Type A lamps eliminate the need for rewiring existing ballast. Available in 9", 12", and 21" lengths with a G5 miniature bi-pin base, each lamp features four selectable CCT options to suit a variety of environments. Constructed with durable PET-coated glass, these lamps deliver reliable performance, making them an ideal solution for undercabinet, vanity, and task lighting applications replacing F6T5, F8T5, and F13T5 fluorescent lamps.

The Satco/NUVO 10T5L21/8CCT4/G5/A/O/CF/U/D (S16514) 21 Inch 10-Watt Ballast Compatible LED T5 have a 180-degree beam angle and generates 1400 lumens. That's an awesome 140 lumens per watt of 83 CRI light. They are dimmable, measuring 0.62" diameter by 20.91" in Maximum Overall Length (MOL) and damp location rated. The Satco 10-watt LED tube comes in a PET frosted finish, each tube has a 36,000-hour lifetime and they carry a three-year limited warranty.

Specifications

Manufacturer	Satco
MPN	10T5L21/8CCT4/G5/A/O/CF/U/D
SKU	S16514
UPC	045923165146
Lighting Technology	LED
Color Temperature (Kelvin)	3500K/4000K/5000K/6500K
Wattage	10 Watts
Voltage	120-277V
Lumens	1400 Lumens
Efficiency (Lumens Per Watt)	140 LPW
Wiring Method	Type A Compatible
Dimmable	0-10V with Compatible Ballasts
Bulb Shape	T5
Base	G5 Mini Bi-Pin
Beam Angle	180 Degrees
Rated Life	36,000 Hours
CRI (Color Rendering Index)	83 CRI
Finish	PET Coated Frosted Glass
Operating Temperature	-4°F to 113°F (-20°C to +45°C)
Dimensions	20.91" MOL x 0.62" D
Nominal Length	21 Inches
Environment	Damp Location Rated
Warranty	3 Year Limited Warranty

Documents

Satco T5 LED Ballast Compatible Tube Specification Sheet

Satco T5 LED Ballast Compatible Tube Installation Instructions

Satco T5 LED Ballast Compatible Tube Ballast Compatibility Sheet
