8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

Green Creative SKU: 38105
Green Creative 8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Green Creative 8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Green Creative 8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Green Creative 8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Green Creative 8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Green Creative 8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

8 Foot 2 Piece 24/32/40 Watt LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

Green Creative SKU: 38105
  • DLC Listed, NSF Listed, Enclosed Fixture Rated
/
Color Temp
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

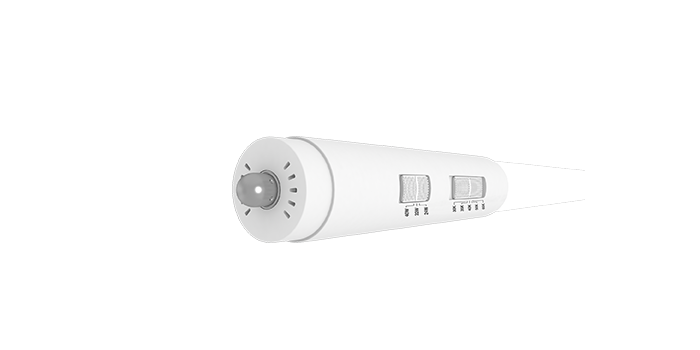

The Green Creative integral SelectKelvin switch allows for five selectable light colors in the field from 3000K, 3500K, 4000K, 5000K and 6500K. Whether you are seeking warm light for a cozy and relaxing atmosphere or cool light for a more energetic and productive environment, the SelectKelvin switch has you covered with only one single product. The integral SelectDrive switch allows for three selectable power levels in 24 watts, 32 watts and 40 watts, catering to your specific needs for different lighting design and energy savings requirements in the project.

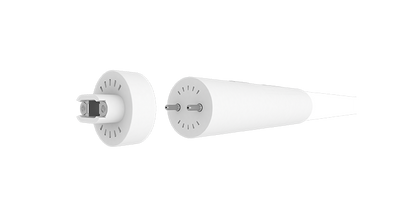

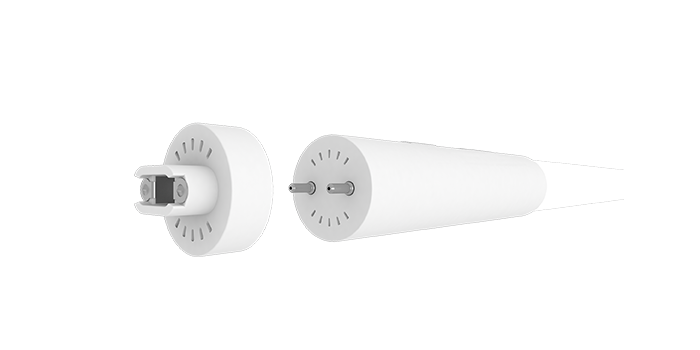

The 38105 tube light bases are conveniently swappable between Fa8 and R17d, with Fa8 single-pin bases pre-assembled as standard, and R17d recessed double-contact bases supplied additionally, giving you the freedom to effortlessly adapt to any existing lamp holders in the field. The 8ft LED tube delivers up to 5,500 lumen light output with great efficacy up to 138 LPW. PET coated glass improves resistance to breakage. Suitable for double ended installation in bypass mode, the tube is featured with L70 rated lifetime of 50,000 hours, guaranteed with standard 5-year warranty.

Specifications
Manufacturer Green Creative
MPN 40T8/8F/8CCTS/DEB/SD/C
SKU 38105
UPC 790492381052
Lighting Technology LED
Wattage 24/32/40 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000/3500/4000/5000/6500K
Lumens 5,200-5,500 Lumens
Efficiency (Lumens Per Watt) 130-138 LPW
Ballast Operation Type B; Ballast Bypass
Wiring Method Double Ended Wiring
Bulb Shape T8
Base Fa8 and R17d (Removable Caps Included)
Beam Angle 170 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82 CRI
Power Factor 0.9
THD (Total Harmonic Distortion) <20%
Fluorescent Equivalent 96 Watts
Operating Temperature -4°F to 95°F (-20°C to 35°C)
Ambient Temperature -4°F to 113°F (-20°C to 45°C)
Dimensions 93-13/16" MOL x 1" Diameter

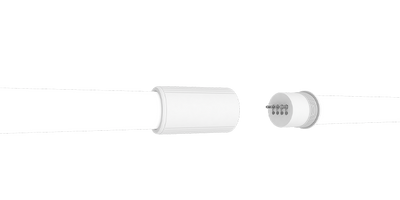

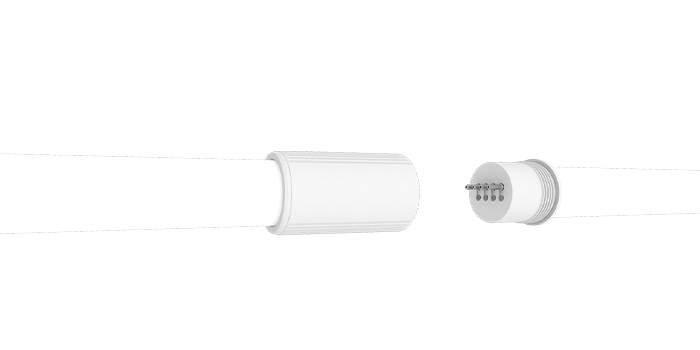

Nominal Length 8 Foot (2 - 4 Foot Pieces)
Certifications DLC Listed, NSF Rated, Enclosed Fixture Rated
Environment Damp Locations
Warranty 5 Year Warranty



Documents

Green Creative 2 Piece LED T8 Ballast Bypass Tube Light Specification Sheet

Green Creative 2 Piece LED T8 Ballast Bypass Tube Light Installation Instructions
