Name: 8 Foot 24/32/40 Watt LED Double Ended Bypass T8 Tube Light with Field Changeable R17D or FA8 Single Pin End Caps 3000K-6500K
Brand: Halco Lighting Technologies
SKU: 87226
Price: 28.46 USD
Availability: InStock

Halco Lighting Technologies 8 Foot 24/32/40 Watt LED Double Ended Bypass T8 Tube Light with Field Changeable R17D or FA8 Single Pin End Caps 3000K-6500K Selectable

DLC Listed, NSF Listed

Price

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":46823557529844,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"87226","requires_shipping":true,"taxable":true,"featured_image":{"id":48559541846260,"product_id":9119871566068,"position":1,"created_at":"2025-09-02T11:15:19-04:00","updated_at":"2025-09-02T11:15:21-04:00","alt":"Halco Lighting Technologies 8 Foot 24\/32\/40 Watt LED Double Ended Bypass T8 Tube Light with Field Changeable R17D or FA8 Single Pin End Caps 3000K-6500K Selectable","width":1025,"height":1020,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/halco-t8-8ft-cs-ls-87226.webp?v=1756826121","variant_ids":[46823557529844]},"available":true,"name":"8 Foot 24\/32\/40 Watt LED Double Ended Bypass T8 Tube Light with Field Changeable R17D or FA8 Single Pin End Caps 3000K-6500K - Selectable","public_title":"Selectable","options":["Selectable"],"price":2846,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"807154872268","featured_media":{"alt":"Halco Lighting Technologies 8 Foot 24\/32\/40 Watt LED Double Ended Bypass T8 Tube Light with Field Changeable R17D or FA8 Single Pin End Caps 3000K-6500K Selectable","id":39822019100916,"position":1,"preview_image":{"aspect_ratio":1.005,"height":1020,"width":1025,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/halco-t8-8ft-cs-ls-87226.webp?v=1756826121"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

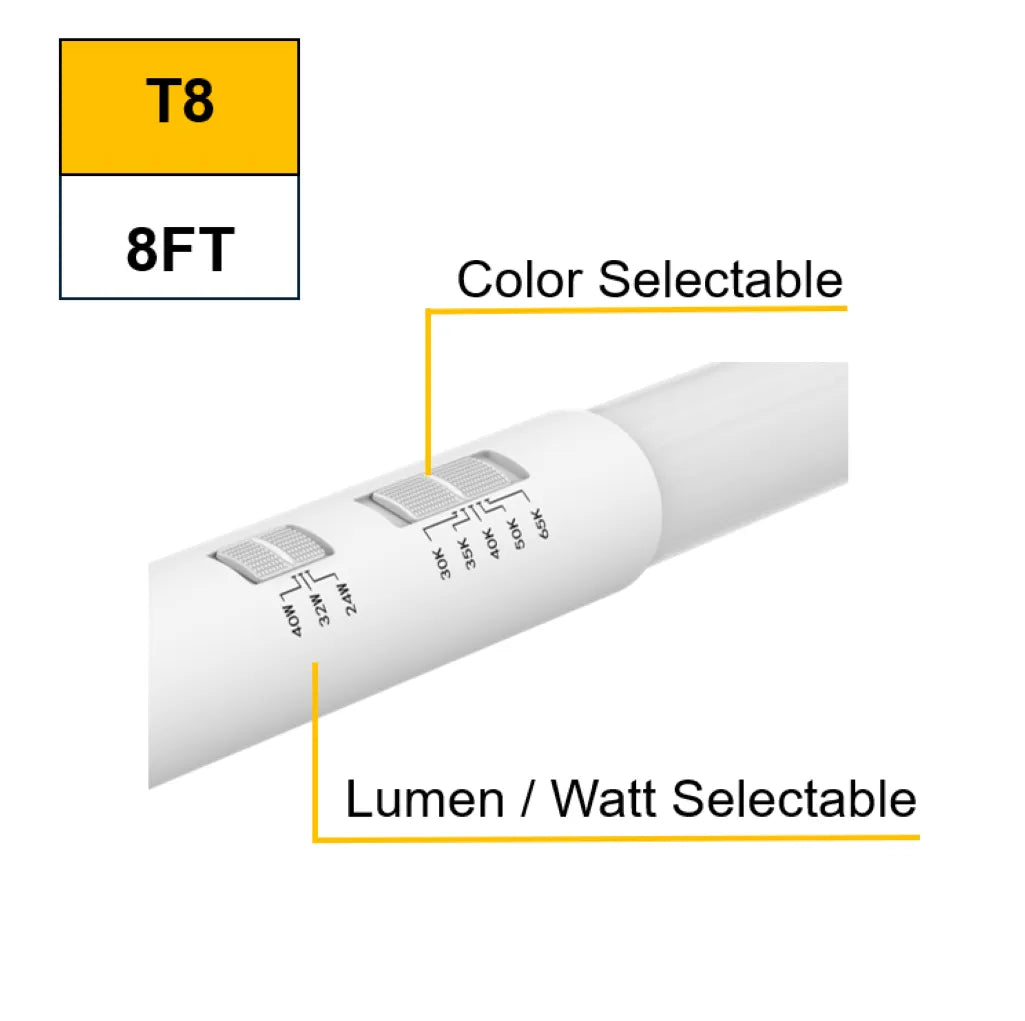

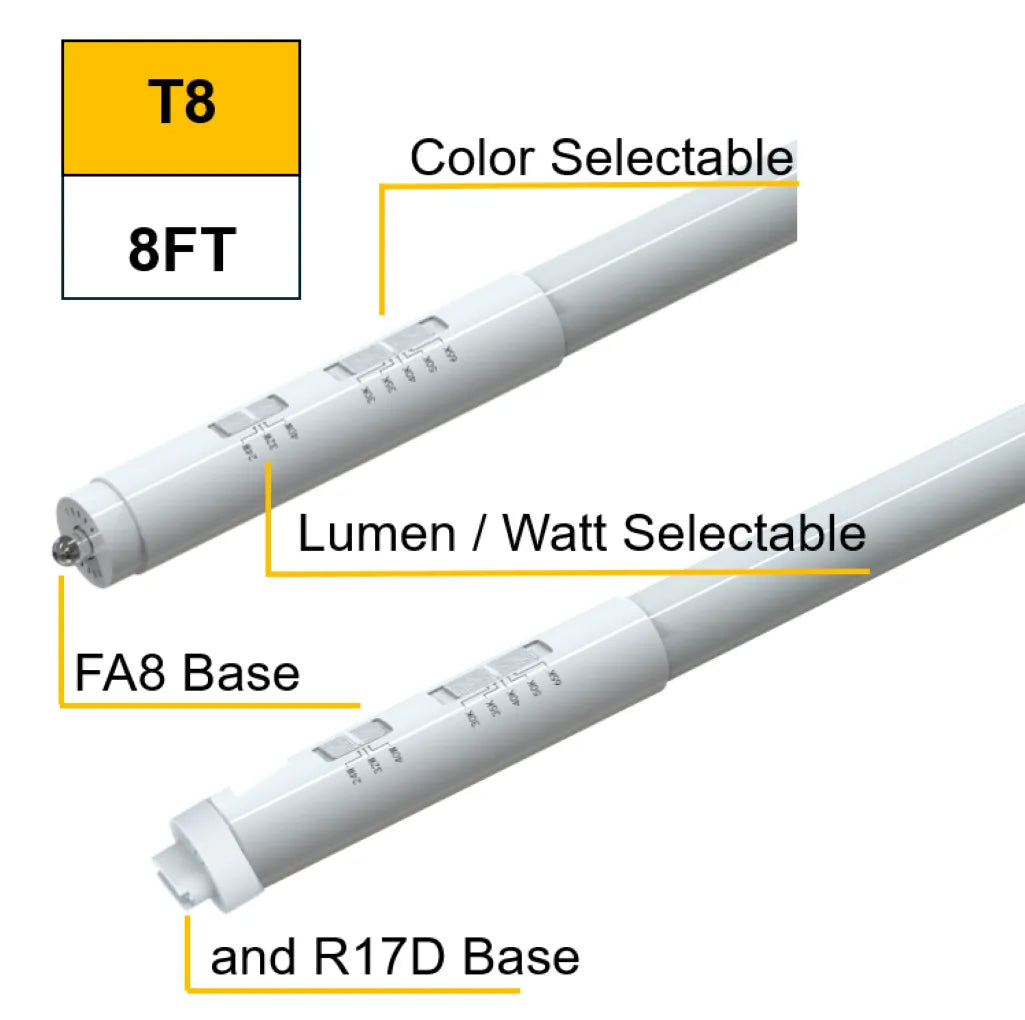

Halco’s 8-Foot T8 Double Ended Type B LED Lamps deliver bright, energy-efficient lighting for a wide range of commercial and industrial spaces. With output options up to 5,500 lumens and 146 lumens per watt, they are an ideal replacement for traditional 110 watt fluorescent tubes in warehouses, signage, retail, and utility applications. Available with maximum options as 24, 32 and 40 watt selectable, and color-selectable (ranging from 3000K to 6500K), these damp location lamps offer flexibility to suit different environments. A long rated life of 50,000 hours helps reduce maintenance, while changeable endcaps allow quick adaptation between R17D and FA8 single-pin sockets, streamlining installation. DLC listed when using the FA8 socket, these T8 lamps come with a 5 year warranty.

Specifications

Manufacturer	Halco Lighting Technologies
MPN	96T8-40S-8CS-DE-BYP3-LED
SKU	87226
UPC	807154872268
Lighting Technology	LED
Wattage	24/32/40 Watts
Voltage	120-277 V
Frequency	50/60 Hz
Ballast Operation	Type B Ballast Bypass
Bulb Shape	T8

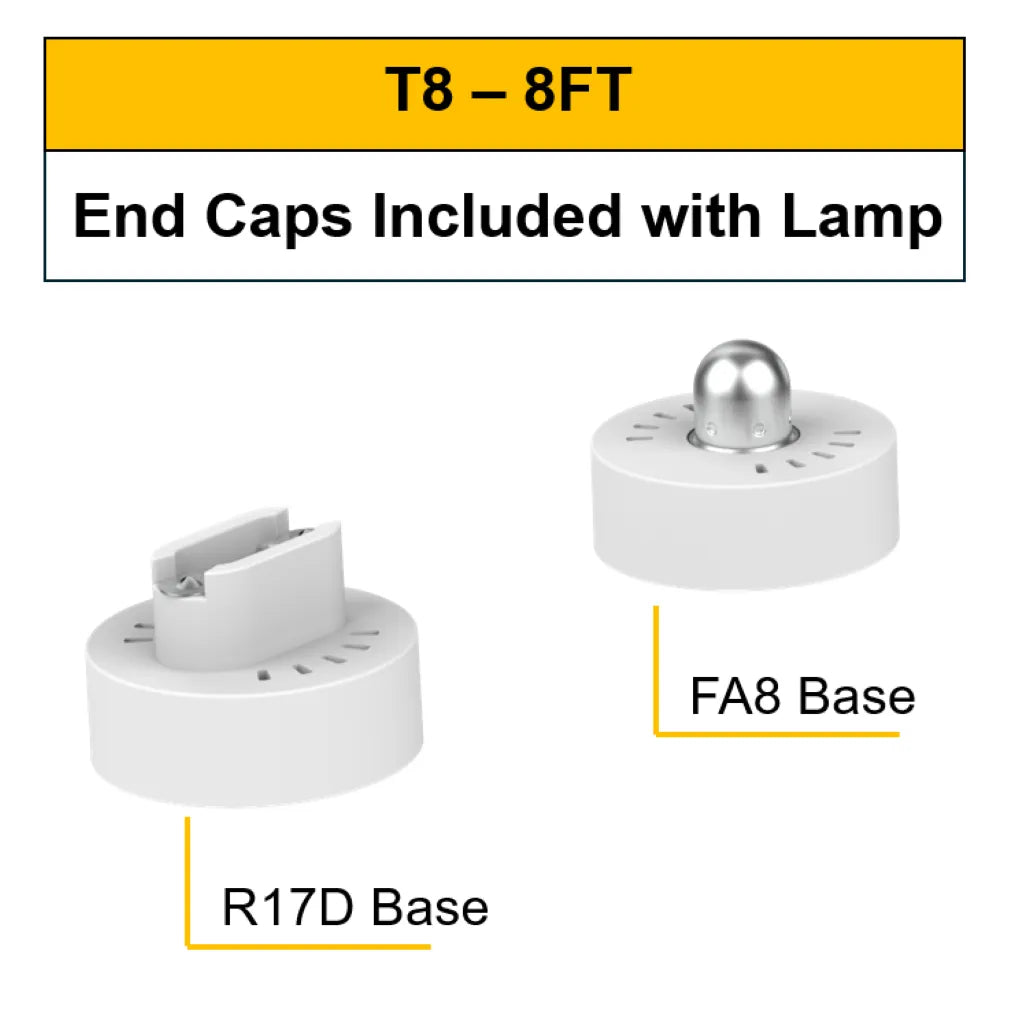

Base	Interchangeable End Caps: Fa8 and R17D
Beam Angle	210 Degrees
Rated Life	50,000 Hours
CRI (Color Rendering Index)	82 CRI
Power Factor	0.95
Housing	Glass
Operating Temperature	-20º C to 45º C
Dimensions	1" Diameter x 96" MOL
Certifications	cULus Listed, DLC Listed, NSF, RoHS, FCC
DLC Product ID for FA8 base only	S-C86TXV
Environment	Damp Location
Warranty	5 Years

Color Temperature (Kelvin)	3000K Warm White		3500K Bright White		4000K Cool White		5000K Daylight		6500K Daylight
Wattage	Lumens	Efficacy (lm/W)	Lumens	Efficacy (lm/W)	Lumens	Efficacy (lm/W)	Lumens	Efficacy (lm/W)	Lumens	Efficacy (lm/W)
24 Watts	3300 Lumens	138 lm/W	3300 Lumens	138 lm/W	3500 Lumens	146 lm/W	3500 Lumens	146 lm/W	3500 Lumens	146 lm/W
32 Watts	4200 Lumens	131 lm/W	4200 Lumens	131 lm/W	4400 Lumens	138 lm/W	4400 Lumens	138 lm/W	4400 Lumens	138 lm/W
40 Watts	5200 Lumens	130 lm/W	5200 Lumens	130 lm/W	5500 Lumens	138 lm/W	5500 Lumens	138 lm/W	5500 Lumens	138 lm/W

Documents

Halco 8 Foot Type B LED Double Ended T8 Tube Light Specification Sheet

Halco 8 Foot Type B LED Double Ended T8 Tube Light Installation Instructions

Halco 8 Foot Type B LED Double EndedT8 Tube Light DLC Product Listing
