8 Foot Wattage Selectable LED Double Ended Bypass Fa8 with R17d Adapter Caps 3000/3500/4000/5000/6500K

Satco SKU: S11758
  • DLC Listed, NSF Listed
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

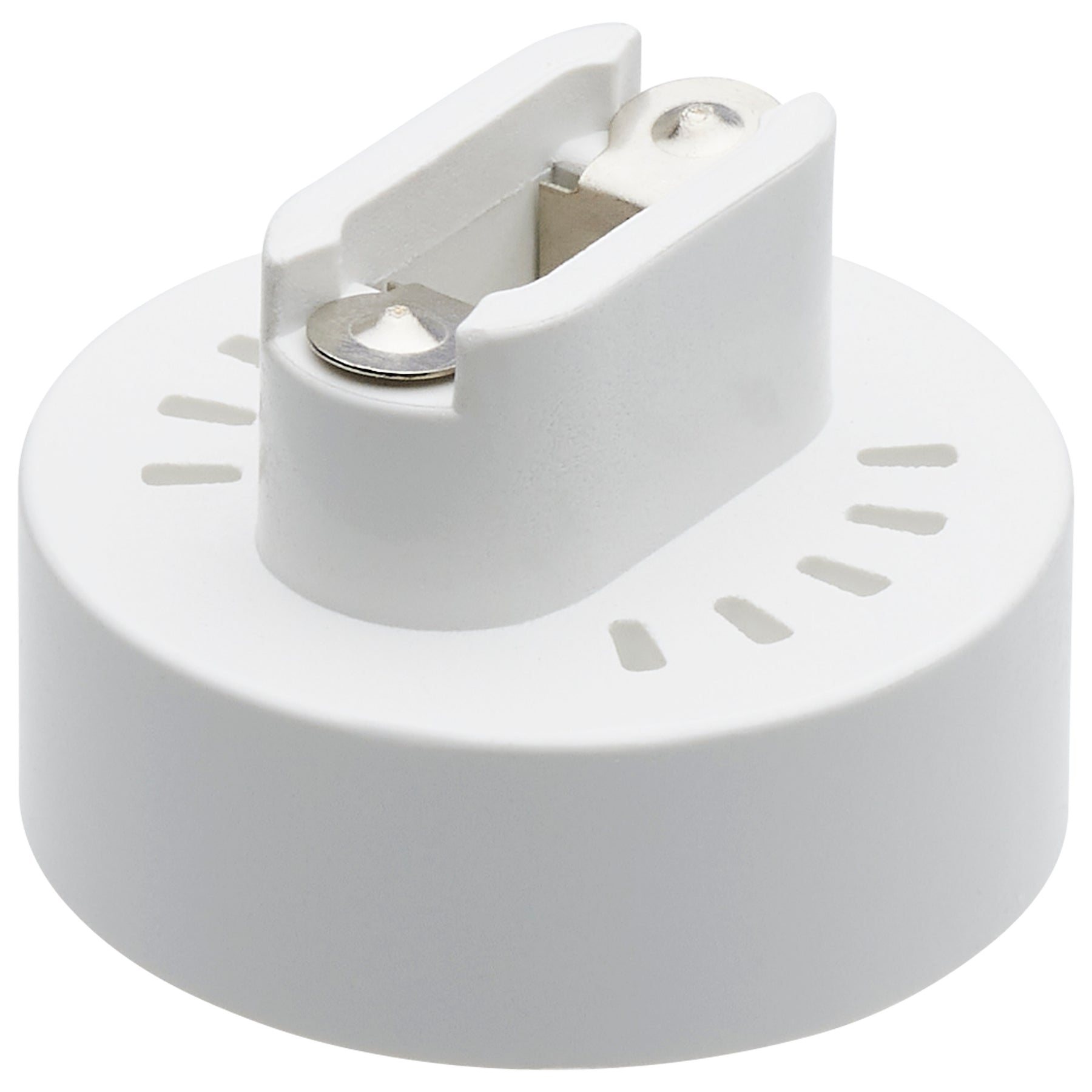

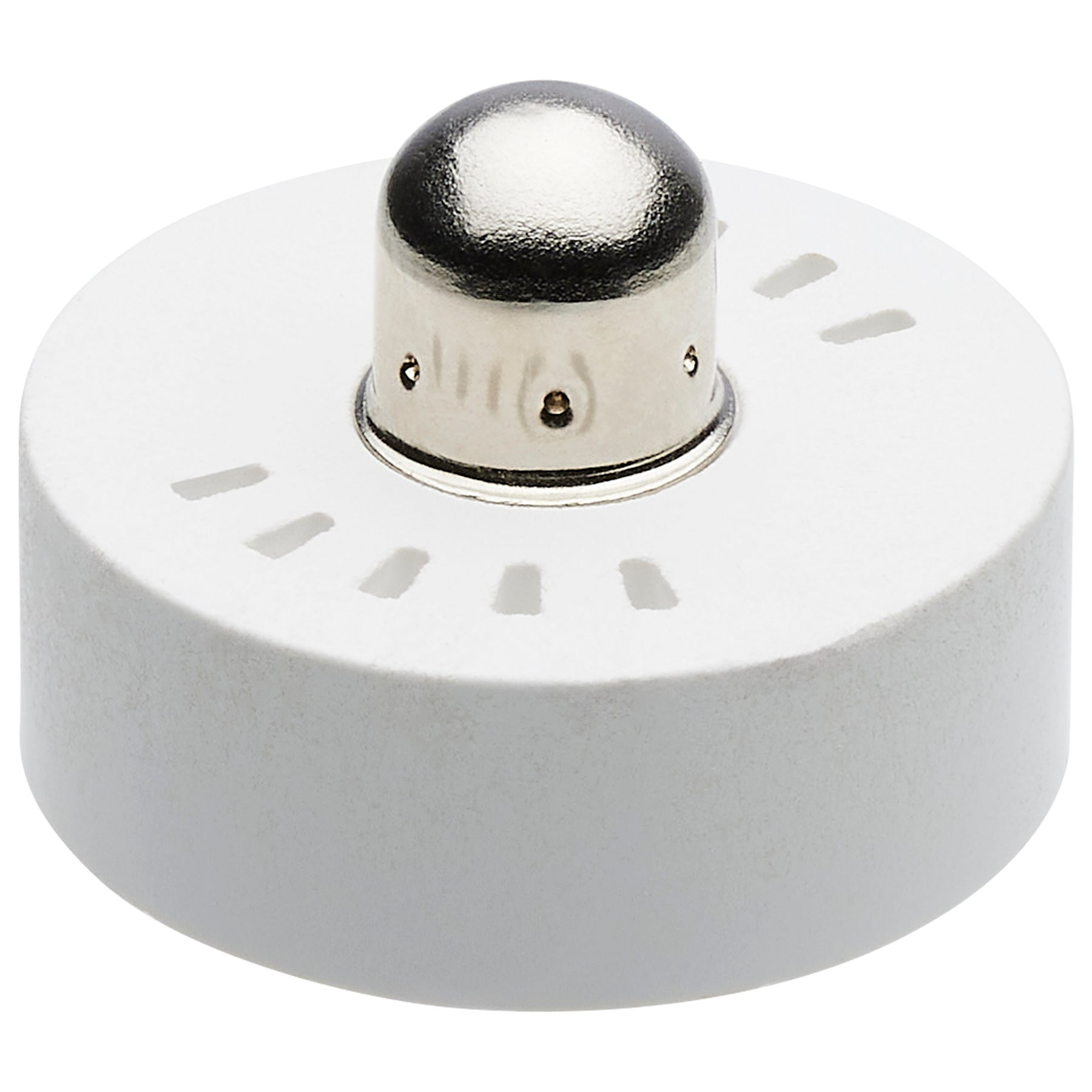

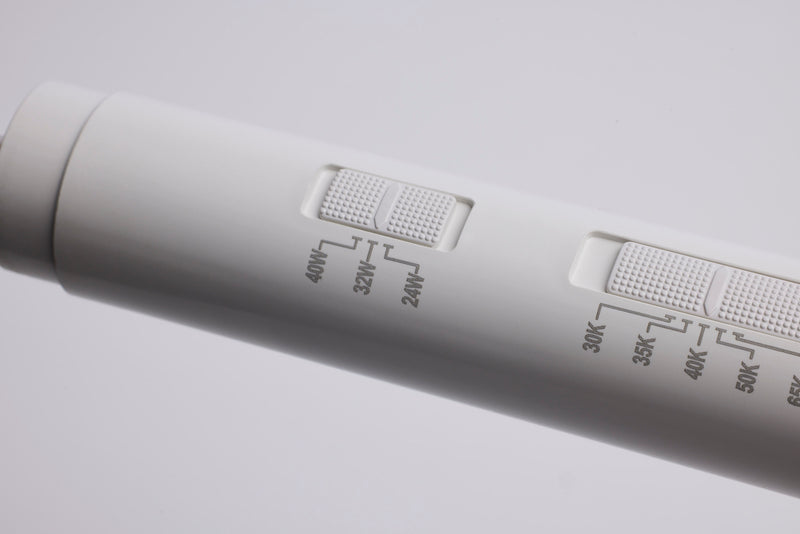

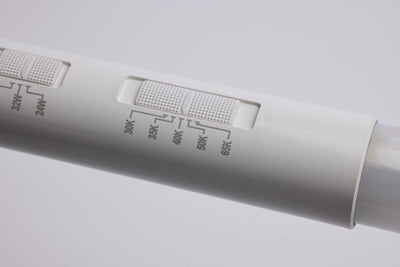

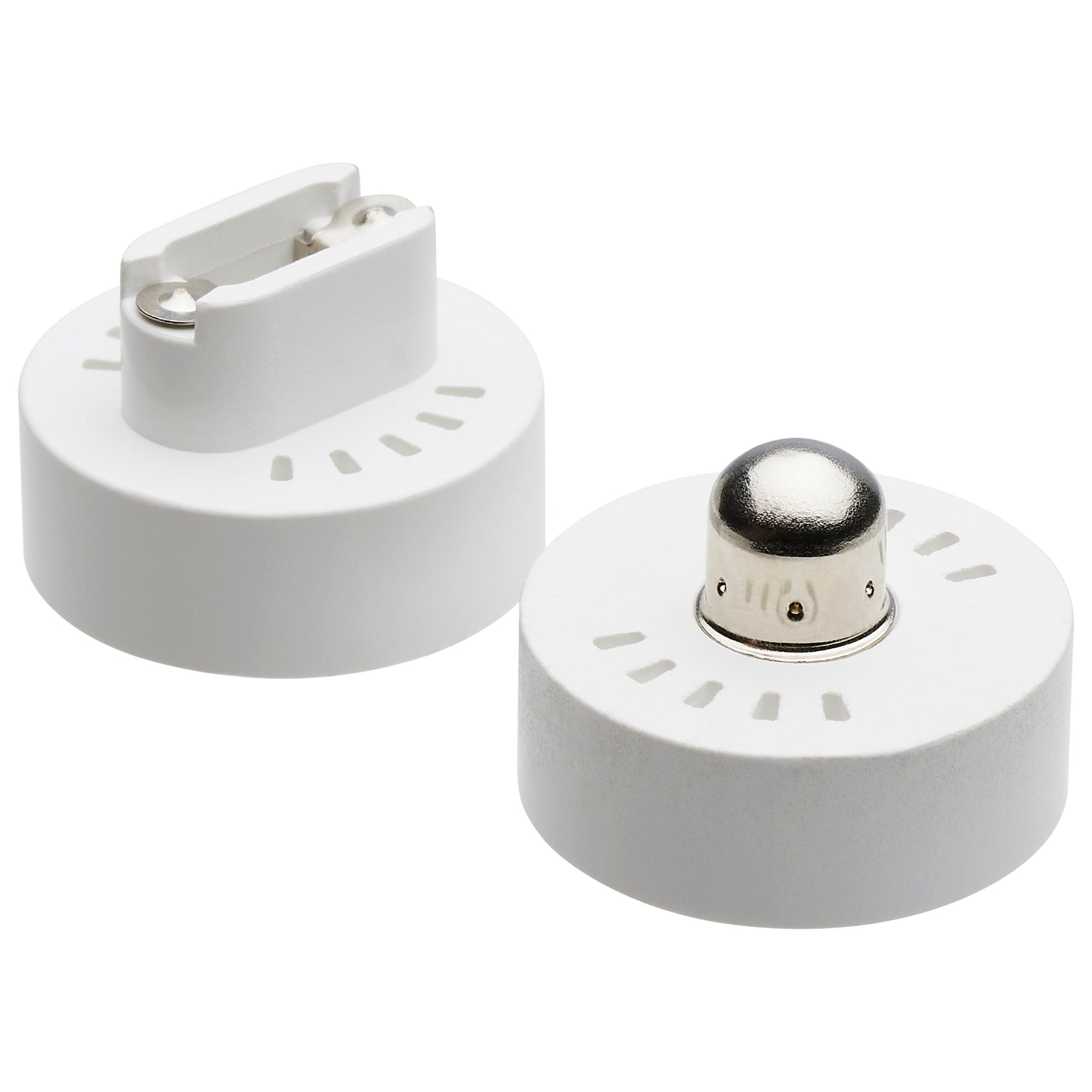

SATCO|NUVO’s T8 8’ ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a variety of shunted and non-shunted lamp holders. Suitable for virtually any open or enclosed fixture, these lamps are PET coated, NSF rated and rated for use in damp locations.

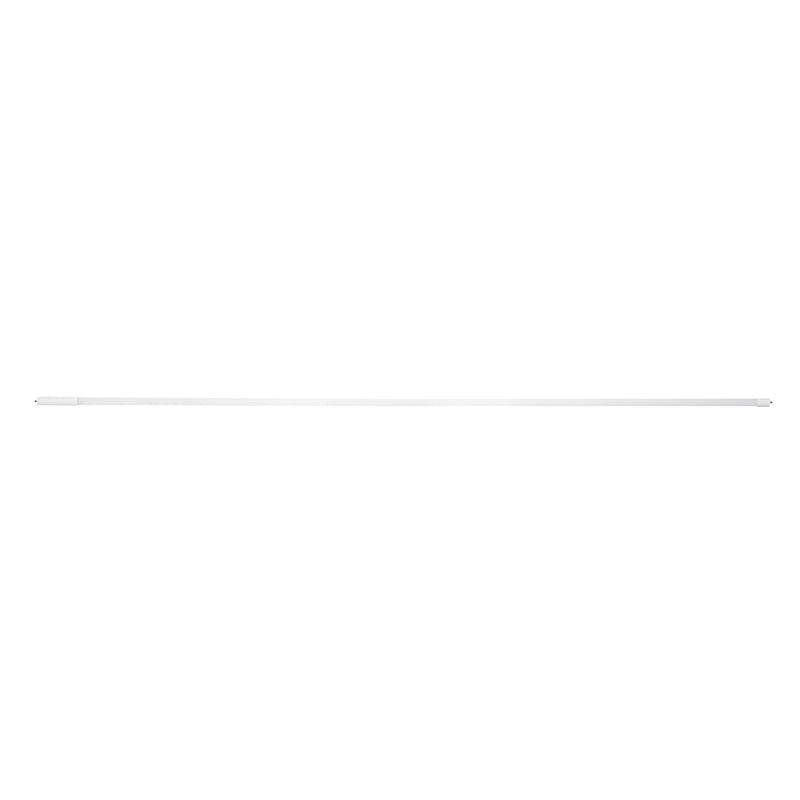

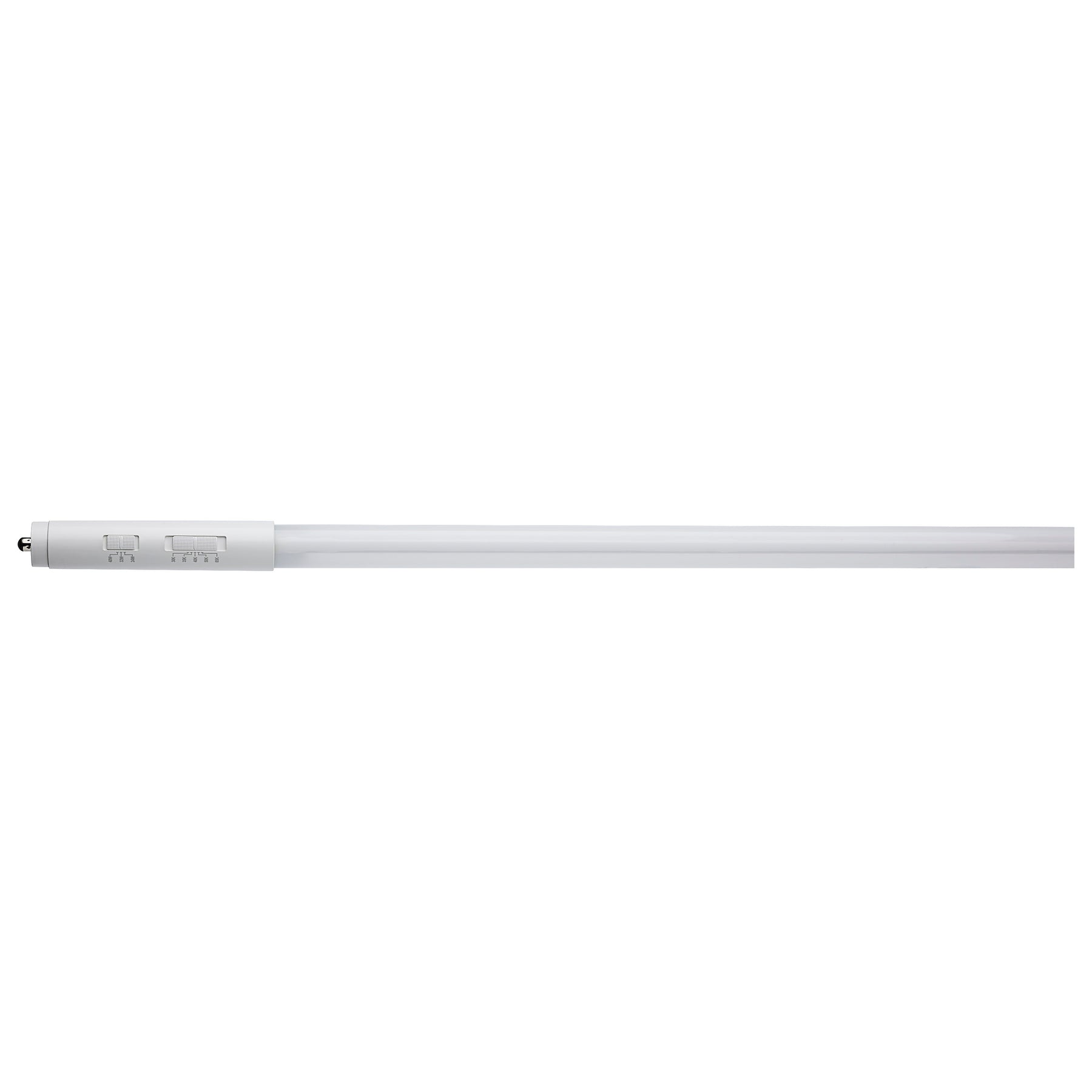

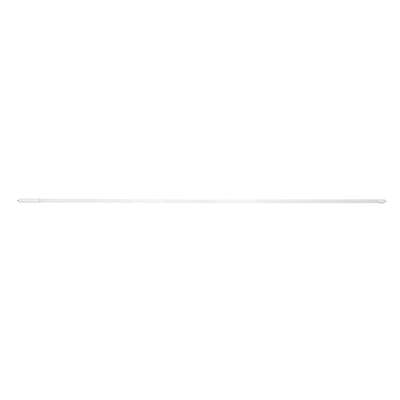

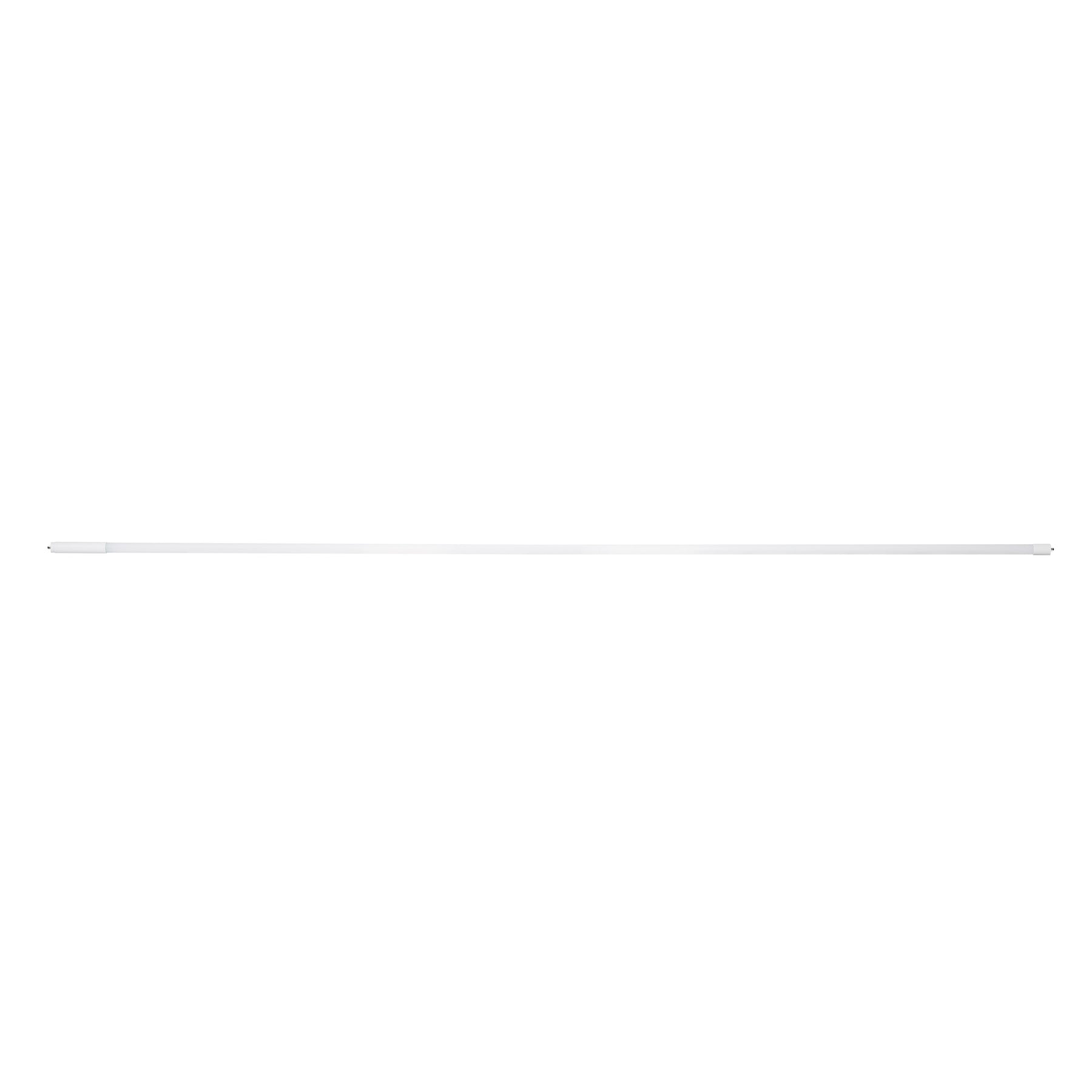

The Satco S11758 is a PET Coated Glass Double-Ended Type B Ballast Bypass LED TUBE. Rated for damp locations with a rated life of 50,000 hours and has a 5 Year Warranty.

Specifications
Manufacturer Satco
MPN S11758
SKU S11758
UPC 045923117589
Lighting Technology LED
Wattage 24/32/40 Watts
Lumens 3500/4400/5500 Lumens
Color Temperature (Kelvin) 3000K/3500K/4000K/5000K/6500K
Voltage 120-277 Volt
Frequency 50/60Hz
Ballast Operation Type B Ballast Bypass
Bulb Shape T8

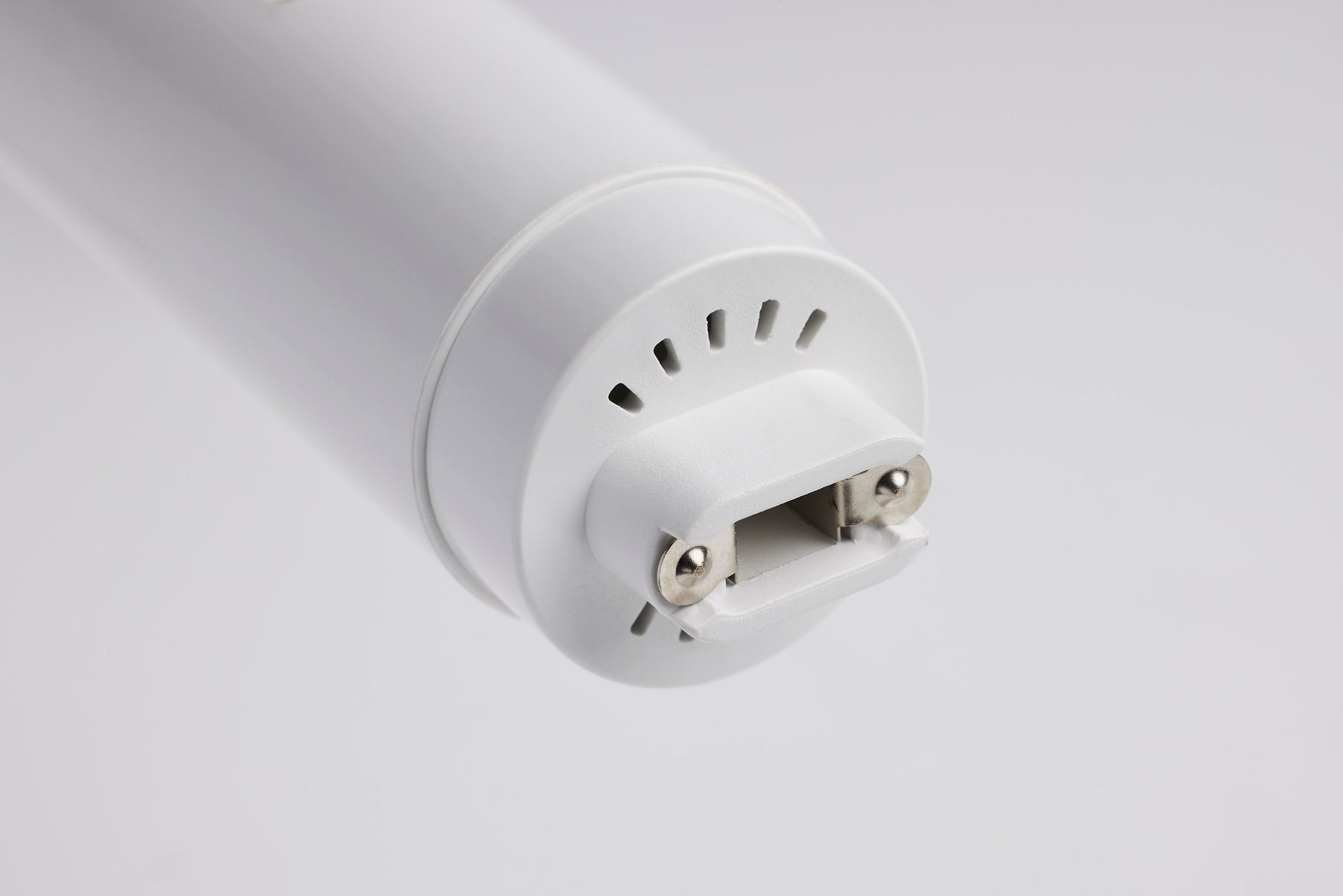

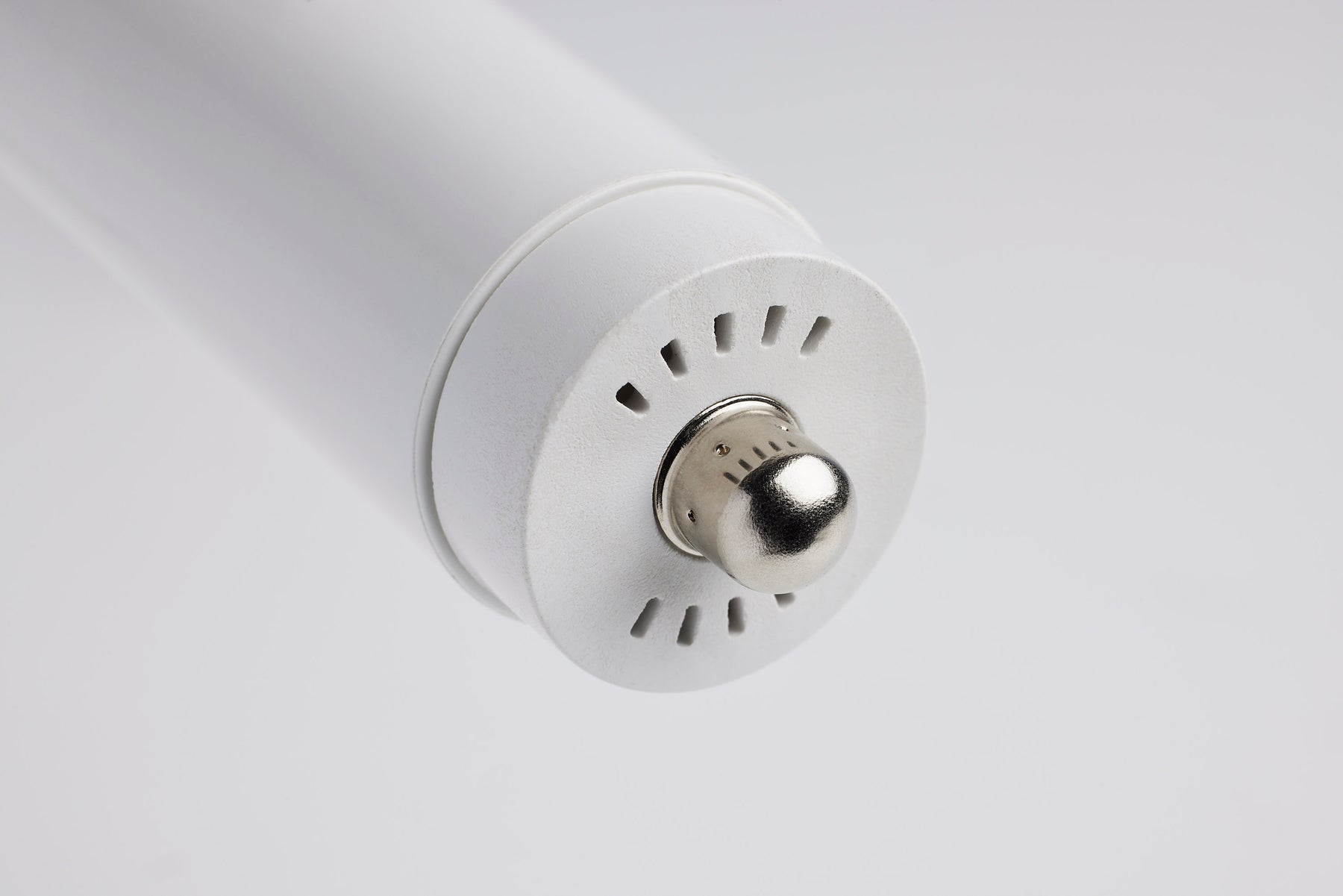

Base Interchangeable End Caps: Fa8 and R17d
Beam Angle 210 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80+ CRI
Power Factor 0.9, <25%
Construction PET Coated Glass
Operating Temperature -20º C (-4º F)  to 45º C (+113º F)
Dimensions 1" Diameter x 96" MOL
Certifications cULus Listed, DLC Listed, NSF, RoHS
DLC Product ID for FA8 base only S-3Y6HM9
Environment Damp Location Rated
Warranty 5 Year Warranty



Documents

Satco 8 Foot Double End Ballast Bypass Specification Sheet

Satco 8 Foot Double End Ballast Bypass DLC Product Listing
