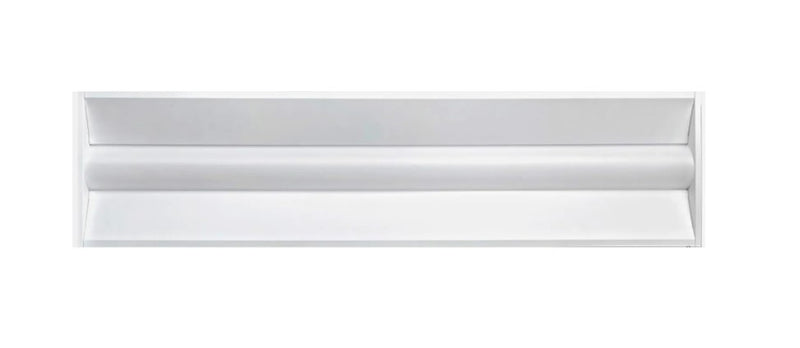

1x4 15/19/24/29 Watt LED Selectable Volumetric Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 81779
Halco Lighting Technologies 1x4 15/19/24/29 Watt LED Selectable Volumetric Panel 3500/4000/5000K Selectable

1x4 15/19/24/29 Watt LED Selectable Volumetric Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 81779
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

Halco Lighting Technologies' ProLED Select Volumetric Panel Series provides an architectural, modern design with increased visual comfort and functionality. This innovative product features both Wattage and CCT Selectability to make this one of the most versatile Volumetric Panels on the market.

This 1x4 LED Selectable Volumetric Panel by Halco, the 14FSVPL/8DU, is perfect for low depth ceiling cavities, making it ideal for offices and schools. It has a wattage selection of 15/19/24/29 watts using 120-277 volts of energy with a power factor of 90%. The panel generates 2,190-4,437 lumens depending on the selected wattage and has a rated lumen maintenance of 50,000 hours. It comes in a choice of 3500K Bright White, 4000K Cool White, or 5000K Daylight color temperatures. These panels are a damp location rated and RoHS compliant replacement for 2x32WT8 equivalents. DLC listed, this 1x4 lay-in LED light panel has a 5 year limited warranty.

Specifications
Manufacturer Halco Lighting Technologies
MPN 14FSVPL/8DU
SKU 81779
UPC 807154817795
Lighting Technology LED
Voltage 120-277 Volt
Dimmable Yes, 0-10V
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82 CRI
Power Factor >0.9
Housing Die Cast Steel
Lens Diffused
Operating Temperature 20°C - 40°C
Dimensions 11 13/16" L x 47 11/16" W x 1 3/16" H
Certifications DLC Listed, cULus, FCC, RoHS Compliant
DLC Product ID PLDW30CEUHRT
Environment Damp Location, IC Rated
Warranty 5 Year Limited



Wattage 15 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,190 Lumens 2,234 Lumens 2,220 Lumens
Efficiency (Lumens Per Watt) 146 lm/W 158 lm/W 148 lm/W



Wattage 19 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,736 Lumens 2,964 Lumens 2,774 Lumens
Efficiency (Lumens Per Watt) 144 lm/W 156 lm/W 146 lm/W



Wattage 24 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,408 Lumens 3,696 Lumens 3,456 Lumens
Efficiency (Lumens Per Watt) 142 lm/W 154 lm/W 144 lm/W



Wattage 29 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,094 Lumens 4,437 Lumens 4,147 Lumens
Efficiency (Lumens Per Watt) 141 lm/W 153 lm/W 143 lm/W
Documents

Halco LED Selectable Volumetric Panel Specification Sheet

Halco LED Selectable Volumetric Panel Installation Instructions

Halco LED Selectable Volumetric Panel DLC Product Listing
