Satco's LED Selectable Double Basket Troffer provides flicker-free illumination with volumetric design. Its acrylic linear prismatic lens ensures broad, even light distribution. These troffers also have color and wattage selectability and drops into your existing T-bar grid. With a 50,000 hour life expectancy, this troffer requires no maintenance for long-term enjoyment. This troffer provides flexibility and energy savings, saving you time and money. It’s designed with advanced thermal management, making it an excellent choice for commercial and institutional spaces. These emergency troffers have a 90 minute run time.

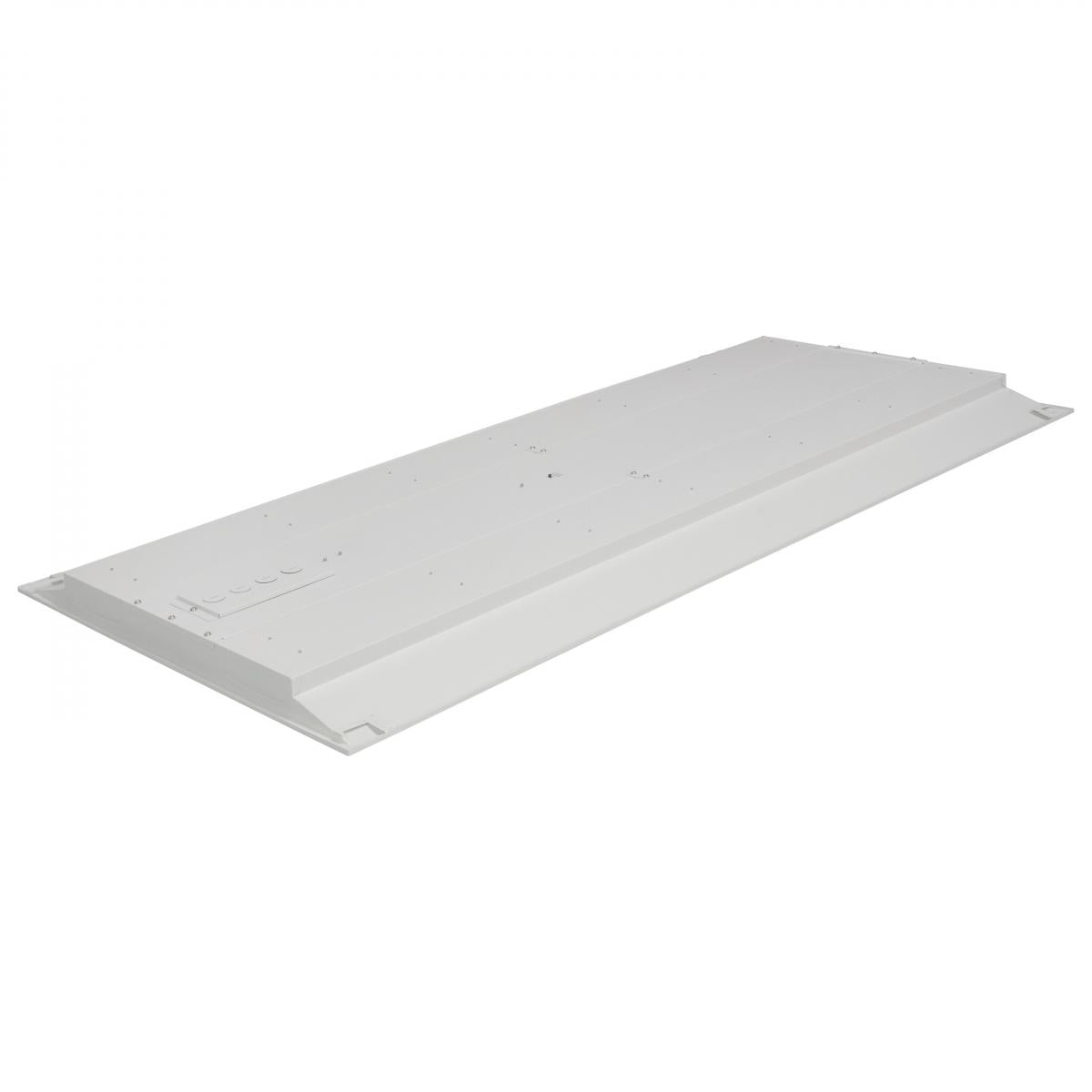

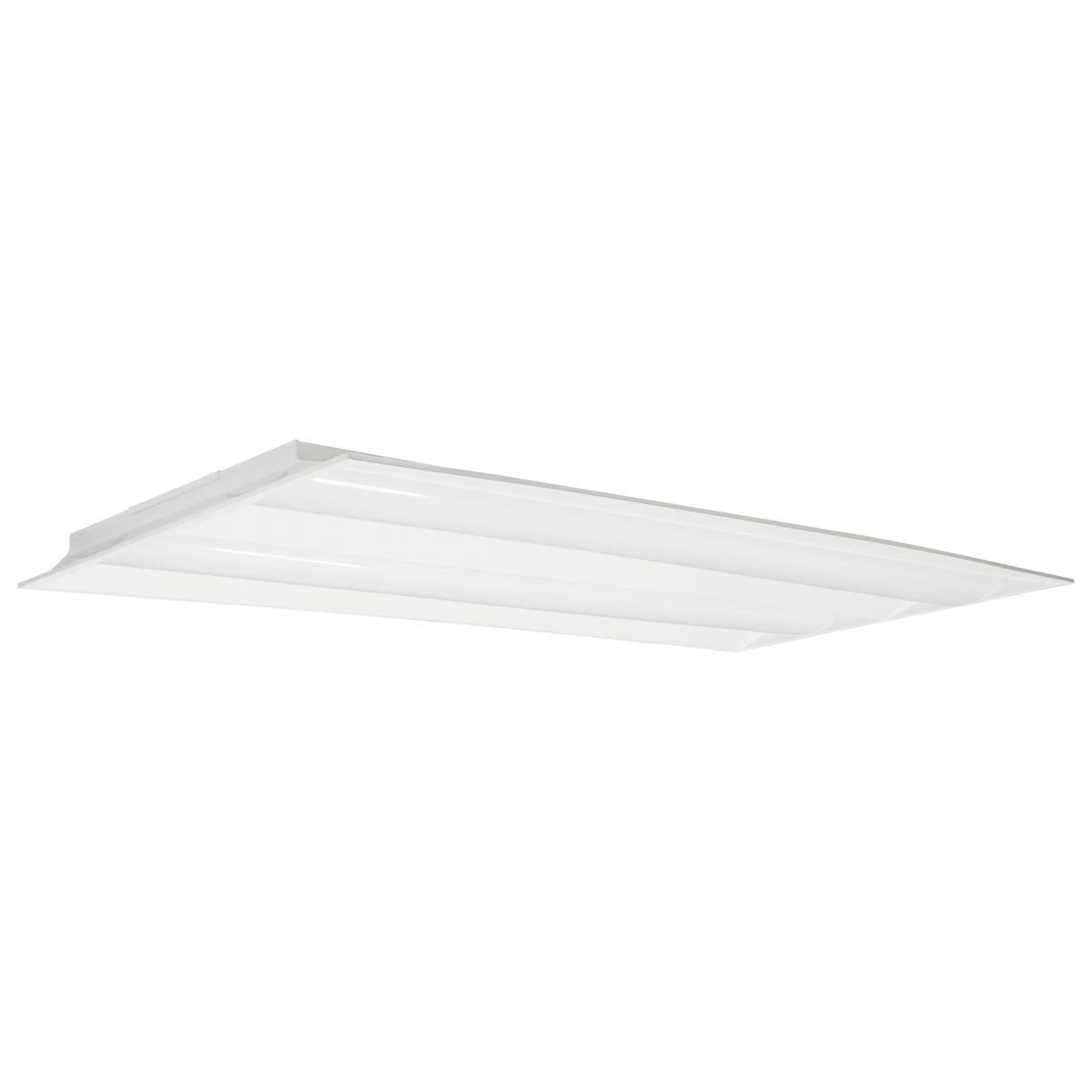

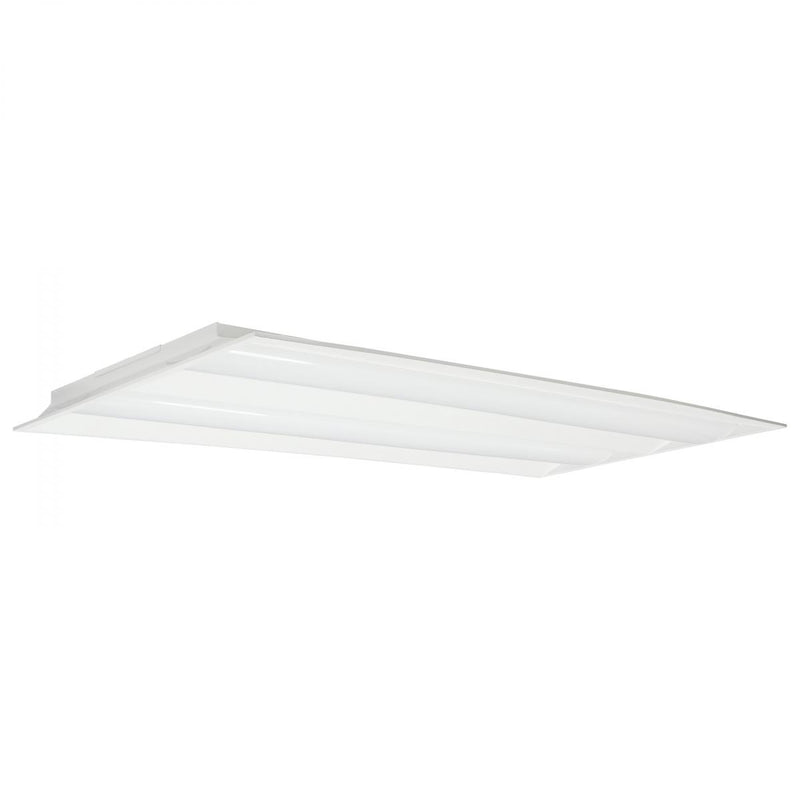

This item is Satco's 65-697 2x4 LED double basket emergency troffer. Each 2x4 LED panel is ideal for low depth ceiling cavities - whether in an office or school. The Satco 65-697 LED 2x4 recessed troffer is wattage selectable and consumes 30/40/50 watts of 100-277 volt energy. They generate between 3,300-5,750 lumens, depending on the wattage selected, a rated lumen maintenance of 50,000 hours and come in a color selectable temperature of 3500K Bright White, 4000K Cool White and 5000K Daylight. These 2x4 lay-in LED light panels are damp location rated and carry a 5 year limited warranty.
|Color Temperature (Kelvin)||3500/4000/5000K|
|Efficiency (Lumens Per Watt)||113 LPW|
|Dimmable||Yes, 0-10V Dimming|
|Beam Angle||120 Degrees|
|Rated Life||50,000 Hours|
|CRI (Color Rendering Index)||80 CRI|
|THD (Total Harmonic Distortion)||<20%|
|Lens||Poly Methyl Methacrylate (PMMA)|
|Emergency Operation||90 Minutes|
|Operating Temperature||-20°C (-4°F) to 40°C (104°F)|
|Dimensions||23.74" W x 47.72" L x 3.02" H|
|Certifications||DLC Listed, RoHS Compliant, FCC Compliant|
|DLC Product ID||S-R15CV8|
|Warranty||5 Year Limited|
