Day-Brite / CFI EvoGrid LED recessed architectural luminaire combines style and affordability so that you can create comfortable, energy-efficient spaces within reach of your budget. The attractive 1x4, 2x2 and 2x4 configurations, as well as three color temperatures, complement any décor without distraction, thanks to a single lens enclosure and stylish, modern architectural aesthetics; yet they are priced similarly to specification grade fluorescent luminaires. EvoGrid makes it easy to transition into dimmable LED technology, with high energy efficiency that can reduce payback periods; while the Space Wise integrated wireless control option provides further energy savings that may qualify for additional rebate incentives. EvoGrid is also Interact ready, simplifying bringing the power of connected lighting to small and medium businesses.

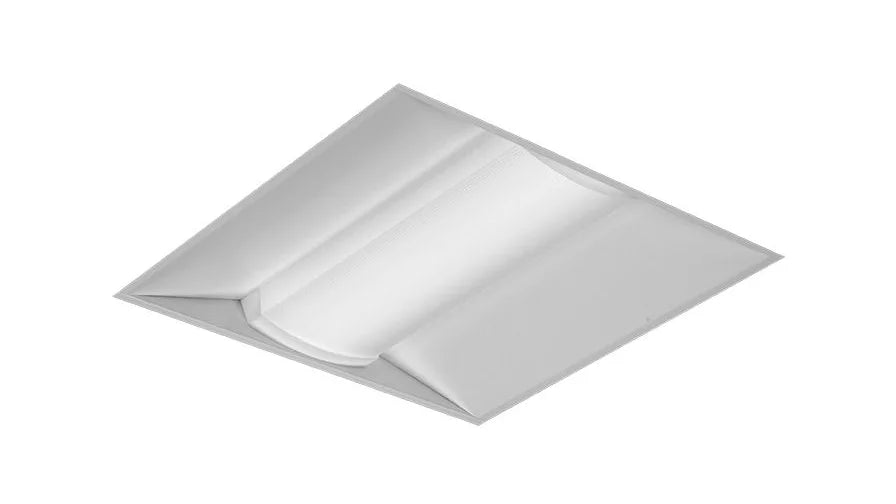

The EvoGrid 2EVG38L8XX-2-D-UNV-DIM 2x2 LED troffer is a high-performance, versatile lighting solution featuring 33 watts with 3800 lumen output and an impressive efficacy of 115 lm/W. Available 3500K and 4000K to suit a variety of environments. This fixture operates on universal 120-277V input and includes 0-10V dimming for precise light control. Built with a strong, well-constructed 2-3/4” inch deep housing , it is designed for long-term reliability, delivering an 80,000 hour lifespan and backed by a 5 year warranty.
| Manufacturer | Day-Brite CFI | |
| MPN | 2EVG38L835-2-D-UNV-DIM | 2EVG38L840-2-D-UNV-DIM |
| SKU | 2EVG38L835-2-D-UNV-DIM | 2EVG38L840-2-D-UNV-DIM |
| UPC | 784197028770 | 784197049133 |
| Color Temperature (Kelvin) | 3500K | 4000K |
| DLC Product ID | PVF67T57 | PM71YG9P |
| Lighting Technology | LED | |
| Wattage | 33 Watts | |
| Voltage | 120-277V | |
| Lumens | 3800 Lumens | |
| Efficiency (Lumens Per Watt) | 115 LPW | |
| Dimmable | Yes, 0-10V | |
| Rated Life | 80,000 Hours | |
| CRI (Color Rendering Index) | 80 CRI | |
| Finish | Matte White Polyester | |
| Housing | Die Cast Aluminum | |
| Lens | Soft Opal Diffuser | |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) | |
| Dimensions | 21" L x 21" Wx 2-7/8" H | |
| Certifications | DLC Premimum, ETL | |
| Environment | Indoor | |
| Warranty | 5 Year Warranty | |
