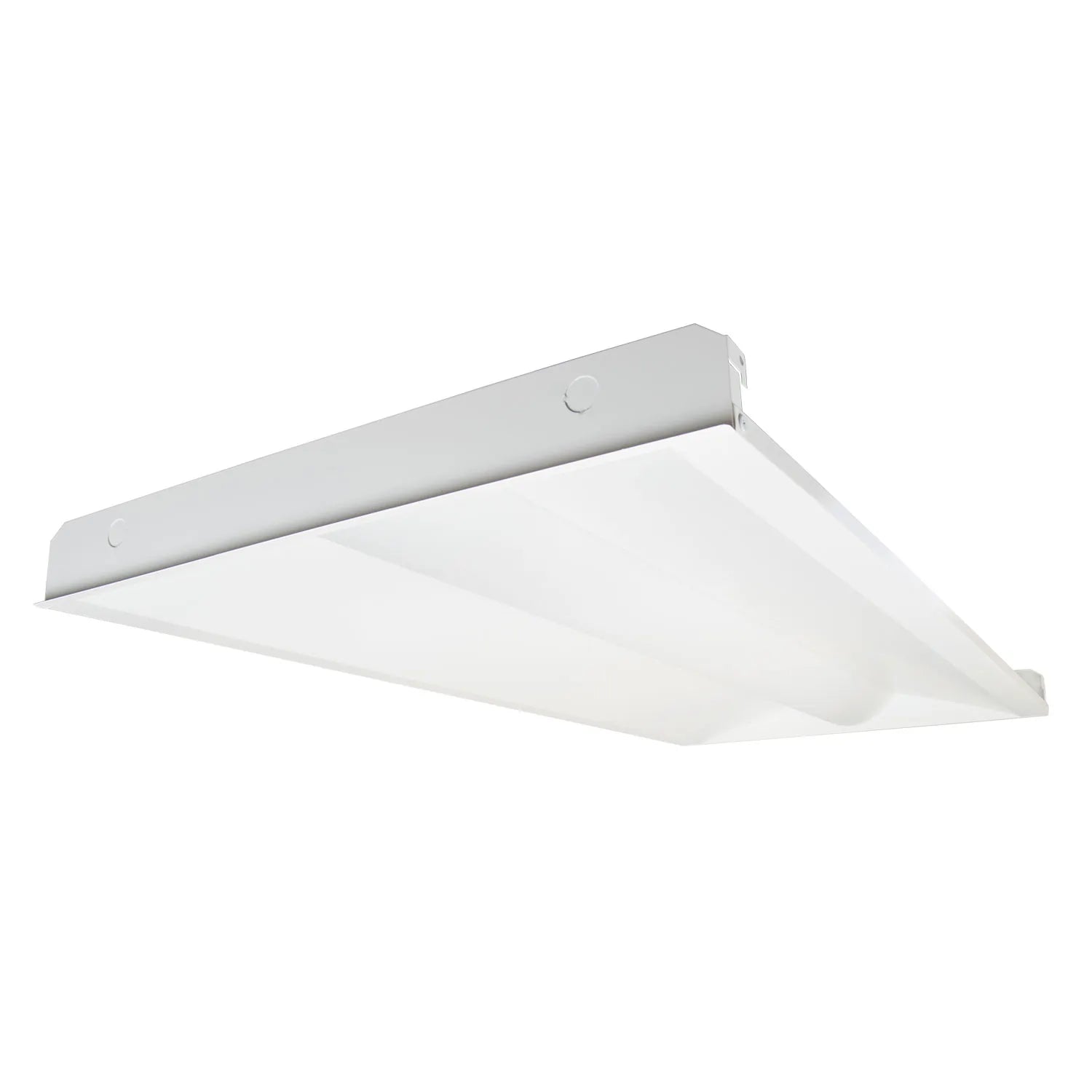

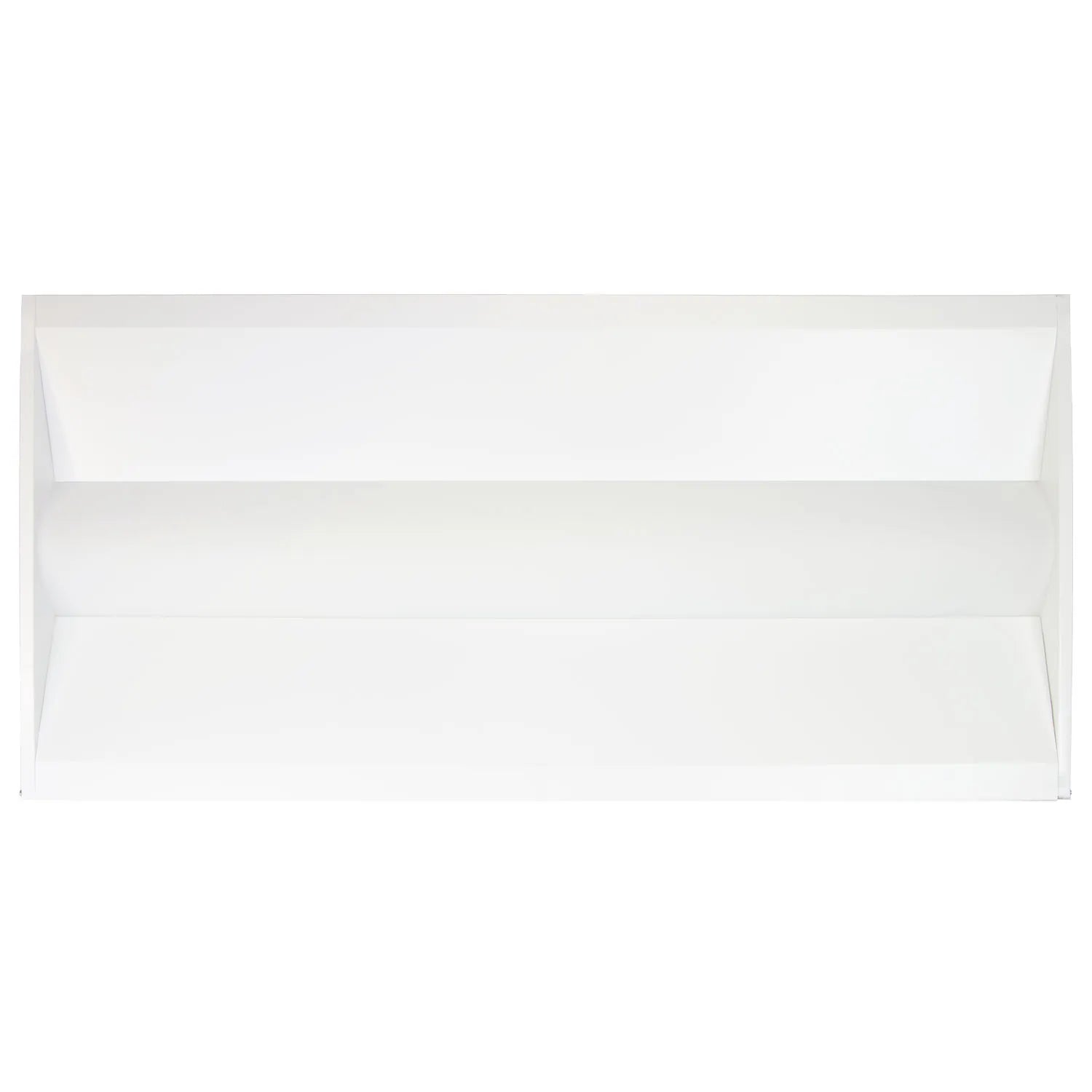

Experience optimal lighting with the ESL Lighting ESL-CSS-830-24-3445W-3550K LED 2x4 recessed troffer. With wattage selectability and a power factor of 90%, this versatile single basket troffer consumes either 34, 38, or 45 watts of energy from 120-277 volts making it ideal for various low depth ceiling cavities in offices and schools. It generates up to 5,625 lumens and has a rated lumen maintenance of 100,000 hours. Choose from three color options - 3500K Bright White, 4000K Cool White, and 5000K Daylight - to suit your needs. Along with being damp location rated and DLC Premium listed, these 0-10v dimmable 2x4 lay-in LED light panels come with a 5 year warranty for added peace of mind.
| Manufacturer | ESL Lighting |
| MPN | ESL-CSS-830-24-3445W-3550K |
| SKU | ESL-CSS-830-24-3445W-3550K |
| UPC | 00196065685464 |
| Lighting Technology | LED |
| Wattage | 34/38/45 Watt Selectable |
| Voltage | 120-277 Volt |
| Color Temperature (Kelvin) | 3500K/4000K/5000K Selectable |
| Lumens | 5,625 Max Lumen Output |
| Efficiency (Lumens Per Watt) | 128 Max lm/W |
| Dimmable | Yes, 0-10V |
| Beam Angle | 110 Degrees |
| Rated Life | 100,000 Hours |
| CRI (Color Rendering Index) | >80 CRI |
| Operating Temperature | -4°F to 104°F (20°C - 40°C) |
| Dimensions | 47.8" L x 23.7" W x 2.1" H |
| Certifications | DLC Listed, cULus |
| DLC Product ID | S-X7C2MV |
| Environment | Damp Location |
| Warranty | 5 Year Limited |
