Name: 10/15/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K/4000K/5000K
Brand: Westgate
SKU: LMW-10-24W-MCTP-P-BK
Price: 95.23 USD
Availability: InStock

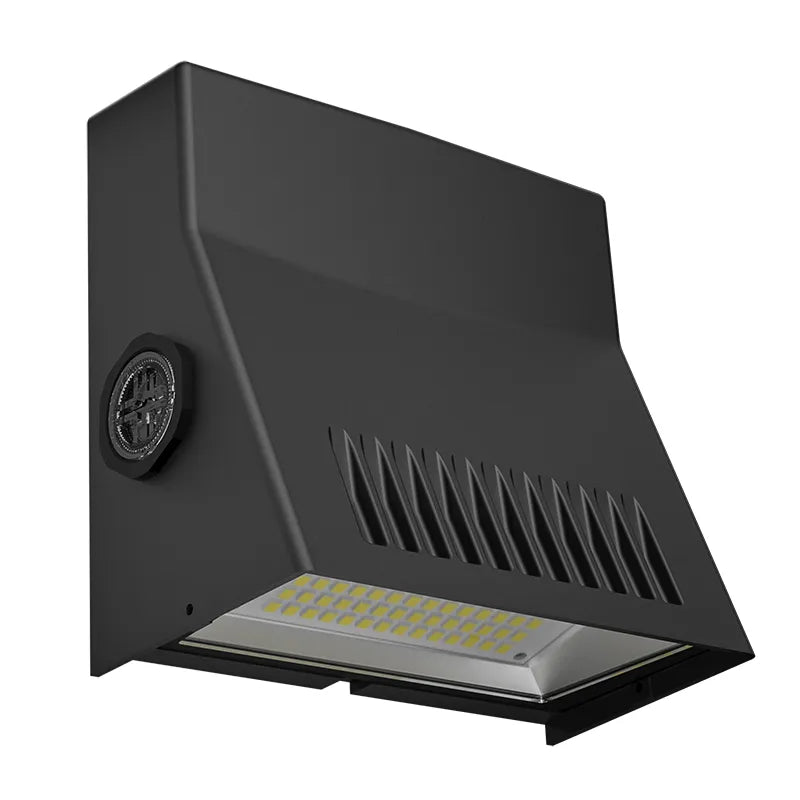

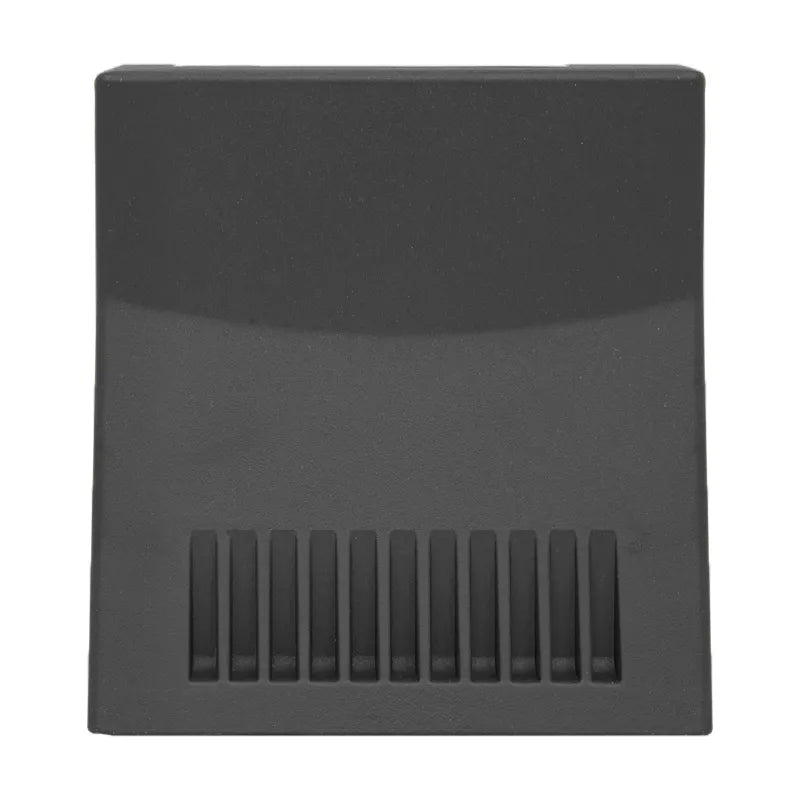

Westgate 10/15/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K/4000K/5000K Black

Westgate 10/15/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K/4000K/5000K

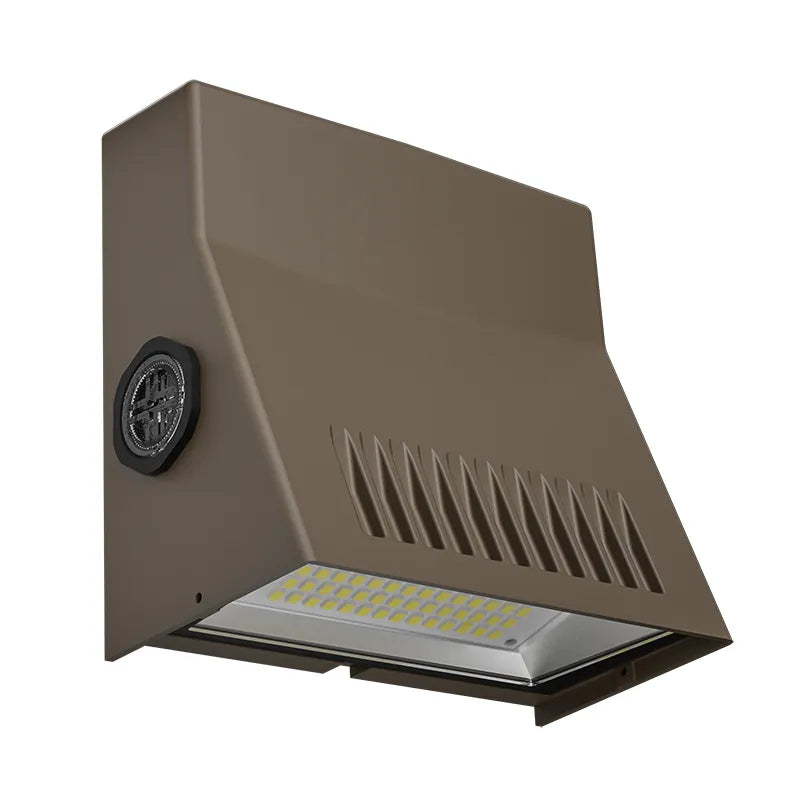

Westgate 10/15/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K/4000K/5000K Bronze

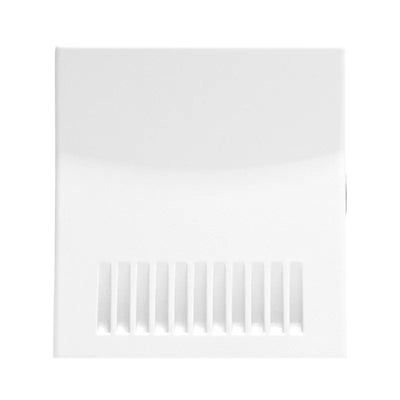

Westgate 10/15/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K/4000K/5000K White

IP54

Price

Finish Color

Black

Bronze

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":46832995762420,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"LMW-10-24W-MCTP-P-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":48580024271092,"product_id":9122219262196,"position":1,"created_at":"2025-09-04T16:27:06-04:00","updated_at":"2025-09-04T16:27:07-04:00","alt":"Westgate 10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K Black","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_LMW-10-24W-MCTP-P-BK_Main_Image.webp?v=1757017627","variant_ids":[46832995762420]},"available":true,"name":"10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K - Black","public_title":"Black","options":["Black"],"price":9523,"weight":499,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378302418","featured_media":{"alt":"Westgate 10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K Black","id":39842328412404,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_LMW-10-24W-MCTP-P-BK_Main_Image.webp?v=1757017627"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46832995795188,"title":"Bronze","option1":"Bronze","option2":null,"option3":null,"sku":"LMW-10-24W-MCTP-P","requires_shipping":true,"taxable":true,"featured_image":{"id":48580026171636,"product_id":9122219262196,"position":6,"created_at":"2025-09-04T16:27:40-04:00","updated_at":"2025-09-04T16:27:41-04:00","alt":"Westgate 10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K Bronze","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_LMW-10-24W-MCTP-P_Main_Image.webp?v=1757017661","variant_ids":[46832995795188]},"available":true,"name":"10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K - Bronze","public_title":"Bronze","options":["Bronze"],"price":9523,"weight":499,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378302401","featured_media":{"alt":"Westgate 10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K Bronze","id":39842329919732,"position":6,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_LMW-10-24W-MCTP-P_Main_Image.webp?v=1757017661"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46832995827956,"title":"White","option1":"White","option2":null,"option3":null,"sku":"LMW-10-24W-MCTP-P-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":48580029317364,"product_id":9122219262196,"position":11,"created_at":"2025-09-04T16:28:50-04:00","updated_at":"2025-09-04T16:28:51-04:00","alt":"Westgate 10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K White","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_LMW-10-24W-MCTP-P-WH_Main_Image.webp?v=1757017731","variant_ids":[46832995827956]},"available":true,"name":"10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K - White","public_title":"White","options":["White"],"price":9523,"weight":499,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378302425","featured_media":{"alt":"Westgate 10\/15\/24 Watt Selectable LED Adjustable Mini Cutoff Wall Pack 3000K\/4000K\/5000K White","id":39842332377332,"position":11,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_LMW-10-24W-MCTP-P-WH_Main_Image.webp?v=1757017731"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

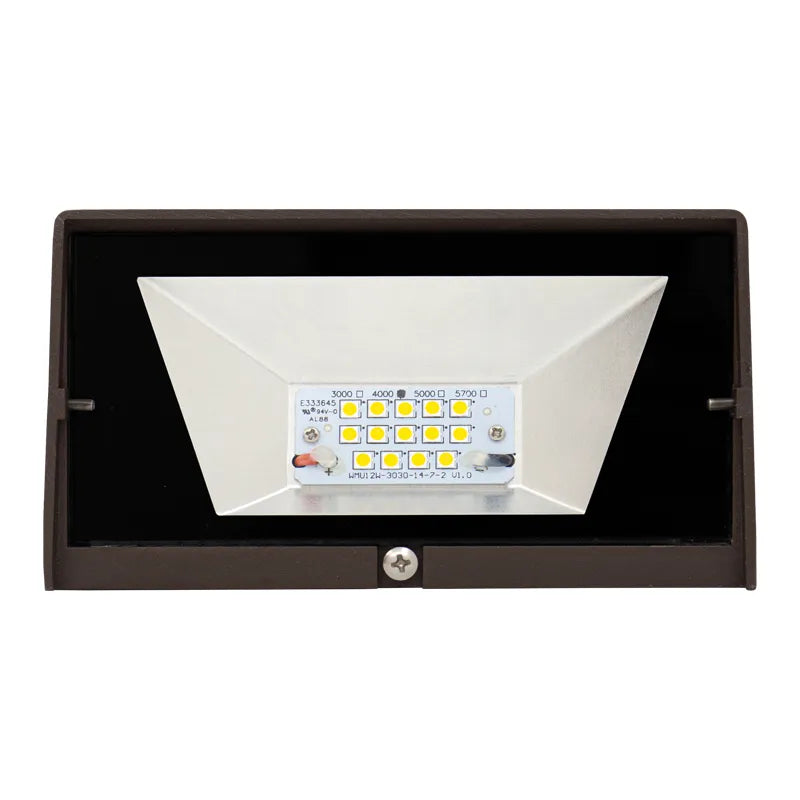

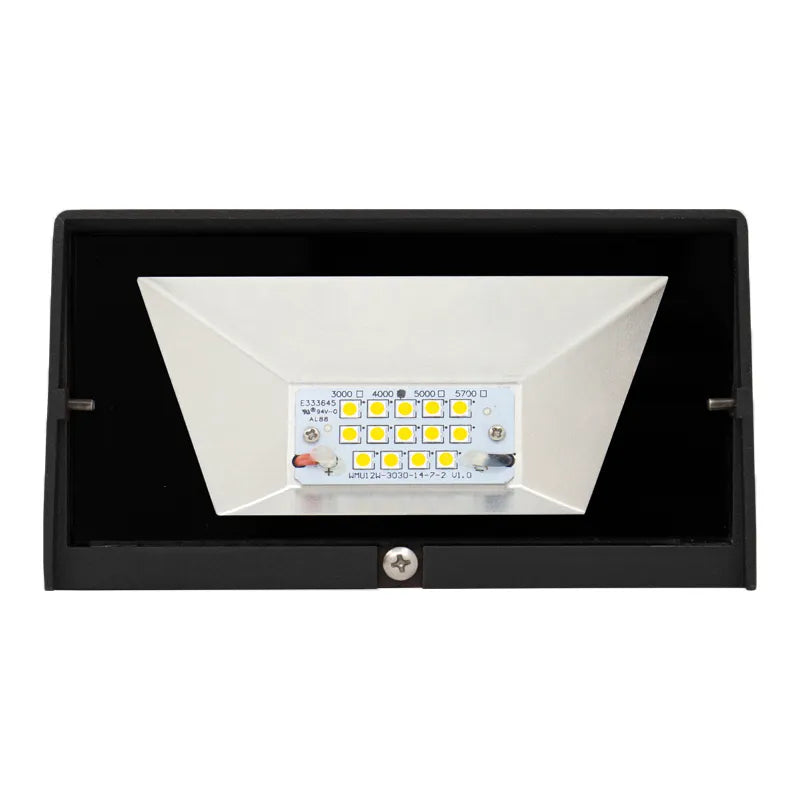

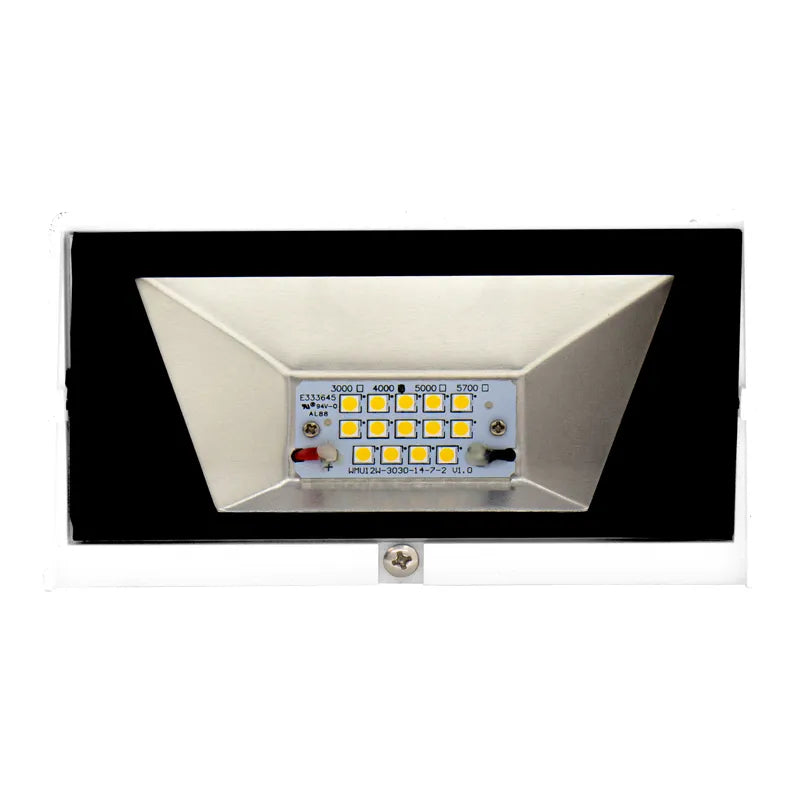

The LED Adjustable Mini Cutoff Wall Pack, part number LMW-10-24W-MCTP-P-XX, from Westgate's LMW Series has 10/15/24 selectable watts of power that generates 1,100/1,650/2,640 lumens, offering efficient lighting. Choose from three color temperatures (3000K, 4000K, 5000K) and select the desired wattage and color temperature using the Multi Power/CCT Switch that is inside the fixture. A DC Button Photocell is included (not pre-installed) and the fixture is available in Black, Bronze, and White finishes.

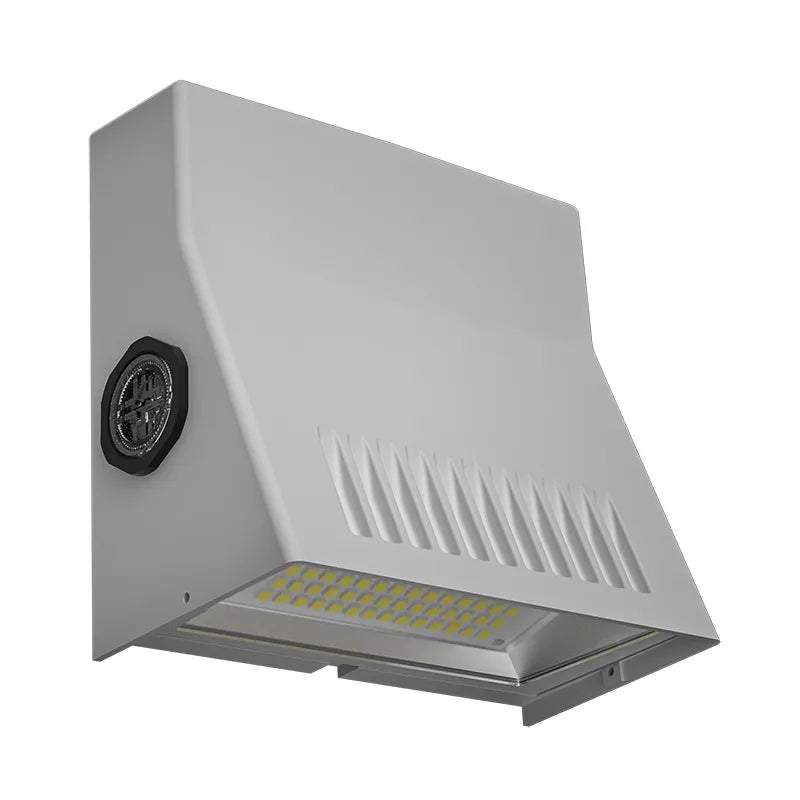

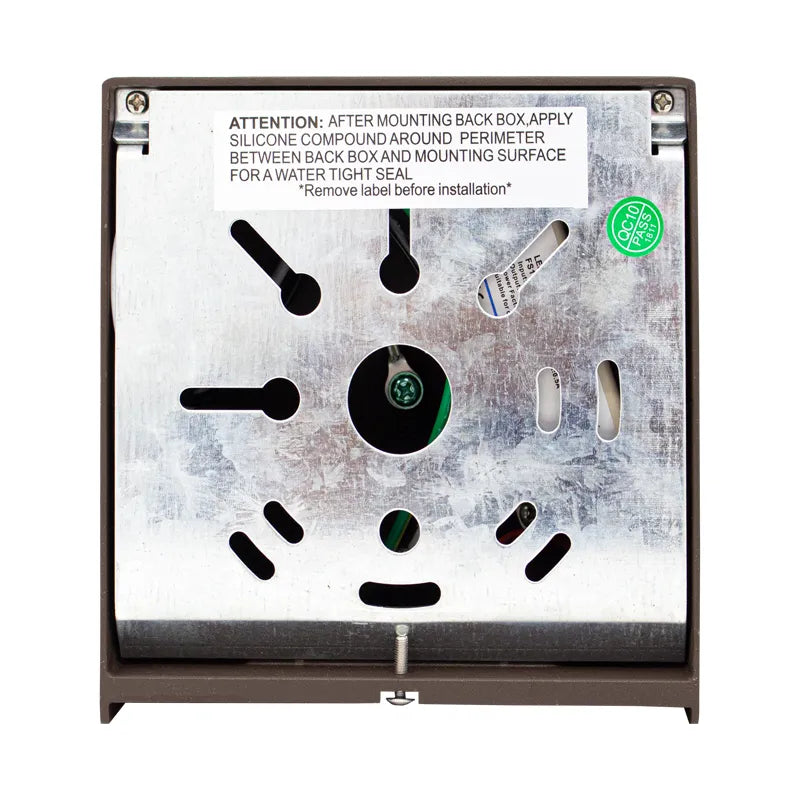

This LED Adjustable Mini Cutoff Wall Pack is built with High Transparent Tempered Glass and Die-Cast Aluminum with Powder Coat Finish housing, adding durability and efficiency to this professional-grade wall pack. performance. With two 1/2 inch knockouts on each side, you can easily install and adjust the wall pack to your desired position.

These LED fixtures have a IP54 Rating - device is partially protected against dust and splashed water. In essence, an IP54 rating suggests the device is suitable for environments where it might encounter dust and occasional splashing, but not submersion in water or heavy dust exposure. (Suitable for Wet Locations)

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Westgate wall packs come with a 7 year warranty and are rated for 70,000 hours.

Specifications

Manufacturer	Westgate
Finish Color	Black	Bronze	White
MPN	LMW-10-24W-MCTP-P-BK	LMW-10-24W-MCTP-P	LMW-10-24W-MCTP-P-WH
SKU	LMW-10-24W-MCTP-P-BK	LMW-10-24W-MCTP-P	LMW-10-24W-MCTP-P-WH
UPC	840378302418	840378302401	840378302425
Lighting Technology	LED
Wattage	10/15/24 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	1,100/1,650/2,640 Lumens
Efficiency (Lumens Per Watt)	110 LPW
Beam Angle	110° x 100°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.9
Housing	Die Cast Aluminum
Lens	High Transparent Tempered Glass
Operating Temperature	-4ºF to 104ºF
Dimensions	5 1/8” H x 5” W x 2 3/4” L
Environment	Suitable for Wet Location
Certifications	IP54 Rated, UL Listed
Warranty	7 Year Standard

Documents

Westgate Selectable LED Adjustable Mini Cutoff Wall Pack Specification Sheet - Black

Westgate Selectable LED Adjustable Mini Cutoff Wall Pack Specification Sheet - Bronze

Westgate Selectable LED Adjustable Mini Cutoff Wall Pack Specification Sheet - White

Westgate Selectable LED Adjustable Mini Cutoff Wall Pack Installation Instructions
