Name: 15/20/25/30 Watt WMXPRO Selectable LED Small Wall Pack 3000K/4000K/5000K/5700K
Brand: Westgate
SKU: WMXPRO-SM-15-30W-MCTP
Price: 127.54 USD
Availability: InStock

Westgate 15/20/25/30 Watt Selectable LED Small Wall Pack 3000K/4000K/5000K/5700K

IP65

Price

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":46981350359284,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"WMXPRO-SM-15-30W-MCTP","requires_shipping":true,"taxable":true,"featured_image":{"id":48790414426356,"product_id":9150793416948,"position":1,"created_at":"2025-09-26T12:45:42-04:00","updated_at":"2025-09-26T12:45:43-04:00","alt":"Westgate 15\/20\/25\/30 Watt Selectable LED Small Wall Pack 3000K\/4000K\/5000K\/5700K","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WMXPRO-SM-15-30W-MCTP_Front_Image.webp?v=1758905143","variant_ids":[46981350359284]},"available":true,"name":"15\/20\/25\/30 Watt WMXPRO Selectable LED Small Wall Pack 3000K\/4000K\/5000K\/5700K - Selectable","public_title":"Selectable","options":["Selectable"],"price":12754,"weight":2649,"compare_at_price":null,"inventory_management":"shopify","barcode":"845060072754","featured_media":{"alt":"Westgate 15\/20\/25\/30 Watt Selectable LED Small Wall Pack 3000K\/4000K\/5000K\/5700K","id":40032312525044,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WMXPRO-SM-15-30W-MCTP_Front_Image.webp?v=1758905143"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

The WMXPRO series LED Small Wall Pack, part number WMXPRO-SM-15-30W-MCTP, has 15/20/25/30 watts of power that generates 1,850/2,500/3,250/3,900 lumens and has 0-10V dimmable functionality, offering efficient lighting. Choose from four color temperatures (3000K, 4000K, 5000K, 5700K) and select the desired wattage and color temperature using the Multi Power/CCT Switch that is inside the fixture.

This LED wall pack features four 1/2 inch knockouts, 1 on Top, 1 on Each Side and 1 on Rear, for easy installation. Built for durability and performance, the WMXPRO Series combines an ADC12 aluminum heat sink with outdoor powder coating and a prismatic borosilicate glass lens for long-lasting, safe operation. This versatile unit offers dual functionality, allowing connection at one end or both ends to meet your specific installation needs.

With an IP65 rating (Wet Location Rated) these LED retrofit fixtures will work in any outdoor application without fear of weather ruining this fixture.

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Westgate wall packs come with a 7 year warranty and are rated for 70,000 hours.

Specifications

Manufacturer	Westgate
MPN	WMXPRO-SM-15-30W-MCTP
SKU	WMXPRO-SM-15-30W-MCTP
UPC	845060072754
Lighting Technology	LED
Wattage	15/20/25/30 Watts
Color Temperature (Kelvin)	3000K/4000K/5000K/5700K
Voltage	120-277V
Lumens	1,850/2,500/3,250/3,900
Dimmable	Yes, 0-10V
Rated Life	70,000 Hours
CRI (Color Rendering Index)	70 CRI
Finish Color	Bronze
Power Factor	>0.9
Housing	ADC12 aluminum heat sink with outdoor powder coating
Lens	Prismatic borosilicate glass lens
Operating Temperature	-40ºF to 104ºF

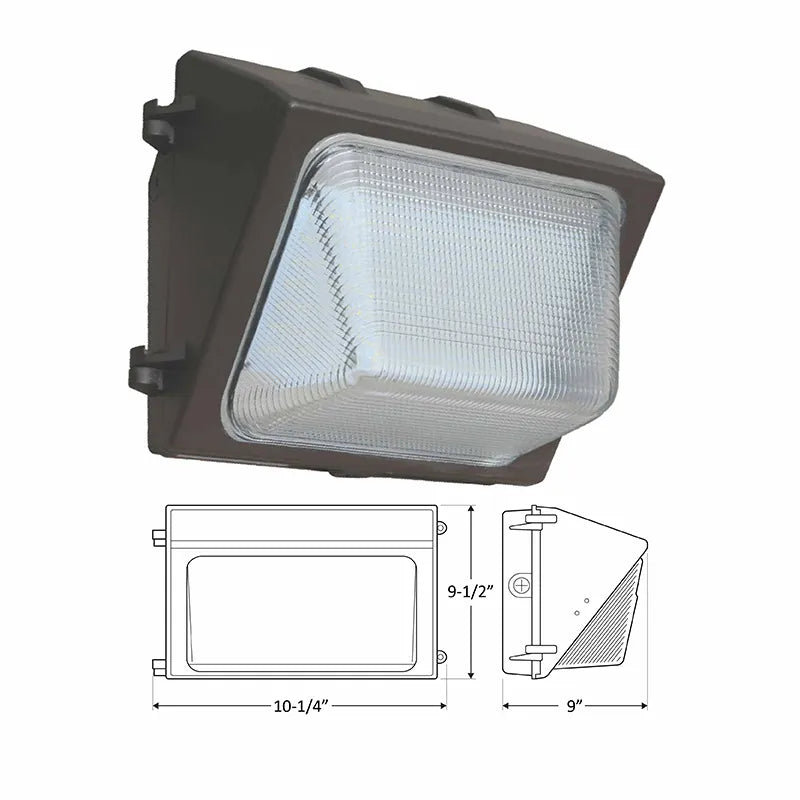

Dimensions	10 1/4” W x 9 1/2” H x 9” D
Environment	Wet Location
Certifications	IP65 Rated, UL Listed
Warranty	7 Year Standard

Documents

Westgate WMXPRO Selectable LED Small Wall Pack Specification Sheet

Westgate WMXPRO Selectable LED Small Wall Pack Installation Instructions

Request A Quote

Green Electrical Supply is here to help you maximize your green^® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
