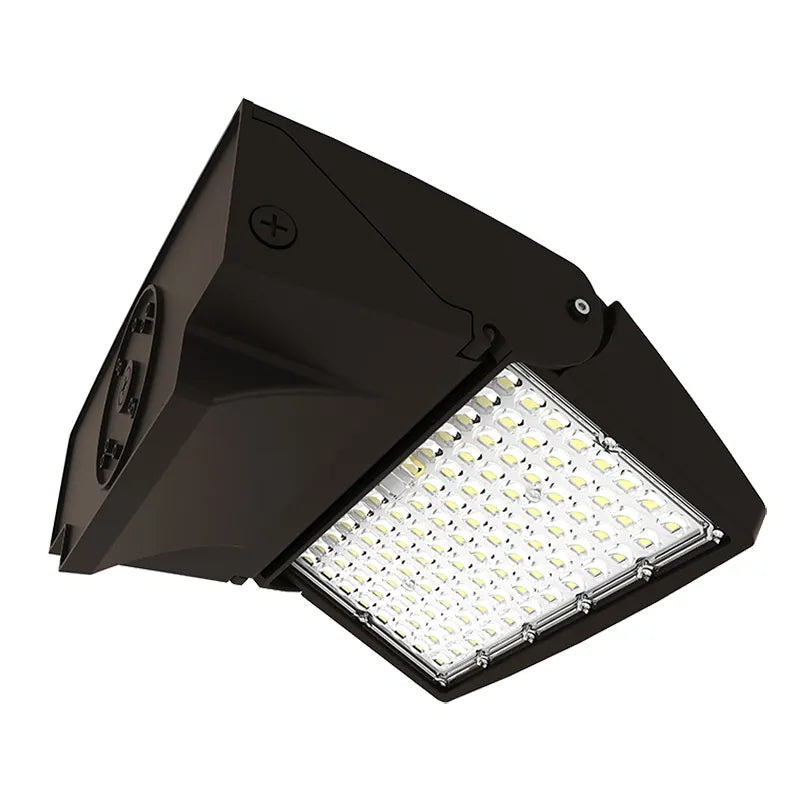

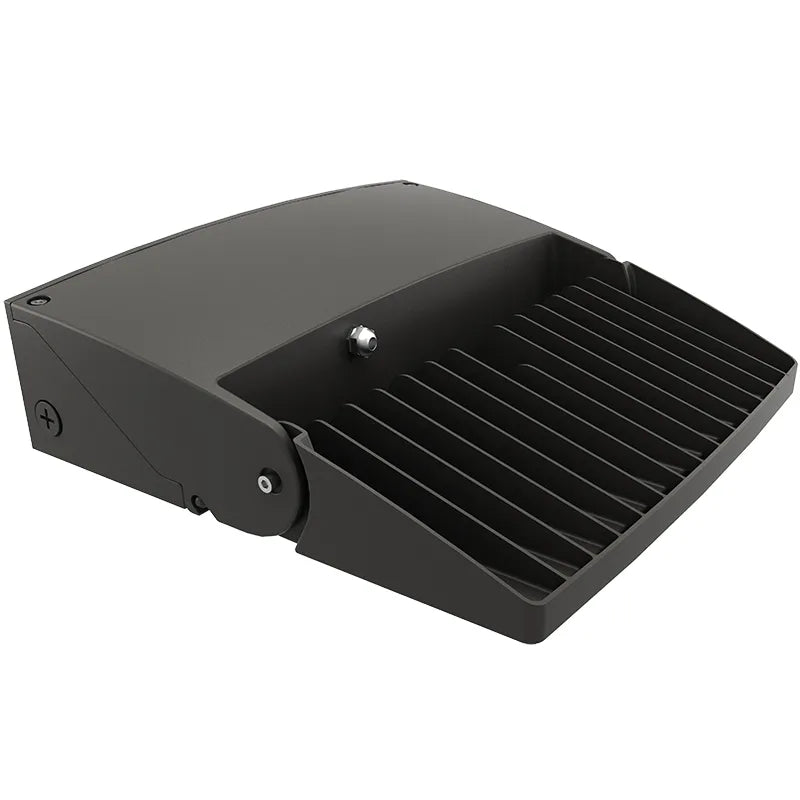

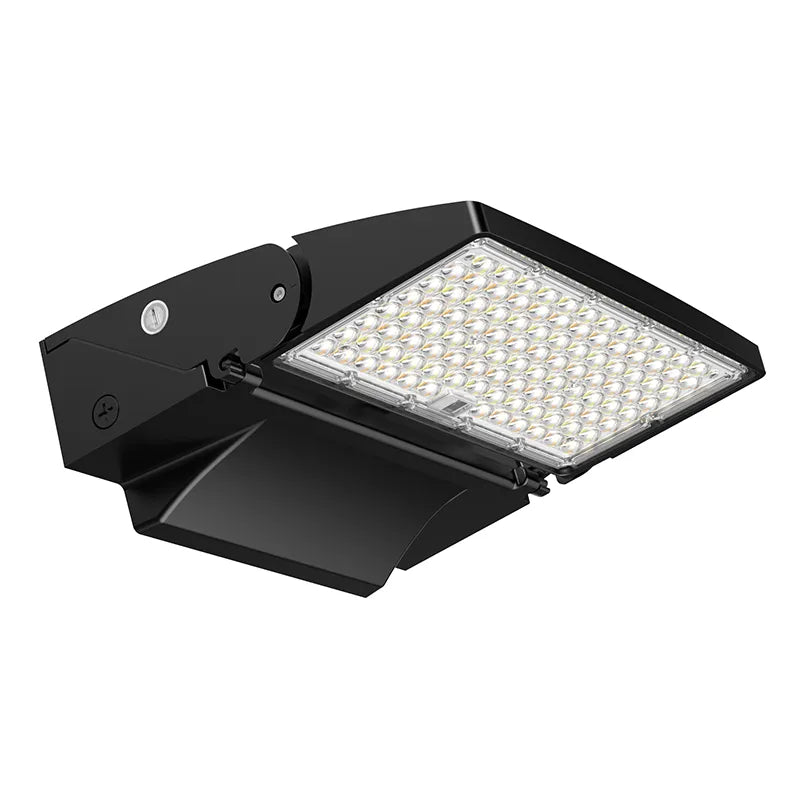

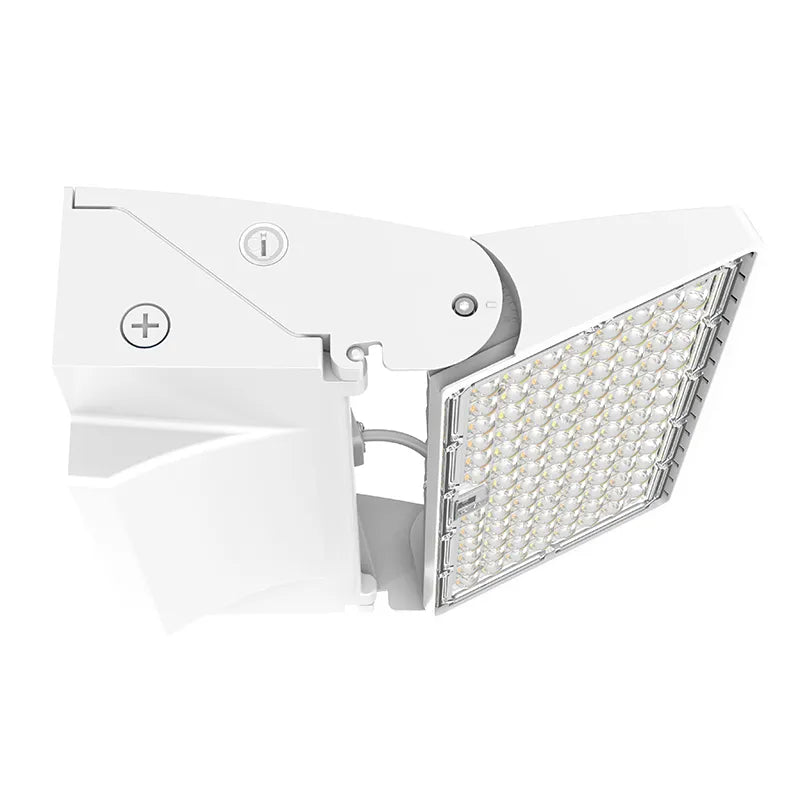

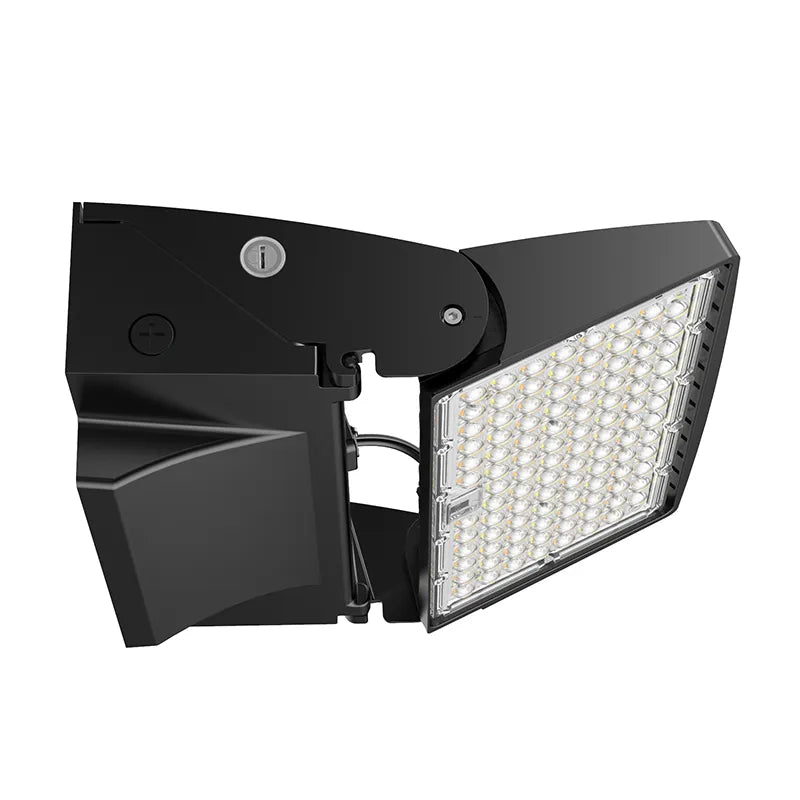

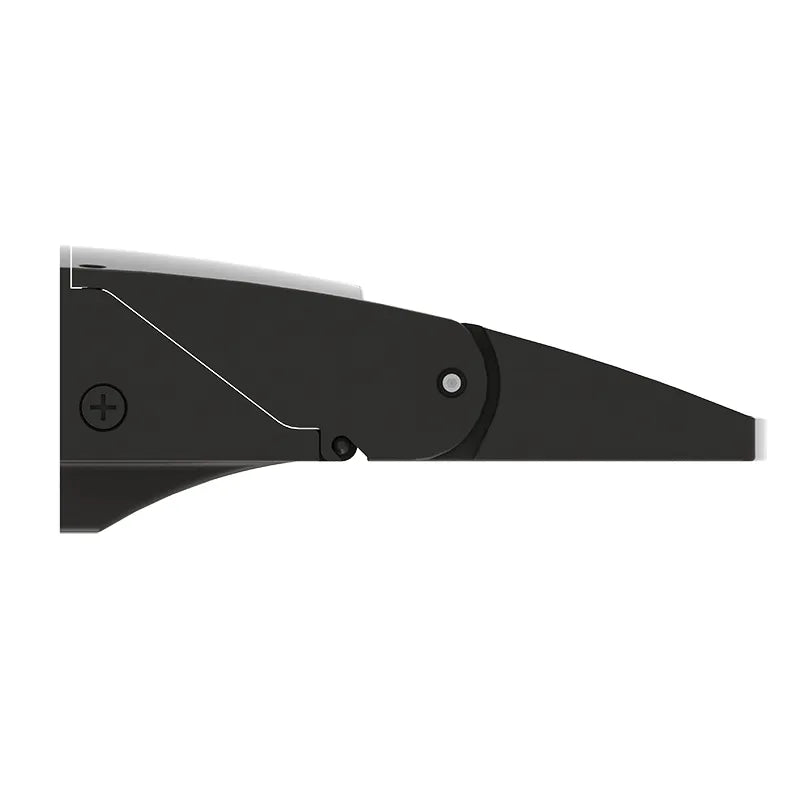

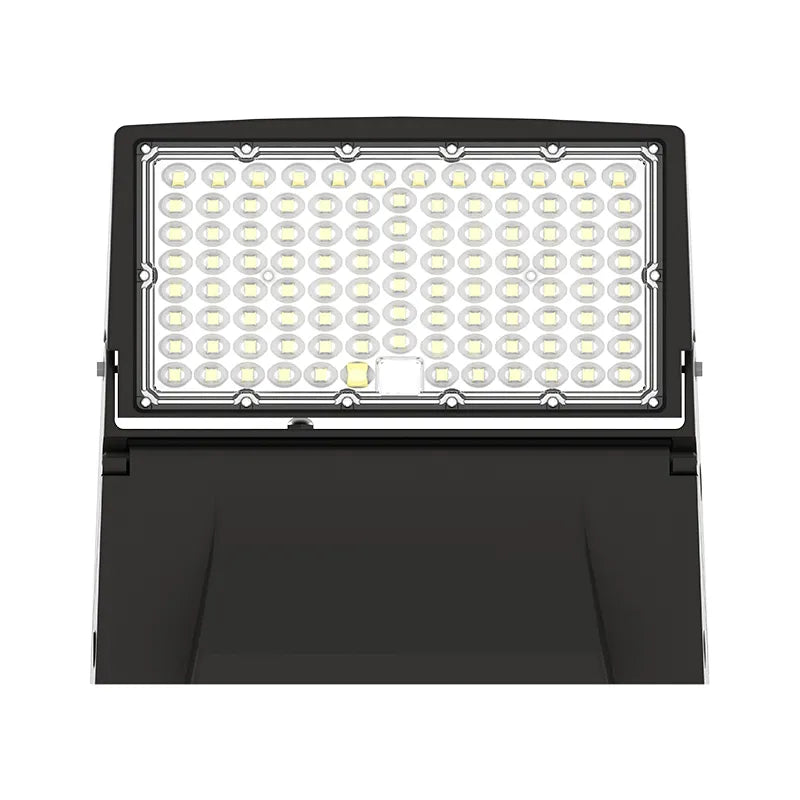

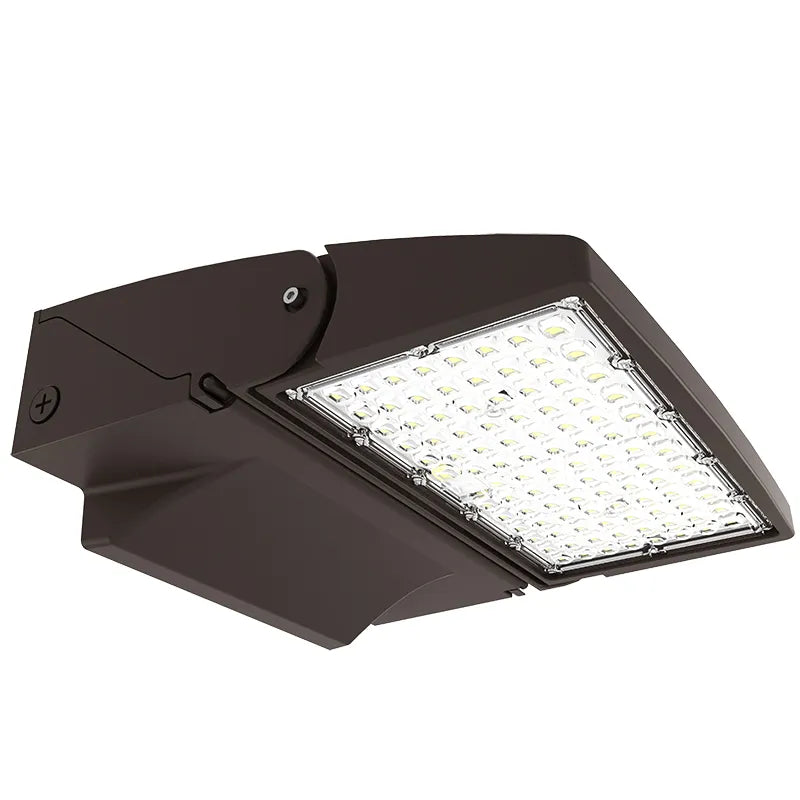

Name: 20/30/40 Watt Full Cutoff LED Modern Adjustable Wall Pack With Photocell 3000K/4000K/5000K
Brand: Westgate
SKU: WAX-20-40W-MCTP-BK
Price: 179.85 USD
Availability: InStock

20/30/40 Watt Full Cutoff LED Modern Adjustable Wall Pack With Photocell 3000K/4000K/5000K

Dark Sky Compliant, IP65, Wet Location Rated

Price

Finish Color

Black

Bronze

White

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":47059430572276,"title":"Black \/ Selectable","option1":"Black","option2":"Selectable","option3":null,"sku":"WAX-20-40W-MCTP-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":49072854302964,"product_id":9171544834292,"position":1,"created_at":"2025-10-20T12:19:38-04:00","updated_at":"2025-10-20T12:19:39-04:00","alt":null,"width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP-BK_Main_Image.webp?v=1760977179","variant_ids":[47059430572276]},"available":true,"name":"20\/30\/40 Watt Full Cutoff LED Modern Adjustable Wall Pack With Photocell 3000K\/4000K\/5000K - Black \/ Selectable","public_title":"Black \/ Selectable","options":["Black","Selectable"],"price":17985,"weight":4341,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378319133","featured_media":{"alt":null,"id":40290192163060,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP-BK_Main_Image.webp?v=1760977179"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47059430605044,"title":"Bronze \/ Selectable","option1":"Bronze","option2":"Selectable","option3":null,"sku":"WAX-20-40W-MCTP","requires_shipping":true,"taxable":true,"featured_image":{"id":49072866033908,"product_id":9171544834292,"position":4,"created_at":"2025-10-20T12:19:55-04:00","updated_at":"2025-10-20T12:20:53-04:00","alt":null,"width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP_Main_Image.webp?v=1760977253","variant_ids":[47059430605044]},"available":true,"name":"20\/30\/40 Watt Full Cutoff LED Modern Adjustable Wall Pack With Photocell 3000K\/4000K\/5000K - Bronze \/ Selectable","public_title":"Bronze \/ Selectable","options":["Bronze","Selectable"],"price":17985,"weight":4341,"compare_at_price":null,"inventory_management":"shopify","barcode":"845060091533","featured_media":{"alt":null,"id":40290201600244,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP_Main_Image.webp?v=1760977253"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47059430637812,"title":"White \/ Selectable","option1":"White","option2":"Selectable","option3":null,"sku":"WAX-20-40W-MCTP-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":49072881828084,"product_id":9171544834292,"position":11,"created_at":"2025-10-20T12:20:20-04:00","updated_at":"2025-10-20T12:20:53-04:00","alt":null,"width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP-WH_Main_Image.webp?v=1760977253","variant_ids":[47059430637812]},"available":true,"name":"20\/30\/40 Watt Full Cutoff LED Modern Adjustable Wall Pack With Photocell 3000K\/4000K\/5000K - White \/ Selectable","public_title":"White \/ Selectable","options":["White","Selectable"],"price":17985,"weight":4341,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378319164","featured_media":{"alt":null,"id":40290217001204,"position":11,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP-WH_Main_Image.webp?v=1760977253"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":47059430572276,"title":"Black \/ Selectable","option1":"Black","option2":"Selectable","option3":null,"sku":"WAX-20-40W-MCTP-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":49072854302964,"product_id":9171544834292,"position":1,"created_at":"2025-10-20T12:19:38-04:00","updated_at":"2025-10-20T12:19:39-04:00","alt":null,"width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP-BK_Main_Image.webp?v=1760977179","variant_ids":[47059430572276]},"available":true,"name":"20\/30\/40 Watt Full Cutoff LED Modern Adjustable Wall Pack With Photocell 3000K\/4000K\/5000K - Black \/ Selectable","public_title":"Black \/ Selectable","options":["Black","Selectable"],"price":17985,"weight":4341,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378319133","featured_media":{"alt":null,"id":40290192163060,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WAX-20-40W-MCTP-BK_Main_Image.webp?v=1760977179"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Details
Specifications
Documents
Request A Quote

Details

The Selectable LED Modern Adjustable Wall Pack from Westgate's WAX Series, WAX-20-40W-MCTP-XX, has selectable 20/30/40 watts of power that generates 2,800/4,200/5,600 Lumens, offering efficient lighting. This fixture is available in Black, Bronze and White making it suitable for a wide variety of applications. Choose from three color temperatures (3000K Warm White, 4000K Cool White, 5000K Daylight) and enjoy 0-10V dimmable functionality with a beam angle of H127° x V85°.

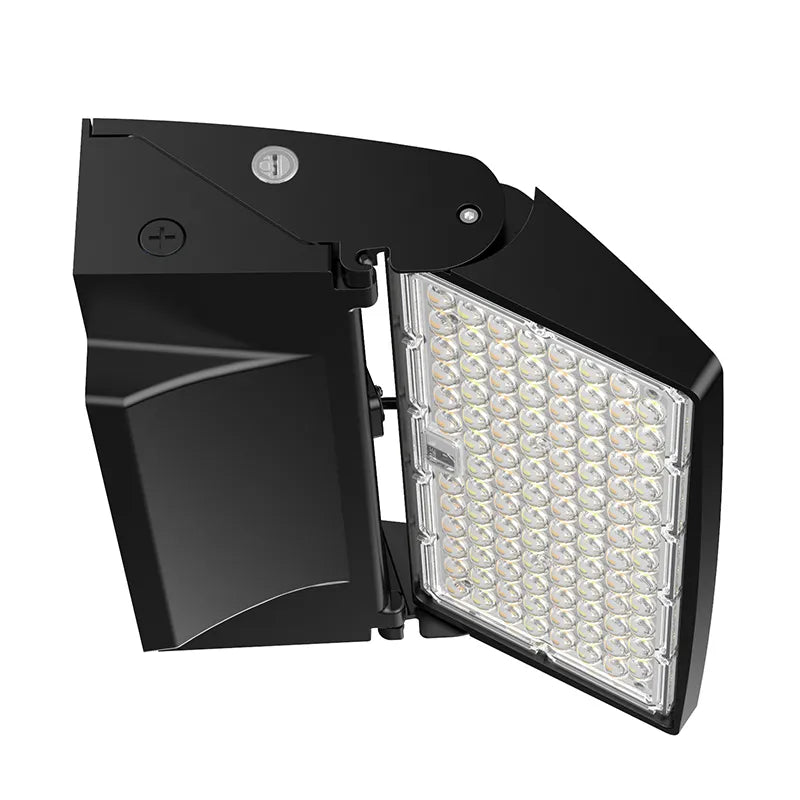

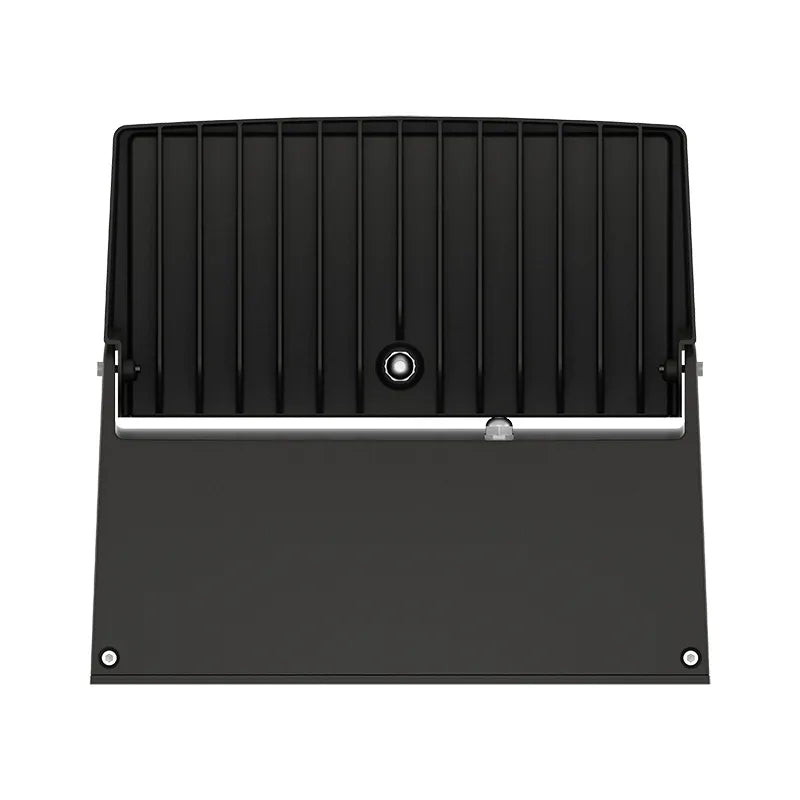

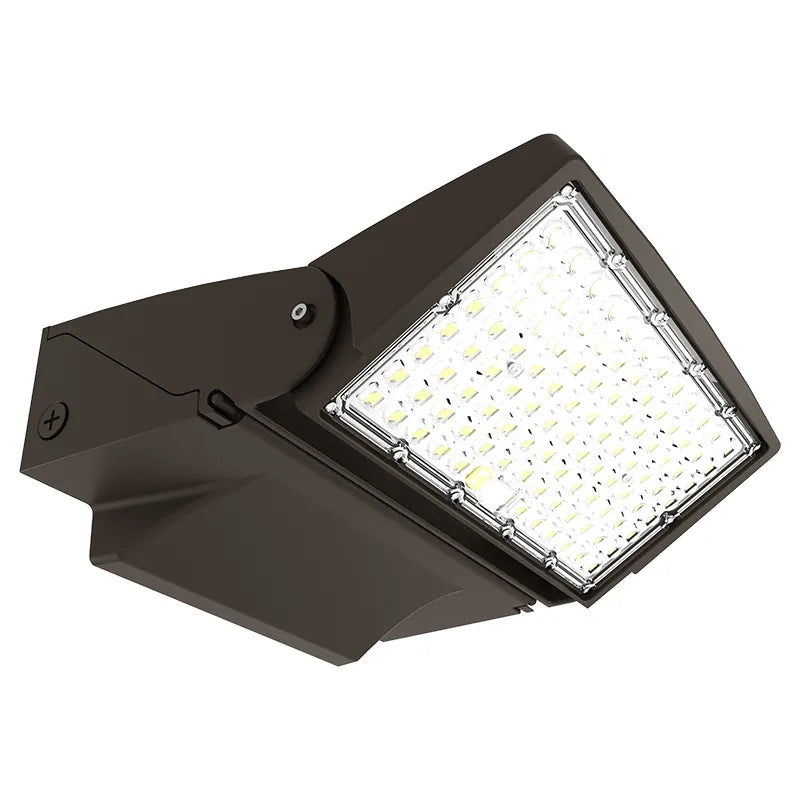

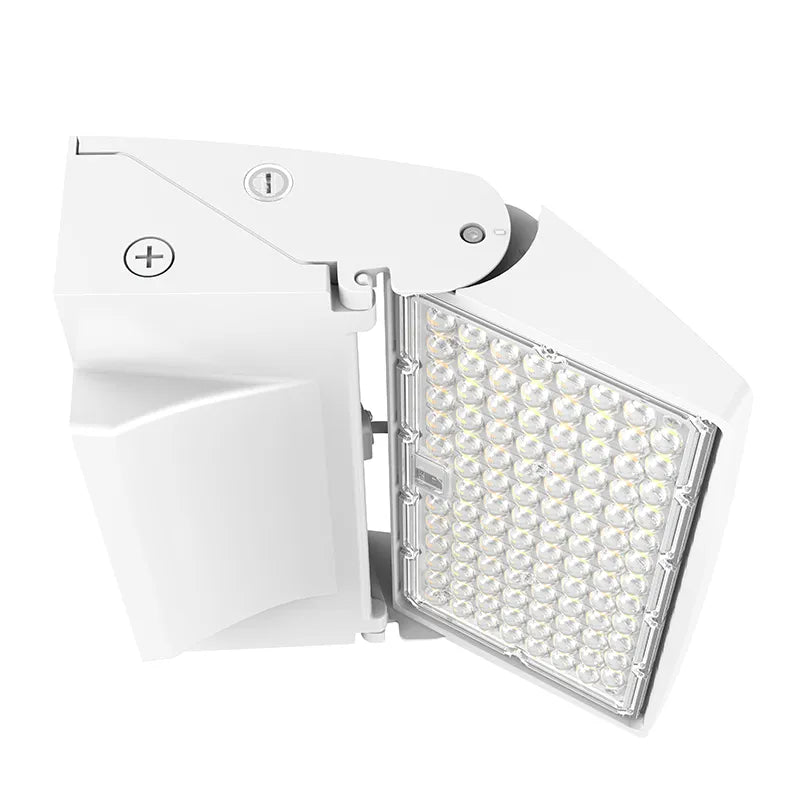

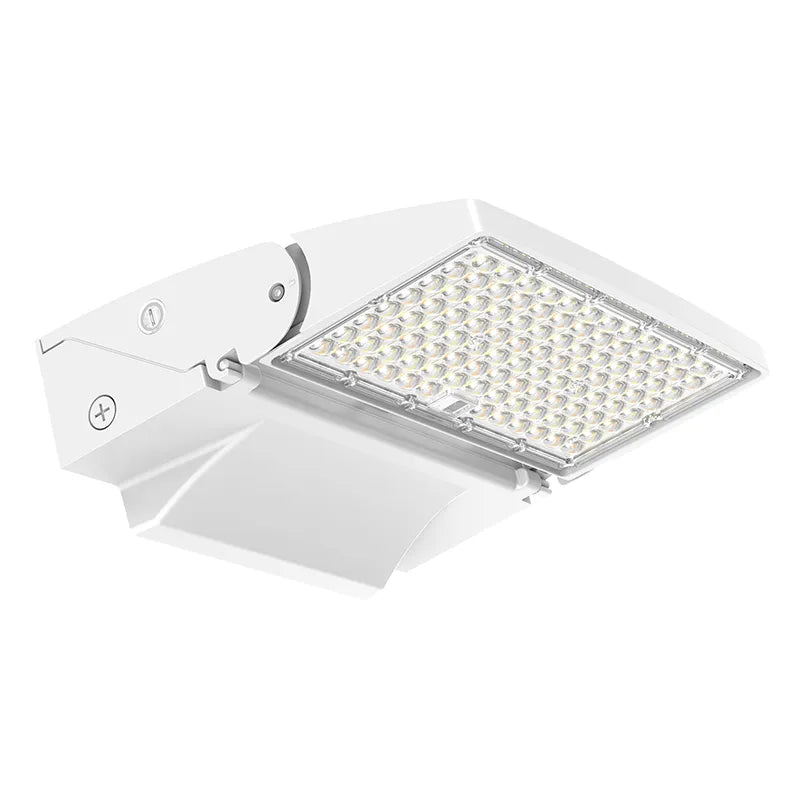

This Selectable LED Modern Adjustable Wall Pack offers High Light Transmittance and is built with Anti-UV and Fire Resistant PC Lens, ensuring long-lasting and safe use. The light head can be adjusted from 0° to 90° for optimal positioning. With two 1/2 inch knockouts on each side, you can easily install and adjust the wall pack to your desired position. The die cast aluminum housing adds durability and efficiency to this professional-grade wall pack. The fixture is 120-277V and has a DC Button Photocell with ON/OFF switch Included.

With an IP65 rating (Wet Location Rated) these LED retrofit fixtures will work in any outdoor application without fear of weather ruining this fixture and are Dark Sky Compliant.

Perfect for entrance lighting, courtyard lighting, industrial lighting, outdoor landscape lighting, building and hotel exteriors, wall lighting areas, general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Westgate wall packs come with a 7 year warranty and are rated for 70,000 hours.

Specifications

Manufacturer	Westgate
Finish Color	Black	Bronze	White
MPN	WAX-20-40W-MCTP-BK	WAX-20-40W-MCTP	WAX-20-40W-MCTP-WH
SKU	WAX-20-40W-MCTP-BK	WAX-20-40W-MCTP	WAX-20-40W-MCTP-WH
UPC	840378319133	845060091533	840378319164
Lighting Technology	LED
Wattage	20/30/40 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	2,800/4,200/5,600
Efficiency (Lumens Per Watt)	140 LPW
Dimmable	Yes, 0-10V
Beam Angle	H127° x V85°
Light Head Adjustable Angle	0° to 90°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.9
Housing	Die Cast Aluminum
Lens	Anti-UV and Fire Resistant Shatterproof Polycarbonate
Operating Temperature	-40ºF to 113ºF
Dimensions	14” W x 12 8/9” H x 5 1/4” D
Environment	Wet Location
Certifications	Dark Sky Compliant, IP65, UL Listed
Warranty	7 Year Warranty

Documents

Westgate 20/30/40 Watt Full Cutoff LED Modern Adjustable Wall Pack Specification Sheet - Black

Westgate 20/30/40 Watt Full Cutoff LED Modern Adjustable Wall Pack Specification Sheet - Bronze

Westgate 20/30/40 Watt Full Cutoff LED Modern Adjustable Wall Pack Specification Sheet - White

Westgate 20/30/40 Watt Full Cutoff LED Modern Adjustable Wall Pack Installation Instructions
