Name: 48/64/80 Watt Full Cutoff LED Half Moon Wall Pack With Photocell 3000K/4000K/5000K
Brand: Westgate
SKU: WPMX-48-80W-MCTP-BK
Price: 246.0 USD
Availability: InStock

48/64/80 Watt Full Cutoff LED Half Moon Wall Pack With Photocell 3000K/4000K/5000K

Dark Sky Compliant, IP65, Wet Location Rated

Price

Finish Color

Black

Bronze

Silver

White

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

{"id":47046525059316,"title":"Black \/ Selectable","option1":"Black","option2":"Selectable","option3":null,"sku":"WPMX-48-80W-MCTP-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":49011707085044,"product_id":9168132669684,"position":1,"created_at":"2025-10-17T15:52:21-04:00","updated_at":"2025-10-17T15:52:23-04:00","alt":null,"width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WPMX-48-80W-MCTP-BK_Main_Image.webp?v=1760730743","variant_ids":[47046525059316]},"available":true,"name":"48\/64\/80 Watt Full Cutoff LED Half Moon Wall Pack With Photocell 3000K\/4000K\/5000K - Black \/ Selectable","public_title":"Black \/ Selectable","options":["Black","Selectable"],"price":24600,"weight":3266,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378322478","featured_media":{"alt":null,"id":40230447743220,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Westgate_WPMX-48-80W-MCTP-BK_Main_Image.webp?v=1760730743"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Details
Specifications
Documents
Request A Quote

Details

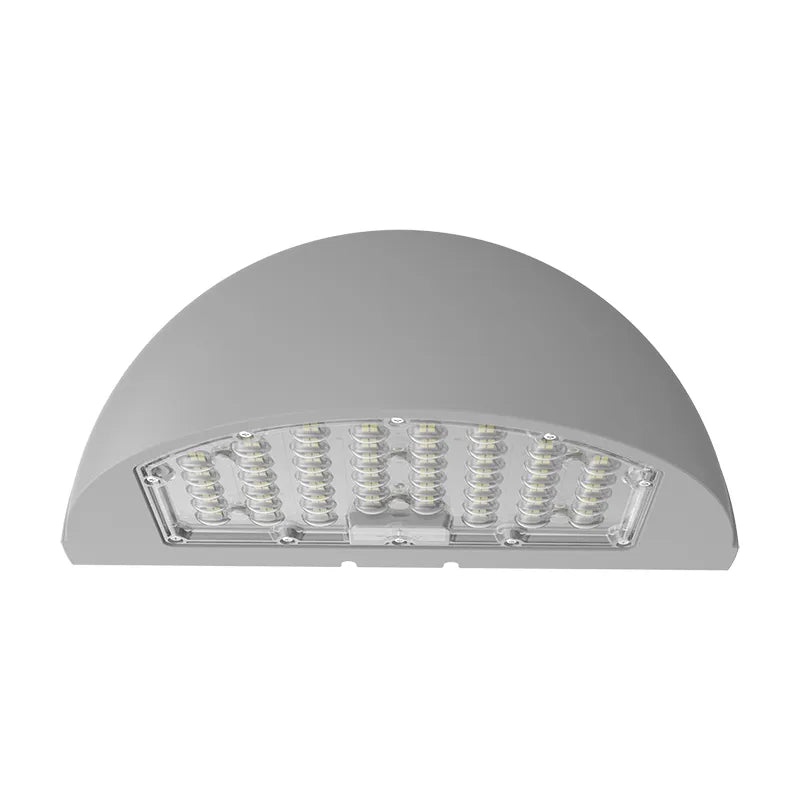

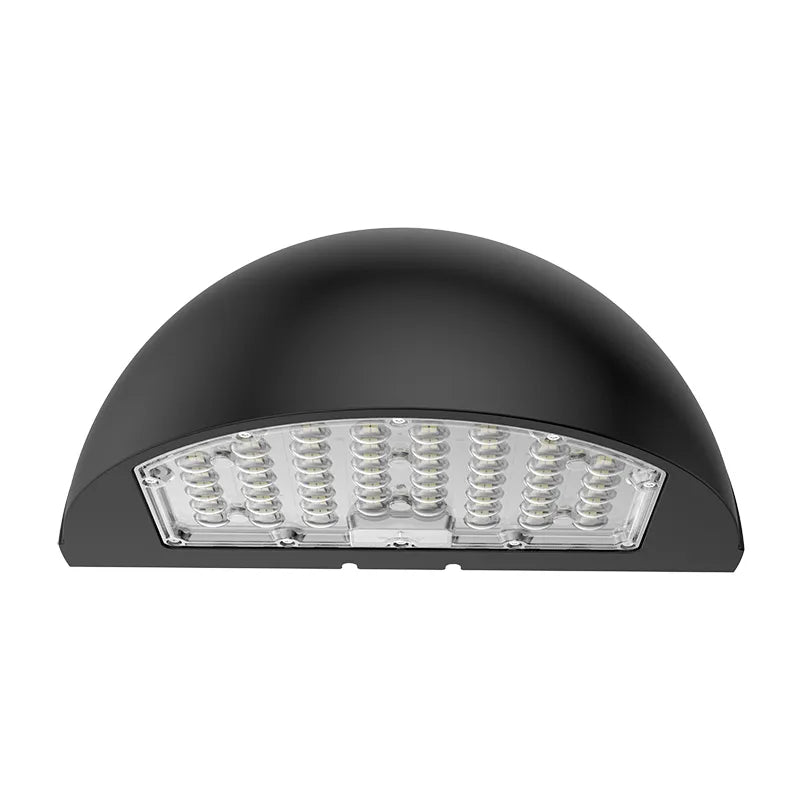

Westgate's WPMX Series Full Cutoff LED Half Moon Wall Pack, WPMX-48-80W-MCTP-XX, has selectable 48/64/80 watts of power that generates 6,400/8,640/10,800 lumens and has 0-10V dimmable functionality, offering efficient lighting. This fixture is available in Black, Bronze, Silver and White making it suitable for a wide variety of applications. Choose from three color temperatures (3000K, 4000K, 5000K) and select the desired wattage and color temperature using the Multi Power/CCT Switch that is inside the fixture. The fixture is 120-277V and has a DC Button Photocell with ON/OFF switch Included.

This Full Cutoff LED Half Moon Wall Pack offers High Light Transmittance and is built with Anti-UV and Fire Resistant Shatterproof PC Lens, ensuring long-lasting and safe use. The die cast aluminum housing adds durability and efficiency to this professional-grade wall pack.

With an IP65 rating (Wet Location Rated) these LED retrofit fixtures will work in any outdoor application without fear of weather ruining this fixture and are Dark Sky Compliant.

This LED Wall Pack Light series can be widely used as Exterior or Interior LED lighting for Hotels, Garages, Commercial Buildings, Public areas, Schools and Hospitals, etc... Westgate wall packs come with a 7 year warranty and are rated for 70,000 hours.

Specifications

Manufacturer	Westgate
Finish Color	Black	Bronze	Silver	White
MPN	WPMX-48-80W-MCTP-BK	WPMX-48-80W-MCTP-SR	WPMX-48-80W-MCTP-SIL	WPMX-48-80W-MCTP-WH
SKU	WPMX-48-80W-MCTP-BK	WPMX-48-80W-MCTP-SR	WPMX-48-80W-MCTP-SIL	WPMX-48-80W-MCTP-WH
UPC	840378322478	845060001525	840378322492	840378322485
Lighting Technology	LED
Wattage	24/32/40 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	6,400/8,640/10,800
Efficiency (Lumens Per Watt)	135 LPW
Dimmable	Yes, 0-10V
Rated Life	70,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.95
Housing	Die Cast Aluminum
Lens	Anti-UV and Fire Resistant Shatterproof Polycarbonate
Operating Temperature	-4ºF to 104ºF
Dimensions	13” W x 6 8/9” H x 6 1/2" D
Environment	Wet Location
Certifications	Dark Sky Compliant, IP65
Warranty	7 Year Warranty

Documents

Westgate 48/64/80 Watt Full Cutoff LED Half Moon Wall Pack Specification Sheet

Westgate 48/64/80 Watt Full Cutoff LED Half Moon Wall Pack Installation Instructions
