80 Watt Traditional Color Selectable 120-277V Wall Pack With Photocell 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED80-M1-8CSB-VDIM

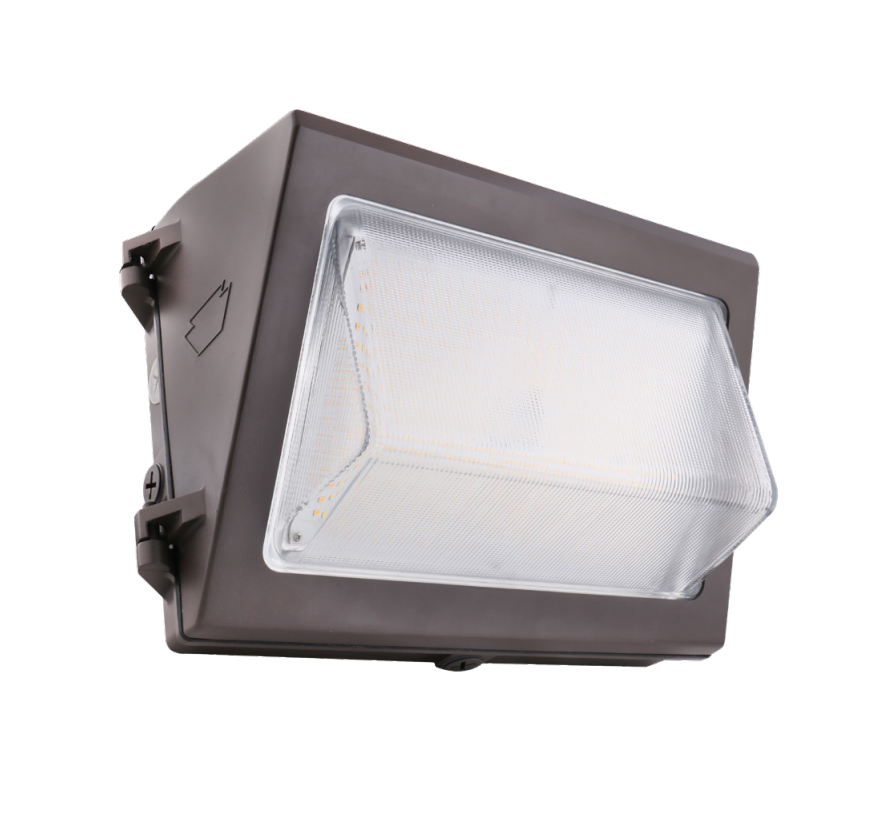

Keystone Technologies 80 Watt Traditional Color Selectable 120-277V Wall Pack With Photocell 3000/4000/5000K Selectable Bronze

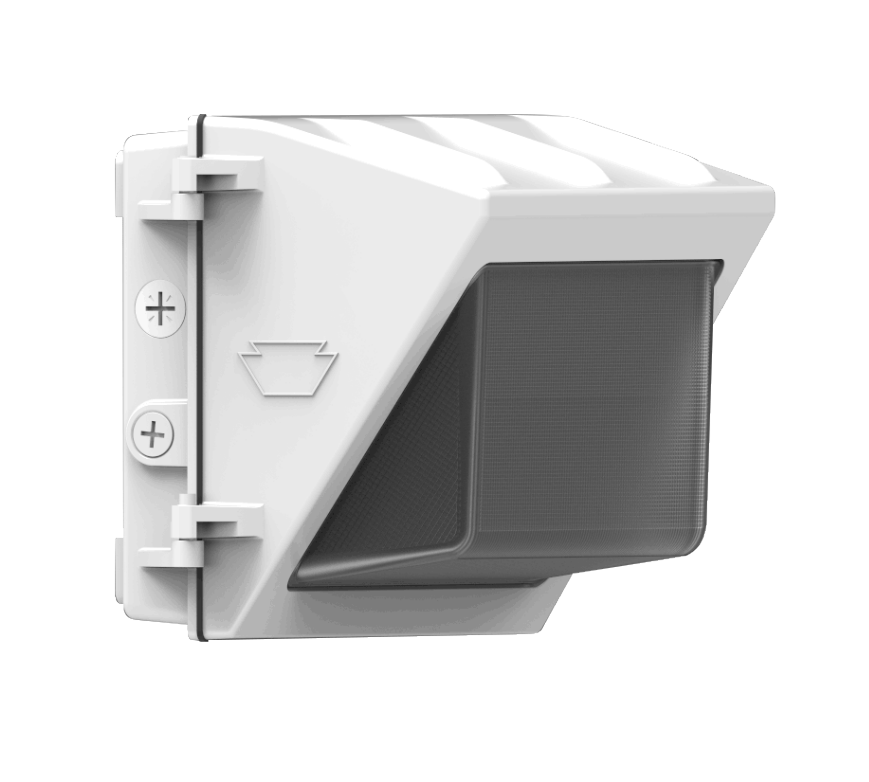

Keystone Technologies 80 Watt Traditional Color Selectable 120-277V Wall Pack With Photocell 3000/4000/5000K Selectable White

80 Watt Traditional Color Selectable 120-277V Wall Pack With Photocell 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED80-M1-8CSB-VDIM
  • IP65, DLC Premium Listed
Regular price $181.31
/
Color Temp
Finish Color
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Keystone’s XFit LED traditional wall packs are designed for easy, one-for-one, replacements to upgrade to energy efficient LED lighting. These wall pack lights match the appearance of legacy HID fixtures while covering the same footprint and hiding any unsightly marks and fading. To provide additional energy savings and controllability, the LED traditional wall packs are powered by Keystone 0-10V dimming drivers and feature built-in dusk-to-dawn photocells. The innovative Color Select feature allows you to select the desired color temperature with a simple switch. This versatility provides significant SKU reduction, with three color selectable options: 3000K Warm White, 4000K Cool White and 5000K Daylight.

The Keystone KT-WPLED80-M1-8CSB-VDIM traditional non-cutoff LED wall pack has a die-cast aluminum housing with (5) 1/2" threaded conduit hubs. There is (1) located on the back and (1) on all four sides of the fixture. It consumes 80 watts of 120-277V energy and delivers between 10,800-11,600 lumens of 3000K, 4000K or 5000K LED light output. This LED wall pack includes a built in dusk-to-dawn photocell placed behind a translucent 3/4" threaded plug that has an anti-yellowing agent. Typical applications for this color select wall pack would include: perimeters, pathways, loading docks, and other general security lighting requirements. This DLC Premium Listed fixture is suitable for wet locations and carries a 5 year warranty.

Manufacturer Keystone Technologies
Finish Color Bronze White
MPN KT-WPLED80-M1-8CSB-VDIM KT-WPLED80-M1-8CSB-VDIM-W
SKU KT-WPLED80-M1-8CSB-VDIM KT-WPLED80-M1-8CSB-VDIM-W
UPC 843654129037 843654133799
Color Temperature (Kelvin) 3000K/4000K/5000K
Lumens 10,955/11,925/11,360 Lumens
Efficiency (Lumens Per Watt) 137/149/142 LPW
Wattage 80 Watts
Lighting Technology LED
Voltage 120-277V
Dimmable Yes, 0-10V
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.95
THD (Total Harmonic Distortion) <20%
Metal Halide Equivalent 250-320 Watts
Operating Temperature -40°C to 50°C
Dimensions 14.37" L x 9.29" H x 7.32" W
Certifications IP65, DLC Premium Listed
DLC Product ID P7RBDFAF
Environment Wet Location
Warranty 5 Year Limited
