Name: 4 Foot 100 Max Selectable Wattage Driver 4 Strip LED Magnetic Retrofit Strip Kit
Brand: ZLED Lighting
SKU: MRK44100-30K-PLUS
Price: 141.93 USD
Availability: InStock

ZLED Lighting 4 Foot 100 Max Selectable Wattage Driver 4 Strip LED Magnetic Retrofit Strip Kit

DLC Listed

Price

Color Temp

3000K Warm White

3500K Bright White

4000K Cool White

5000K Daylight

Quantity

Please call to confirm availability.

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

[{"id":45021544612084,"title":"3000K Warm White","option1":"3000K Warm White","option2":null,"option3":null,"sku":"MRK44100-30K-PLUS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4 Foot 100 Max Selectable Wattage Driver 4 Strip LED Magnetic Retrofit Strip Kit - 3000K Warm White","public_title":"3000K Warm White","options":["3000K Warm White"],"price":14193,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"080101408110","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45021544644852,"title":"3500K Bright White","option1":"3500K Bright White","option2":null,"option3":null,"sku":"MRK44100-35K-PLUS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4 Foot 100 Max Selectable Wattage Driver 4 Strip LED Magnetic Retrofit Strip Kit - 3500K Bright White","public_title":"3500K Bright White","options":["3500K Bright White"],"price":14193,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"080101408127","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45021544677620,"title":"4000K Cool White","option1":"4000K Cool White","option2":null,"option3":null,"sku":"MRK44100-40K-PLUS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4 Foot 100 Max Selectable Wattage Driver 4 Strip LED Magnetic Retrofit Strip Kit - 4000K Cool White","public_title":"4000K Cool White","options":["4000K Cool White"],"price":14193,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"080101408134","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45021544710388,"title":"5000K Daylight","option1":"5000K Daylight","option2":null,"option3":null,"sku":"MRK44100-50K-PLUS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4 Foot 100 Max Selectable Wattage Driver 4 Strip LED Magnetic Retrofit Strip Kit - 5000K Daylight","public_title":"5000K Daylight","options":["5000K Daylight"],"price":14193,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"080101408141","requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Video
Request A Quote

Details

The ZLED Lighting Magnilumen Plus kits are easy to install and fit into almost any existing linear fluorescent fixture with onboard magnets. This makes it a perfect upgrade option where energy savings and lighting efficiency is key like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene. These kits are incredibly efficient and can incur huge savings compared to retrofitting with LED tubes. These kits are perfect for retrofitting 1' x 4', 2' x 4', and 2' x 2' fixtures, as well as 4' and 8' linear strip lights.

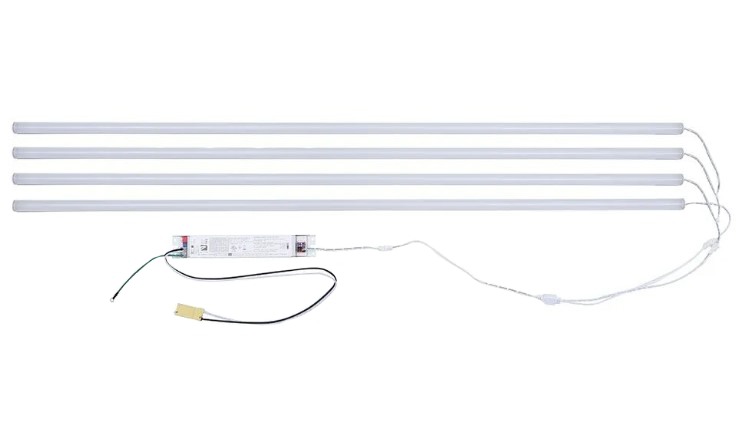

The MRK44100-(XX)K-PLUS is Magnilumen Plus' 4 foot retrofit strip kit, which consumes selectable watts choosing between 8 different wattages. These magnetic strips produce between 9,750-15,000 lumens with a diffuser and between 11,700-18,000 lumens without a diffuser. This kit comes with (4) 4 foot magnetic light strips, a wattage selectable driver, wiring harness and mounting screws. Available in four color temperatures: 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. With a 5 year warranty and 100,000 hour lifespan, these kits are perfect for both new and existing light fixtures.

Specifications

Manufacturer	ZLED Lighting - Magnilumen Plus
Color Temperature (Kelvin)	3000K Warm White	3500K Bright White	4000K Cool White	5000K Daylight
MPN	MRK44100-30K-PLUS	MRK44100-35K-PLUS	MRK44100-40K-PLUS	MRK44100-50K-PLUS
SKU	MRK44100-30K-PLUS	MRK44100-35K-PLUS	MRK44100-40K-PLUS	MRK44100-50K-PLUS
UPC	080101408110	080101408127	080101408134	080101408141
DLC Product ID	PE2HGFQI	PWJBMD4N	P1WFL5YJ	PPTT5Q4U
Lighting Technology	LED
Driver Type	Magnetic - See Driver Spec Table Below
Wattage	65/70/75/80/85/90/95/100 Watts
Input Voltage	100-277VAC
Output Voltage	27-42VDC
Dimmable	Yes, 0-10V Dimming
Rated Life	100,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	≥0.9
THD (Total Harmonic Distortion)	≤10%
Operating Temperature	-40ºF to 122ºF
Strip Dimensions	42.91" L x 0.75" H x 0.72" W
Driver Dimensions	13.622" L x 1.141" H x 1.417" W
Certifications	DLC Listed, ETL Listed
Environment	Damp Location
Warranty	5 Year Standard

MRK-DRIVER-100W-PLUS
Input Wattage	Input Voltage	Output Voltage	Switch 1	Switch 2	Switch 3
65 Watt	1520MA	27-42V	Up	Up	Up
70 Watt	1630MA		Down	Up	Up
75 Watt	1740MA		Up	Down	Up
80 Watt	1850MA		Up	Up	Down
85 Watt	1940MA		Down	Up	Down
90 Watt	2050MA		Up	Down	Down
95 Watt	2150MA		Down	Down	Down
100 Watt	2250MA		Down	Down	Down

Wattage	Lumens W/Diffuser	Efficiency (Lumens Per Watt)	Lumens W/O Diffuser	Efficiency (Lumens Per Watt)
65 Watt	9,750 Lumens	150 LPW	11,700 Lumens	180 LPW
70 Watt	10,500 Lumens		12,600 Lumens
75 Watt	11,250 Lumens		13,500 Lumens
80 Watt	12,000 Lumens		14,400 Lumens
85 Watt	12,750 Lumens		15,300 Lumens
90 Watt	13,500 Lumens		16,200 Lumens
95 Watt	14,250 Lumens		17,100 Lumens
100 Watt	15,000 Lumens		18,000 Lumens

Documents

ZLED Lighting Magnilumen Plus Magnetic Retrofit Strip Specification Sheet

ZLED Lighting Magnilumen Plus Magnetic Retrofit Strip Installation Instructions

ZLED Lighting Magnilumen Plus Magnetic Retrofit Strip 3000K DLC Listing

ZLED Lighting Magnilumen Plus Magnetic Retrofit Strip 3500K DLC Listing

ZLED Lighting Magnilumen Plus Magnetic Retrofit Strip 4000K DLC Listing

ZLED Lighting Magnilumen Plus Magnetic Retrofit Strip 5000K DLC Listing
