GM Lightings 12VDC Flexible LED Linear Ribbon is the industry standard where an energy-saving standard or high output LED source is required. Flexible LED ribbon, also called out as LED ribbon under cabinet lighting, is perfectly suited for cove lighting, architectural detail illumination, task lighting and hospitality lighting. GM Lighting's LEDTask is a flexible LED linear ribbon that conforms to straight, curved and irregular architectural coves, banisters, recesses, and other applications where even, energy saving LED illumination is specified. The GM Lighting LEDTask series of flexible LED linear ribbon is available in either 1 meter (39"), 5 meter (164) or 30 meter (98'6") reels of either standard output or high output LEDs and can be cut in the field to achieve virtually any custom installation.
To assist with your specific project needs, flexible LED ribbon accessories include an end-to-end, 3", 12", 24", 36" or 60" flexible ribbon to ribbon connectors or 6", 24", 48" and 60" ribbon to power supply connectors and the GMSB series black or white splice boxes (all sold separately). Flexible LED ribbon is very easy to work with.

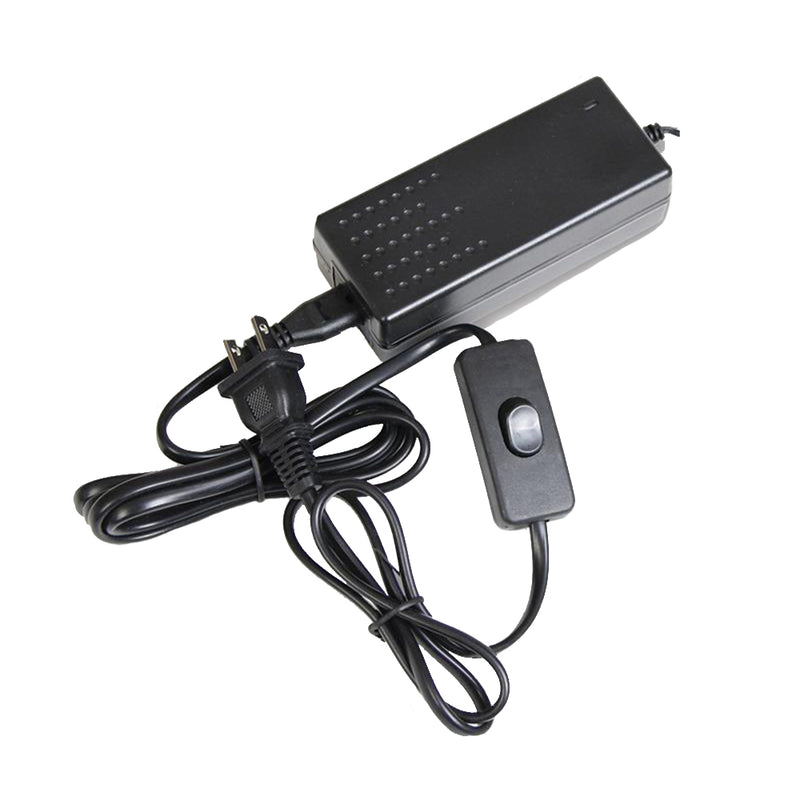

A power supply is required to energize any of the GM Lighting LED flexible ribbon products. The LTP series cord and plug 12vdc electronic LED power supplies feature an LED indicator for 'power on', is 100% fully load tested and comes with a five year limited warranty. Each LTP electronic power supply incorporates short circuit, over-voltage and over-temperature protection. This power supply measures 5 1/2" long by 2 1/4" wide by 1 1/4" high. The 2-prong cord and plug (with inline on/off switch) is 126" long and the output cable, from the power supply toward the LED ribbon, is 48" long. With a maximum rated load of 50 watts you can energize up to two 5M reels of LTR300-SO standard output LED linear ribbon (each 5 meter reel of LTR300-SO consumes 24 watts). The LTP-6 power supplies operate on 120V 60Hz circuits and are ETL listed for indoor use.
|Operating Voltage||12 Volt DC
|Input Voltage||120 Volt 60Hz
||18 Inch DC
||5.5" L x 2.25" W x 1.25" H
