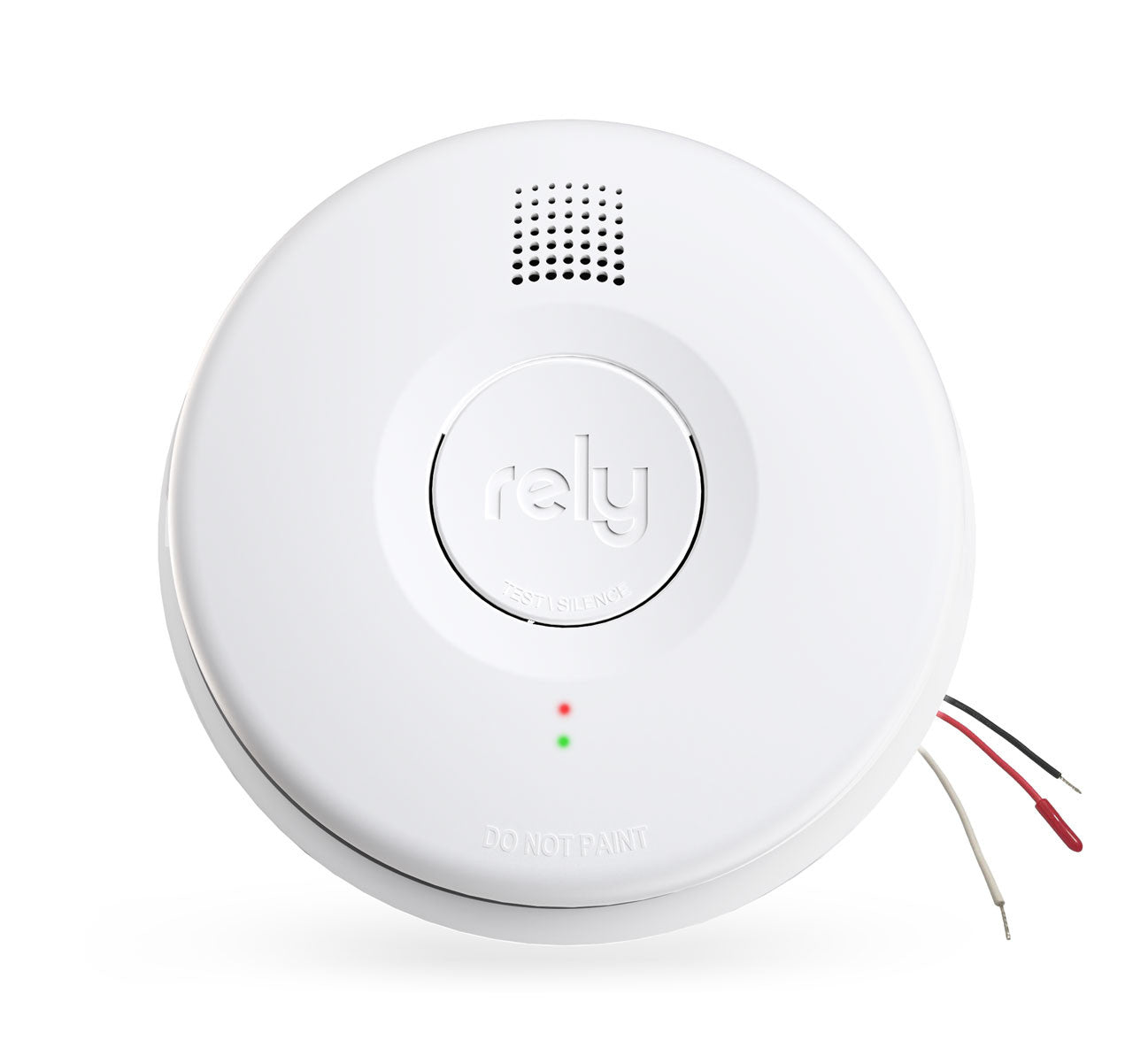

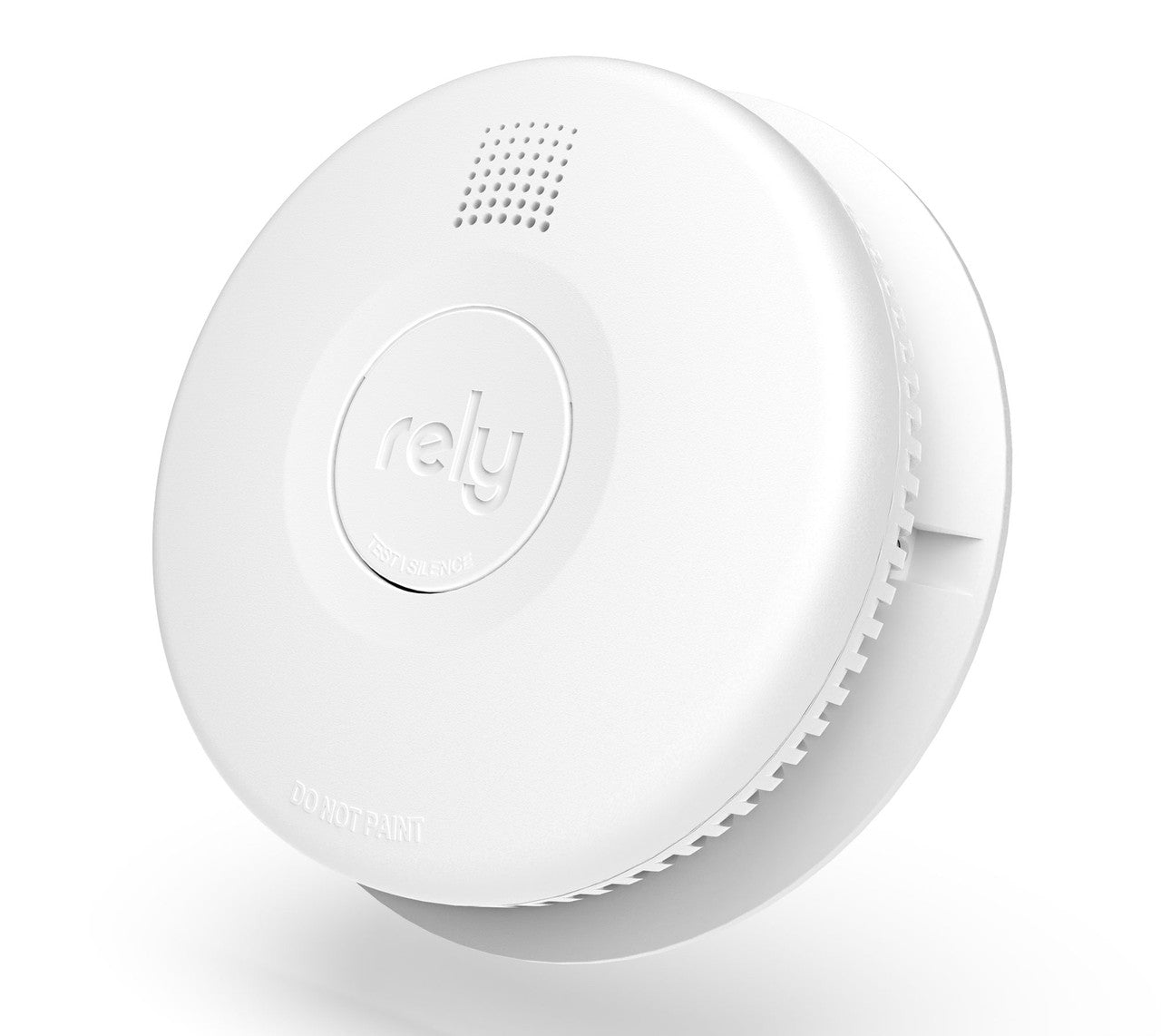

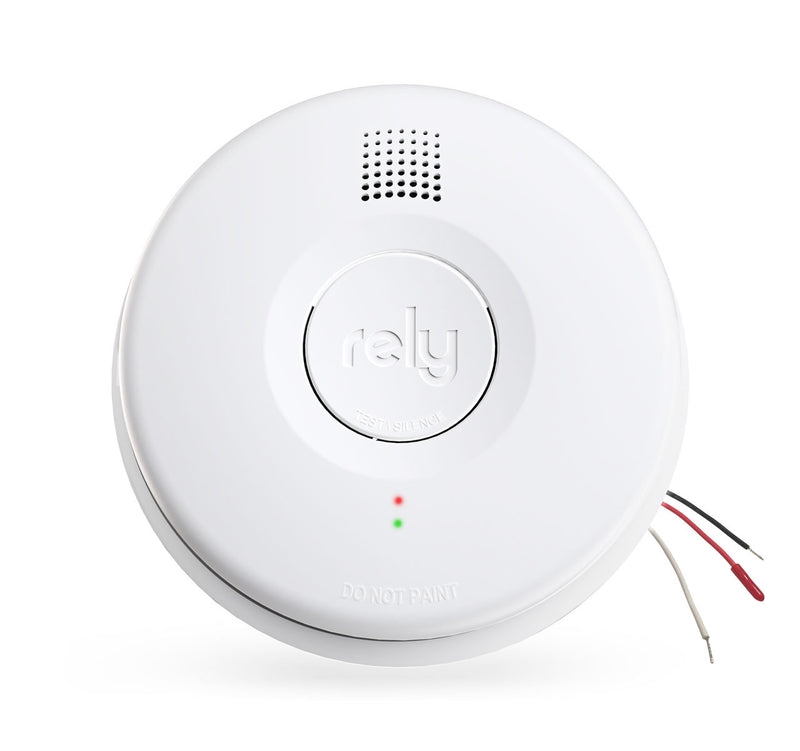

The Rely Model 5400 is a hardwired smoke alarm designed for single and multifamily residential use, as well as hospitality, and institutional applications as defined by NFPA 101. The 5400 complies with UL 217 9th Edition, NFPA 72, and CSFM requirements.
The Rely 5400 smoke alarm has a ten year service life and is 120V AC powered with a replaceable 9 volt battery for backup power that ensures continuous power to the alarm during loss of power. The alarm utilizes a photoelectric sensor for detecting smoke and has a hush feature to silence nuisance alarms.
To alert occupants of a fire threat, the alarm features an 85dB sounder that provides a temporal 3 alarm signal. The Model 5400 will interconnect with up to 12 other compatible Rely hardwired alarms and allows earlier warning since all of the interconnected units will alarm when one unit detects smoke.
| Manufacturer | Rely Safety | ||
| Pack | 1 Pack | 6 Pack | 40 Pack |
| MPN | 5400-1 | 5406C | 5400 |
| SKU | 5400-1 | 5406C | 5400 |
| UPC | 810170330049 | 60810170330041 | 20810170330043 |
| Smoke Sensor | Photoelectric | ||
| Power Source Voltage | 120V AC | ||
| Battery Back Up Voltage | 9 Volt | ||
| Audible Alarms | 85dB @ 10FT; Piezoelectric Sounder | ||
| Interconnects | Yes; Up To 12 Rely Alarms | ||
| Humidity Range | 10%-95% Non-Condensing | ||
| Operating Temperature | 40˚F (4˚C) to 100˚F (38˚C) | ||
| Alarm Life | 10 Years | ||
| Alarm Dimensions | 1.875" D x 6" W x 6" H | ||
| Certifications | ETL Listed, UL 217 9th Edition Standard | ||
| Warranty | 3 Year Limited | ||
