CD104 Mechanical Timer Switch

Precision SKU: CD104
Precision CD104 Mechanical Timer Switch

CD104 Mechanical Timer Switch

Precision SKU: CD104
Regular price $95.32
/
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your greenĀ® since 2007!

Timer Cross Reference:
INTERMATIC T104 / T104R / T1014P
Tork 1104 / 1104N
Precision CD104
Paragon P104-00


FisherPierce FP104With more than 55 years of design and manufacturing experience, in-depth engineering talents, and a total in-house manufacturing capability, Precision Multiple Controls, Inc. has created an unsurpassed reputation for fine quality and dependability. Today, Precision is a major producer of photocontrols and accessories for outdoor lighting applications, including their line of general purpose 24-hour time switches. Precision timers offer Power ratings for loads up to 40 amps, providing direct 24 hour control of most loads. Precision mechanical time switches provide up to 10 ON/OFF operations per 24 hours. All Precision CD104 Series models come equipped with two ON and OFF trippers.

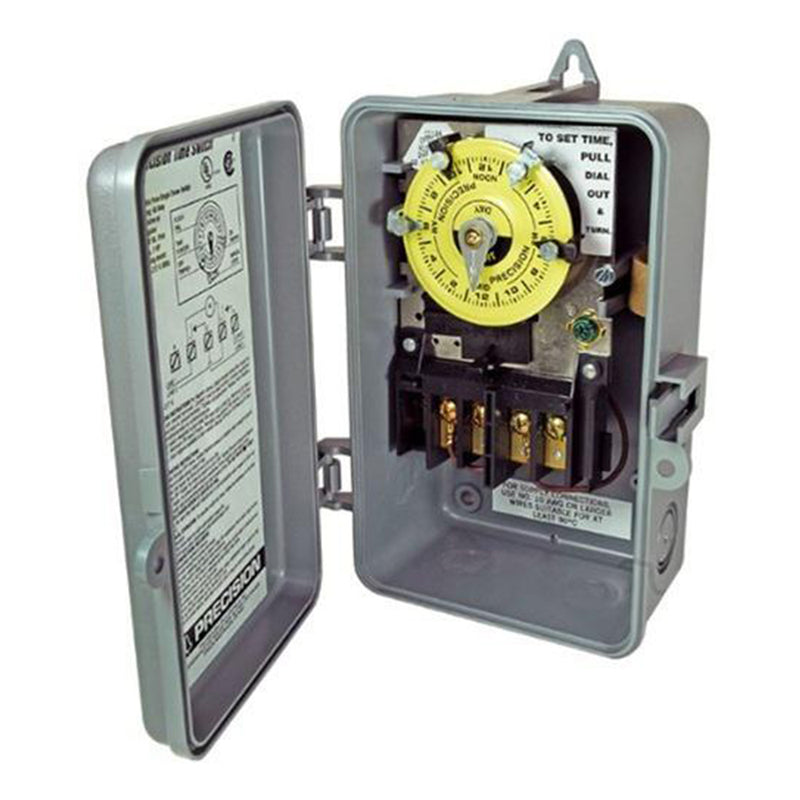

The Precision CD104 mechanical timer switch is housed in an indoor/outdoor rated (NEMA 3) rain tight plastic enclosure which measures 9.5" (H) by 5.375" (W) by 3.25" (D). It has a gray powder coat paint finish and a plastic latch with a hole for lock, which holds permanently attached side hinged door closed with hanging bracket and 2 holes for mounting. Five combination knockouts are loaded as follows; .5" to .75", 2 on bottom, 2 on side, and 1 on back which allow for easy installation on virtually every project.This heavy duty mechanical time switch has a clock voltage of 240V. This timer switch is Double Pole Single Throw (DPST). Each pole is rated for loads up to 40 amps resistive. The Precision CD104 has a horse power rating of 2HP.

Typical applications for a Precision mechanical timer switch include indoor/outdoor lighting, pool heaters, air conditioning, pumps, post lanterns, filters, blowers, poultry foggers, signs, electric fences, fans and conveyors.

Manufacturer Precision
MPN CD104
SKU CD104
UPC 720563202344
Voltage 240 Volt
Switch Type DPST
HP Rating 2 HP
Amperage 40 Amps
Dimensions 9.5" H x 5.375"W x 3.25" D
Construction NEMA 3 Raintight Plastic
Warranty 2 Year Limited
Trippers 2 ON/OFF Included
