Nema L5-15R 15A 125VAC Turnlok Single Receptacle

Pass & Seymour SKU: 4710
Pass & Seymour Nema L5-15R 15A 125VAC Turnlok Single Receptacle

Nema L5-15R 15A 125VAC Turnlok Single Receptacle

Pass & Seymour SKU: 4710
Regular price $16.33
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Pass & Seymour Turnlok® Locking Devices - Tough enough for industrial environments. Every component of these extra-hard use, durable plugs and connectors are built to offer the lowest installed cost with maximum durability. Quick-thread assembly screws install four times faster than competitive product and backed-out screws come ready-to-wire. The rugged easy-to-grip nylon housing, clear thermoplastic terminal chambers as well as high-strength brass alloy blades and contacts, combine to give P&S the premium selection of Turnlok plugs and connectors.

Pass & Seymour's offering of plugs and connectors provide a full range of features from the raised rib, non-slip gripping profile for turning to lock and unlock, to the durable impact and corrosion resistant nylon construction of the shell material. Pass & Seymour's Turnlok® devices continue to be preferred by specifiers, contractors and original equipment manufacturers for their quality and superior performance.

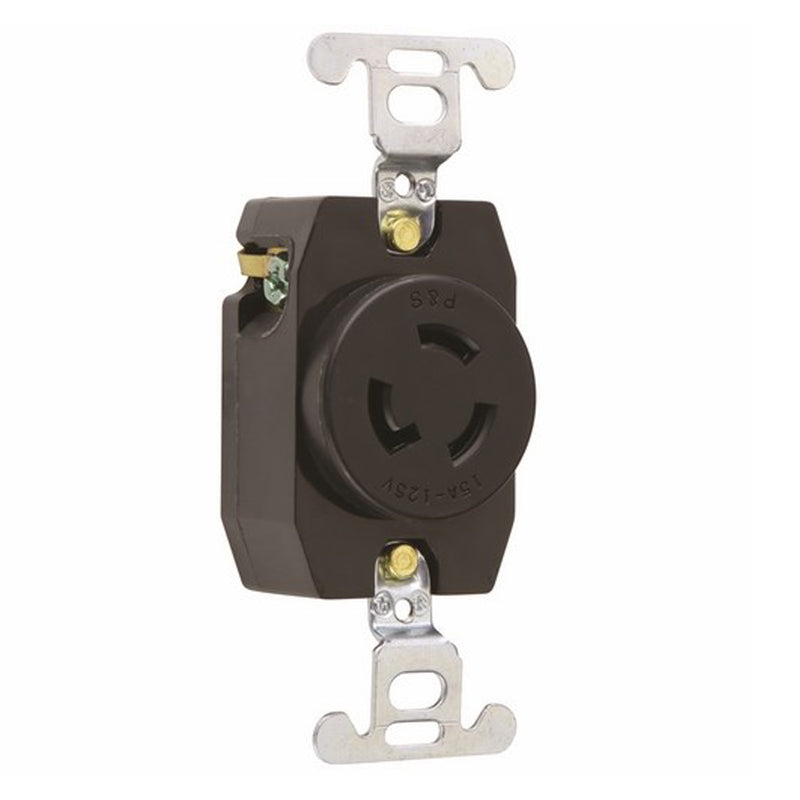

This is the P&S NEMA L5-15 Twist Lock Receptacle (also called out as L5-15R), part number 4710 (UPC 785007471007). This 15A 125VAC twist lock receptacle offers side and external screw-pressure-plate back wire capability that accept #14 thru #10 AWG solid or stranded conductors. One-piece, high-grade brass contacts offer excellent conductivity and heat rise resistance and the single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands. The compact, impact resistant nylon face and body are ultrasonically welded together for unrivaled strength. The NEMA configuration and device rating are imprinted into the face of the wiring device for easy identification.

P&S has incorporated industrial strength brass-alloy connector contacts that provide excellent conductivity and resist heat rise. Captive combination Slot/Phillips assembly screws help to make installation easy. Third party compliance includes UL Listed, File number E146159, Standard UL498, Federal Specification WC596, CSA Certified, File Number LR1765, conforms to NEMA WD-1 and flammability tested to UL94 V2.

Manufacturer Pass & Seymour
MPN L5-15R
SKU 4710
UPC Code 785007471007
Voltage 125V
Amperage 15 Amp
Wiring 2 Pole - 3 Wire Non-Grounding
Application Sector Industrial
NEMA Configuration L5-15R
Style Twist Lock
Device Type Receptacle
Construction Black Nylon
