Dyna-Tite WC4 CL18 (Rize RWC4 KL150) Looped Fixture Hanger Kit

Rize Enterprises SKU: 30131
Rize Enterprises Dyna-Tite WC4 CL18 (Rize RWC4 KL150) Looped Fixture Hanger Kit 15 Foot
Rize Enterprises Dyna-Tite WC4 CL18 (Rize RWC4 KL150) Looped Fixture Hanger Kit

Dyna-Tite WC4 CL18 (Rize RWC4 KL150) Looped Fixture Hanger Kit

Rize Enterprises SKU: 30131
Regular price $37.83
/
Length
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

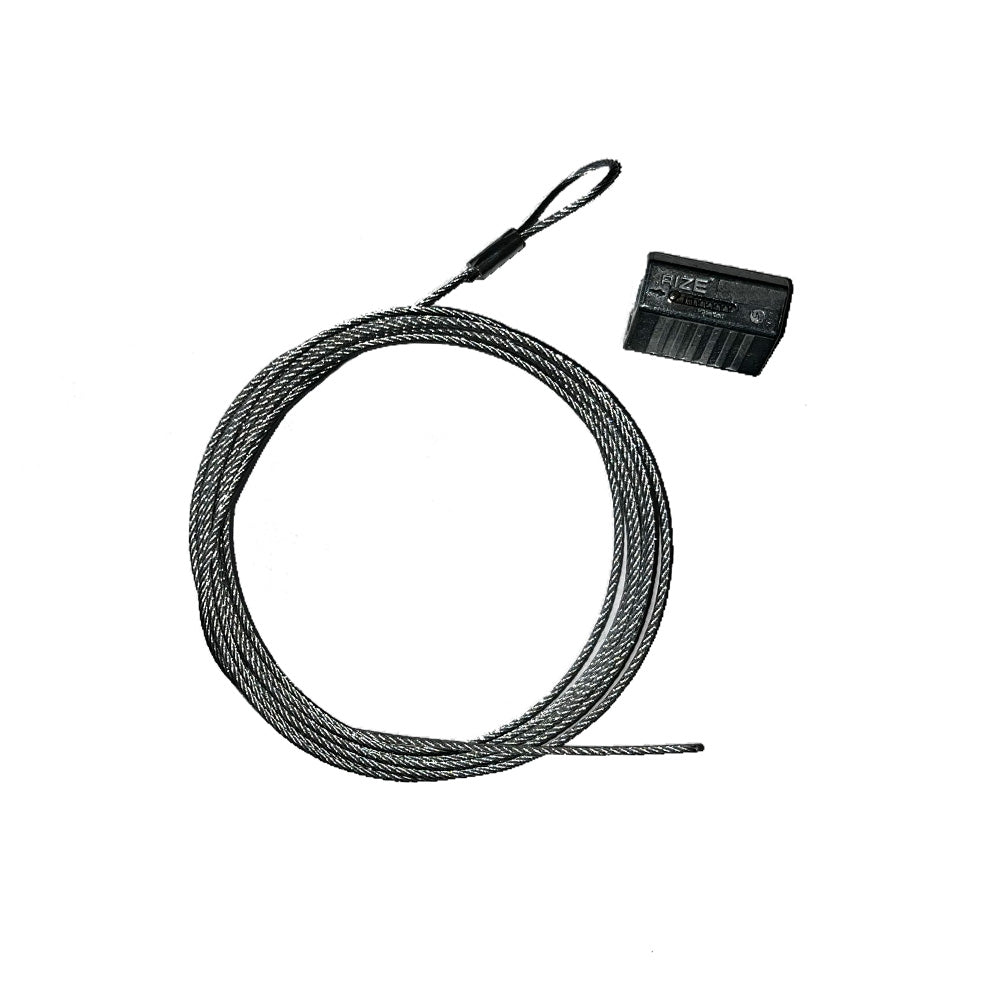

Kit Includes:
2 - 15ft RWC4 Cables
2 - KL150 Kwik-Locs

This Rize cable hanger kit includes two KL150 Kwik-Loc cable locks. Introduced to work on most light hanging applications, the KL150 can be used to hang fluorescent fixtures, speakers, busbar and cable tray, to name a few. The KL150 has a one piece die cast Zinc type Zamac 5 housing combining major anti-corrosion properties with strength and consistent manufacturing quality. The key components to this revolutionary cable lock are the internal locking wedges. An oil impregnated, sintered steel locking wedge is seated in each of the two channels.

Both wedges incorporate a release pin for easy adjustment. Each wedge makes contact with the wire rope using serrated teeth. These teeth press onto the wire rope and spread the load across the length of the wedge, maximizing grip strength. Each spring within each KL150 is manufactured of type 302 S26 stainless steel. All Kwik-Locs have been tested, and are UL Listed to UL 1598 and are listed under file number E246601. Now you see why we call this a quality, revolutionary product!

The two straight, single loop hanger assemblies are built using 1/8 inch diameter 7x7 strand galvanized steel. The galvanized steel wire rope, supplied by Rize Enterprises, is manufactured to exacting standards and statistically tested to verify the breaking strength.

This item is the RWC4L15K (30131) a (2) RWC4 x 15ft loop cable and (2) KL150 kit.

MANUFACTURER'S RECOMMENDATIONS:
DO NOT USE FOR LOADS OUTSIDE THE STATED RANGE OF THE PRODUCT. DO NOT EXCEED THE SAFE WORKING LOAD OF THE PRODUCT. DO NOT USE ON COATED WIRE ROPE. DO NOT APPLY PAINT OR OTHER COATING. DO NOT APPLY LUBRICANT. DO NOT USE FOR LIFTING. KEEP THE PRODUCT CLEAN AND FREE FROM DIRT. REMOVE DAMAGED CABLE END PRIOR TO INSERTING INTO THE CABLE LOCK. DO NOT USE IN CHLORINATED ATMOSPHERES. CABLE LOCKS ARE TO BE USED ON STATIC LOAD APPLICATIONS ONLY.

Manufacturer Rize Enterprises
MPN RWC4L15K
SKU 30131
Cable Fasteners (2) KL150
Wire Rope (2) RWC4
Wire Rope Diameter 1/8 Inch
Wire Rope Length 15 Feet Each
Wire Rope Tolerance +.014/-.007
Wire Rope Construction 7x7
Wire Rope Min Breaking Strength 1700 lbs
Safe Working Load 25-225 lbs (12-102 kg)
