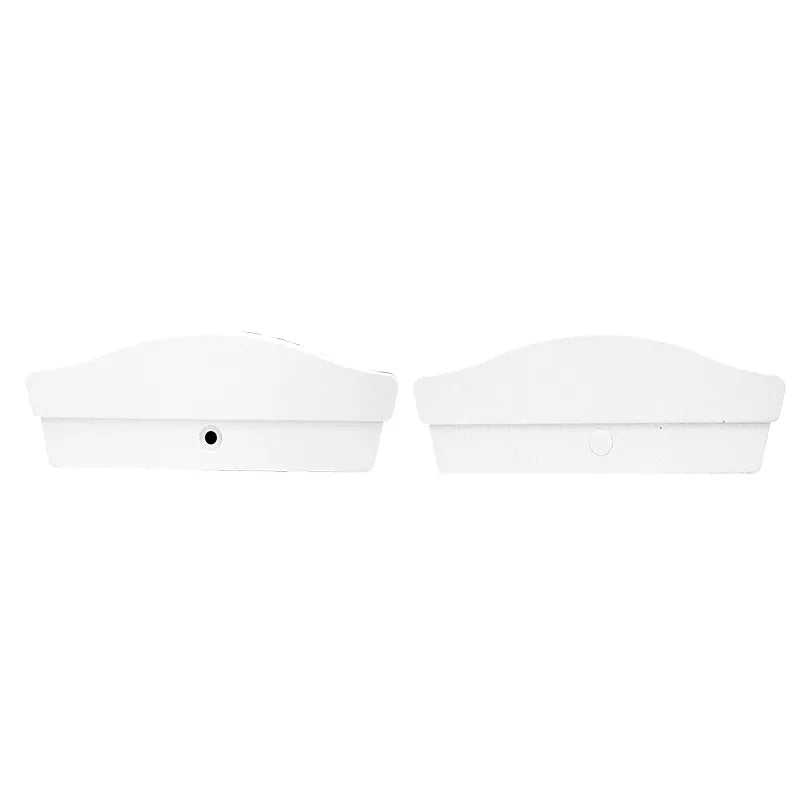

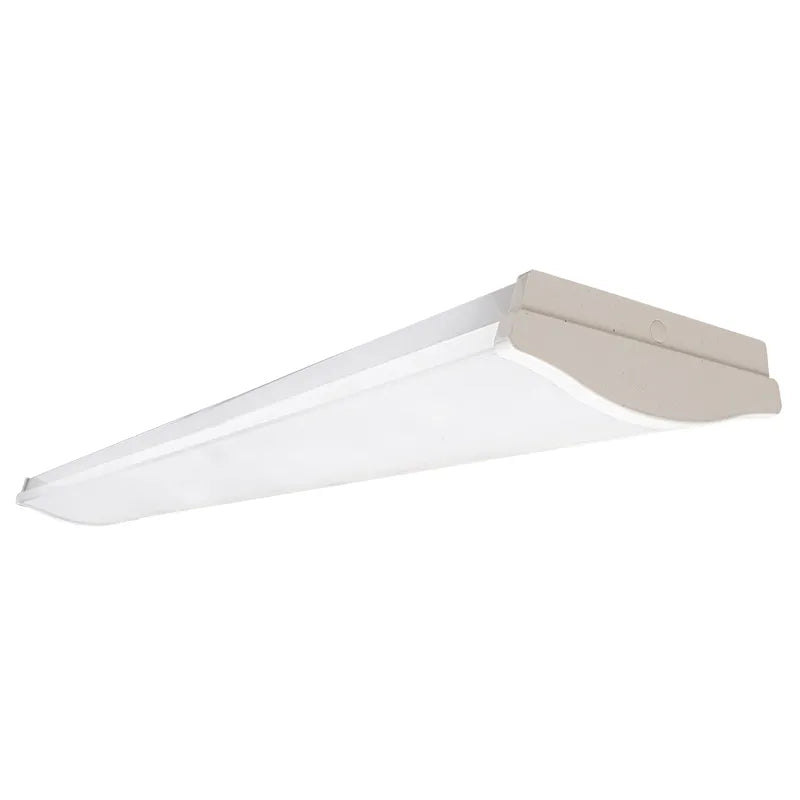

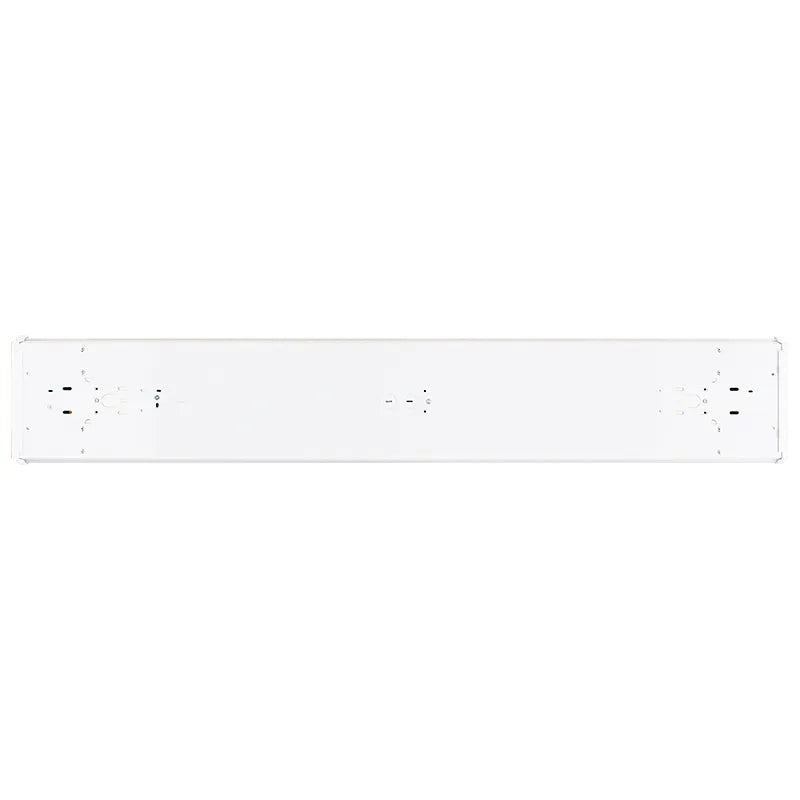

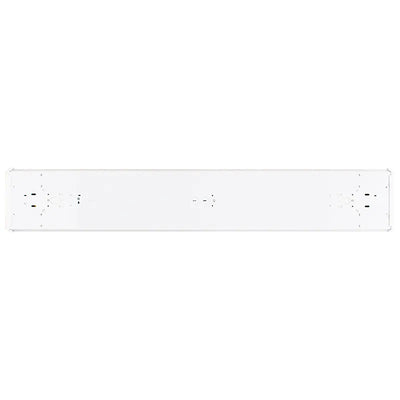

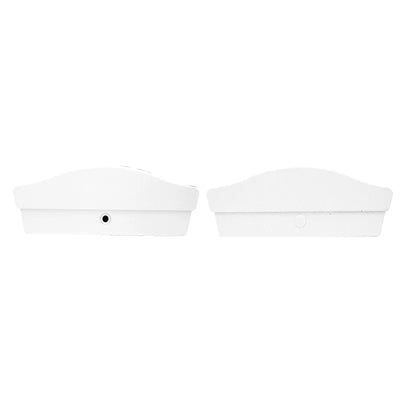

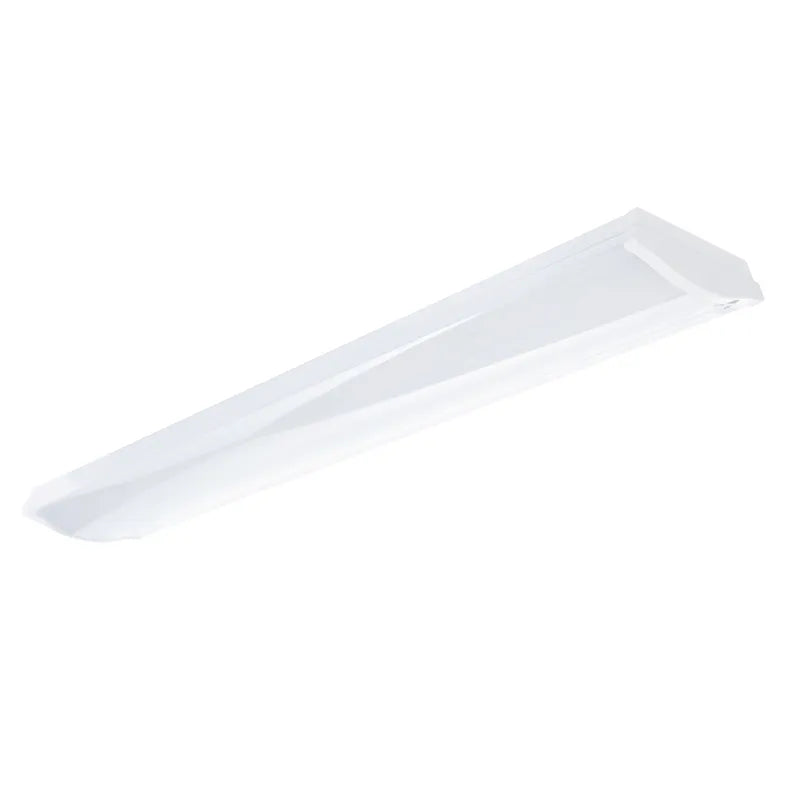

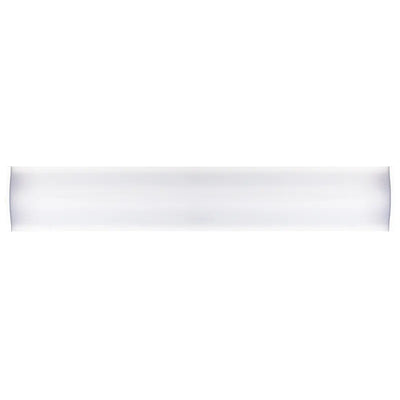

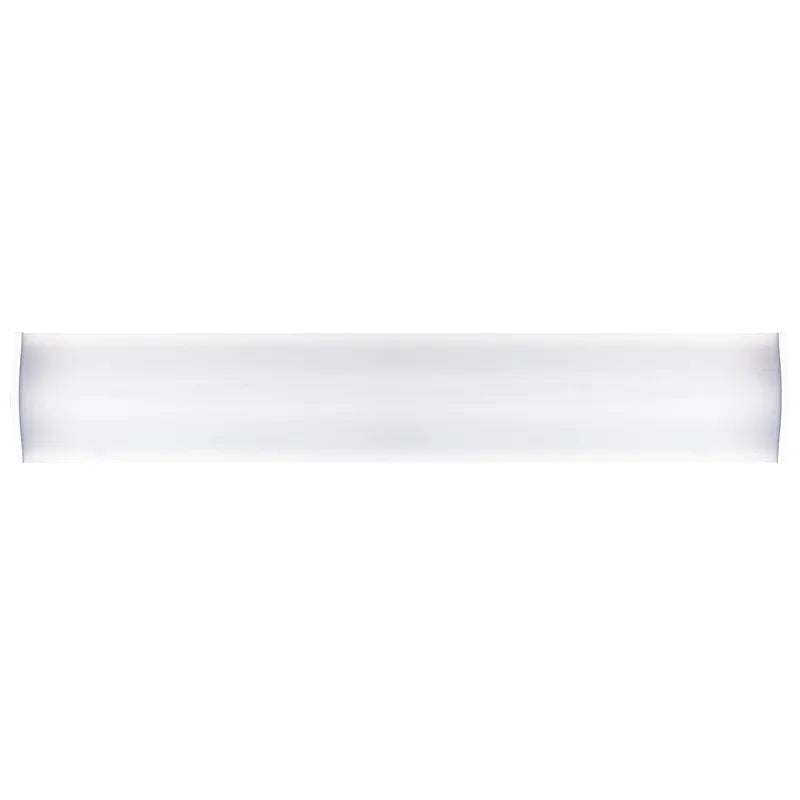

4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K

Westgate SKU: WA-4FT-20-40W-MCTP
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K
4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K

4 Foot 20/30/40 Watt 0-10V Dimming LED Architectural Wraparound Light 3500K/4000K/5000K

Westgate SKU: WA-4FT-20-40W-MCTP
  • Damp Location Rated
/
Color Temp
Finish Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

The Westgate LED Architectural Wrap-Around Light delivers reliable, energy-efficient lighting for industrial, commercial, and residential spaces. This 4 foot, 20/30/40 watt selectable fixture produces 2200-4400 lumens (110 lm/W) and offers selectable color temperatures of 3500K, 4000K, or 5000K to suit any environment. Designed for ceiling mounting, it features 0-10V dimming capability for adjustable brightness and a white powder-coated finish on a durable die-formed cold rolled steel housing. With a 50,000-hour lifespan and a 5-year warranty, this fixture provides long-lasting performance and exceptional value.

Specifications
Manufacturer Westgate
MPN WA-4FT-20-40W-MCTP
SKU WA-4FT-20-40W-MCTP
UPC 845060058963
Lighting Technology LED
Wattage 20/30/40 Watts
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 3500K/4000K/5000K
Lumens 2200/3300/4400 Lumens
Efficiency (Lumens Per Watt) 110 lm/W
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours
CRI (Color Rendering Index) >82
Power Factor >0.95
Finish Color White
Finish Powder Coated
Construction Die-formed Heavy Gauge Cold Rolled Steel
Lens Opal Polycarbonate
Operating Temperature -22°F to 107°F
Dimensions 46-1/2" L x 8-3/16" W x 2-3/4" H
Certifications cULus, IP40
Environment Damp Location
BUG Rating B2-U3-G1
Warranty 5 Year Warranty
Documents

Westgate 4 Foot LED Architectural Wraparound Light Specification Sheet

Request A Quote

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
