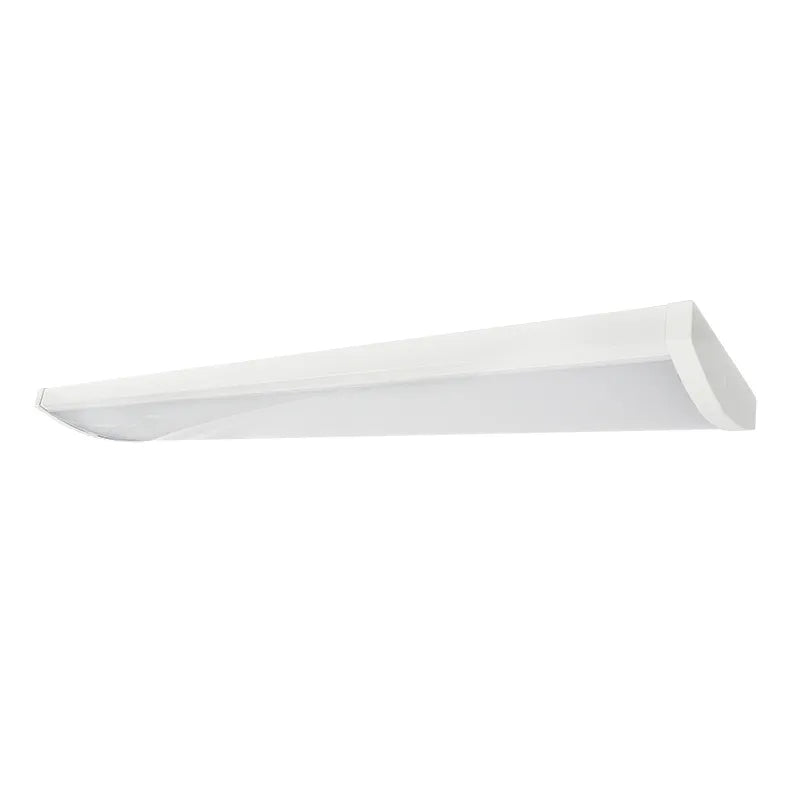

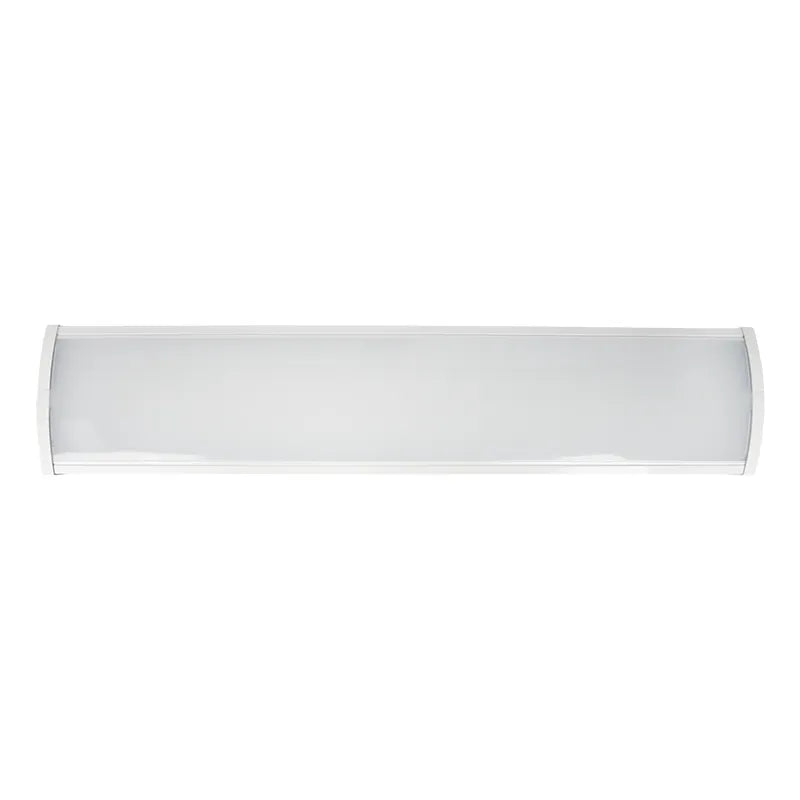

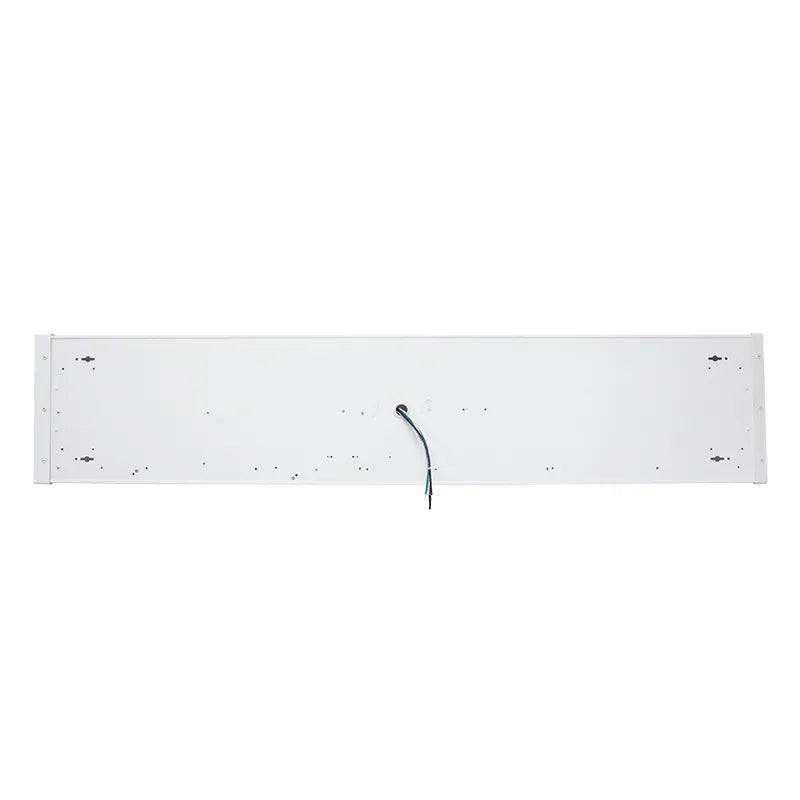

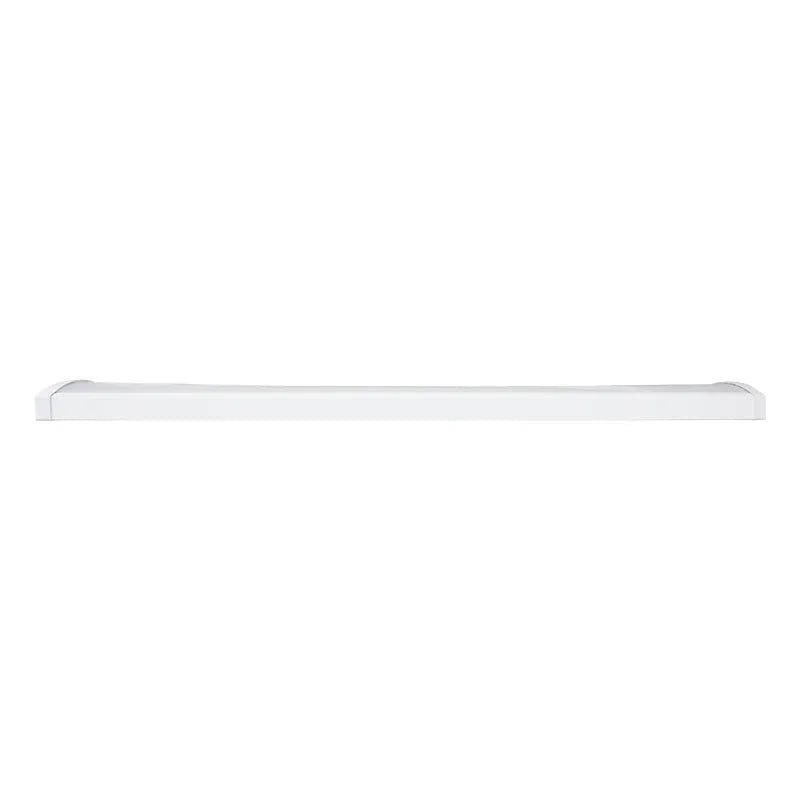

4 Foot 30/40/50 Watt Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K

Westgate SKU: WAEW-4FT-30-50W-MCTP-D
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K Selectable
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K Selectable
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K
Westgate 4 Foot 30/40/50 Watt Sensor Ready Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K

4 Foot 30/40/50 Watt Wide Body LED Wraparound Light Fixture 3000K/4000K/5000K

Westgate SKU: WAEW-4FT-30-50W-MCTP-D
  • DLC Listed
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

The Westgate Lighting LED Economy Wide Body Wrap-Around Fixture, WAEW-4FT-30-50W-MCTP-D delivers efficient, versatile illumination for commercial, industrial, and residential spaces. Part of the Builder Series, this 10 inch wide wraparound fixture provides uniform light distribution and selectable wattages of 30W, 40W, or 50W, producing up to 6,000 lumens at 120 lm/W. With multi-color temperature options (3000K, 4000K, 5000K), it allows you to customize the lighting to suit a variety of environments, while operating on 120-277V with 0-10V dimming capability for enhanced control and energy savings.

Designed for easy installation and long lasting performance, this DLC listed fixture is rated for 50,000 hours and backed by a 5 year warranty, making it a reliable and cost effective lighting solution. Its durable construction and energy efficient design ensure dependable operation and reduced maintenance costs, delivering exceptional value for new construction and retrofit projects alike.

Specifications
Manufacturer Westgate
MPN WAEW-4FT-30-50W-MCTP-D
SKU WAEW-4FT-30-50W-MCTP-D
UPC 840378321068
Lighting Technology LED
DLC Product ID S-XBDBLK
Wattage 30/40/50 Watts
Voltage 120-277VAC
Frequency 60Hz
Color Temperature (Kelvin) 3000K/4000K/5000K
Lumens 3,600/4,800/6,000 Lumens
Efficiency (Lumens Per Watt) 120 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82 CRI
Power Factor 0.99
Finish Color White
Finish Powder Coated
Housing Die-Formed Cold Rolled Steel
Lens Polycarbonate
Mounting Ceiling Mounted
Operating Temperature -22°F to 104°F
Dimensions 47" L x 9.8" W x 2.84" H
Environment Dry Location
Certifications cETLus, DLC Listed
Warranty 5 Year
Documents

Westgate 4 Foot Wide Body LED Wraparound Light Fixture Specification Sheet

Westgate 4 Foot Wide Body LED Wraparound Light Fixture DLC Product Listing
