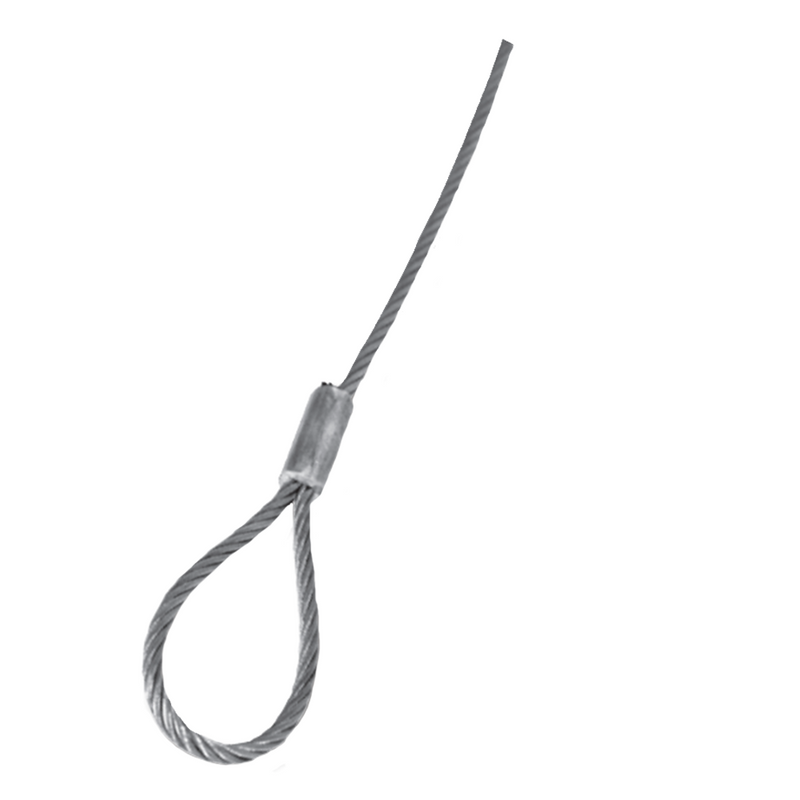

This Duro Dyne cable hanger includes one loop cable. Introduced to work on most light hanging applications, they can be used to hang fluorescent fixtures, speakers, busbar and cable tray, to name a few.
The one straight, single loop hanger assemblies are built using 1/16 inch diameter (+.010/-.005 inch tolerance) 7x7 strand galvanized steel. The galvanized steel wire rope, supplied by Duro Dyne, is manufactured to exacting standards and statistically tested to verify the breaking strength.
MANUFACTURER'S RECOMMENDATIONS:
DO NOT USE FOR LOADS OUTSIDE THE STATED RANGE OF THE PRODUCT. DO NOT EXCEED THE SAFE WORKING LOAD OF THE PRODUCT. DO NOT USE ON COATED WIRE ROPE. DO NOT APPLY PAINT OR OTHER COATING. DO NOT APPLY LUBRICANT. DO NOT USE FOR LIFTING. KEEP THE PRODUCT CLEAN AND FREE FROM DIRT. REMOVE DAMAGED CABLE END PRIOR TO INSERTING INTO THE CABLE LOCK. DO NOT USE IN CHLORINATED ATMOSPHERES. CABLE LOCKS ARE TO BE USED ON STATIC LOAD APPLICATIONS ONLY.
| Manufacturer | Duro Dyne (Rize Enterprises) | |
| Wire Rope Length | 10 Feet | 15 Feet |
| MPN | LC10WC2 (RLC2-10) | LC15WC2 (RLC2-15) |
| SKU | 30214 (R30224) | 30215 (R30225) |
| UPC | 797582122144 | 797582122151 |
| Wire Rope Diameter | 1/16 Inch | |
| Wire Rope Tolerance | +0.01/-0.005 | |
| Wire Rope Construction | 7x7 | |
| Wire Rope Min Breaking Strength | 480lbs | |
| Cable Lock Compatibility | CL6-WC2 (KL75) | |
| Safe Working Load | 10-75 lbs (5-34 kg) | |
