10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K

Keystone Technologies SKU: KT-SFLED20PS-D1-8CSB-PIR-B
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K
10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K

10/15/20 Watt 120-277V LED Dual Head Security Light with PIR Motion Sensor and Photocell 3000K/4000K/5000K

Keystone Technologies SKU: KT-SFLED20PS-D1-8CSB-PIR-B
  • ETL Certified, IP65, Wet Location Rated
/
Color Temp
Finish Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

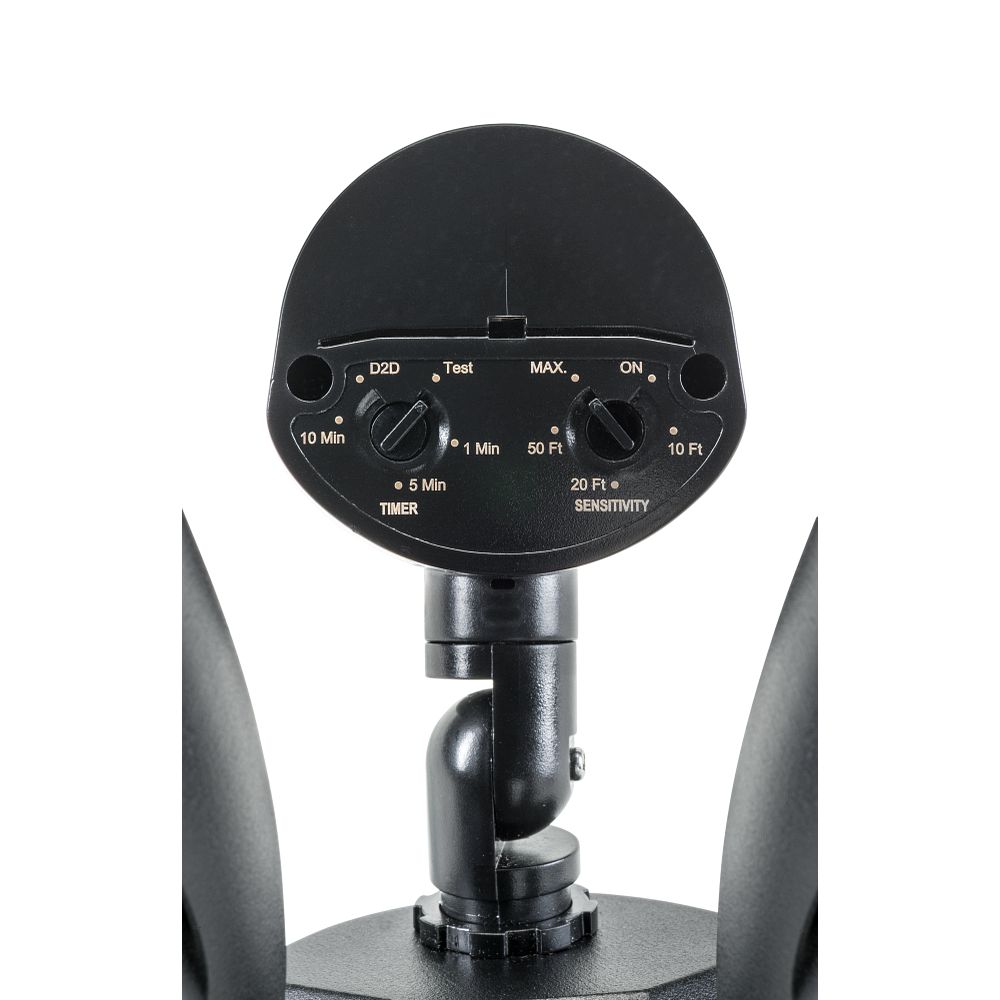

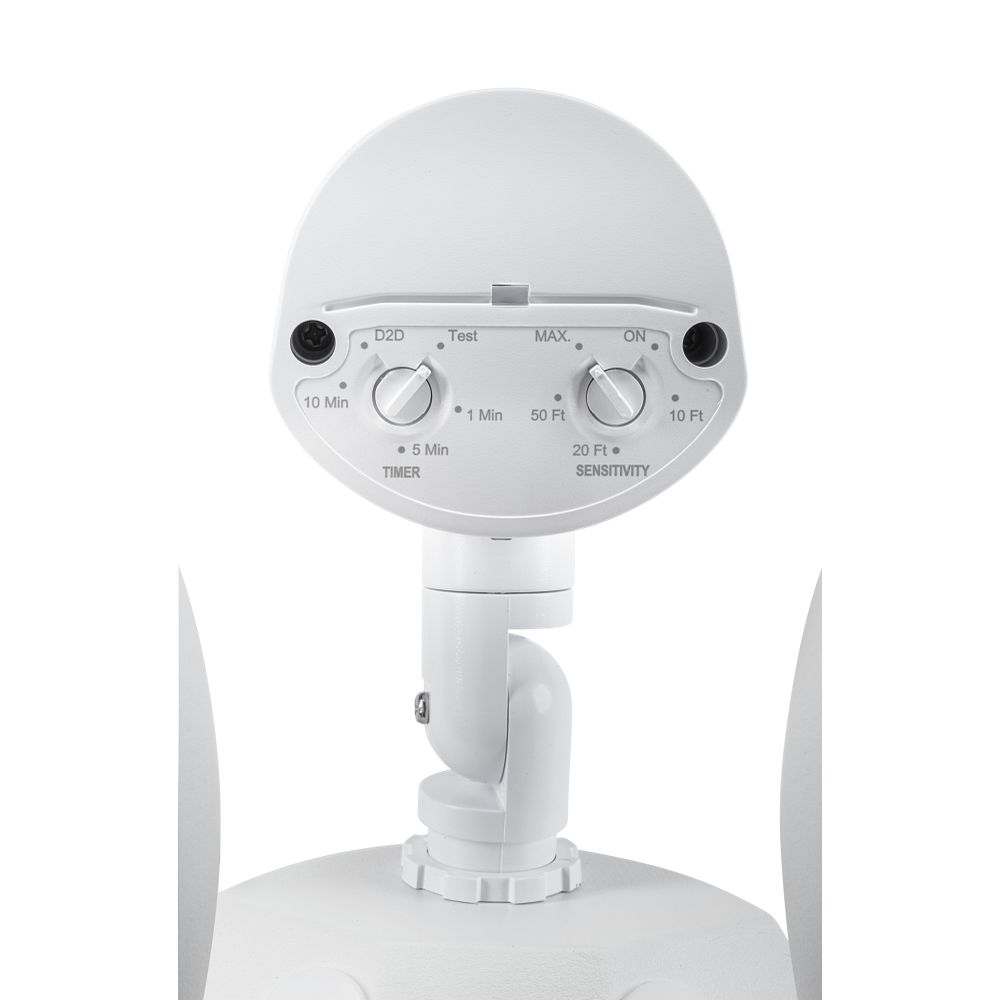

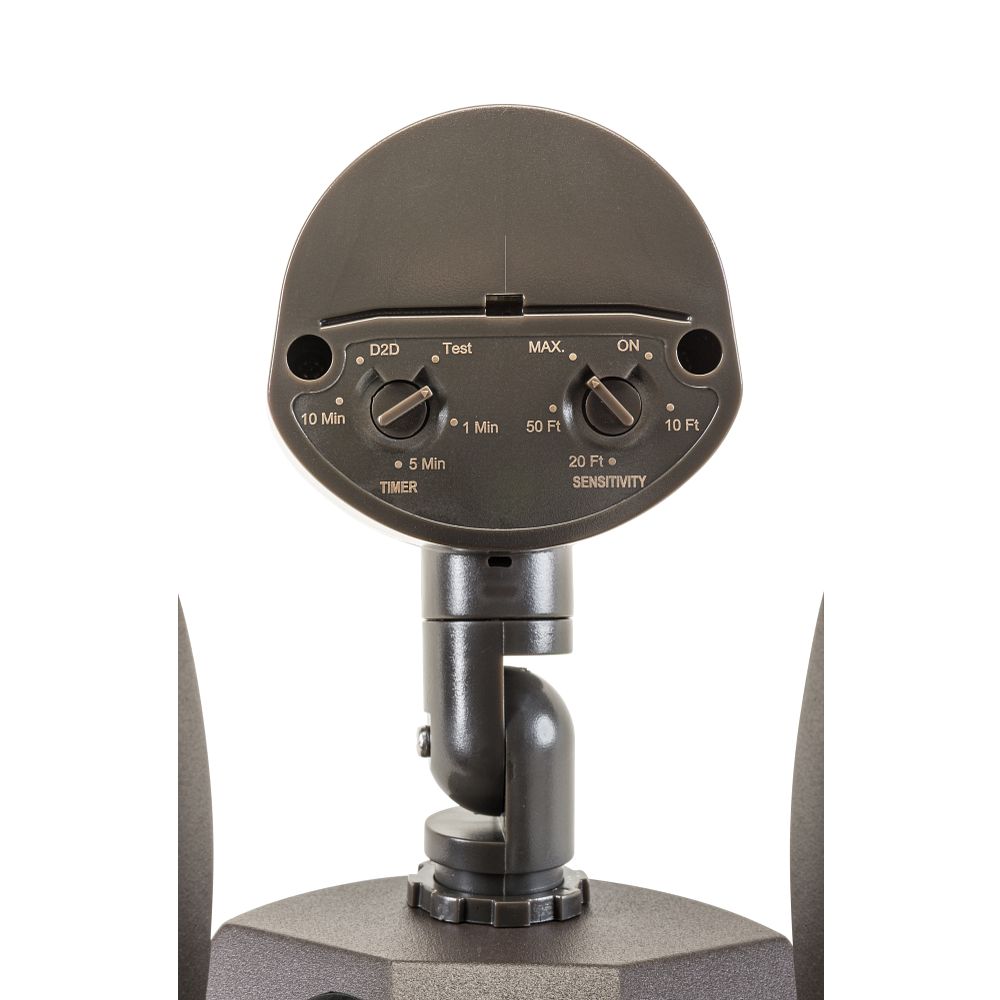

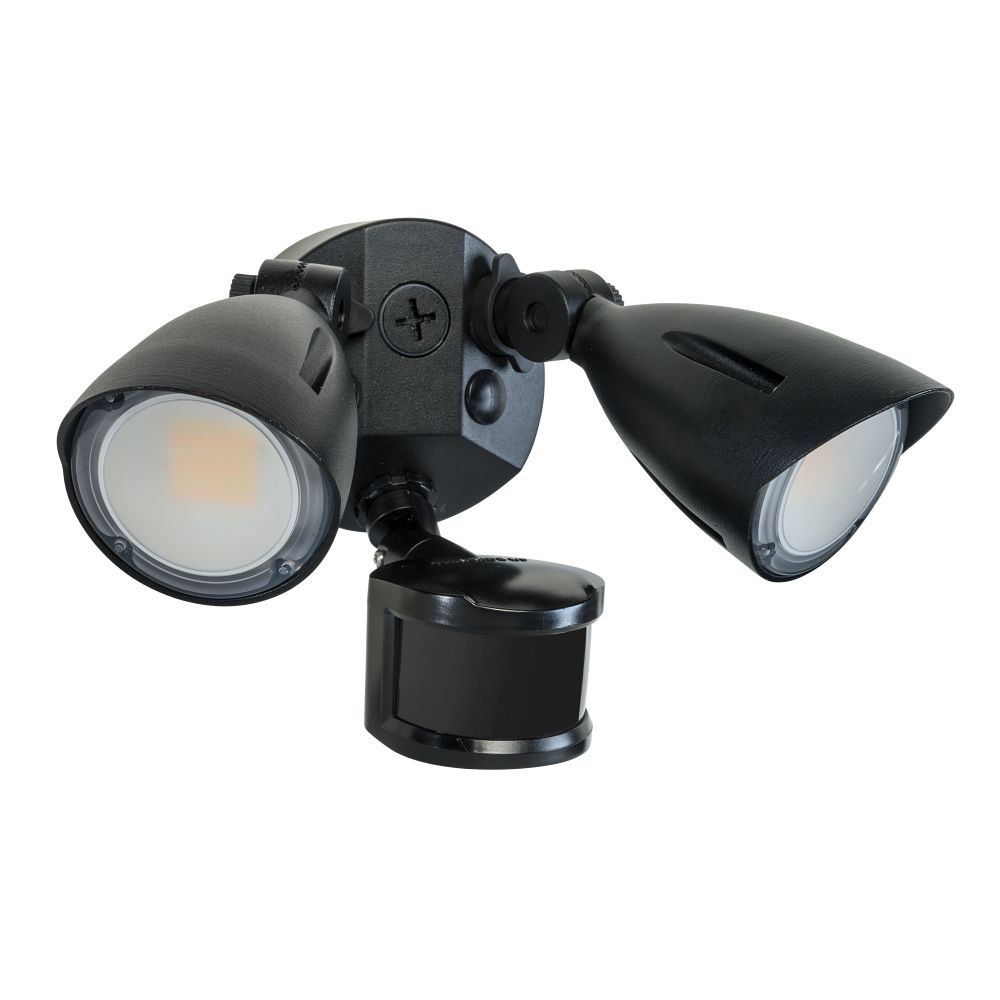

The Keystone LED Dual Head Security Light provides adjustable outdoor illumination for residential, multifamily, and commercial exterior applications. This version comes with a PIR motion sensor with 180° detection range and photocell capabilities. Selectable 10, 15, and 20 Watt power settings and 3000K, 4000K, and 5000K color temperatures allow you to tailor the light output and appearance to your installation. Operating on 120–277V, this fixture delivers up to 2,480 lumens and features an 80 CRI, frosted lenses, and a 110° beam angle. Two independently adjustable heads move up and down or side to side to direct light where it is needed. The fixture comes factory preset to 20 Watt and 5000K.

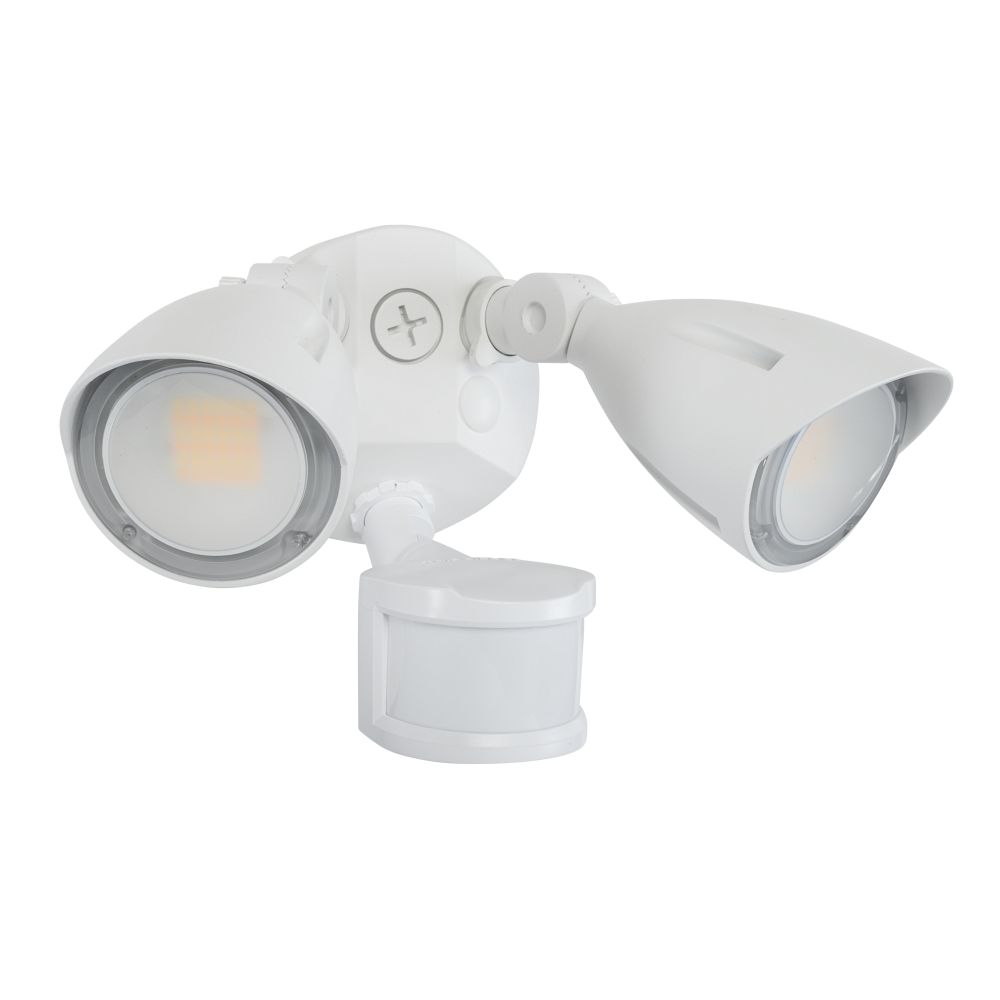

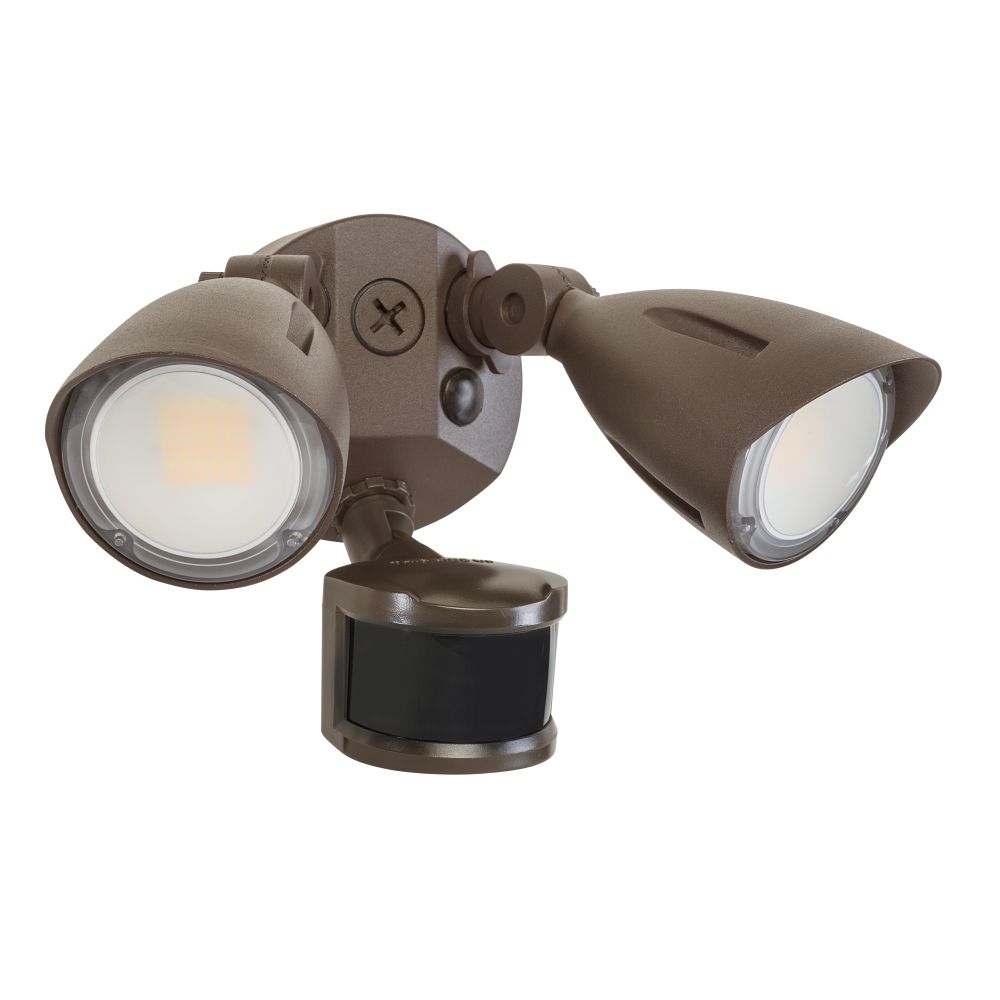

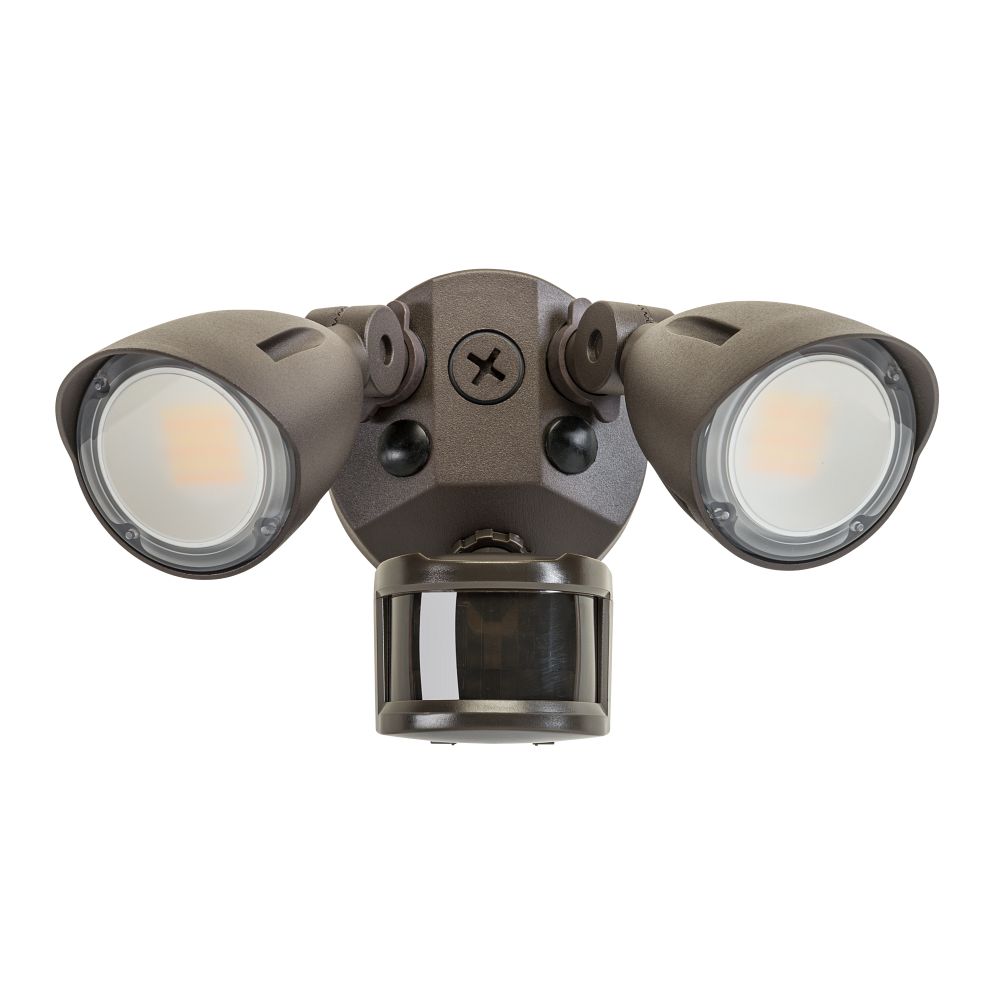

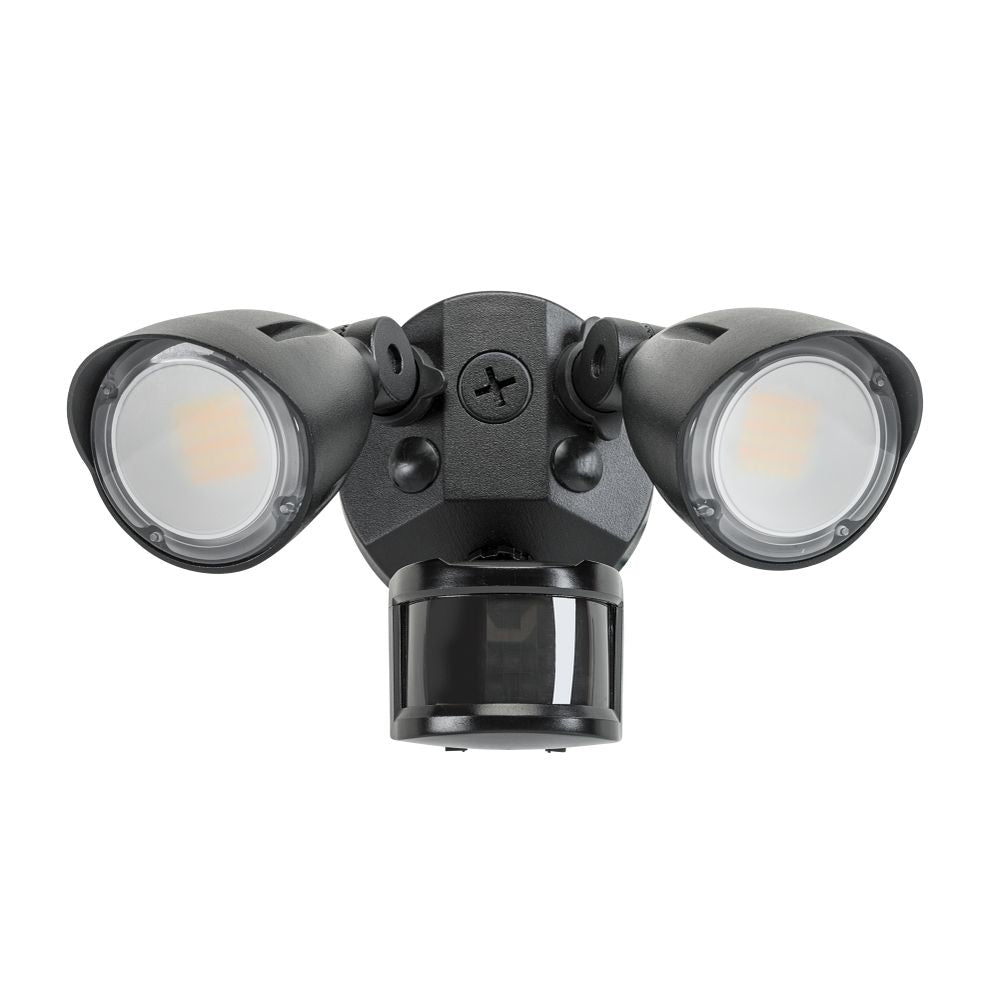

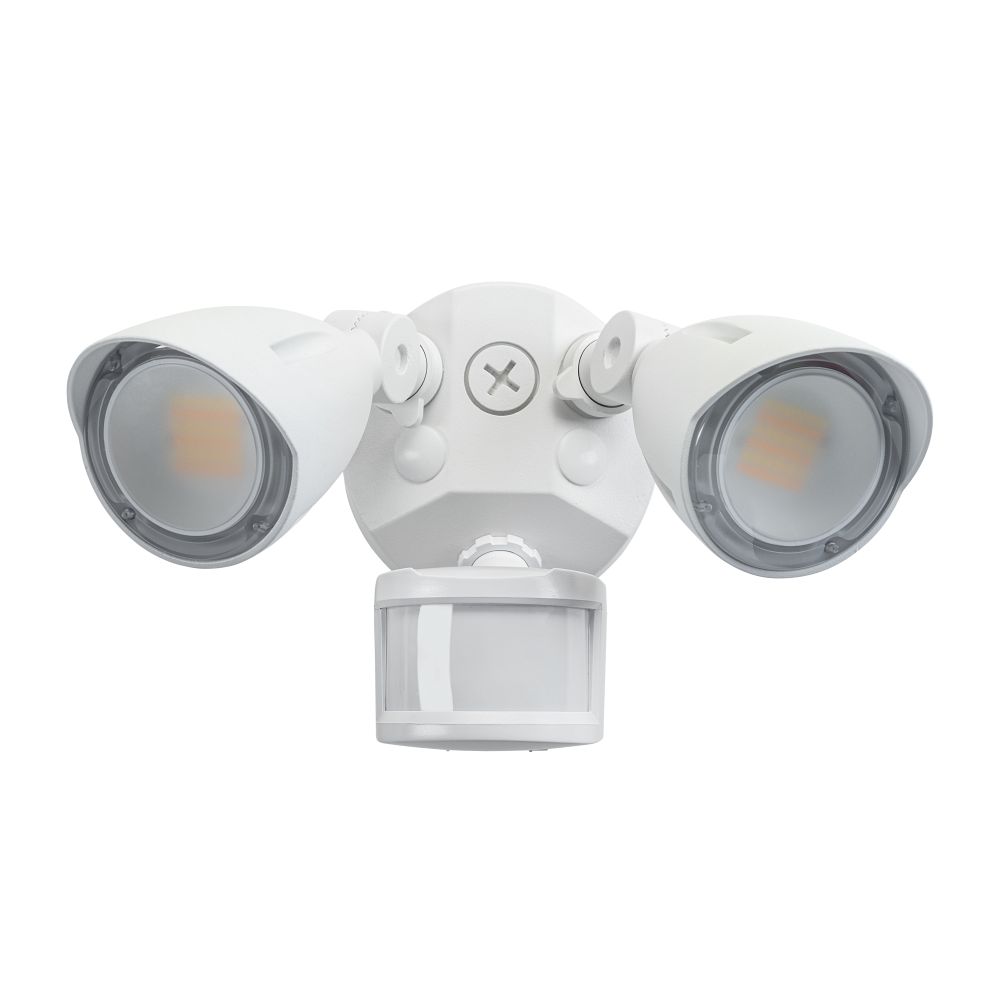

Designed for wall mounting only, this IP65-rated security light is suitable for wet locations and operates in ambient temperatures from -40°F to 113°F. Its driver includes 2kV surge protection, and the fixture is ETL Listed, meets FCC requirements, and is backed by a five-year warranty. Available finishes include Black (KT-SFLED20PS-D1-8CSB-PIR-B), Bronze (KT-SFLED20PS-D1-8CSB-PIR), and White (KT-SFLED20PS-D1-8CSB-PIR-W).

Specifications
Manufacturer Keystone Technologies
Finish Color Black Bronze White
MPN KT-SFLED20PS-D1-8CSB-PIR-B KT-SFLED20PS-D1-8CSB-PIR KT-SFLED20PS-D1-8CSB-PIR-W
SKU KT-SFLED20PS-D1-8CSB-PIR-B KT-SFLED20PS-D1-8CSB-PIR KT-SFLED20PS-D1-8CSB-PIR-W
UPC 843654181721 843654181714 843654181738
Lighting Technology LED
Wattage 10/15/20 Watts
Voltage 120-277 Volt
Lumens 1,250-2,480 Lumens
Efficiency (Lumens Per Watt) 118-131 LPW
Beam Angle 110°
Rated Life L70 > 100,000hrs @ 25°C/77°F ambient fixture temperature
CRI (Color Rendering Index) 80 CRI
Operating Temperature -40°C/-40°F - 45°C/113°F
Dimensions 7.36" L x 9.45" W x 4.13" H (2.76" Head Width)
Environment Suitable for wet locations
Certifications ETL, FCC, IP65
Warranty 5 Years



Wattage 10 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 1,250 Lumens 1,280 Lumens 1,310 Lumens
Efficiency (Lumens Per Watt) 125 LPW 128 LPW 131 LPW
Wattage 15 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 1,840 Lumens 1,910 Lumens 1,930 Lumens
Efficiency (Lumens Per Watt) 123 LPW 127 LPW 129 LPW
Wattage 20 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 2,350 Lumens 2,470 Lumens 2,480 Lumens
Efficiency (Lumens Per Watt) 118 LPW 124 LPW 124 LPW
Documents

Keystone 10/15/20 Watt LED Dual Head Security Light PIR Motion Sensor and Photocell Specification Sheet

Keystone 10/15/20 Watt LED Dual Head Security Light PIR Motion Sensor and Photocell Installation Instructions
