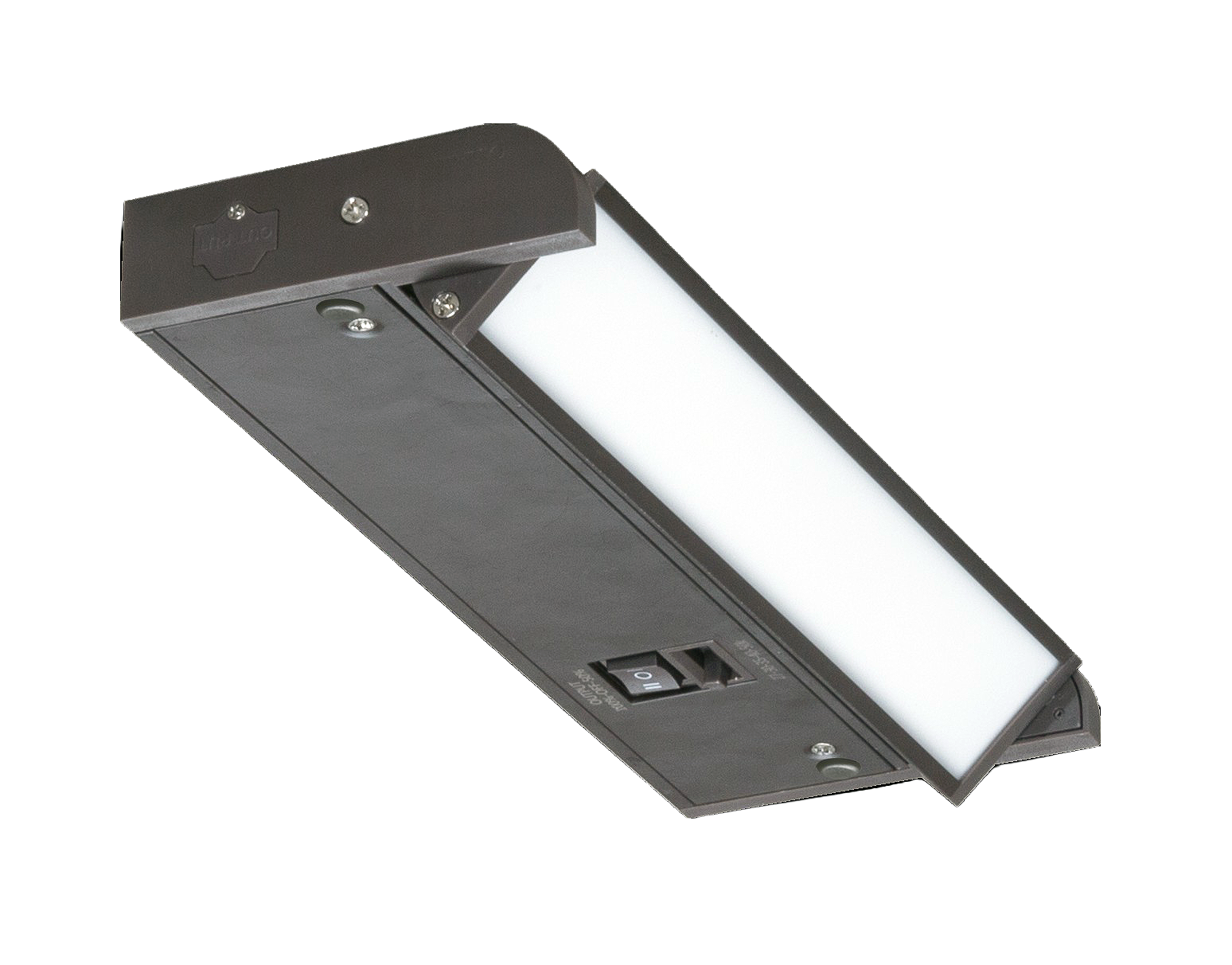

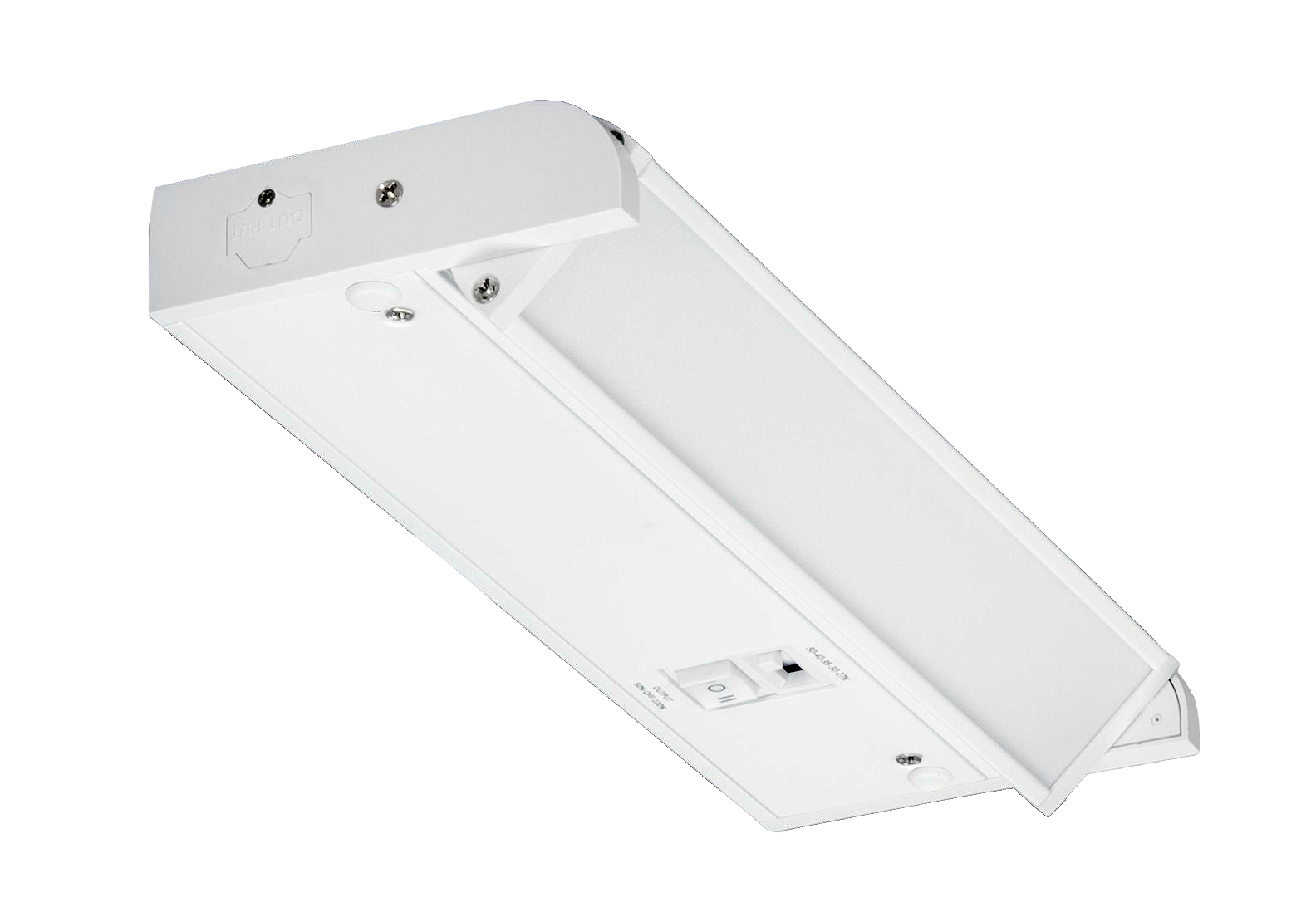

The MaxLite UCL Series 10 inch, 6 watt LED Under Cabinet Light Fixture delivers versatile, high-quality illumination for residential and commercial applications. Available in 10", 16", 24", and 32" lengths and offered in Brown or White finishes, this fixture features field-selectable CCT spanning 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K), making it easy to match any environment without swapping fixtures.
Designed for performance and flexibility, the UCL Series offers a high color rendering index of CRI 90, TRIAC dimmability from 20–100% at 120V, and a 50° swivel lens for precise light direction. An adjustable brightness setting of 100% or 50% provides additional control, and the fixture is rated for damp locations with a 50,000 hour rated life (L70) backed by a 5 year limited warranty.
The Brown finish delivers 350/360/370/370/380 lumens at 59/60/62/62/64 lm/W across the five CCT settings, while the White finish provides 380/390/400/400/410 lumens at 62/63/65/65/67 lm/W. Both finishes are ULus Listed, Title 24 JA8 compliant, FCC certified, and RoHS compliant. Order the Brown finish under code 114154 (Item # UCL10-6CSBN) or the White finish under code 114155 (Item # UCL10-6CSWH).
Note: Up to 20 fixtures may be connected together, not to exceed 320W total connected load. For compatible dimmers, please see the specification sheet.
Accessories (Sold Separately) include: Junction Box (Brown & White), 9-inch Linking Cable (Brown & White), Male-Female Connector in White only, and 6-foot Power Cord (Brown & White).
Included in Box:
1. Fixture (1)
2. Male-to-Female Linking Cord (1)
3. End-to-End Connector (1)
4. Strain Relief Connector (1)
5. Mounting Screws (2)
6. Mounting Hole Plugs (2)
7. Removal Tool (1)
| Manufacturer | MaxLite | |
| Finish Color | Brown | White |
| MPN | UCL10-6CSBN | UCL10-6CSWH |
| SKU | 114154 | 114155 |
| UPC | 767627090202 | 767627090219 |
| Lumens | 350/360/370/370/380 Lumens | 380/390/400/400/410 Lumens |
| Efficiency (Lumens Per Watt) | 59/60/62/62/64 LPW | 62/63/65/65/67 LPW |
| Lighting Technology | LED | |
| Wattage | 6 Watts | |
| Voltage | 120V | |
| Color Temperature (Kelvin) | 2700K/3000K/3500K/4000K/5000K | |
| Dimmable | Dimmable - Triac | |
| Dimming Range | 20-100% | |
| Adjustable Brightness | 100% or 50% | |
| Rated Life | 50,000 Hours | |
| CRI (Color Rendering Index) | 90 CRI | |
| Housing | Extruded Aluminum | |
| Diffuser | Frosted Polycarbonate | |
| Finish | Powder Coat | |
| Lens | 50° Swivel Lens | |
| Mounting | Surface | |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) | |
| Dimensions | 10" L x 3.6" W x 1.0" H | |
| Environment | Suitable for Damp Locations | |
| Certifications | FCC, JA8 Compliant, RoHS, Title 24 Compliant, ULus | |
| Warranty | 5 Years | |
