Name: 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K
Brand: Westgate
SKU: CMCW3-COB-10W-MCT-36D-DT-BK
Price: 112.16 USD
Availability: InStock

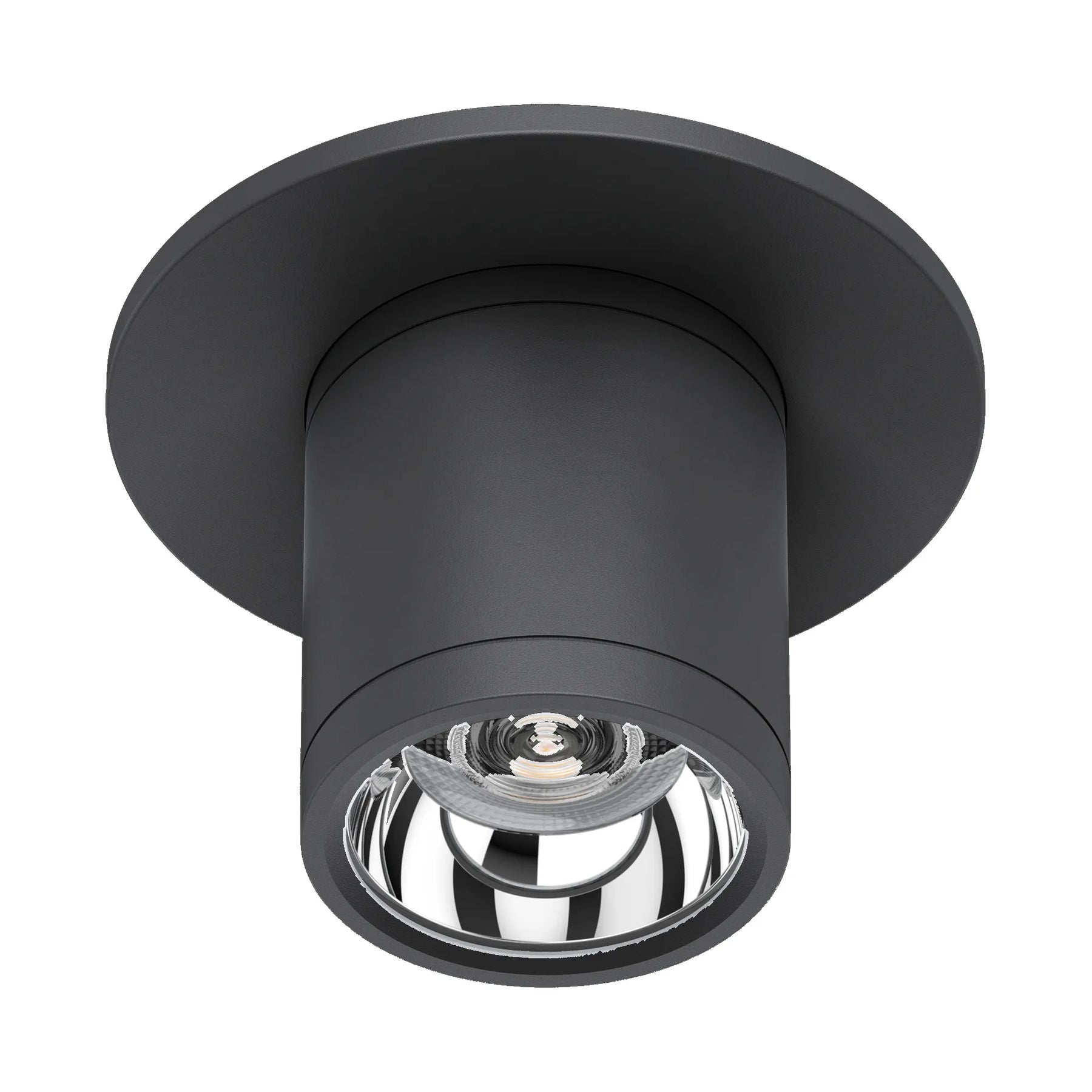

Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable Black

Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K

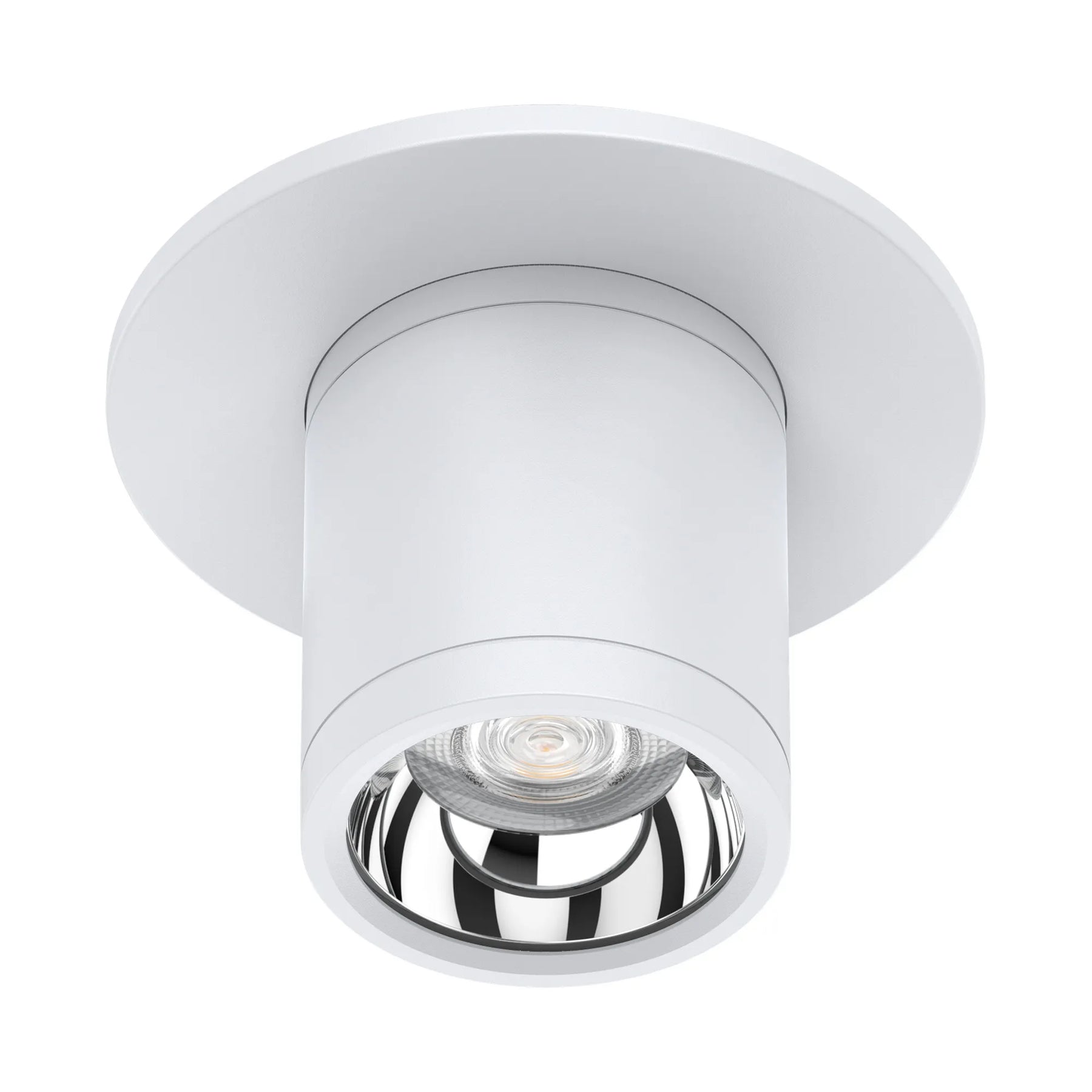

Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable White

Damp Location Rated, ETL Certified, IP40, IP65, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Black

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":67670866952436,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW3-COB-10W-MCT-36D-DT-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55355672494324,"product_id":15409019912436,"position":1,"created_at":"2026-09-30T17:00:11-04:00","updated_at":"2026-09-30T17:00:12-04:00","alt":"Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-COB-10W-MCT-36D-DT-BK.webp?v=1790802012","variant_ids":[67670866952436]},"available":true,"name":"10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":11216,"weight":921,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332705","featured_media":{"alt":"Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46350727872756,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-COB-10W-MCT-36D-DT-BK.webp?v=1790802012"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67670866985204,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"CMCW3-COB-10W-MCT-36D-DT-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":55355673215220,"product_id":15409019912436,"position":3,"created_at":"2026-09-30T17:00:22-04:00","updated_at":"2026-09-30T17:00:23-04:00","alt":"Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-COB-10W-MCT-36D-DT-WH.webp?v=1790802023","variant_ids":[67670866985204]},"available":true,"name":"10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":11216,"weight":921,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332507","featured_media":{"alt":"Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","id":46350728626420,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-COB-10W-MCT-36D-DT-WH.webp?v=1790802023"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67670866952436,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW3-COB-10W-MCT-36D-DT-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55355672494324,"product_id":15409019912436,"position":1,"created_at":"2026-09-30T17:00:11-04:00","updated_at":"2026-09-30T17:00:12-04:00","alt":"Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-COB-10W-MCT-36D-DT-BK.webp?v=1790802012","variant_ids":[67670866952436]},"available":true,"name":"10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":11216,"weight":921,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332705","featured_media":{"alt":"Westgate 10 Watt 120V Dimmable COB Series LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46350727872756,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-COB-10W-MCT-36D-DT-BK.webp?v=1790802012"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

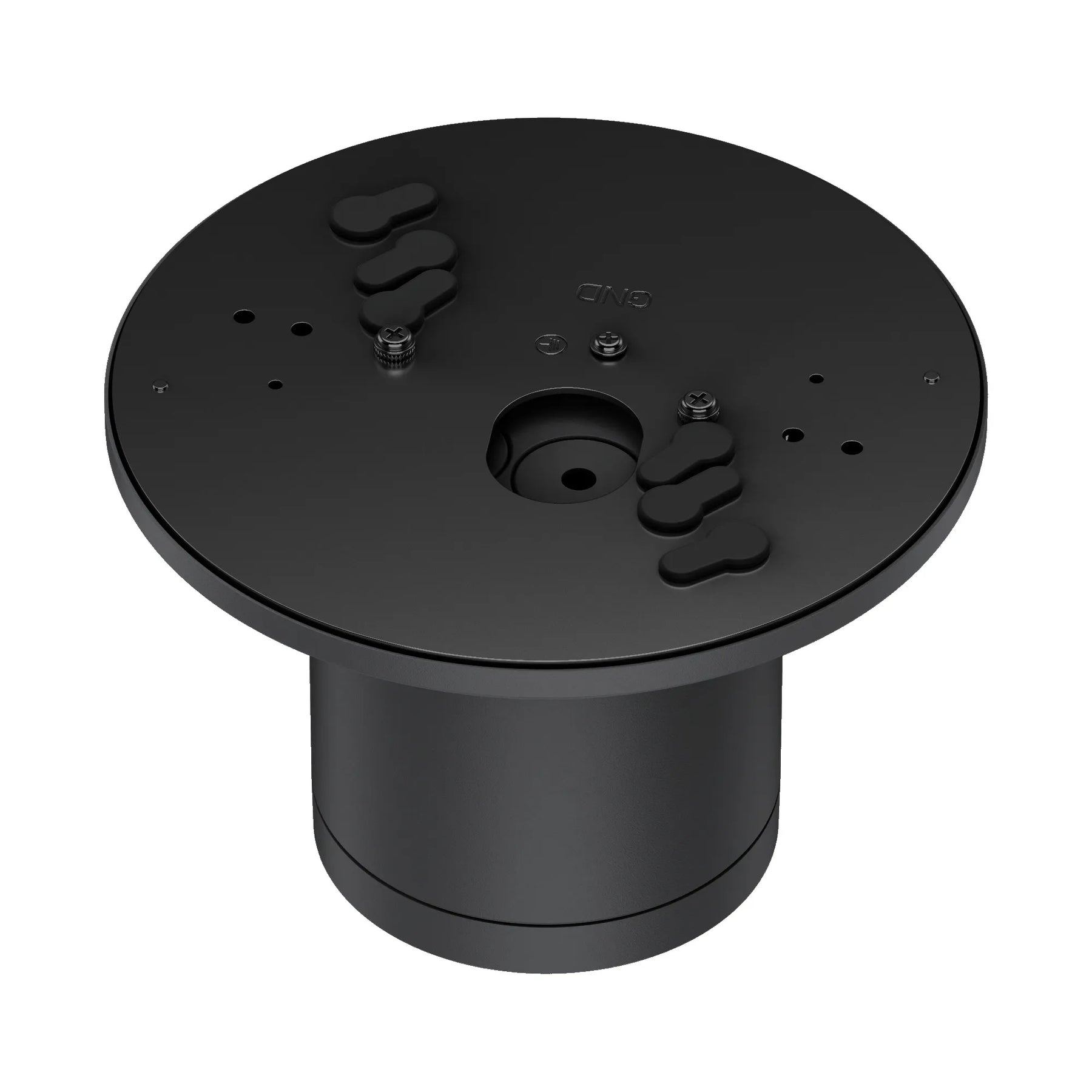

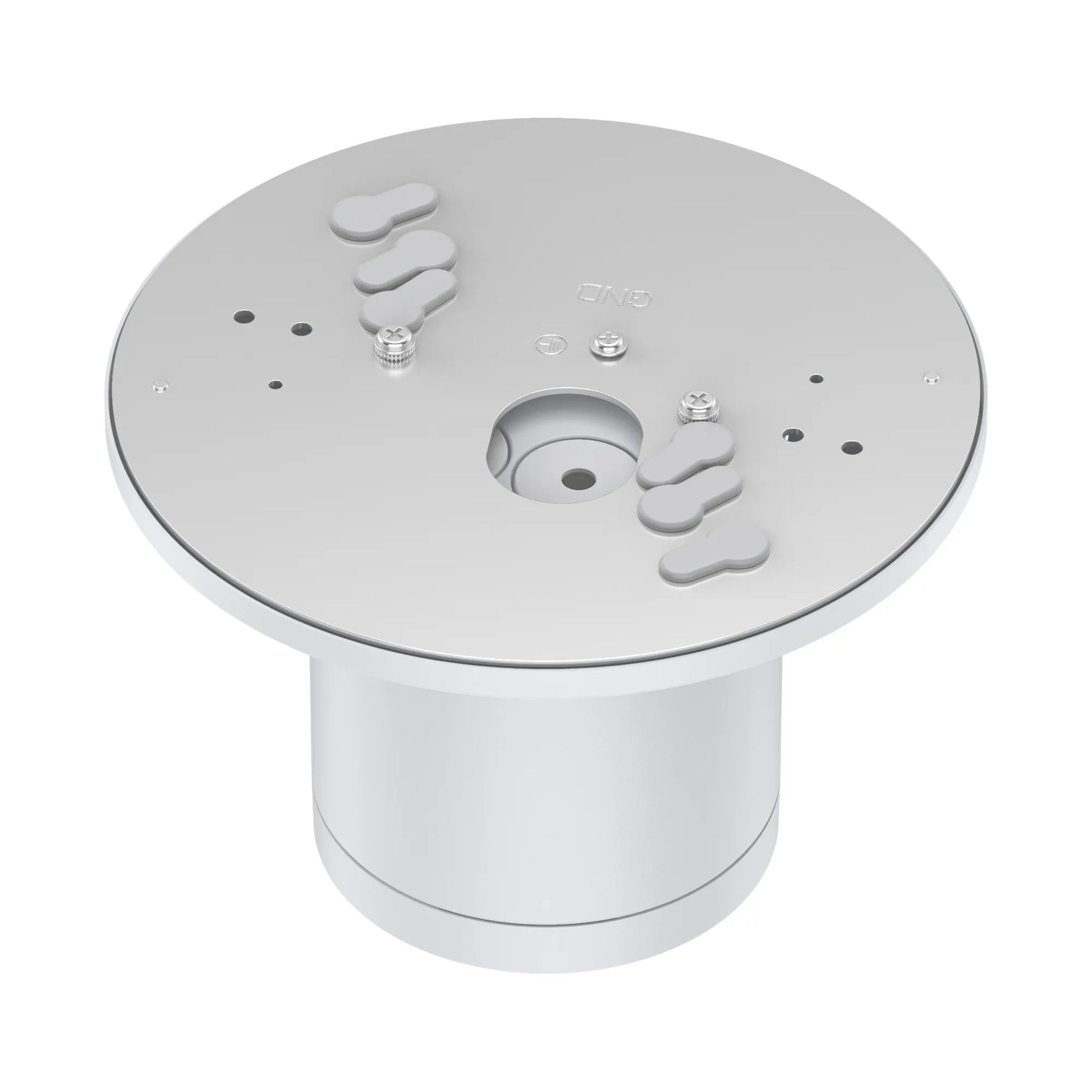

Westgate part # CMCW3-COB-10W-MCT-36D-DT-XX (available in Black-BK and White-WH) is a 10 watt, 120V dimmable COB series LED surface mount cylinder downlight with selectable 3000K, 3500K, and 5000K color temperatures, switched from a selector on the back of the fixture. It's TRIAC dimmable at 120V, built on an aluminum base with a durable polycarbonate (PC) lens, and carries ETL listing with IP65 wet-location and IP40 damp-location ratings for flexible placement indoors or in covered outdoor spots.

This downlight delivers 900 lumens at 90 LPW efficacy, with an 80 CRI and a 36° beam angle for a focused, even wash of light. It's rated for operating temperatures from -13ºF to 113ºF and for 70,000 hours of rated life, backed by a 7-year warranty. The compact 6.5” (D) x 3.5” (W) x 4.2” (H) housing makes it an easy fit for ceilings where a clean, low-profile surface mount is needed.

24° OPT-CMCW3-COB-24D and 60° OPT-CMCW3-COB-60D optic accessories are available as optional add-ons, sold separately, to fine-tune the beam spread for the space.

A factory-installed internal EM backup option is available. Please contact us for information.

Specifications

Manufacturer	Westgate
Finish Color	Black	White
MPN	CMCW3-COB-10W-MCT-36D-DT-BK	CMCW3-COB-10W-MCT-36D-DT-WH
SKU	CMCW3-COB-10W-MCT-36D-DT-BK	CMCW3-COB-10W-MCT-36D-DT-WH
UPC	840378332705	840378332507
Lighting Technology	LED
Wattage	10 Watts
Voltage	120 Volt
Color Temperature (Kelvin)	3000K/3500K/5000K
Lumens	900 Lumens
Efficiency (Lumens Per Watt)	90 LPW
Dimmable	Triac Dimmable
Beam Angle	36°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	80 CRI
Housing	Aluminum Base
Lens	Polycarbonate (PC)
Bug Rating	B1-U0-G0
Operating Temperature	-13ºF to 113ºF
Dimensions	6.5” (D) x 3.5” (W) x 4.2” (H)
Environment	Damp & Wet location rated
Certifications	ETL Certified, IP40, IP65
Warranty	7 Years

Documents

Westgate 10 Watt COB Series LED Surface Mount Cylinder Downlight Specification Sheet
