Name: 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K
Brand: Westgate
SKU: CMCW3-SMD-10W-MCT-75D-DT-BK
Price: 101.38 USD
Availability: InStock

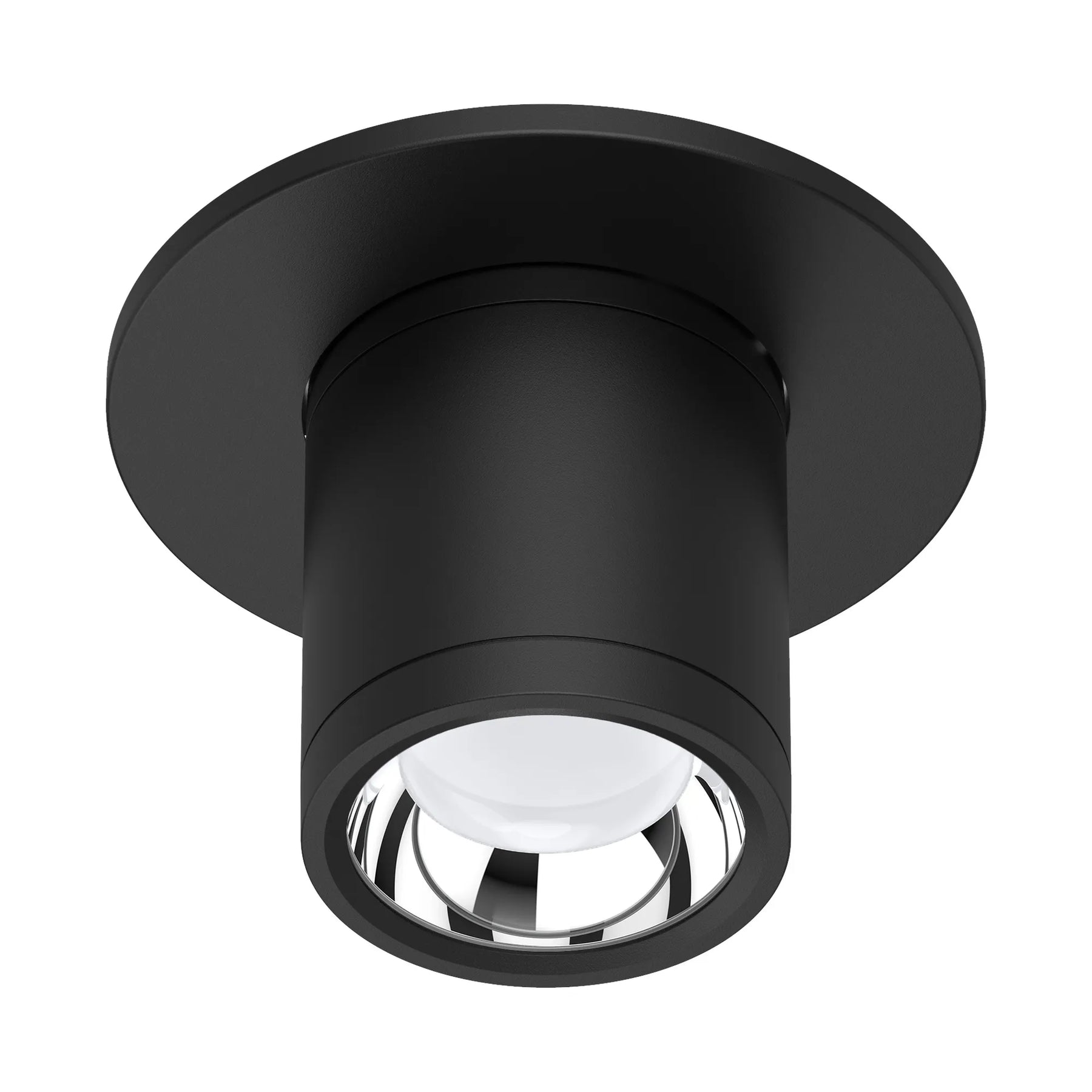

Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable Black

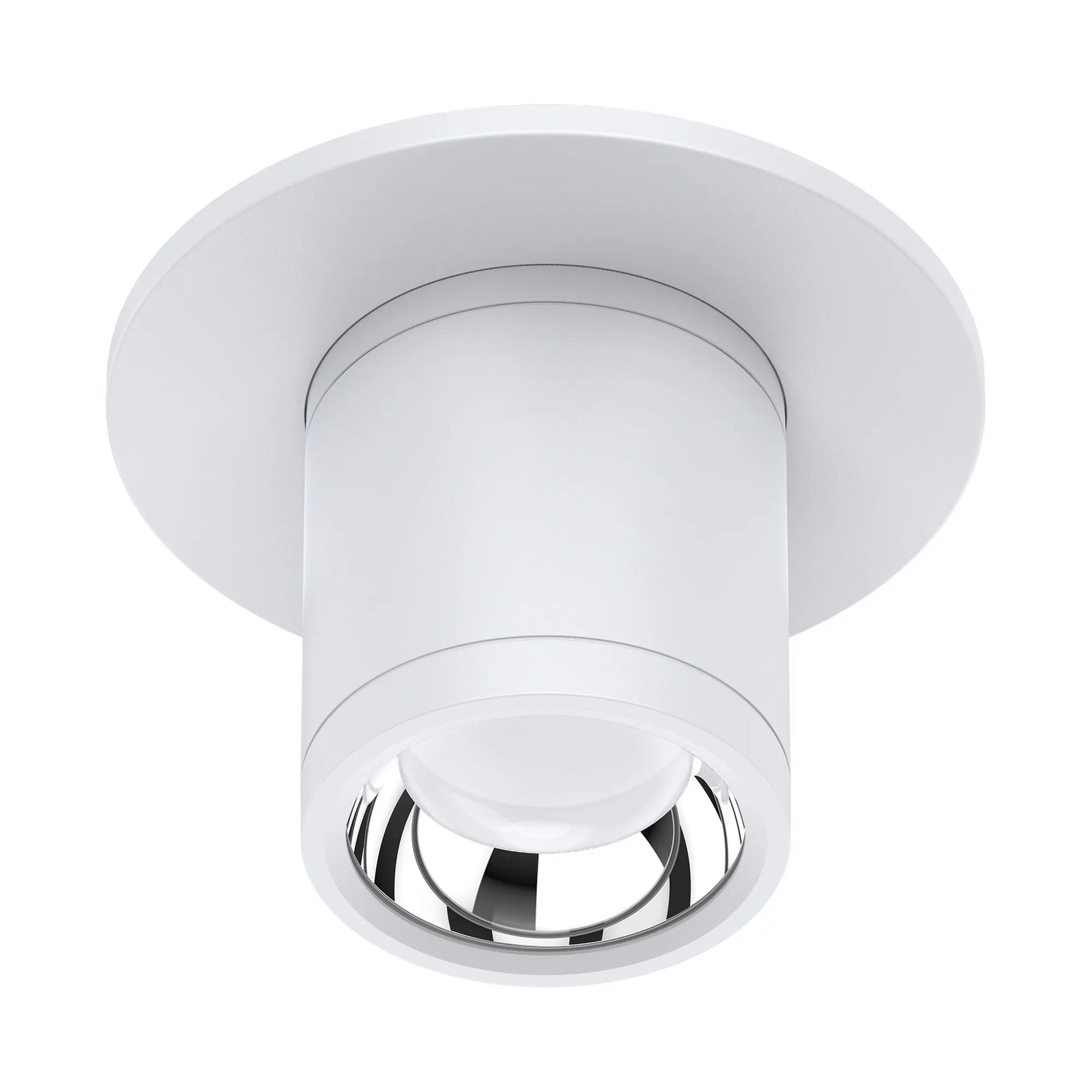

Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable White

Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K

Damp Location Rated, ETL Certified, IP40, IP65, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Black

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":67669172158708,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW3-SMD-10W-MCT-75D-DT-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55351686824180,"product_id":15407966355700,"position":1,"created_at":"2026-09-30T13:19:24-04:00","updated_at":"2026-09-30T13:19:25-04:00","alt":"Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-SMD-10W-MCT-75D-DT-BK.webp?v=1790788765","variant_ids":[67669172158708]},"available":true,"name":"10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":10138,"weight":921,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332651","featured_media":{"alt":"Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46346816389364,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-SMD-10W-MCT-75D-DT-BK.webp?v=1790788765"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67669172191476,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"CMCW3-SMD-10W-MCT-75D-DT-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":55351690854644,"product_id":15407966355700,"position":2,"created_at":"2026-09-30T13:19:34-04:00","updated_at":"2026-09-30T13:19:35-04:00","alt":"Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-SMD-10W-MCT-75D-DT-WH.webp?v=1790788775","variant_ids":[67669172191476]},"available":true,"name":"10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":10138,"weight":921,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332453","featured_media":{"alt":"Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","id":46346820452596,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-SMD-10W-MCT-75D-DT-WH.webp?v=1790788775"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67669172158708,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW3-SMD-10W-MCT-75D-DT-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55351686824180,"product_id":15407966355700,"position":1,"created_at":"2026-09-30T13:19:24-04:00","updated_at":"2026-09-30T13:19:25-04:00","alt":"Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-SMD-10W-MCT-75D-DT-BK.webp?v=1790788765","variant_ids":[67669172158708]},"available":true,"name":"10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":10138,"weight":921,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332651","featured_media":{"alt":"Westgate 10 Watt 120V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46346816389364,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW3-SMD-10W-MCT-75D-DT-BK.webp?v=1790788765"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

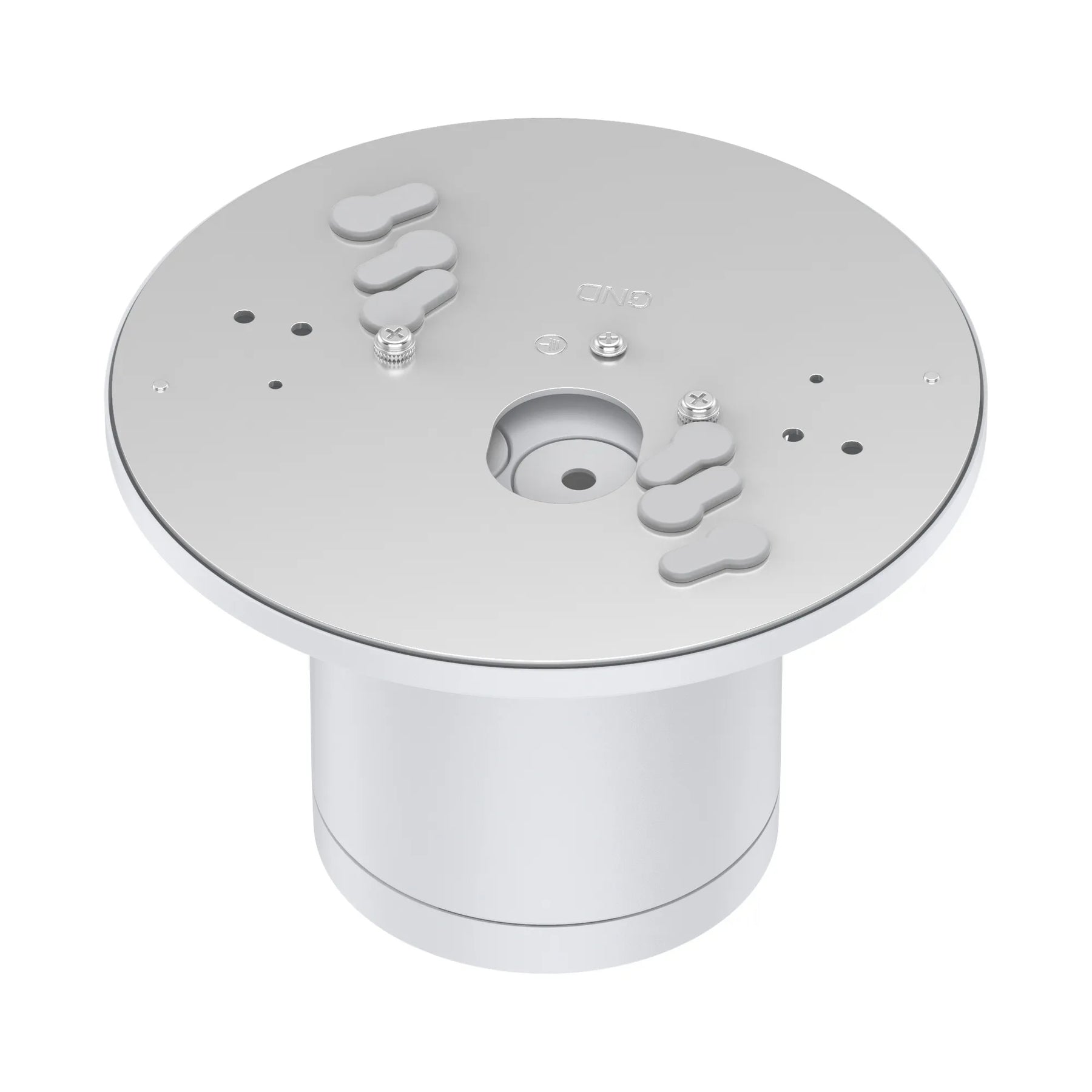

Bring flexible lighting to your space with Westgate’s 10-watt LED surface-mount cylinder downlight. The selectable multi-CCT switches on the back of the fixture let you choose 3000K, 3500K, or 5000K light, while 120V TRIAC dimming gives you control over brightness. The fixture delivers 850 lumens at 85 lumens per watt with a 75° beam angle and 80 CRI. Westgate part number: CMCW3-SMD-10W-MCT-75D-DT-XX, with BK for black and WH for white.

Built with an aluminum base and polycarbonate (PC) lens, this downlight measures 6.5” (D) x 3.5” (W) x 4.2” (H). Its listed specifications include IP40 suitability for damp locations and an IP65 wet-location rating. It operates from -13ºF to 113ºF, is ETL listed, has a rated life of 70,000 hours, and carries a 7-year warranty.

A factory-installed internal EM backup option is available. Please contact us for information.

Specifications

Manufacturer	Westgate
Finish Color	Black	White
MPN	CMCW3-SMD-10W-MCT-75D-DT-BK	CMCW3-SMD-10W-MCT-75D-DT-WH
SKU	CMCW3-SMD-10W-MCT-75D-DT-BK	CMCW3-SMD-10W-MCT-75D-DT-WH
UPC	840378332651	840378332453
Lighting Technology	LED
Wattage	10 Watts
Voltage	120V
Color Temperature (Kelvin)	3000K/3500K/5000K
Lumens	850 Lumens
Efficiency (Lumens Per Watt)	85 LPW
Dimmable	Triac Dimmable at 120V
Beam Angle	75°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	80 CRI
Housing	Aluminum Base
Lens	Polycarbonate (PC)
Bug Rating	B1-U0-G0
Operating Temperature	-13ºF to 113ºF
Dimensions	6.5” (D) x 3.5” (W) x 4.2” (H)
Environment	Damp & Wet location rated
Certifications	ETL Certified, IP40, IP65
Warranty	7 Years

Documents

Westgate 10 Watt 120V LED Surface Mount Cylinder Downlight Specification Sheet
