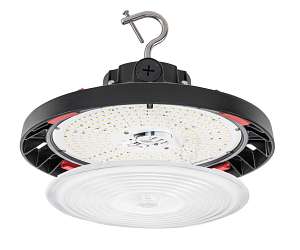

100/150/200 Watt Round Optic Swap 277-480V LED High Bay Light Fixture 3000/4000/5000K

Keystone Technologies SKU: KT-RHLED200PSHV-14CD-OSD-8CSB-VDIM-P
Keystone Technologies 100/150/200 Watt Round Optic Swap 277-480V LED High Bay Light Fixture 3000/4000/5000K

100/150/200 Watt Round Optic Swap 277-480V LED High Bay Light Fixture 3000/4000/5000K

Keystone Technologies SKU: KT-RHLED200PSHV-14CD-OSD-8CSB-VDIM-P
  • IP65, DLC Listed
Regular price $312.82
/
Color Temp
Finish Color
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Keystone has solutions for retrofit or new fixtures: easily retrofit by upgrading your lamp or replace it with new high-performance LED fixtures. With their energy efficiency, light uniformity, and long life, our XFit LED High Bay fixtures are the ideal choice to retrofit or upgrade legacy fixtures in warehouses, gymnasiums, and other facilities. They’re a solution that helps you save on energy costs and upkeep while providing a bright, safe atmosphere for a variety of spaces.

OpticSwap do the job of multiple fixtures, providing targeted light for any warehouse space and simplifying maintenance. The 90 degree standard lens comes preinstalled on the light fixture. Simply swap out the lens to create a 120 degree beam angle for the light fixture.

This item is the Keystone Technologies KT-RHLED200PSHV-14CD-OSD-8CSB-VDIM-P, this wattage and color selectable LED High Bay fixture consumes 100/150/200 watts of 277-480 volt energy. They generate between 15,100-31,200 lumens (136-166 lumens per watt), have a rated lumen maintenance of 100,000 hours based on L70 lumen depreciation, a selectable color temperature of either 3000K Warm White, 4000K Cool White or 5000K Daylight and a CRI of 80. The linear lights are DLC Premium Listed. These LED high bay lights have a 0-10V dimmable configuration. These Keystone LED optic swap high bay fixtures carry a 10 Year Limited Warranty.

Manufacturer Keystone Technologies
MPN KT-RHLED200PSHV-14CD-OSD-8CSB-VDIM-P
SKU KT-RHLED200PSHV-14CD-OSD-8CSB-VDIM-P
UPC 843654160788
Lighting Technology LED
Voltage 277-480V
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Finish Color Black
Housing Powder-Coated Aluminum
Lens Polycarbonate Lens
Operating Temperature -40°C/-40°F to 50°C/122°F
Dimensions 13.74" Diameter x 5.07" H
Certifications DLC Listed, IP65 Rated, cULus Listed
DLC Product ID S-0KGG9W
Environment Wet Location
Warranty 10 Year Limited



Wattage 100 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 15,100 Lumens 16,600 Lumens 16,200 Lumens
Efficiency (Lumens Per Watt) 151 LPW 166 LPW 162 LPW



Wattage 150 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 21,600 Lumens 24,450 Lumens 23,250 Lumens
Efficiency (Lumens Per Watt) 144 LPW 163 LPW 155 LPW



Wattage 200 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 27,200 Lumens 31,200 Lumens 28,800 Lumens
Efficiency (Lumens Per Watt) 136 LPW 156 LPW 144 LPW
