Sylvania Lighting Field-Programmable, Near-Field Communication (NFC) LED Drivers. This family covers linear, compact, and outdoor drivers. These drivers are available in the industry's most desirable wattages. Our programming software app can be downloaded in seconds on any smartphone. The programming is easy and simple to follow.

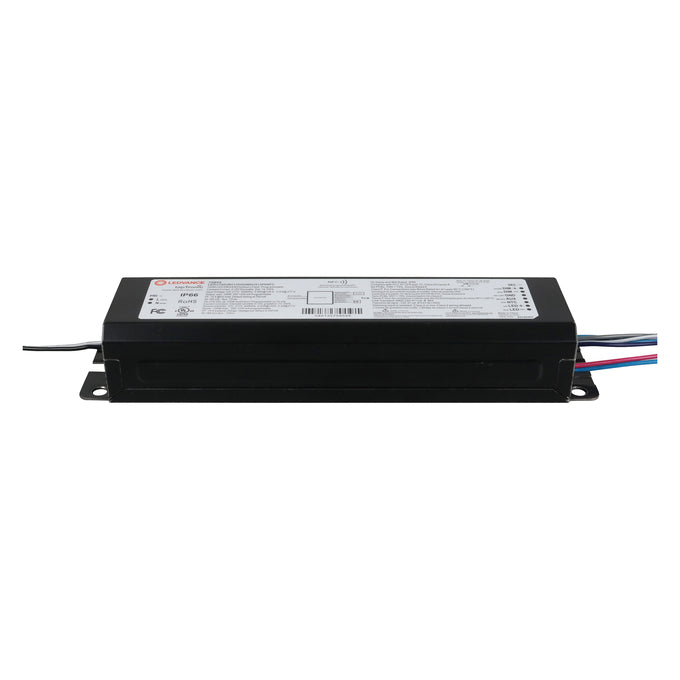

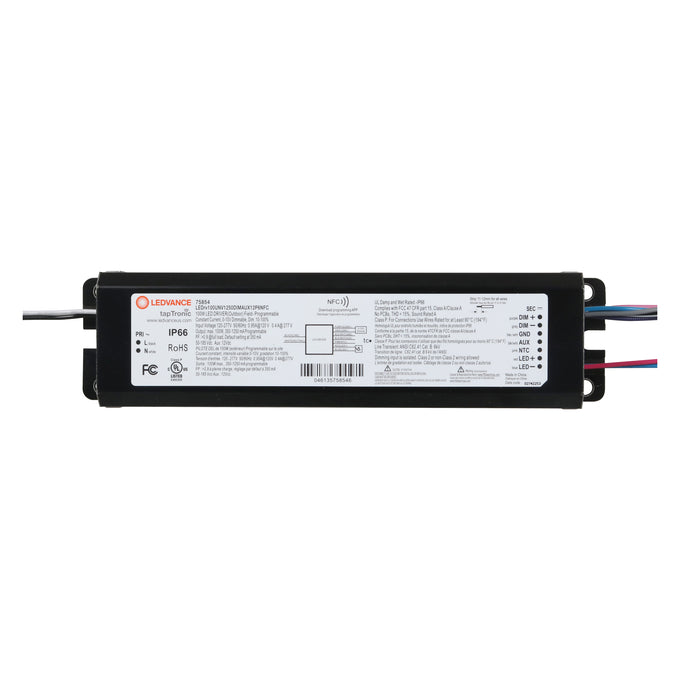

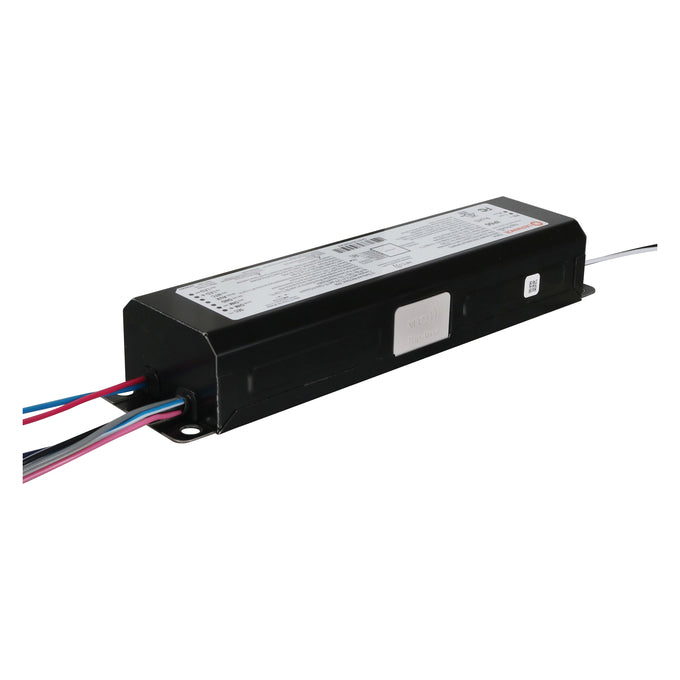

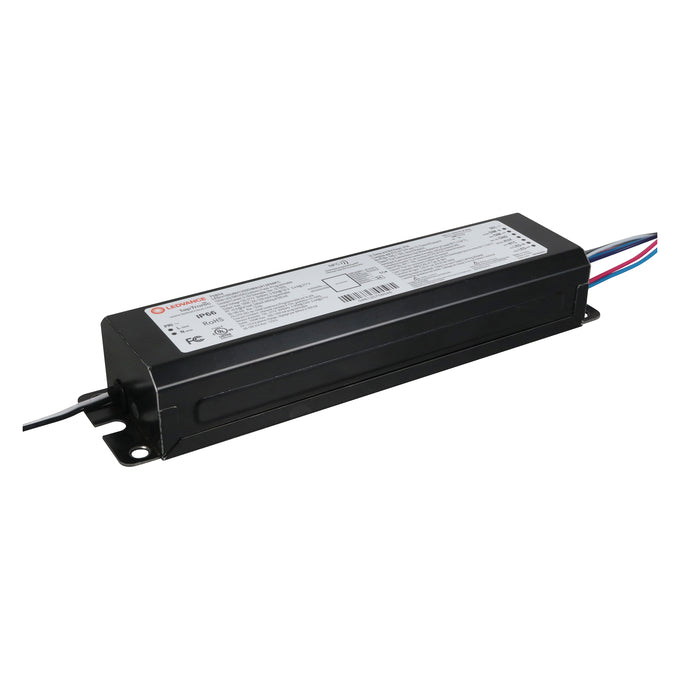

This 100 Watt, 120-277V LED driver (Sylvania Part # 75854 / LEDrv100UNV1250DIMAUX12P6NFC) operates as a programmable constant current driver with a default output of 350mA and a programmable range of 350-1250mA. The output voltage range spans 50-185VDC, making it compatible with a wide variety of LED loads. It supports 0-10V dimming with a full 10–100% dimming range, and includes a 12V auxiliary output for added flexibility in system design.
Field programmability via the free tapTronic smartphone app is a standout feature — no power-up is required during programming. Customizable parameters include output current, dim-to-off range percentage, constant lumen output, soft start, end-of-life behavior, and thermal protection. The tapTronic Software App can be downloaded by scanning the QR code on the specification sheet.
The driver family spans multiple form factors and voltage ranges: the Compact series (25W and 40W) is available in F-can and J-can housing styles; the Linear series supports 120-277V and 120-347V models; and the Outdoor series covers 120-277V and 347V-480V configurations. The Compact/Linear models carry a Dry & Damp (IP20) rating, the Outdoor models carry a Damp & Wet (IP66) rating and all models are backed by a 5-year warranty.
This driver meets a comprehensive set of compliance standards, including 47 CFR Part 15 Class A, cUL Class P, UL Class 2 output for safety (Compact/Linear), FCC, ANSI C62.41 Cat. B 6kV surge protection, and TAA compliance (Linear 120-277V only). It is also compliant with California Title 24 (CA T-24) requirements for flicker and startup time.
