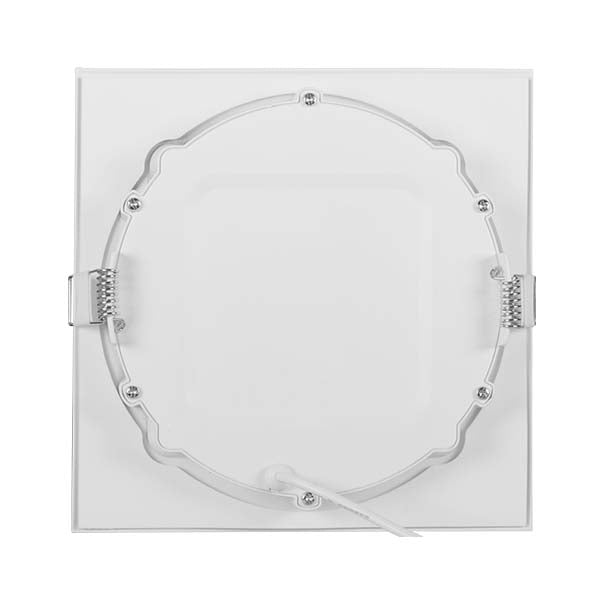

11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K

Nicor SKU: REL41120SQRWH
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K
11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K

11 Watt 4 Inch Square Selectable LED Regressed Edgelit Downlight 2700K/3000K/3500K/4000K/5000K

Nicor SKU: REL41120SQRWH
  • ETL Certified, IC Rated, JA8 Compliant, Title 24 Compliant, Wet Location Rated
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

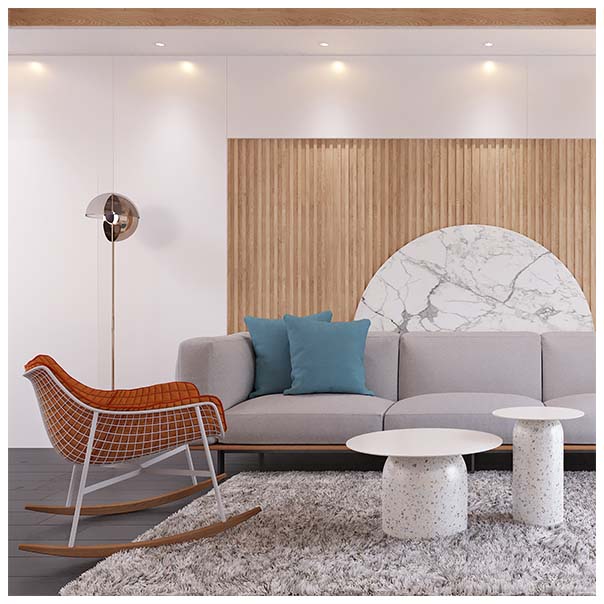

The REL Regressed Edge Lit Downlight offers a regressed design using baffles to bring depth and a clean aesthetic to any room. The edge-lit technology makes it a practical solution with high performance and five CCT selectability (2700K, 3000K, 3500K, 4000K, and 5000K) for ultimate customization. Adjustable spring-loaded retention tabs allow a secure fit for easy installation in both new construction and remodel applications. The REL-R is an ideal solution for multi-family dwellings such as apartment buildings, condos, townhomes, and commercial applications.

The Nicor REL41120SQRWH 11 Watt 4 Inch Square Selectable LED Regresses Edgelit Downlight provides between 612-697 Lumens of 120V light.  With Selectable color temperature 2700K/3000K/3500K/4000K/5000K and utilizing high performing LEDs with 90 CRI, this fixture is dimmable down to 5% with compatible leading edge (Triac) or trailing edge (ELV) dimmers. These fixtures are rated for 54,000 hours and carries a 5-Year Warranty.

Specifications
Manufacturer Nicor
MPN REL41120SQRWH
SKU REL41120SQRWH
UPC 767706194890
Finish Color White
Color Temperature (Kelvin) 2700/3000/3500/4000/5000K
Lumens 612-707
Efficiency (Lumens Per Watt) 60-66 LPW
Shape Square
Lighting Technology LED
Wattage 11 Watts
Voltage 120V
Dimmable Yes, Dimmable
Beam Angle 109 Degrees
Rated Life 54,000 Hours
CRI (Color Rendering Index) 90 CRI
Housing Cast Aluminum
Lens Plastic
Operating Temperature -20C (-4 F) to +40C (+104F)
Dimensions 4.7" L x 4.7" W x 1.37" H
Environment Wet Location Rated
Certifications Energy Star Listed, T24 Compliant, JA8 Compliant, RoHS, ETL, TAA Compliant
Warranty 5 Year Warranty
Documents

Nicor Selectable LED Regressed Edgelit Downlight Specification Sheet

Nicor Selectable LED Regressed Edgelit Downlight Installation Instructions
