12/18/24 Watt 120-277V LED Bollard Retrofit EX39 Mogul Base 3000K/4000K/5000K

Light Efficient Design SKU: LED-8029M345-A-FW
Light Efficient Design 12/18/24Watt 120-277V EX39 Base LED High Powered Post Top 3000K/4000K/5000K Selectable
Light Efficient Design 12/18/24Watt 120-277V EX39 Base LED High Powered Post Top 3000K/4000K/5000K

12/18/24 Watt 120-277V LED Bollard Retrofit EX39 Mogul Base 3000K/4000K/5000K

Light Efficient Design SKU: LED-8029M345-A-FW
  • Damp Location Rated, DLC Listed, Enclosed Fixture Rated
Regular price $58.46
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

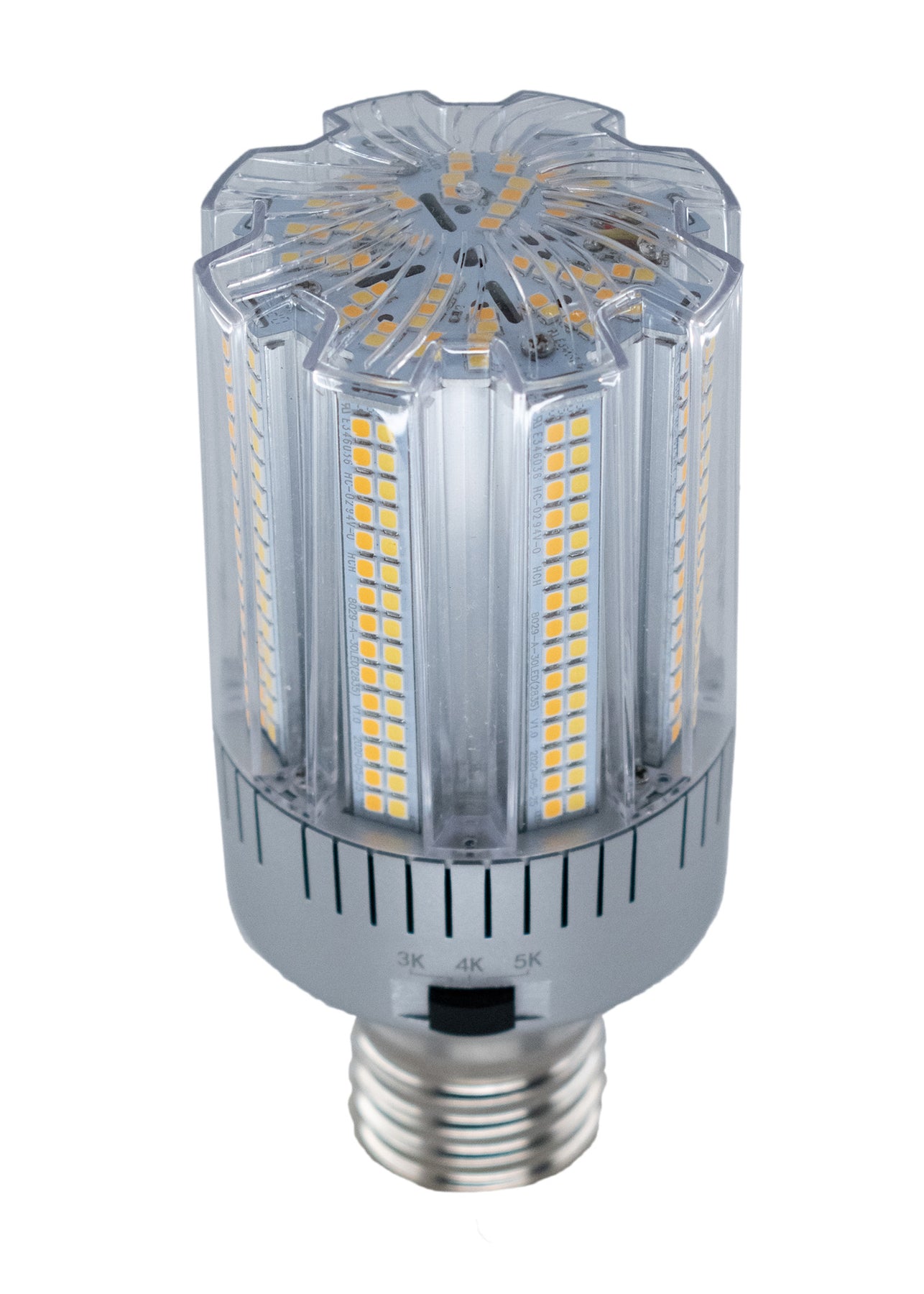

Light Efficient Design's LED-8029M345-A-FW Corn Cob Retrofit Bulbs offer an EX39 Mogul base that easily integrates energy saving LED technology into even your tightest site lighting, roadway or post top lighting format. The corncob retrofit light bulbs consume a selectable 12/18/24 watts of 120 to 277 volt energy and generate 1,550-3,360 lumens of your choice of 3000K, 4000K, or 5000K light output - an excellent energy saving bulb to replace up to 150 watt Metal Halide (MH) or High Pressure Sodium (HPS) bulbs.

The 12/18/24 watt LED corncob light bulb, which is UL Listed for either Dry or Damp locations, has been designed to retrofit existing HID installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations.

Certified DLC, FCC, RoHS, and cULus, and backed by a 5-year warranty, the LED-8029M345-A-FW delivers long-term value and compliance confidence for any large-scale LED retrofit project.

  • Multi-directional mounting capability & 360° design — use base down, base up, or base sideways without affecting performance
  • Pretested & potted drivers are burnt in 3x prior to shipping and protected against vibration & moisture

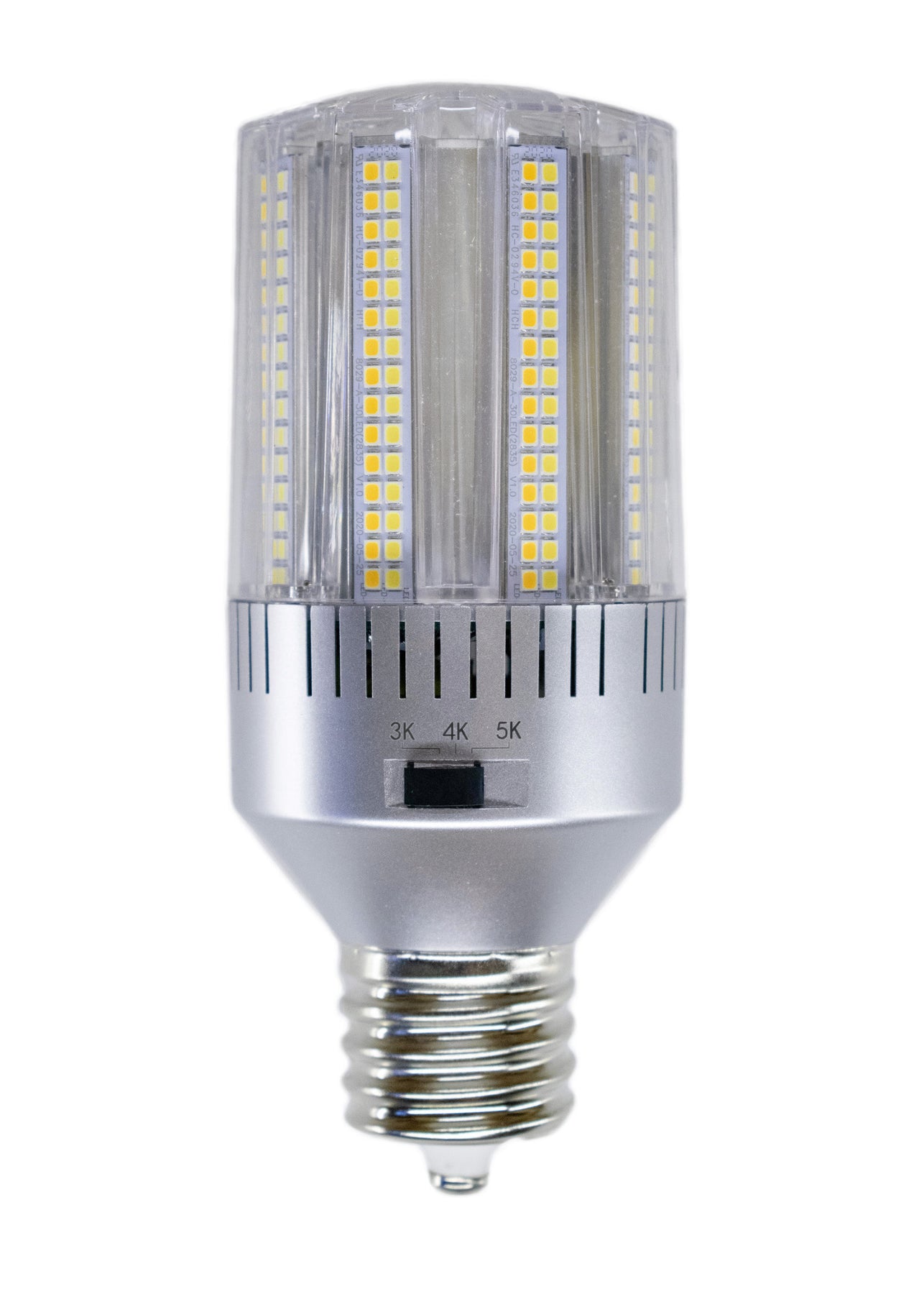

  • Field adjustable light output via physical switch on the product

Please NOTE: When retrofitting LED to an HID fixture, the ballast must be by-passed or removed from the fixture.

Specifications
Manufacturer Light Efficient Design
MPN LED-8029M345-A-FW
SKU LED-8029M345-A-FW
UPC 844006060688
DLC Product ID PVPFGTKS
Lighting Technology LED
Wattage 12/18/24 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000K/4000K/5000K
Lumens 1,550-3,360 Lumens
Ballast Operation Type B Bypass
Base EX39 Mogul
Beam Angle 360°
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
HID Equivalent 70/100/150 Watts
Operating Temperature -40°F to 113°F
Dimensions 3" Diameter x 6.9" L
Environment Damp Location
Certifications Enclosed Fixture Rated, DLC Listed, FCC, RoHS, cULus
Warranty 5 Years



Wattage 12 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 1,550 Lumens 1,610 Lumens 1,650 Lumens



Wattage 18 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 2,450 Lumens 2,560 Lumens 2,610 Lumens



Wattage 24 Watts
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 3,170 Lumens 3,330 Lumens 3,360 Lumens
