Name: 12 Inch Linkable Under Cabinet LED Light Bar 4-Piece Kit 2700K/3000K/3500K/4000K/5000K
Brand: Lotus LED Lights
SKU: LBL-UCB-4-5CCT-ND
Price: 76.86 USD
Availability: InStock

12 Inch Linkable Under Cabinet LED Light Bar 4-Piece Kit 2700K/3000K/3500K/4000K/5000K

IP20

Price

Color Temp

Selectable

Quantity

Lead time is 3-5 business days to ship ARO

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

Details
Specifications
Documents
Request A Quote

Details

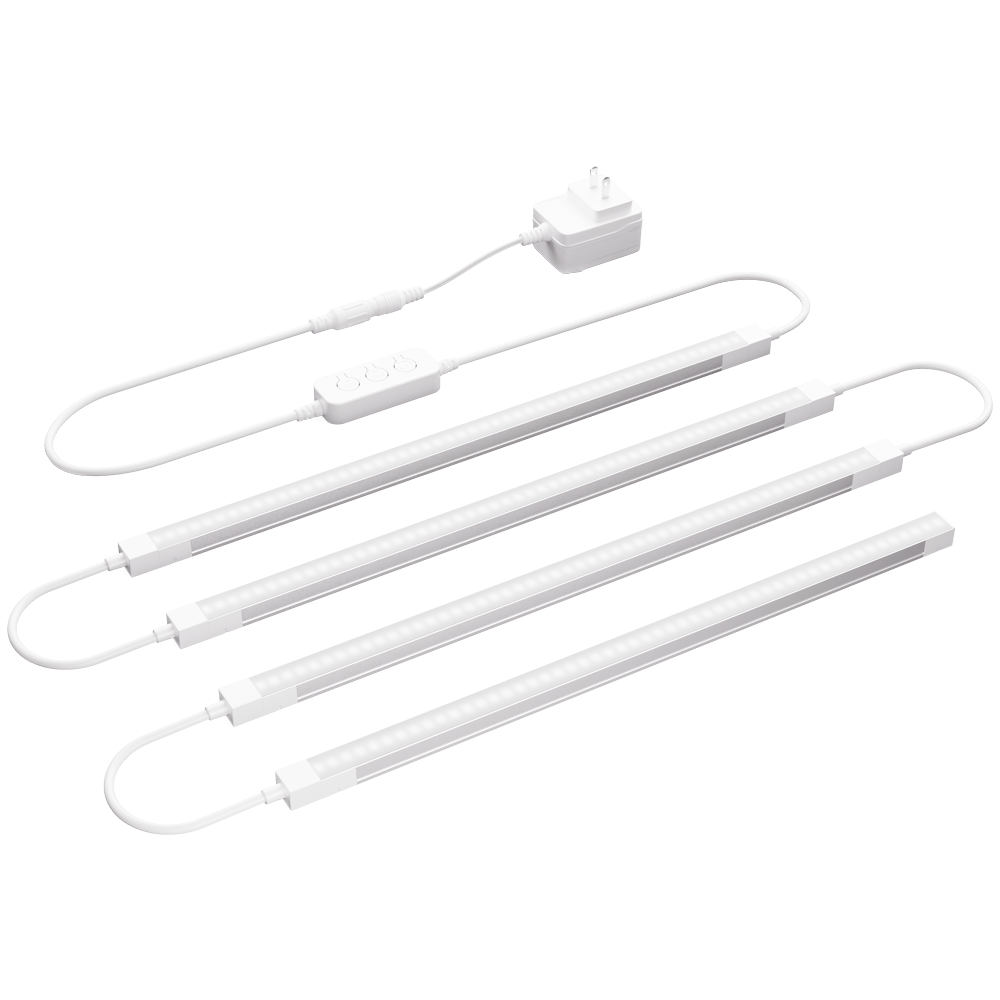

The Lotus LED Lights LBL-UCB-4-5CCT-ND delivers a complete, ready-to-install under-cabinet lighting solution. The kit comes with four linkable 12-inch LED light bars, a plug-in driver, controller, and all the mounting hardware you need — so you can go from box to bright in no time.

Choose from five color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) to perfectly match the ambiance of any room. Whether you're lighting a kitchen, workstation, display shelf, or cabinet, this low-voltage system adapts to your space. Expanding your setup is simple — snap-on connectors and jumper cables make it easy to link additional bars for a clean, professional look.

Kit Includes:

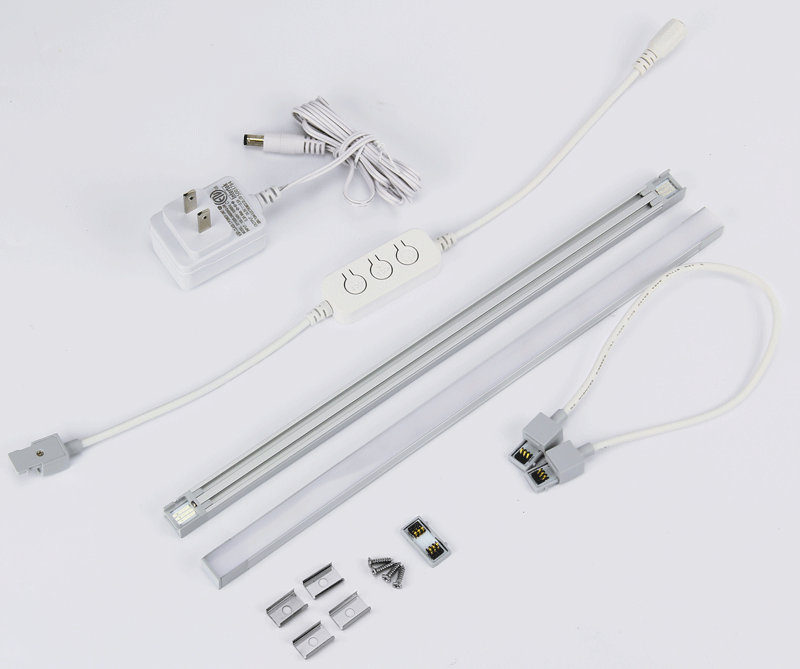

Mounting Screws (8), Mounting Clips (8), Middle Connector (3), Tape (1), Inline Controller (1), Power Adapter (1), Jumper Cable (3) & Bar Lights (4)

Specifications

Manufacturer	Lotus LED Lights
MPN	LBL-UCB-4-5CCT-ND
SKU	LBL-UCB-4-5CCT-ND
UPC	769152014388
Lighting Technology	LED
Color Temperature (Kelvin)	2700/3000/3500/4000/5000K
Wattage	3 Watts Per Bar
Driver Input	100-240V
Bar Input	24VDC
Lumens @ 3000K	1 Bar-260L/2 Bar-430L/3 Bar-635L/4 Bar-790L
Dimmable	Non Dimmable
Rated Life	50,000 Hours
CRI (Color Rendering Index)	90 CRI
Dimensions	13.2" L x .55" H
Certifications	cETLus
Environment	IP20 Dry Location Rated
Max Ambient Temperature	+104°F (+40°C)
Warranty	3 Year Warranty

Documents

Lotus LED LIghts 12 Inch Linkable Under Cabinet LED Light Bar 4-Piece Kit Specification Sheet

Lotus LED LIghts 12 Inch Linkable Under Cabinet LED Light Bar 4-Piece Kit Installation Instructions
