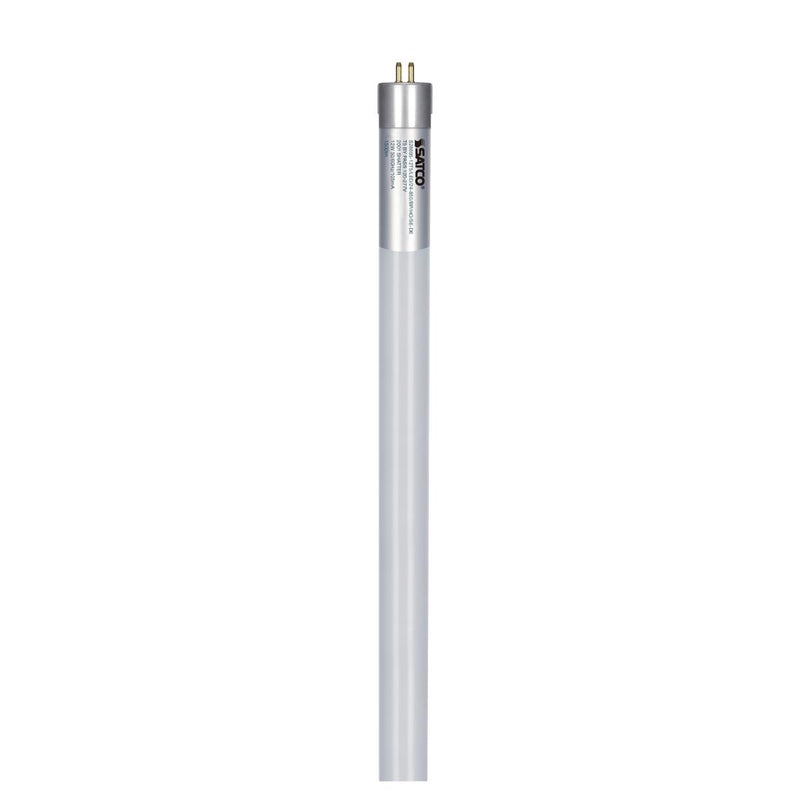

2 Foot 12 Watt Single or Double Ended Wiring T5 LED Glass Tube

Satco SKU: S28693
Satco 2 Foot 12 Watt Single or Double Ended Wiring T5 LED Glass Tube

2 Foot 12 Watt Single or Double Ended Wiring T5 LED Glass Tube

Satco SKU: S28693
  • Enclosed Fixture Rated, NSF Listed
Regular price $13.95
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

Satco's Shatterproof LED T5 tubes feature shatterproof coated glass and frosted lens that eliminates pixilation. PET coating ensures no broken glass and it's ETL Sanitation Listed NSF/ANSI Standard 2 - Food Equipment approved. No ballast or driver needed for double-ended wiring ballast bypass. Get maximum utility rebates & maintenance savings.

This part number 12T5/LED/24-8(XX)/BP/HO/SE-DE comes in 3500K Bright White, 4000K Cool White and 5000K Daylight, offers a Power Factor >0.9 and 12 watts of 120-277 volt energy. Suitable for use in dry or damp locations. These LED T5 replacement tubes are non-dimmable with 1,400-1,500 lumens, 83 CRI, and a 50,000-hour rated life. Boasting a 240° beam angle and G5 miniature bi-pin base, it's ideal for retrofitting.

This Satco T5 LED retrofit is 22.5" long and 0.83" in diameter and comes with a 5 Year Limited Warranty. It retrofits existing T5 linear fluorescent fixtures, saving energy and reducing maintenance costs in a variety of applications, including residential, commercial, retail displays, and hotels/motels/resorts. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.

Manufacturer Satco
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
MPN 12T5/LED/24-835/BP/HO/SE-DE 12T5/LED/24-840/BP/HO/SE-DE 12T5/LED/24-850/BP/HO/SE-DE
SKU S28693 S28694 S28695
UPC 045923286933 045923286940 045923286957
Lumens 1,400 Lumens 1,450 Lumens 1,500 Lumens
Efficiency (Lumens Per Watt) 116 LPW 120 LPW 125 LPW
Lighting Technology LED
Wattage 12 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Single/Double Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Beam Angle 240 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 83 CRI
Power Factor 0.9
Construction Shatter-Proof Glass
Lens Frosted
Incandescent Equivalent 50 Watts
Fluorescent Equivalent 24 Watt
Operating Temperature -25°C (-13°F) to 45°C (113°F)
Dimensions 22.5" MOL x 0.83" MOD
Certifications Enclosed Fixture Rated, NSF Listed
Environment Damp Location
Warranty 5 Year Limited
