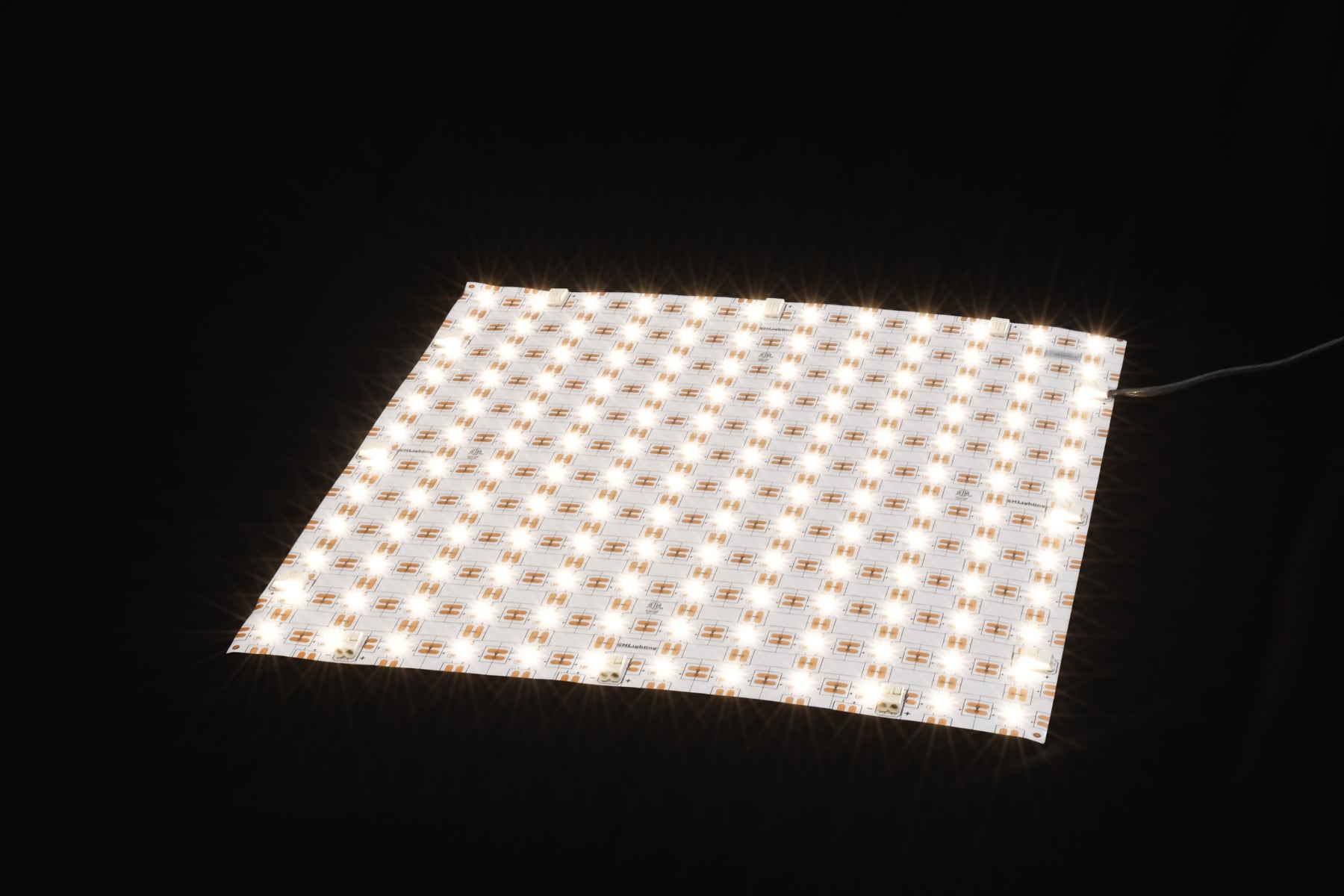

Lamina is a 24VDC flexible light sheet that can be cut in the field into geometric shapes, creating limitless illumination. Installation is easy and the operation is relatively cool. Lamina needs no heat sinks or dissipaters that may mar the clean, even presentation. Lamina is connectible via integral push-in connectors (Part # S12X12-SSC). Installation is as easy as using one of three options: peel and stick 3M tape, staples or screws. Conforms to curvilinear shapes like round columns. Includes 48” lead wires and one sheet-to-sheet connector.
The GM Lighting 12x12 Inch 24VDC High Output Field Cuttable LED Flexible Light Sheet (Part # S12X12-HO-XX) is a versatile, high-performance lighting solution available in 2700K, 3000K, 3500K, and 4000K color temperatures. It delivers a standard output of 10W per square foot with 1,000 lumens per square foot, featuring a high 90 CRI for exceptional color rendering. The sheet is dimmable via Triac and is rated for damp locations, making it suitable for a wide range of interior applications, though it is not intended for outdoor use.

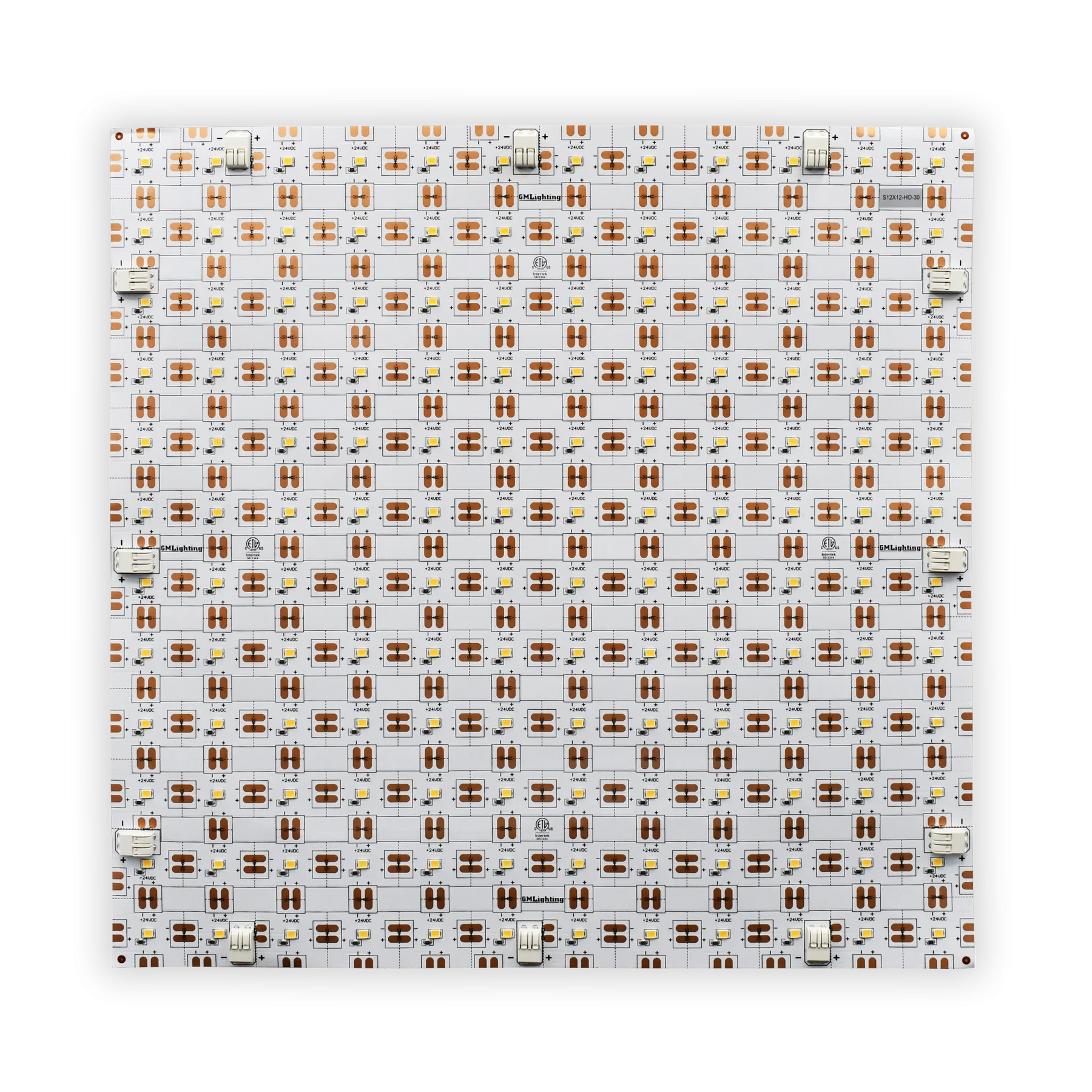

With 144 LEDs per square foot at 1-inch spacing and a slim 1/8-inch depth, it offers a low-profile, even illumination across its surface. Connectors are positioned every 4 inches around the perimeter for easy field cutting and flexible installation. An optional Invisible Stand-Off support raises translucent diffusion panels 0.91 to 2.0 inches above the Lamina for even illumination with translucent panels — designed for horizontal surface use only. The unit is ETL certified and closet rated, backed by a 5-year warranty.
